TOYOTA MATRIX 2009 E140 / 2.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

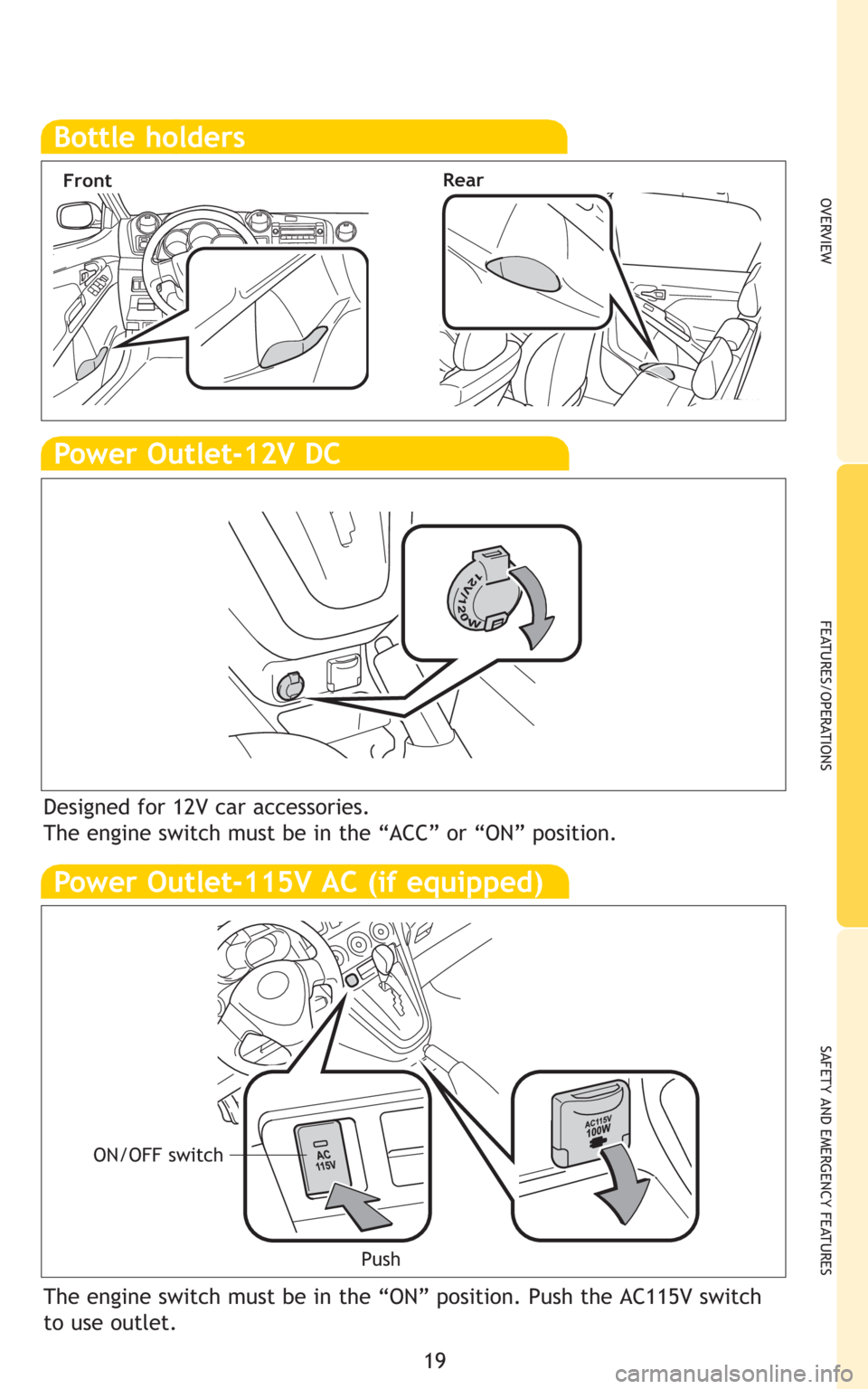

Power Outlet-12V DC
Power Outlet-115V AC (if equipped)
Designed for 12V car accessories.
The engine switch must be in the “ACC” or “ON” position.
The engine switch must be in the “ON” position. Push the AC115V switch
to use outlet.
ON/OFF switch
Push
Bottle holders
FrontRear

20
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
Tire Pressure Warning System
If tire pressure becomes critically low on any of the tires, indicator comes
on. Pushing “ SET” button should not turn off the light. Correctly
adjusting tire inflation will turn off the light after a few minutes. After
replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor more details.
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt anchor
SAFETY AND
EMERGENCY FEATURES
