audio TOYOTA MATRIX 2009 E140 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 16Audio 14-15Auto lock functions28Automatic Transmission 8Auxiliary storage 17Bottle holders 19Clock 10Cruise control 17Cup holders 18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Seat belts 21Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Warning System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Matrix Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Engine switch
Cruise control1
VSC/TRAC OFF switch1
Auxiliary storage
Power outside rearview mirror control
Headlight, turn signal and front fog light
1controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seat belt reminder light
Engine immobilizer indicator
Emergency flasher button
Steering wheel controls

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Audio system2
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button
Tire Pressure Warning System reset
Tilt and telescopic steering control
Hood lock release lever
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”

14
FEATURES/OPERATIONS
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
Eject CD
Push to
turn
ON/OFF
Seek
station/
CD track
select
Station/CD
track scanMode Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down
folder and
radio
category
type
Push and
turn to
adjust tone
& balance
Load CD(s)Type 2 other functions
Type 1 functions

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

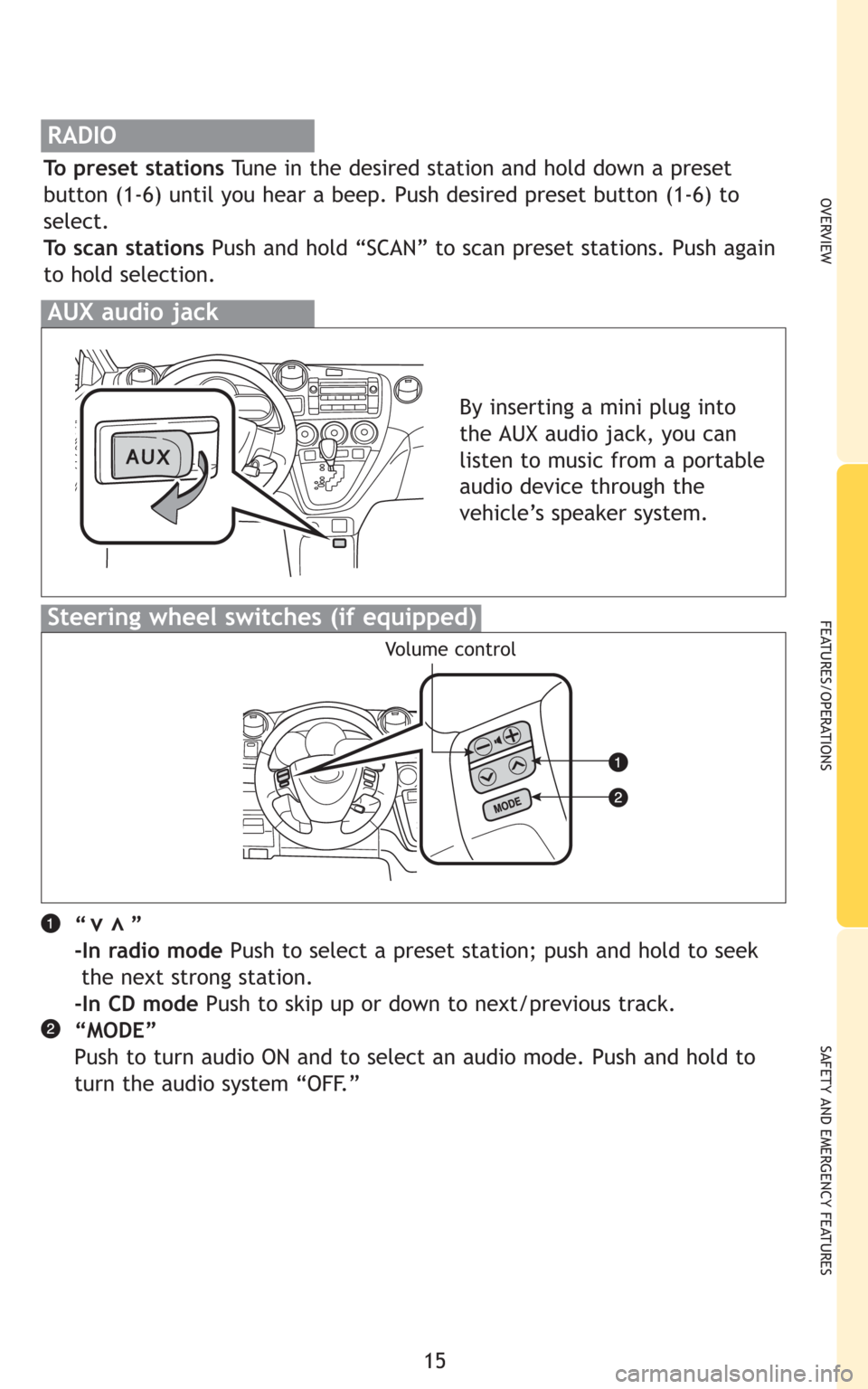

RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
“”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn the audio system “OFF.”
vv
AUX audio jack
Steering wheel switches (if equipped)
Volume control
By inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system.
