clock TOYOTA MATRIX 2009 E140 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 16Audio 14-15Auto lock functions28Automatic Transmission 8Auxiliary storage 17Bottle holders 19Clock 10Cruise control 17Cup holders 18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Seat belts 21Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Warning System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Matrix Quick Reference Guide

10

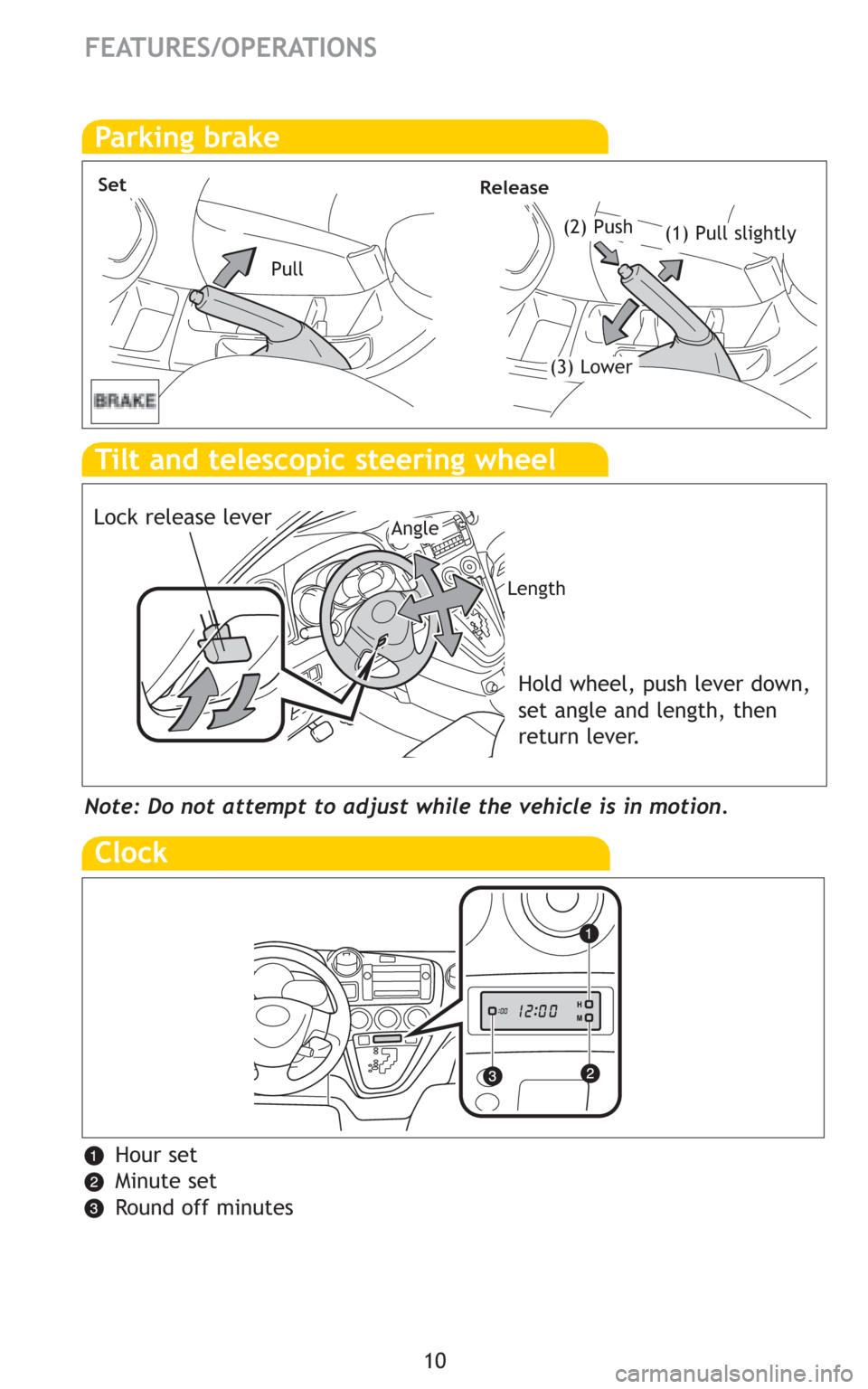

FEATURES/OPERATIONS
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release leverAngle
Length
Hold wheel, push lever down,
set angle and length, then
return lever.
Clock
Hour set
Minute set
Round off minutes
