door lock TOYOTA MATRIX 2009 E140 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 16Audio 14-15Auto lock functions28Automatic Transmission 8Auxiliary storage 17Bottle holders 19Clock 10Cruise control 17Cup holders 18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Seat belts 21Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Warning System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Matrix Quick Reference Guide

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Indicator symbols
Charging system warning1
Brake system warning1
“AIR BAG ON” and “AIR BAG OFF” indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
Active torque control 4WD system warning1
Low engine oil pressure warning1
“VSC OFF” indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

6
OVERVIEW
Keyless entry (if equipped)
PushPush ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not
tightened enough, Check Engine
“ ” indicator may illuminate.
Pull
Tu r n
Store

8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be ON, and the brake pedal depressed to shift
from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
3
2L
Standard typeMulti-mode type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
“S”“D”
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in three different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors unlock when shifting into “Park.”
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manualfor more details.

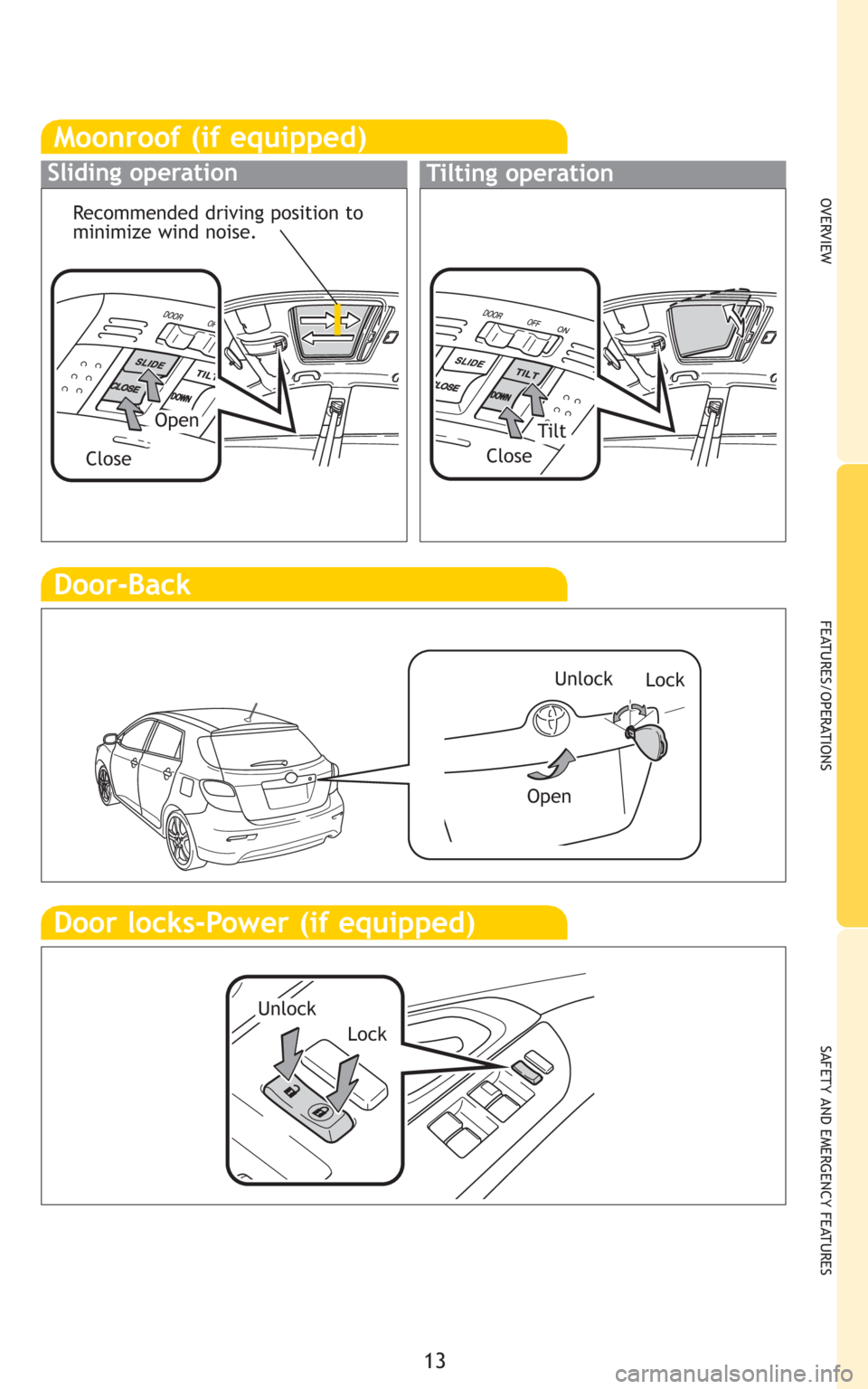

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Door-Back
Lock Unlock
Open
Moonroof (if equipped)
Sliding operationTilting operation
OpenTilt
CloseClose
Recommended driving position to
minimize wind noise.
Door locks-Power (if equipped)
Lock
Unlock

20
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
Tire Pressure Warning System
If tire pressure becomes critically low on any of the tires, indicator comes
on. Pushing “ SET” button should not turn off the light. Correctly
adjusting tire inflation will turn off the light after a few minutes. After
replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor more details.
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt anchor
SAFETY AND
EMERGENCY FEATURES
