window TOYOTA MATRIX 2009 E140 / 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 16Audio 14-15Auto lock functions28Automatic Transmission 8Auxiliary storage 17Bottle holders 19Clock 10Cruise control 17Cup holders 18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Seat belts 21Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Warning System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Matrix Quick Reference Guide

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Audio system2
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button
Tire Pressure Warning System reset
Tilt and telescopic steering control
Hood lock release lever
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”

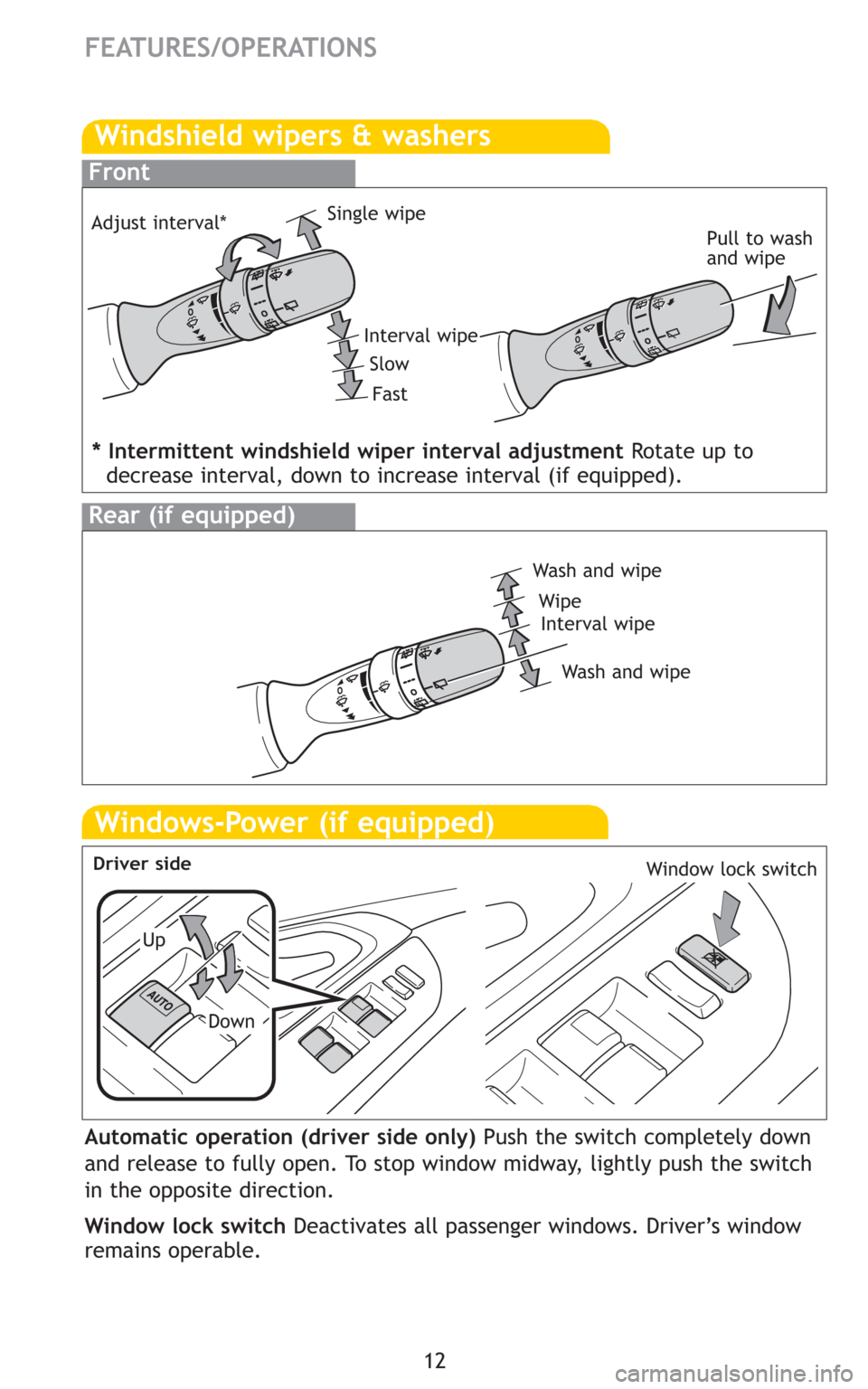

12
FEATURES/OPERATIONS
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down
and release to fully open. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Windshield wipers & washers
Front
Interval wipe Single wipe
Slow
Fast
Pull to wash
and wipe
Rear (if equipped)
Interval wipe Wash and wipe
Wipe
Wash and wipe Adjust interval*
* Intermittent windshield wiper interval adjustmentRotate up to
decrease interval, down to increase interval (if equipped).

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
Fan speed
Temperature
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in
this mode.
Outside rearview mirror/Rear window defogger
Fresh or recirculated cabin airIn “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Light control-Instrument panel
Brightness
control
-
+
