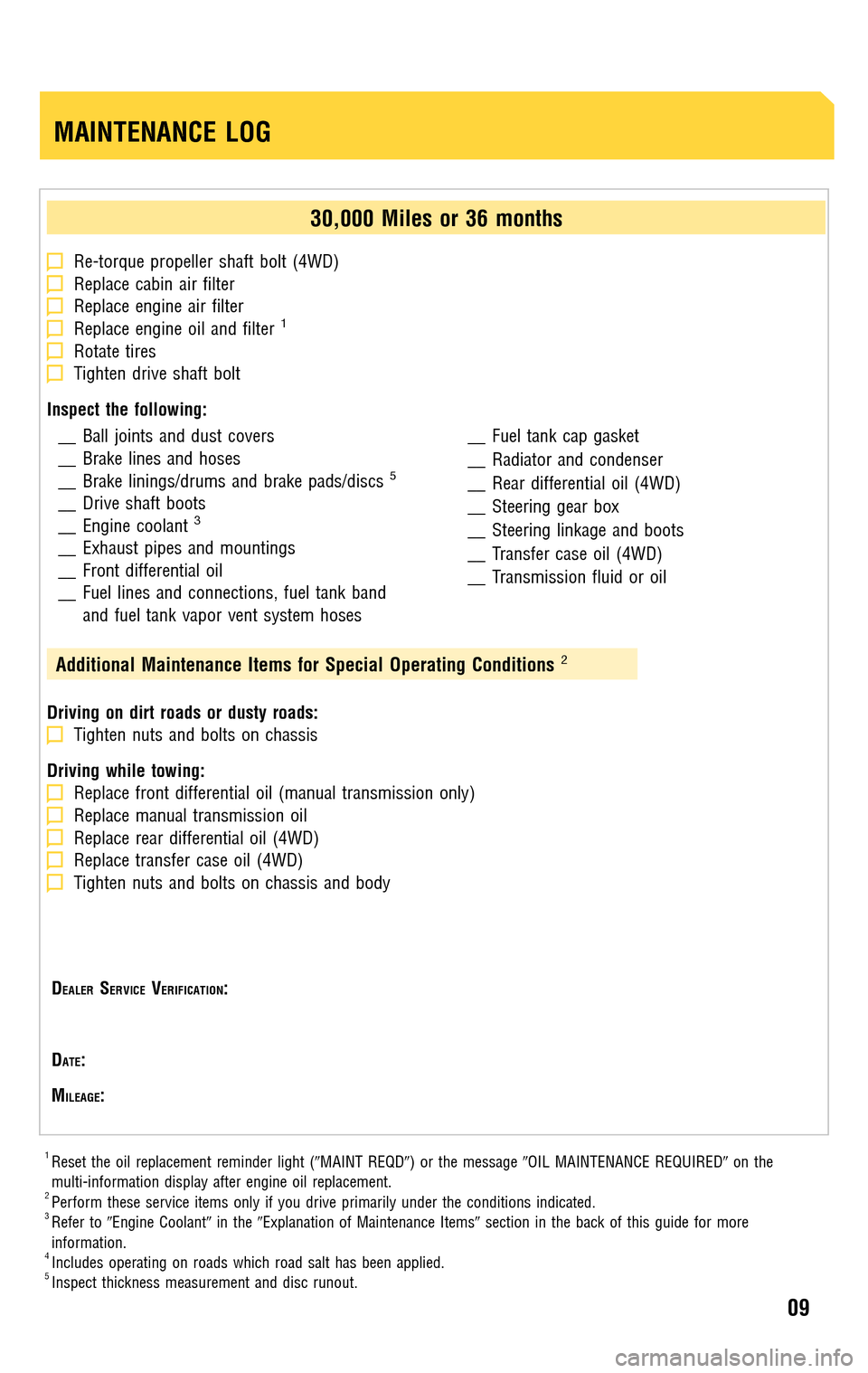

TOYOTA MATRIX 2009 E140 / 2.G Scheduled Maintenance Guide 30,000 Miles or 36 months
Re-torque propeller shaft bolt (4WD)Replace cabin air filterReplace engine air filterReplace engine oil and filter1
Rotate tiresTighten drive shaft bolt
Inspect the followin

Page 15 of 28

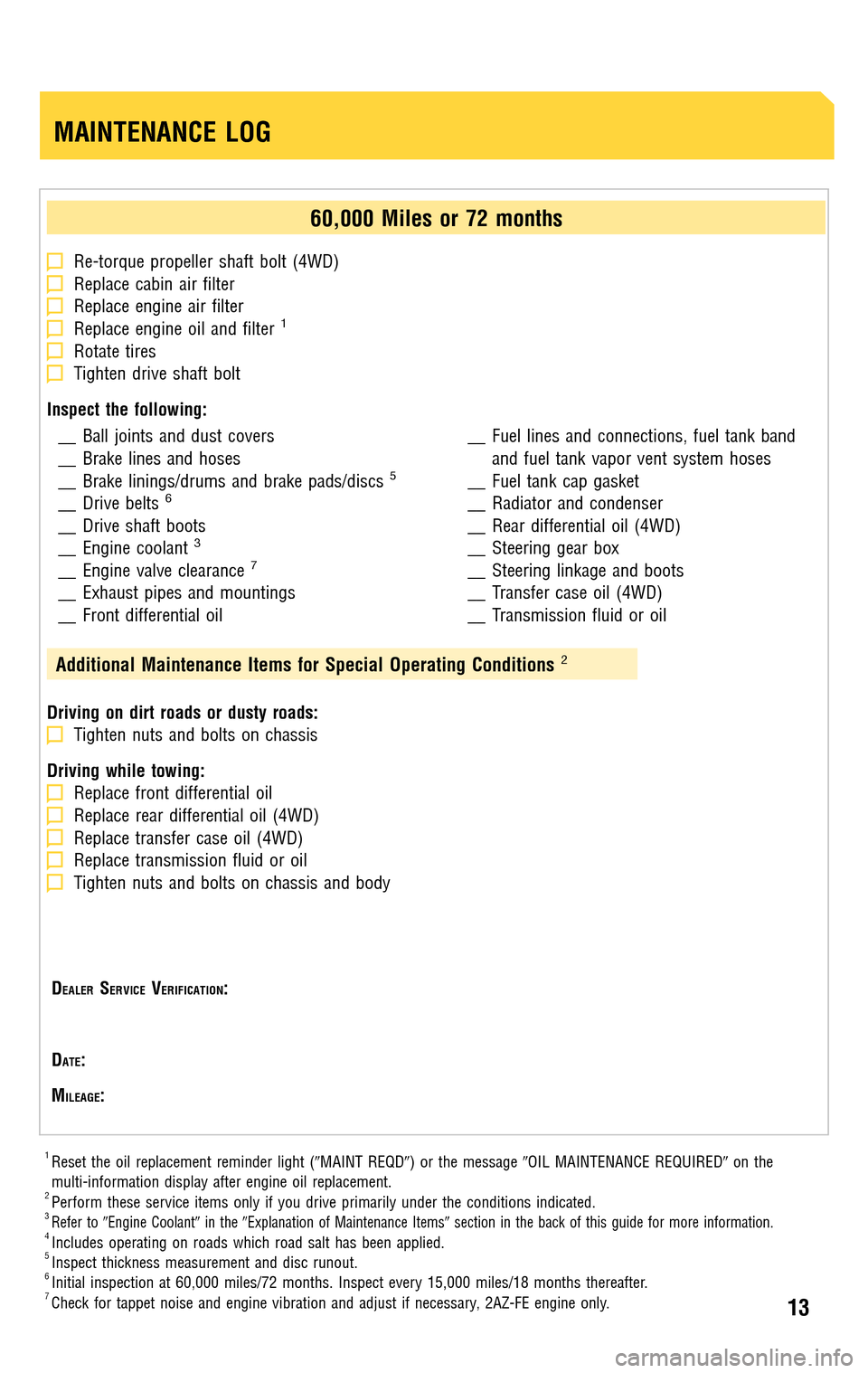

TOYOTA MATRIX 2009 E140 / 2.G Scheduled Maintenance Guide 60,000 Miles or 72 months
Re-torque propeller shaft bolt (4WD)Replace cabin air filterReplace engine air filterReplace engine oil and filter1
Rotate tiresTighten drive shaft bolt
Inspect the followin

Page 19 of 28

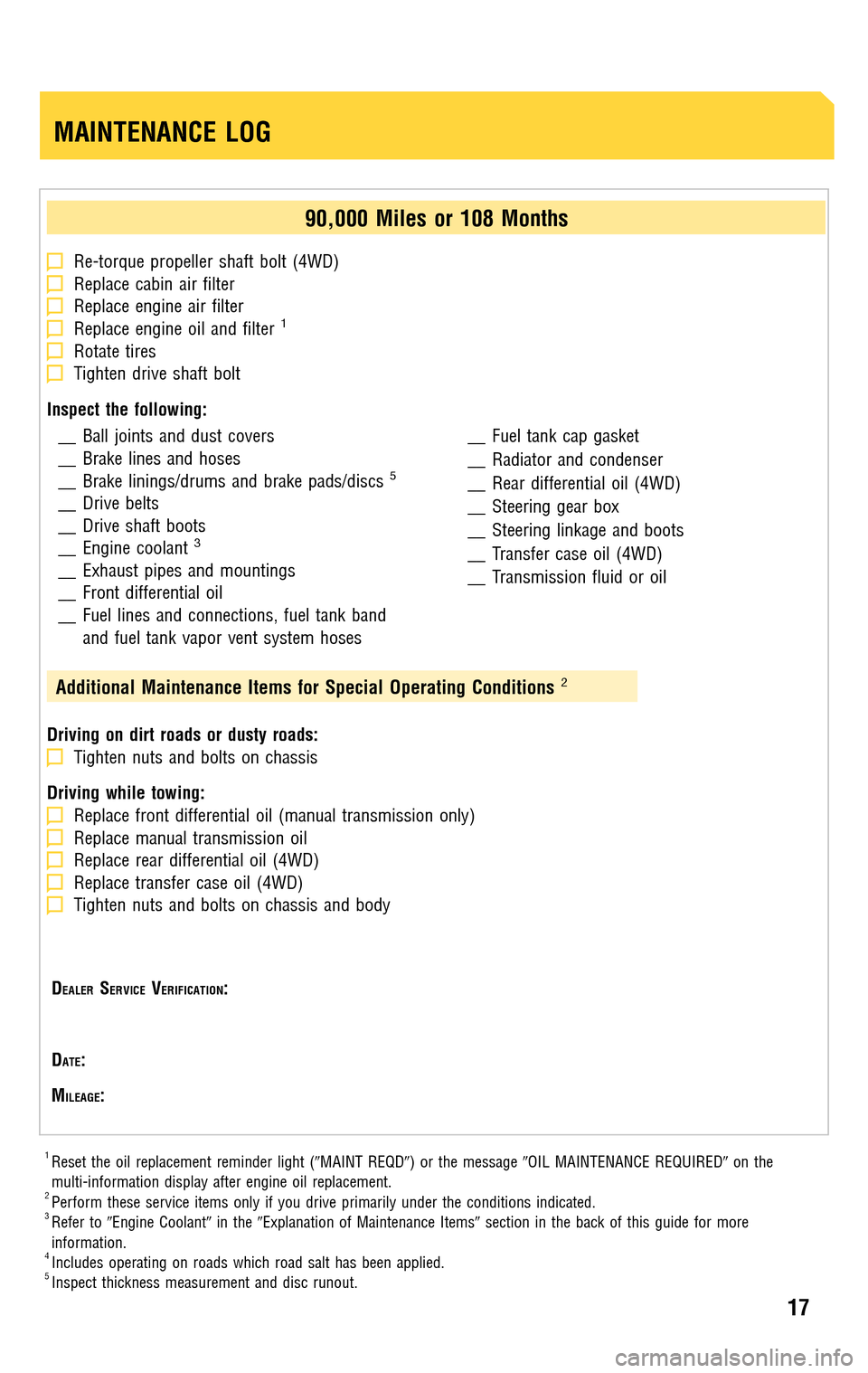

TOYOTA MATRIX 2009 E140 / 2.G Scheduled Maintenance Guide 90,000 Miles or 108 Months
Re-torque propeller shaft bolt (4WD)Replace cabin air filterReplace engine air filterReplace engine oil and filter1
Rotate tiresTighten drive shaft bolt
Inspect the followi

Page 23 of 28

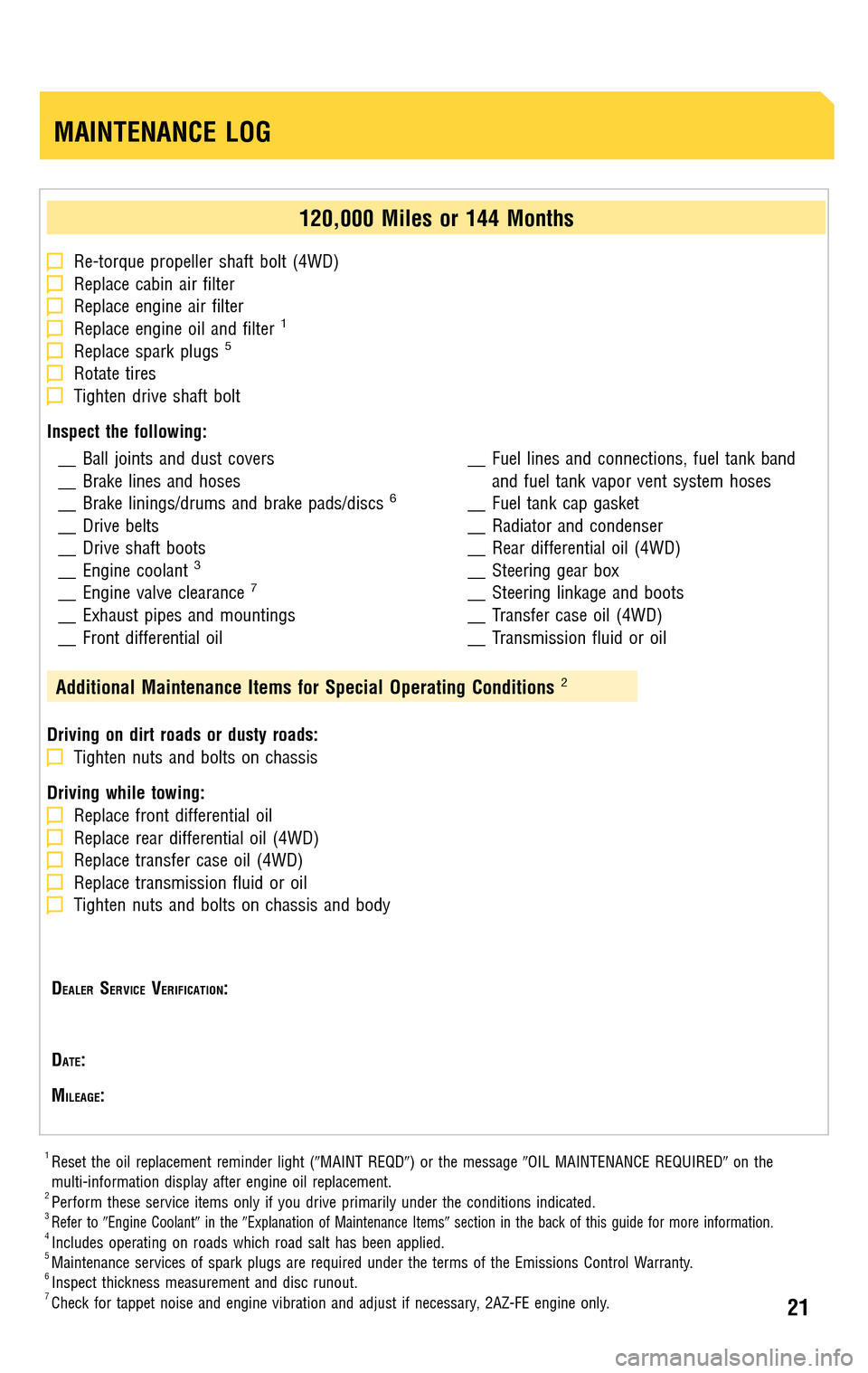

TOYOTA MATRIX 2009 E140 / 2.G Scheduled Maintenance Guide 120,000 Miles or 144 Months
Re-torque propeller shaft bolt (4WD)Replace cabin air filterReplace engine air filterReplace engine oil and filter1
Replace spark plugs5
Rotate tiresTighten drive shaft bol

Page 25 of 28

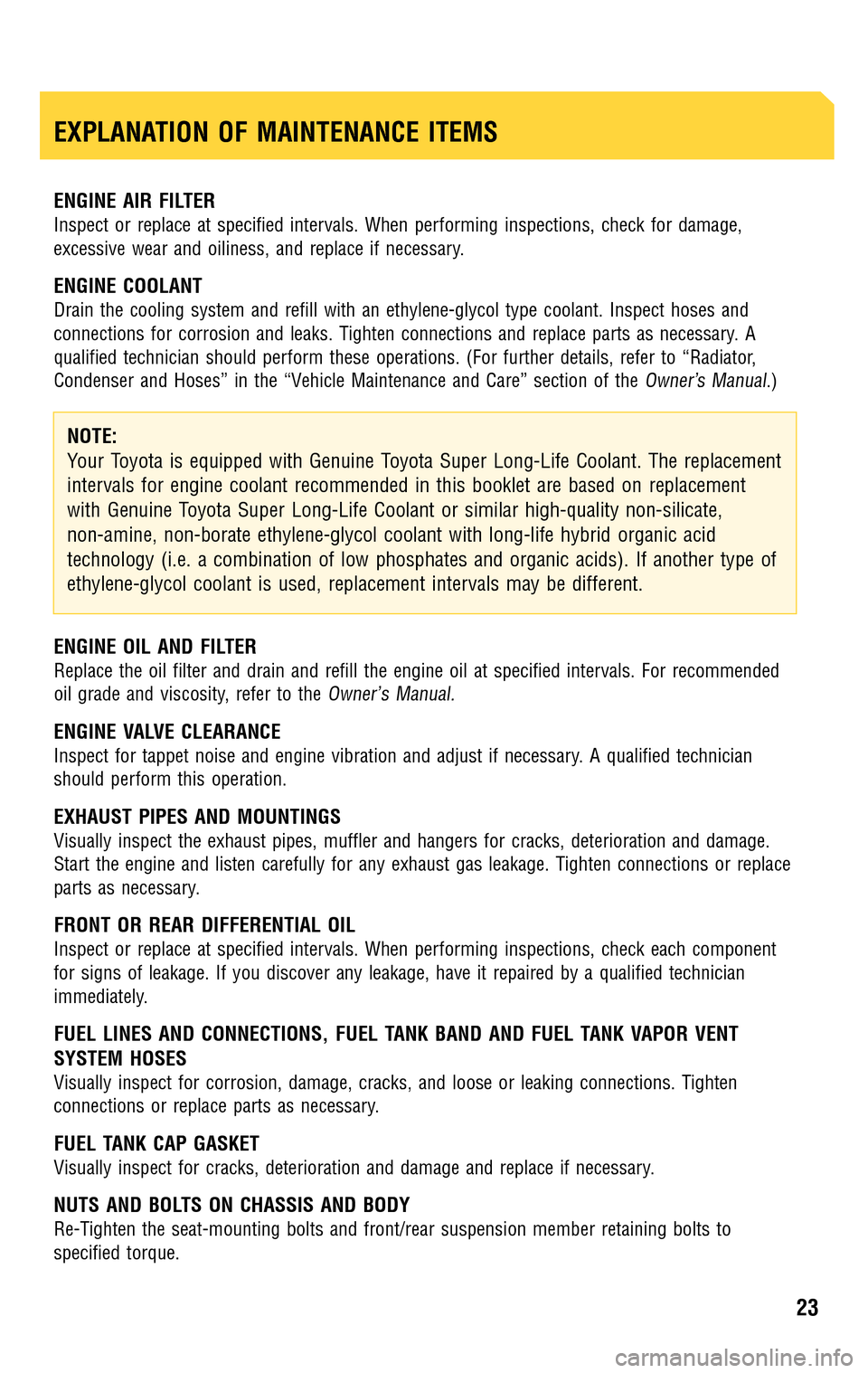

TOYOTA MATRIX 2009 E140 / 2.G Scheduled Maintenance Guide ENGINE AIR FILTER
Inspect or replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
ENGINE COOLANT
Drain the cooling sys

ENGINE AIR FILTER
Inspect or replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
ENGINE COOLANT
Drain the cooling system and refill with an ethylene-glycol type coolant. Inspect hoses and
connections for corrosion and leaks. Tighten connections and replace parts as necessary. A
qualified technician should perform these operations. (For further details, refer to “Radiator,
Condenser and Hoses” in the “Vehicle Maintenance and Care” section of the
Owner’s Manual.)
NOTE:
Your Toyota is equipped with Genuine Toyota Super Long-Life Coolant. The replacement
intervals for engine coolant recommended in this booklet are based on replacement
with Genuine Toyota Super Long-Life Coolant or similar high-quality non-silicate,
non-amine, non-borate ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e. a combination of low phosphates and organic acids). If another type of
ethylene-glycol coolant is used, replacement intervals may be different.
ENGINE OIL AND FILTER
Replace the oil filter and drain and refill the engine oil at specified intervals. For recommended
oil grade and viscosity, refer to the
Owner’s Manual.
ENGINE VALVE CLEARANCE
Inspect for tappet noise and engine vibration and adjust if necessary. A qualified technician
should perform this operation.
EXHAUST PIPES AND MOUNTINGS
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration and damage.
Start the engine and listen carefully for any exhaust gas leakage. Tighten connections or replace
parts as necessary.
FRONT OR REAR DIFFERENTIAL OIL
Inspect or replace at specified intervals. When performing inspections, check each component
for signs of leakage. If you discover any leakage, have it repaired by a qualified technician
immediately.
FUEL LINES AND CONNECTIONS, FUEL TANK BAND AND FUEL TANK VAPOR VENT
SYSTEM HOSES
Visually inspect for corrosion, damage, cracks, and loose or leaking connections. Tighten
connections or replace parts as necessary.
FUEL TANK CAP GASKET
Visually inspect for cracks, deterioration and damage and replace if necessary.
NUTS AND BOLTS ON CHASSIS AND BODY
Re-Tighten the seat-mounting bolts and front/rear suspension member retaining bolts to
specified torque.
EXPLANATION OF MAINTENANCE ITEMS
