window TOYOTA MATRIX 2009 E140 / 2.G Scheduled Maintenance Guide

15,000 Miles or 18 months
Re-torque propeller shaft bolt (4WD)Replace engine oil and filter1
Rotate tiresTighten drive shaft boltVisually inspect brake linings/drums and brake pads/discs
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings __ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
NOTE:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis
Driving while towing:
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
07
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Includes operating on roads which road salt has been applied.

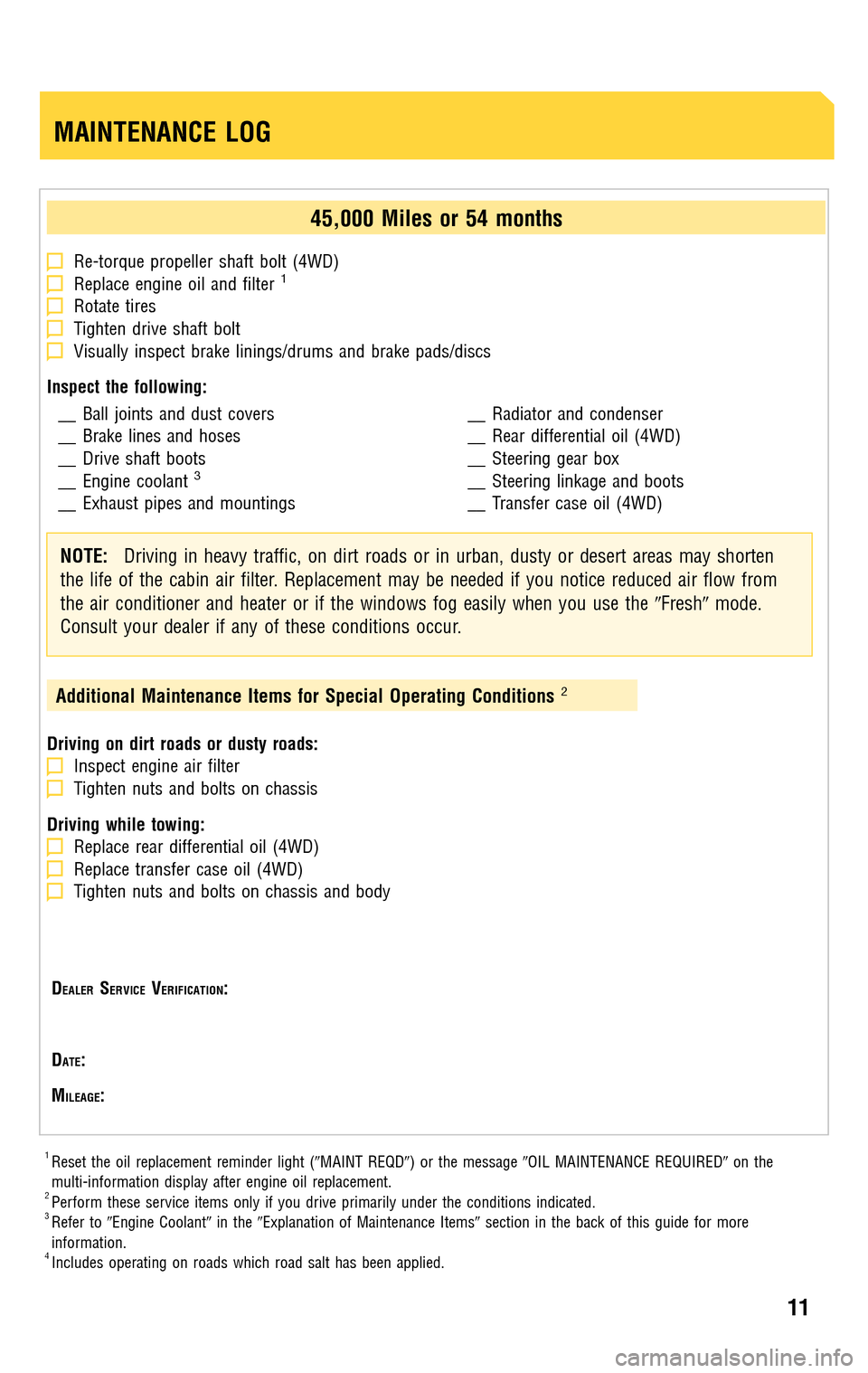

45,000 Miles or 54 months
Re-torque propeller shaft bolt (4WD)Replace engine oil and filter1
Rotate tiresTighten drive shaft boltVisually inspect brake linings/drums and brake pads/discs
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings __ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
NOTE:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis
Driving while towing:
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
11
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Includes operating on roads which road salt has been applied.

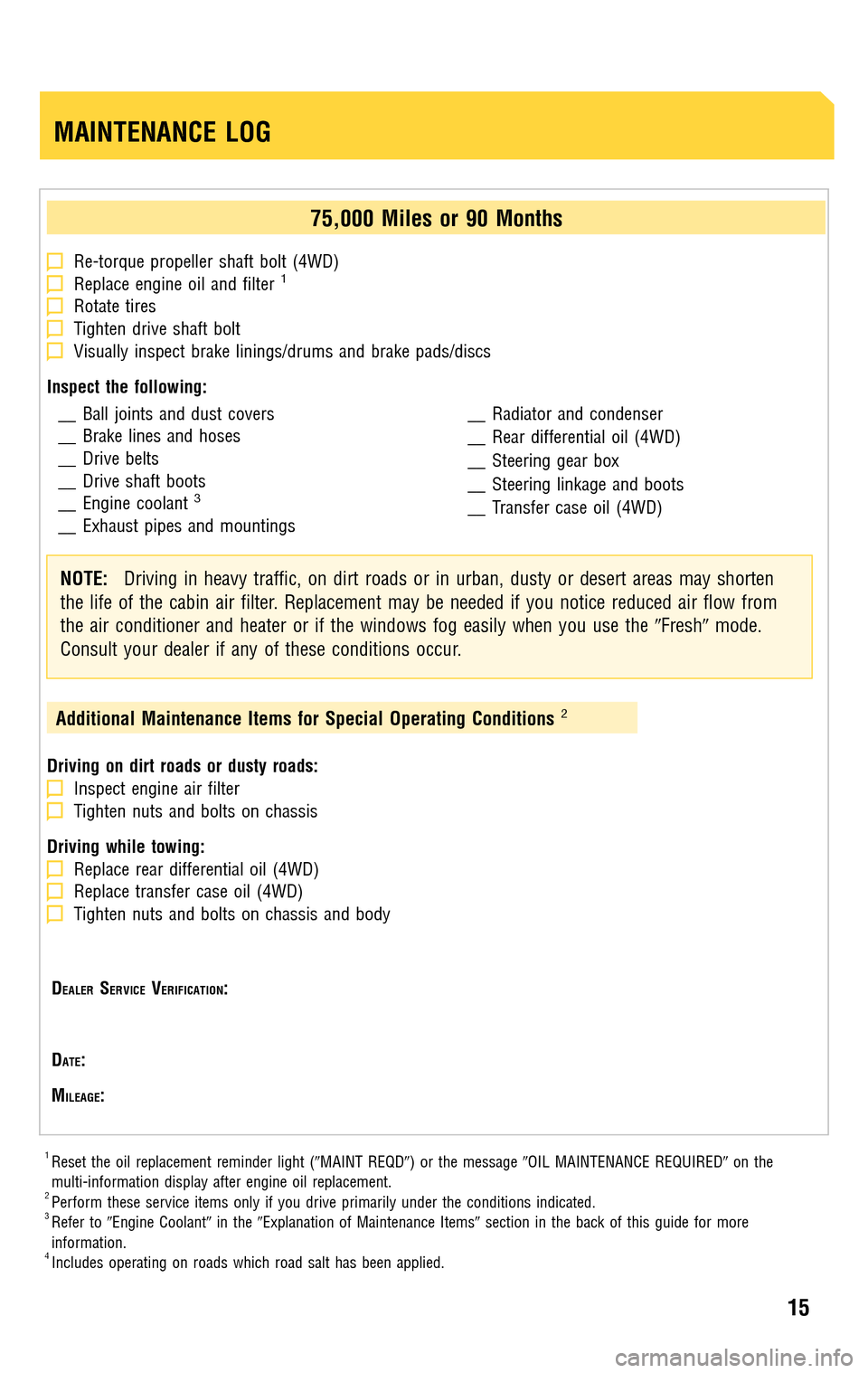

75,000 Miles or 90 Months
Re-torque propeller shaft bolt (4WD)Replace engine oil and filter1
Rotate tiresTighten drive shaft boltVisually inspect brake linings/drums and brake pads/discs
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings __ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
NOTE:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis
Driving while towing:
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
15
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Includes operating on roads which road salt has been applied.

105,000 Miles or 126 Months
Re-torque propeller shaft bolt (4WD)Replace engine oil and filter1
Rotate tiresTighten drive shaft boltVisually inspect brake linings/drums and brake pads/discs
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings __ Radiator and condenser
__ Rear differential oil (4WD)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD)
NOTE:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis
Driving while towing:
Replace rear differential oil (4WD)Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
19
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Includes operating on roads which road salt has been applied.5Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to Engine
Coolant  in theExplanation of Maintenance Items section in the back of this guide for more information.
