display TOYOTA MATRIX 2010 E140 / 2.G Navigation Manual

AUDIO SYSTEM
168
“RAND”: Use it for automatic and random
selection of the folder or the disc which you
are currently listening to.
Playing the files in one folder in random
order —
While the disc is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The sys-
tem selects a file in the folder you are cur-
rently listening to. To cancel it, touch
“RAND” once again.
Playing the files in all the folders on one
disc in random order —
While the disc is playing, touch
“RAND” and hold it until the
“FLD·RAND” appears on the screen.
The system selects a file in all the folders.
To cancel it, touch the button once again.
When a file is skipped or the system is in-
operative, touch “RAND” to reset. (f) If the player malfunctions
If the player or another unit equipped with
the player malfunctions, your audio sys-
tem will display following messages.
If “No CD” appears on the display:
It in-
dicates that there is no disc in the CD play-
er.
If “CD Check” appears on the display:
It indicates that the disc dirty, damaged, or
it was inserted upside down. Clean the
disc or insert it correctly. If a disc which is
not playable is inserted, “CD Check” will
also appear on the screen. For appropri-
ate discs for this player, see “Audio system
operating hints” on page 170.
If “CD Error” appears on the display:
The following causes are possible.
There is a trouble inside the system.
Eject the disc.
The inside of the player unit may be too
hot due to the very high ambient tem-
perature. Eject the disc and allow the
player to cool down.
If “NO MUSIC FILE” appears on the dis-
play: It indicates that the disc has no play-
able data.
If the malfunction is not rectified: Take
your vehicle to your dealer.
If an MP3/WMA disc contains CD −DA
files, only CD−DA files are played. If an
MP3/WMA disc contains files other than
CD−DA, only MP3/WMA files are played.

AUDIO SYSTEM
171
MP3/WMA files
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio
compression standards.
The MP3/WMA player can play MP3
and WMA files on CD−ROM, CD−R
and CD −RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file, add
the appropriate file extension (.mp3 or
.wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
The player can play only the first ses-
sion using multi −session compatible
CDs.
MP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and Ver.
2.3 formats. The unit cannot display
disc title, track title and artist name in
other formats.
WMA files can contain a WMA tag that
is used in the same way as an ID3 tag.
WMA tags carry information such as
track title, artist name.
The emphasis function is available
only when playing MP3/WMA files re-
corded at 32, 44.1 and 48 kHz. (The
system can play MP3 files with sam-
pling frequencies of 16, 22.05, and 24
kHz. However, the emphasis function
is not available for files recorded at
these frequencies.)
The sound quality of MP3/WMA files
generally improves with higher bit rate-
s. In order to achieve a reasonable lev-
el of sound quality, discs recorded with
a bit rate of at least 128 kbps are rec-
ommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160 kbps
WMA files:
Ver. 7, 8 CBR—48 to 192 kbps
Ver. 9 CBR—48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs re-
corder using packet write data transfer
(UDF format). Discs should be re-
corded using “pre −mastering” software
rather than packet− write software.
The m3u playlists are not compatible
with the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast−forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 levels
deep can be played. However, the
start of playback may be delayed when
using discs containing numerous lev-
els of folders. For this reason, we rec-
ommend creating discs with no more
than two levels of folders.
It is possible to play up to 192 folders or
255 files on one disc.

APPENDIX
178
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate posi-
tion may not be shown depending on
the satellite condition, road configura-
tion, vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position, normally using 4 or
more satellites, and in some case 3 satel-
lites. The GPS system has a certain level
of inaccuracy. While the navigation sys-
tem will compensate for this most of the
time, occasional positioning errors of up to
300 feet (100 m) can and should be expec-
ted. Generally, position errors will be cor-
rected within a few seconds.
When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur in
some cases.
NOTICE
The installation of window tinting
may obstruct the GPS signals. Most
window tinting contains some metal-
lic content that will interfere with GPS
signal reception of the antenna in the
instrument panel. We advise against
the use of window tinting on vehicles
equipped with navigation systems.
Limitations of the
navigation system

APPENDIX
180
After replacing a tire, implement the op-
eration described in the “TIRE
CHANGE CALIBRATION”. (See page
120.)
This navigation system uses tire turning
data and is designed to work with factory −
specified tires for your vehicle. Installing
tires that are larger or smaller than the orig-
inally equipped diameter may cause inac-
curate display of the vehicle’s position.
The tire pressure also affects the diameter
of the tires so please make sure the tire
pressure of all four tires is correct. This system uses the maps of DENSO.
©
2008 DENSO CORPORATION
© 2007 NAVTEQ. All rights reserved.
© 2007 Tele Atlas North America, Inc.
All rights reserved. This material is
proprietary and the subject of copyright
protection and other intellectual prop-
erty rights owned by or licensed to Tele
Atlas North America, Inc. The use of
this material is subject to the terms of
a license agreement. You will be held
liable for any unauthorized copying or
disclosure of this material.
Data by infoUSA Copyright © 2007, All
Rights Reserved.
© 2007 VISA Corporation
Copyright © CoStar Realty Informa-
tion, Inc.
The Bullseye Design is a registered
trademark of Target Brands, Inc.
Map database information
and updates —

APPENDIX
188
Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION, IR-
RESPECTIVE OF ITS NATURE, AL-
LEGING ANY LOSS, INJURY OR
DAMAGES, WHETHER DIRECT, IN-
DIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, IN-
CLUDING ANY LOSS OF PROFIT,
REVENUE OR CONTRACTS ARIS-
ING OUT OF YOUR POSSESSION,
USE OF OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN
THE INFORMATION, OR THE
BREACH OF THESE TERMS OR
CONDITIONS, WHETHER IN AN AC-
TION IN CONTRACT OR TORT OR
BASED ON A WARRANTY, EVEN IF
DENSO OR ITS LICENSORS HAVE
BEEN ADVISED OF THE POSSIBIL-
ITY OF SUCH DAMAGES. Some
states, territories and countries do not
allow certain liability exclusions or
damages limitations, so to that extent
the above may not apply to you.
Indemnity. You agree to indemnify, de-
fend and hold DENSO and its licensors
(including their respective licensors,
suppliers, assignees, subsidiaries, af-
filiated companies, and the respective
officers, directors, employees, share-
holders, agents and representatives of
each of them) free and harmless from
and against any liability, loss, injury (in-
cluding injuries resulting in death), de-
mand, action, cost, expense, or claim
of any kind or character, including but
not limited to attorney’s fees, arising
out of or in connection with any use or
possession by you of this information.
END USER NOTICE
The marks of companies displayed by
this product to indicate business loca-
tions are the marks of their respective
owners. The use of such marks in this
product does not imply any sponsor-
ship, approval, or endorsement by
such companies of this product. There are two types of areas available
for route guidance. In one type of area,
primarily around metropolitan centers,
detailed route guidance is available for
the entire area. In the other type of area,
all roads are displayed on the map but
route guidance is limited. The naviga-
tion
route might lack precision because
the data (no right turns, oneway traf-
fic, etc.) is not complete. It is still pos-
sible to reach the destination by follow-
ing the arrow direction and distance as
shown on the bottom left of the screen.
The arrow points in the direction of the
destination. The distance shown is as
measured in a straight line from the cur-
rent vehicle position to the destination
area.
In order to provide you with as accurate
map information as possible, we are al-
ways gathering information such as on
road repairs and carrying out on−site in-
vestigations. However, the names of
roads, streets, facilities, and their locations
frequently change. In some places,
construction on roads may be in prog ress.
For that reason, information on some
areas in this system might be dif ferent from
the actual location.
The map database is normally updated
once a year. Contact your Toyota dealer
for information about the availability and
pricing of an update.

APPENDIX
189

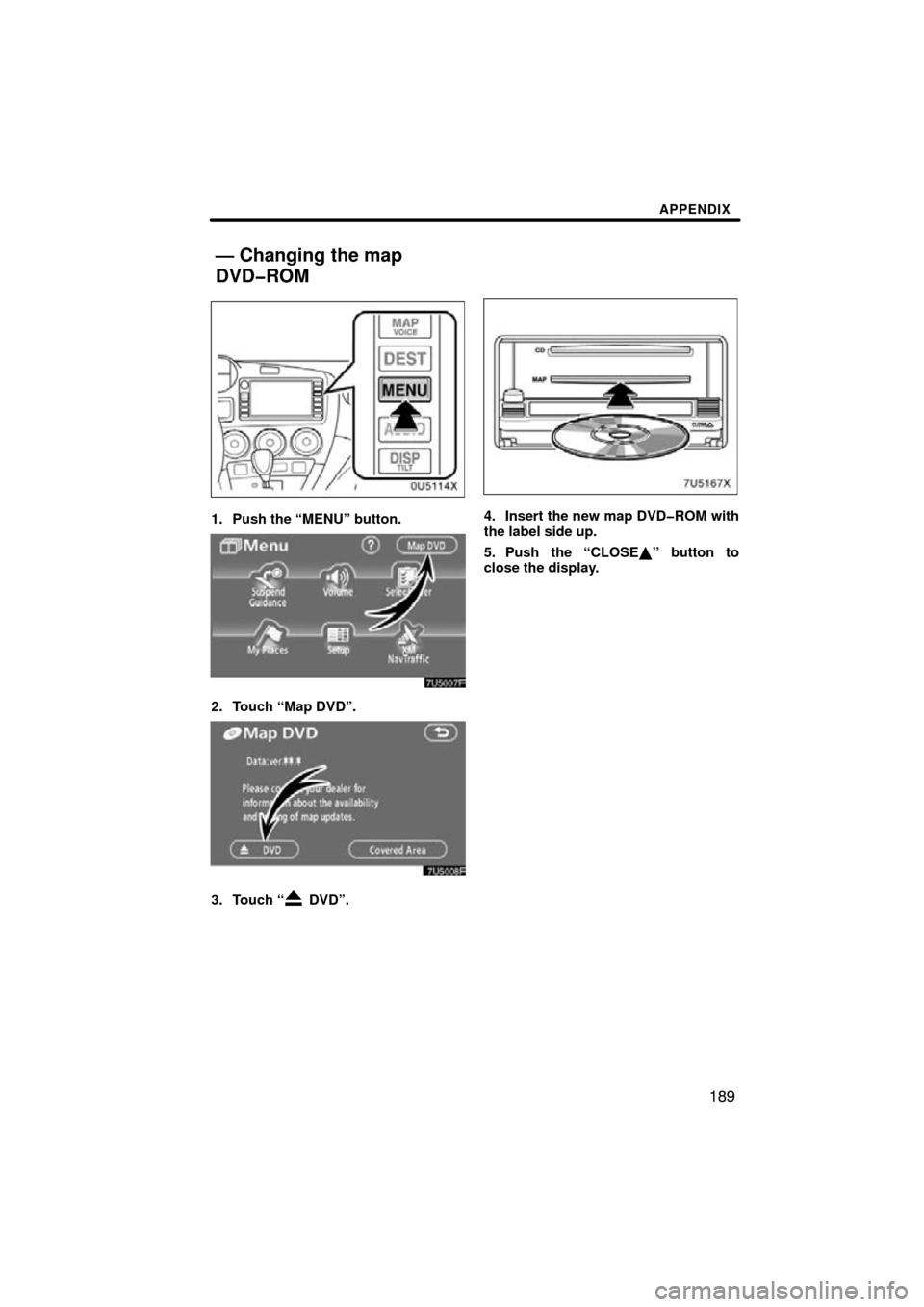

1. Push the “MENU” button.
2. Touch “Map DVD”.
3. Touch “ DVD”.
4. Insert the new map DVDROM with
the label side up.
5. Push the “CLOSE” button to
close the display.
— Changing the map
DVDROM

APPENDIX
190
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
the case of an accident or sudden
stopping while driving, keep the
display closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your
navigation system.
If a disc cannot be ejected, do not
forcibly take out the disc. Keep
pushing the “ ” button for
approximately 5 seconds and re-
lease it. At this time, the audio disc
and the map DVDROM will be
ejected.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
To confirm the database version
and disc coverage area
1. Push the “MENU” button.
2. Touch “Map DVD”.
Make sure the version of the database on
this screen.
To display the disc coverage area, touch
“Covered Area”. Confirm the covered
area on the screen.
Contact your Toyota dealer to find out if
there is a more recent update released.

INDEX
192
Numbers/Symbols
? button
42,90,91
. . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 67 . . . . . . . . . . . . . . . . . .
A
Adding a memo 134. . . . . . . . . . . . . . . . . . . .
Adding destinations 76
. . . . . . . . . . . . . . . . .
Address button 42
. . . . . . . . . . . . . . . . . . . . .
Alphabet key 26
. . . . . . . . . . . . . . . . . . . . . . .
AM·SAT button 144
. . . . . . . . . . . . . . . . . . . .
Area to avoid 105
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 34,72
. . . . . . . . . . . . . . . . . . . . .
AUDIO button 144
. . . . . . . . . . . . . . . . . . . . .
Audio remote controls 169
. . . . . . . . . . . . . .
Auto avoid traffic 120,123
. . . . . . . . . . . . . . . .
Auto voice guidance 91,117
. . . . . . . . . . . . . .
Automatic transition 139
. . . . . . . . . . . . . . . .
AUX adapter 149
. . . . . . . . . . . . . . . . . . . . . .
B
BASS 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting 141
. . . . . . . . . . . . . . . . . . . . . .
Brightness 137
. . . . . . . . . . . . . . . . . . . . . . . .
Building information 38
. . . . . . . . . . . . . . . . .
C
Calendar with memo 132
. . . . . . . . . . . . . . .
Calibration 91
. . . . . . . . . . . . . . . . . . . . . . . . .
Categories 54
. . . . . . . . . . . . . . . . . . . . . . . . .
CAUTION screen 23
. . . . . . . . . . . . . . . . . . .
CD player operation 158
. . . . . . . . . . . . . . . .
Change “Area Size” 109
. . . . . . . . . . . . . . . .
Change “Icon” 99
. . . . . . . . . . . . . . . . . . . . . .
Change “Location” 102,108
. . . . . . . . . . . . . .
Change “Name” 101,107
. . . . . . . . . . . . . . . .
Change “Phone #” 103
. . . . . . . . . . . . . . . . .
Change “Quick Access” 100
. . . . . . . . . . . . .
Change button 42
. . . . . . . . . . . . . . . . . . . . .
Change the route 66
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 189 . . . . . . .
City center 55
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 49,53
. . . . . . . . . . . . . . . . . . . . . . .
City to search 49,52
. . . . . . . . . . . . . . . . . . . .
Compass mode 36
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 34
. . . . . . . . . . . . . .
Contrast 137
. . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 42
. . . . . . . . . . . . . . . . . .
Current position as the search
point 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Current
position display 30
. . . . . . . . . . . . . .
Current position/tire change
calibration 118
. . . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 31 . . . . . . .
Cursor position as a memory point 31 . . . .
D
Database version 190
. . . . . . . . . . . . . . . . . .
Dealer setting 130
. . . . . . . . . . . . . . . . . . . . .
Default 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Del. Dest. button 42
. . . . . . . . . . . . . . . . . . . .
Delete personal data 140
. . . . . . . . . . . . . . .
Deleting “Quick Access” 101
. . . . . . . . . . . .
Deleting area to avoid 109
. . . . . . . . . . . . . .
Deleting destinations 77
. . . . . . . . . . . . . . . .
Deleting home 105
. . . . . . . . . . . . . . . . . . . . .
Deleting memory points 103
. . . . . . . . . . . . .
Deleting previous points 60,110
. . . . . . . . . .
Deleting set destinations 64
. . . . . . . . . . . . .
DEST button 10,42,43
. . . . . . . . . . . . . . . . . .
Destination information 34
. . . . . . . . . . . . . .
Destination screen 42
. . . . . . . . . . . . . . . . . .
Destination search 43
. . . . . . . . . . . . . . . . . .
Destination search by “Address” 47. . . . . .
Destination search by
“Coordinates” 63
. . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 59
. . . . . . . . . . . . . . . . . . . . .
Destination search by
“Freeway Ent./Exit” 62
. . . . . . . . . . . . . . .
Destination search by “Intersection” 61
. . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 61
. . . . . . . . . .
Destination search by “Memory” 59. . . . . .
Destination search by “Phone #” 58 . . . . . .
Destination search by “POI” 51
. . . . . . . . . .
Destination search by “Previous” 60. . . . . .
Destination search by home 46
. . . . . . . . . .
Destination search by
quick access 46
. . . . . . . . . . . . . . . . . . . . .
Detour setting 79
. . . . . . . . . . . . . . . . . . . . . .
Disc coverage area 190
. . . . . . . . . . . . . . . .
DISC·AUX button 144
. . . . . . . . . . . . . . . . . .
DISP/TILT button 10,22,137
. . . . . . . . . . . . .
Display building shapes 91
. . . . . . . . . . . . . .
Display of building shape 115
. . . . . . . . . . . . .
Display operation 22
. . . . . . . . . . . . . . . . . . .
Display POI icons 82,91,114
. . . . . . . . . . . . .
Displaying the title and name
155
. . . . . . . .
Distance and time to destination 10,75
. . . .
Dual map 36
. . . . . . . . . . . . . . . . . . . . . . . . . .
Dual map screen 34
. . . . . . . . . . . . . . . . . . .

INDEX
193
E
Edit “Dealer” or “Contact”
131
. . . . . . . . . . .
Edit “Location” 131
. . . . . . . . . . . . . . . . . . . . .
Edit “Phone #” 132
. . . . . . . . . . . . . . . . . . . . .
Editing a memo 135
. . . . . . . . . . . . . . . . . . . .
Editing area to avoid 106
. . . . . . . . . . . . . . .
Editing memory points 98
. . . . . . . . . . . . . . .
Eject button 144
. . . . . . . . . . . . . . . . . . . . . . .
Ejecting disc 160
. . . . . . . . . . . . . . . . . . . . . .
Emergency button 42
. . . . . . . . . . . . . . . . . .
Estimated arrival time 75
. . . . . . . . . . . . . . .
Estimated travel time 75,91,111
. . . . . . . . . .
F
FILE button 165 . . . . . . . . . . . . . . . . . . . . . . .
FM button 144 . . . . . . . . . . . . . . . . . . . . . . . .
FOLDER LIST button 164
. . . . . . . . . . . . . . .
Foot print map 37 . . . . . . . . . . . . . . . . . . . . . .
Foot print map button 10
. . . . . . . . . . . . . . . .
Freeway Ent./Exit button 42
. . . . . . . . . . . . .
Freeway exit information screen 70 . . . . . . .
Freeway information screen 34
. . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . .
Function menu display screen 144 . . . . . . .
G
GPS 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS mark 10 . . . . . . . . . . . . . . . . . . . . . . . . .
Guidance screen for the freeway 71 . . . . . .
Guidance screen on the freeway 34 . . . . . .
Guiding the route 16
. . . . . . . . . . . . . . . . . . .
H
Heading −up 10
. . . . . . . . . . . . . . . . . . . . . . . .
Heading −up symbol 39
. . . . . . . . . . . . . . . . .
Help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Home 12,104
. . . . . . . . . . . . . . . . . . . . . . . . . .
Home touch− screen button 42
. . . . . . . . . . .
House number 47
. . . . . . . . . . . . . . . . . . . . .
I
If the player malfunctions 168
. . . . . . . . . . .
INFO button 10
. . . . . . . . . . . . . . . . . . . . . . . .
Information about the icon 32
. . . . . . . . . . . .
Information items 129
. . . . . . . . . . . . . . . . . . Initial screen
23
. . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers 26
. . . . . . . . .
Inserting disc 158
. . . . . . . . . . . . . . . . . . . . . .
Intersection button 42
. . . . . . . . . . . . . . . . . .
Intersection guidance screen 34,71
. . . . . . .
K
Key layout 112
. . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard layout 91
. . . . . . . . . . . . . . . . . . . .
L
Last 5 cities 50,54
. . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation
system 178
. . . . . . . . . . . . . . . . . . . . . . . . .
List 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List all categories button 54,57
. . . . . . . . . . .
Listening to satellite radio 152
. . . . . . . . . . .
Listening to the radio 149
. . . . . . . . . . . . . . .
Local POI list 83
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance information 24,128
. . . . . . . . . .
Maintenance information setting 128 . . . . . .
Map button 42
. . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 180
. . . . . . . . . . . . . . . . . . . . . . . .
Map DVD button 90
. . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 30
. . . . . . . . . . . . . . .
Map view 82
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map View button 10
. . . . . . . . . . . . . . . . . . . .
MAP/VOICE button 10,30
. . . . . . . . . . . . . . .
Mark button 10
. . . . . . . . . . . . . . . . . . . . . . . .
Memo in formation 25
. . . . . . . . . . . . . . . . . . .
Memo list 135
. . . . . . . . . . . . . . . . . . . . . . . . .
Memory button 42
. . . . . . . . . . . . . . . . . . . . .
Memory point information 33
. . . . . . . . . . . .
Memory point names 102
. . . . . . . . . . . . . . .
Memory point screen 97
. . . . . . . . . . . . . . . .
Memos for a specified period of time 136
. . . . . . . . . . . . . . . . . . .
MENU button 10,90,91
. . . . . . . . . . . . . . . . .
Menu screen 90
. . . . . . . . . . . . . . . . . . . . . . .
MP3/WMA 164
. . . . . . . . . . . . . . . . . . . . . . . .
My places 96
. . . . . . . . . . . . . . . . . . . . . . . . .
My Places button 90
. . . . . . . . . . . . . . . . . . .

INDEX
194
N
Names of
areas to be avoided 108. . . . . . .
Nearest 5 cities 50,53 . . . . . . . . . . . . . . . . . . .
North−up 10
. . . . . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 39
. . . . . . . . . . . . . . . . . . .
Notifying traffic restriction 116
. . . . . . . . . . . .
Numbers and symbols 27
. . . . . . . . . . . . . . .
O
Off function 10,91,114
. . . . . . . . . . . . . . . . . .
On route button 57 . . . . . . . . . . . . . . . . . . . . .
One−touch scroll 30
. . . . . . . . . . . . . . . . . . .
Operating a MP3/WMA disc 164
. . . . . . . . .
Operating an audio CD 161
. . . . . . . . . . . . .
Orientation of the map 39
. . . . . . . . . . . . . . .
Overview buttons and
guidance screen 10
. . . . . . . . . . . . . . . . . .
P
Phone # button 42. . . . . . . . . . . . . . . . . . . . .
Playing a disc 160 . . . . . . . . . . . . . . . . . . . . .
Playing a MP3/WMA disc 164 . . . . . . . . . . .
Playing an audio CD 161. . . . . . . . . . . . . . .
POI as a destination 84 . . . . . . . . . . . . . . . . .
POI button 42 . . . . . . . . . . . . . . . . . . . . . . . . .
POI category change 114 . . . . . . . . . . . . . . . .
POI information 33 . . . . . . . . . . . . . . . . . . . . .
POIs near the search point 57 . . . . . . . . . . .
POIs to be displayed 82 . . . . . . . . . . . . . . . .
Pop−up message 91,117
. . . . . . . . . . . . . . . .
Portable audio players 149
. . . . . . . . . . . . . .
Position/direction calibration 119
. . . . . . . . . .
Preset memory point 14
. . . . . . . . . . . . . . . .
Presetting a satellite radio
channel 153
. . . . . . . . . . . . . . . . . . . . . . . .
Presetting a station 150
. . . . . . . . . . . . . . . .
Previous button 42
. . . . . . . . . . . . . . . . . . . . .
PWR·VOL knob 144
. . . . . . . . . . . . . . . . . . .
Q
Quick access 14
. . . . . . . . . . . . . . . . . . . . . .
Quick access touch −screen
buttons 42
. . . . . . . . . . . . . . . . . . . . . . . . . .
R
Radio operation 149,151
. . . . . . . . . . . . . . . .
RAND button 163,167
. . . . . . . . . . . . . . . . . . .
Region to search 44 . . . . . . . . . . . . . . . . . . .
Registering area to avoid 105
. . . . . . . . . . . . Registering
home 12,104
. . . . . . . . . . . . . . . .
Registering memory points 97
. . . . . . . . . . .
Registering preset memory point 14 . . . . . .
Reordering destinations 76
. . . . . . . . . . . . . .
Resume guidance 93
. . . . . . . . . . . . . . . . . . .
Resume Guidance button 90
. . . . . . . . . . . .
Route button 10
. . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen 70
. . . . . . . . . . . . . .
Route overview 84
. . . . . . . . . . . . . . . . . . . . .
Route preference 66,81
. . . . . . . . . . . . . . . . .
Route preview 85
. . . . . . . . . . . . . . . . . . . . . .
Route trace 86
. . . . . . . . . . . . . . . . . . . . . . . .
RPT button 163,167
. . . . . . . . . . . . . . . . . . . .
S
Satellite radio channel category 153. . . . . .
Satellite tuner 151. . . . . . . . . . . . . . . . . . . . .
Scale indicator 10 . . . . . . . . . . . . . . . . . . . . .
Screen adjustment 137 . . . . . . . . . . . . . . . . .
Screen configuration button 10 . . . . . . . . . .
Screen layout function 114. . . . . . . . . . . . . . .
Screen off 137 . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30. . . . . . . . . . . . . .
Screen setting 138 . . . . . . . . . . . . . . . . . . . . .
Search condition 78 . . . . . . . . . . . . . . . . . . . .
Search point from destinations 57 . . . . . . . .
Search point via the map screen 56 . . . . . .
Searching for a desired file 166. . . . . . . . . .
Searching for a desired folder 167 . . . . . . . .
Searching for a desired track 162 . . . . . . . .
Select User button 90 . . . . . . . . . . . . . . . . . .
Selecting a desired file 165. . . . . . . . . . . . . .
Selecting a desired folder 164 . . . . . . . . . . .
Selecting a desired track 161 . . . . . . . . . . . .
Selecting a language 141. . . . . . . . . . . . . . .
Selecting a satellite radio channel 154 . . . .
Selecting a station 151 . . . . . . . . . . . . . . . . .
Selecting the region to search 44
. . . . . . . .
Setting and deleting destination 76 . . . . . . .
Setting home as the destination 17 . . . . . . .
Setting route 78
. . . . . . . . . . . . . . . . . . . . . . .
Setup 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup button 90
. . . . . . . . . . . . . . . . . . . . . . .
Setup screen 91
. . . . . . . . . . . . . . . . . . . . . . .
Show free flowing traffic 120,124
. . . . . . . . .
Show XM  NavTraffic
information 120,122
. . . . . . . . . . . . . . . . . .
Single map 35
. . . . . . . . . . . . . . . . . . . . . . . .
Single map screen 34
. . . . . . . . . . . . . . . . . .
Sort 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound icons 100
. . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road 81 . . . . . .
Starting route guidance 65
. . . . . . . . . . . . . .
Steering

switches 169
. . . . . . . . . . . . . . . . . .
Street name 47
. . . . . . . . . . . . . . . . . . . . . . . .
