Page 2 of 448

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 24
1-2. Opening, closing
and
locking the
doors
Wireless remote control ....... 26
Doors.................................... 29
Back door ............................. 33
1-3.
Adjustable components
(seats, mirrors,
steering wheel)
Front seats
........................... 37
Rear seats ............................ 41
Head restraints ..................... 43
Seat belts ............................. 45
Steering wheel ..................... 51
Anti-glare inside rear view mirror .................................. 52
Outside rear view mirrors ..... 54
1-4. Opening a
nd closing the
windo
ws
Power windows .................... 56
Moon roof ............................. 58
1-5. Refueling Opening the fuel tank cap .... 61
1-6. Theft deterrent system Engine immobilizer system ................................ 65
Theft prevention labels (for U.S.A.) ......................... 67 1-7. Safety information
Correct driving posture ......... 68
SRS airbags ......................... 70
Front passenger occupant classification system ........... 82
Child restraint systems ......... 87
Installing child restraints ....... 91
2-1. Driving procedures Driving the vehicle .............. 102
Engine (ignition) switch....... 112
Automatic transmission ...... 116
Manual transmission........... 121
Turn signal lever ................. 123
Parking brake ..................... 124
Horn .................................... 125
2-2. Instrument cluster Gauges and meters ............ 126
Indicators and warning lights ................................. 129
2-3. Operating the li
ghts and
wipers
Headlight switch
................. 132
Fog light switch ................... 135
Windshield wipers and washer .............................. 136
Rear window wiper and washer .............................. 138
2-4. Using other driving systems Cruise control ..................... 139
Driving assist systems ........ 142
1Before driving
2When driving
Page 4 of 448

TABLE OF CONTENTSIndex
4
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 274
Cleaning and protecting
the vehicle interior ............ 276
4-2. Maintenance
Maintenance
requirements .................... 279
General maintenance ......... 281
Emission inspection and
maintenance (I/M)
programs .......................... 284
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 285
Hood................................... 289
Positioning a floor jack ....... 291
Engine compartment .......... 294
Tires ................................... 308
Tire inflation pressure......... 317
Wheels ............................... 321
Air conditioning filter ........... 323
Key battery ......................... 325
Checking and replacing
fuses ................................ 328
Light bulbs .......................... 3375-1. Essential information
Emergency flashers ............ 348
If your vehicle needs to
be towed ........................... 349
If you think something
is wrong ............................ 355
Fuel pump shut off
system .............................. 356
Event data recorder ............ 357
5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... .......................... 359
If you have a flat tire ........... 369
If the engine will not start .... 383
If the shift lever cannot be
shifted from P ................... 384
If you lose your keys ........... 385
If the battery is
discharged ........................ 386
If your vehicle overheats..... 391
If the vehicle becomes
stuck ................................. 394
4Maintenance and care5When trouble arises
Page 20 of 448

20
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

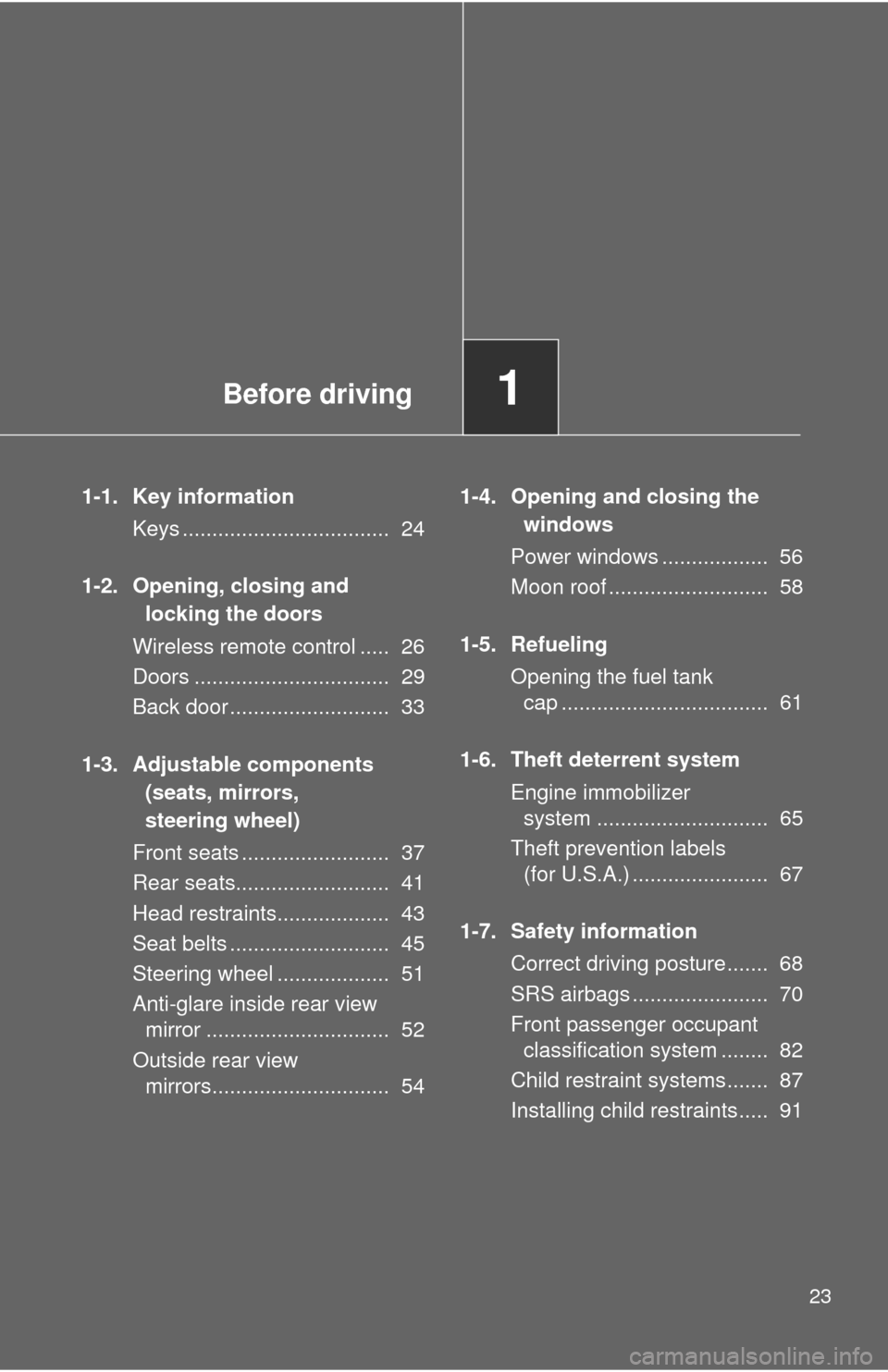

Page 23 of 448

Before driving1
23
1-1. Key information
Keys ................................... 24
1-2. Opening, closing and
locking the doors
Wireless remote control ..... 26
Doors ................................. 29
Back door ........................... 33
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 37
Rear seats.......................... 41
Head restraints................... 43
Seat belts ........................... 45
Steering wheel ................... 51
Anti-glare inside rear view
mirror ............................... 52
Outside rear view
mirrors.............................. 541-4. Opening and closing the
windows
Power windows .................. 56
Moon roof ........................... 58
1-5. Refueling
Opening the fuel tank
cap ................................... 61
1-6. Theft deterrent system
Engine immobilizer
system ............................. 65
Theft prevention labels
(for U.S.A.) ....................... 67
1-7. Safety information
Correct driving posture....... 68
SRS airbags ....................... 70
Front passenger occupant
classification system ........ 82
Child restraint systems....... 87
Installing child restraints..... 91

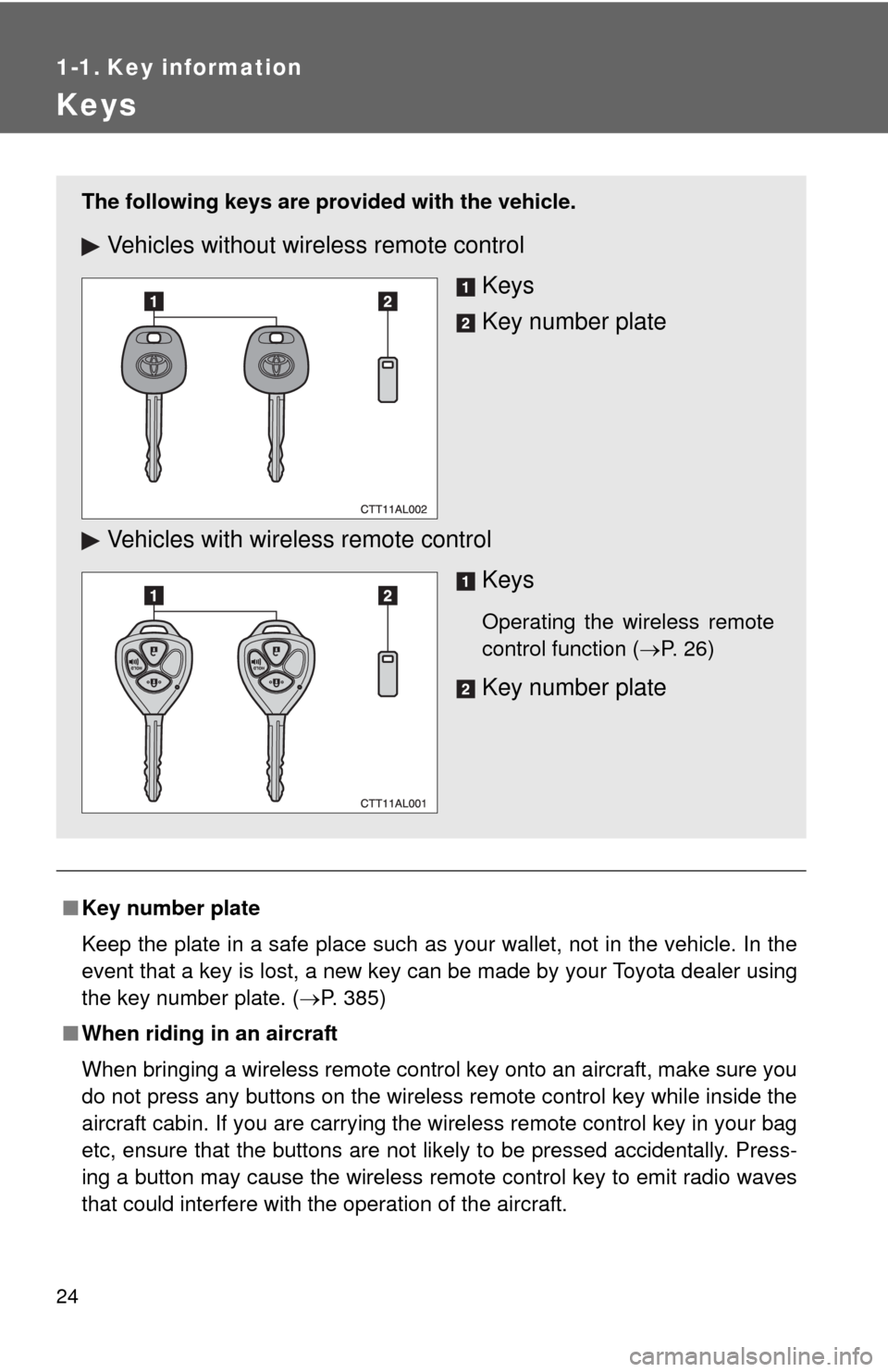

Page 24 of 448

24
1-1. Key information
Keys
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. (P. 385)
■When riding in an aircraft
When bringing a wireless remote control key onto an aircraft, make sure you
do not press any buttons on the wireless remote control key while inside the
aircraft cabin. If you are carrying the wireless remote control key in your bag
etc, ensure that the buttons are not likely to be pressed accidentally. Press-
ing a button may cause the wireless remote control key to emit radio waves
that could interfere with the operation of the aircraft.
The following keys are provided with the vehicle.
Vehicles without wireless remote control
Keys
Key number plate
Vehicles with wireless remote control
Keys
Operating the wireless remote
control function (P. 26)
Key number plate
Page 25 of 448

25 1-1. Key information
1
Before driving
NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
●Do not disassemble the key.
Page 27 of 448

27 1-2. Opening, closing and locking the doors
1
Before driving
■Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 325)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations.
●Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless commu-
nication devices
●When multiple wireless keys are in the vicinity
●When the wireless key has come into contact with, or is covered by, a
metallic object
●When a wireless key (that emits radio waves) is being used nearby
●When the wireless key has been left near an electrical appliance such as
a personal computer
●When the wireless key battery is depleted
●If window tint with a metallic content or metallic objects are attached to
the rear window
■Customization that can be configured at Toyota dealer
Settings (e.g. operation signal) can be changed.
(Customizable features P. 427)
Page 29 of 448

29
1
1-2. Opening, closing and locking the doors
Before driving
Doors
The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
■Wireless remote control (if equipped)
P. 2 6
■Key
Locks the door
Unlocks the door
Vehicles with power door lock
system: Turning the key locks
and unlocks all doors. In the
driver’s door lock, turning the
key once unlocks the driver’s
door. Turning the key again
within 3 seconds unlocks the
other doors.
■Door lock switch (if equipped)
Locks all doors
Unlocks all doors
■Inside lock button
Unlocks the door
Locks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Page 32 of 448

32 1-2. Opening, closing and locking the doors
■When all the doors are locked with the wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wire-
less remote control or key.
■The doors cannot be locked when
The key is in the engine switch and either of the front door is open.
■Customization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 427)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
●Always lock the doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, the doors may be opened even if
the inside lock buttons are in locked position.
●Set the rear door child protector locks when children are seated in the rear
seat.
Page 33 of 448

33
1
1-2. Opening, closing and locking the doors
Before driving
Back door
■Back door handle
The back door can be locked and unlocked using the wireless
remote control or key.
Wireless remote control (if equipped)
P. 2 6
Key
Locks the back door
Unlocks the back door
Opens the back door
Use the back door handle when closing.
