OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 16Audio 14-15Auto lock functions28Automatic Transmission 8Auxiliary storage 17Bottle holders 19Clock 10Cruise control 17Cup holders 18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel 10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Seatbelts 21Seatbelts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Monitoring (warning) System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX

2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Ignition switch
Cruise control1
VSC/TRAC OFF switch
Auxiliary storage
Power outside rearview mirror control
Headlight, turn signal and front fog light
1controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seatbelt reminder light
Engine immobilizer indicator
Emergency flasher button
Steering wheel controls

4
OVERVIEW
Instrument cluster
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Engine coolant temperature
Automatic Transmission shift range display (if equipped)
Odometer and two trip meters

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Indicator symbols
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Active torque control 4WD system warning1
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

6
OVERVIEW
Keyless entry (if equipped)
PushPush ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Tu r n
Store

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch
and raise hoodPull
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
4 cylinder (2AZ-FE) engine4 cylinder(2ZR-FE) engine

8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
3
2L
Standard typeMulti-mode type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
“S”“D”
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in three different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch to “ACC” or “LOCK” position.
Refer to theOwner’s Manualfor more details.

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

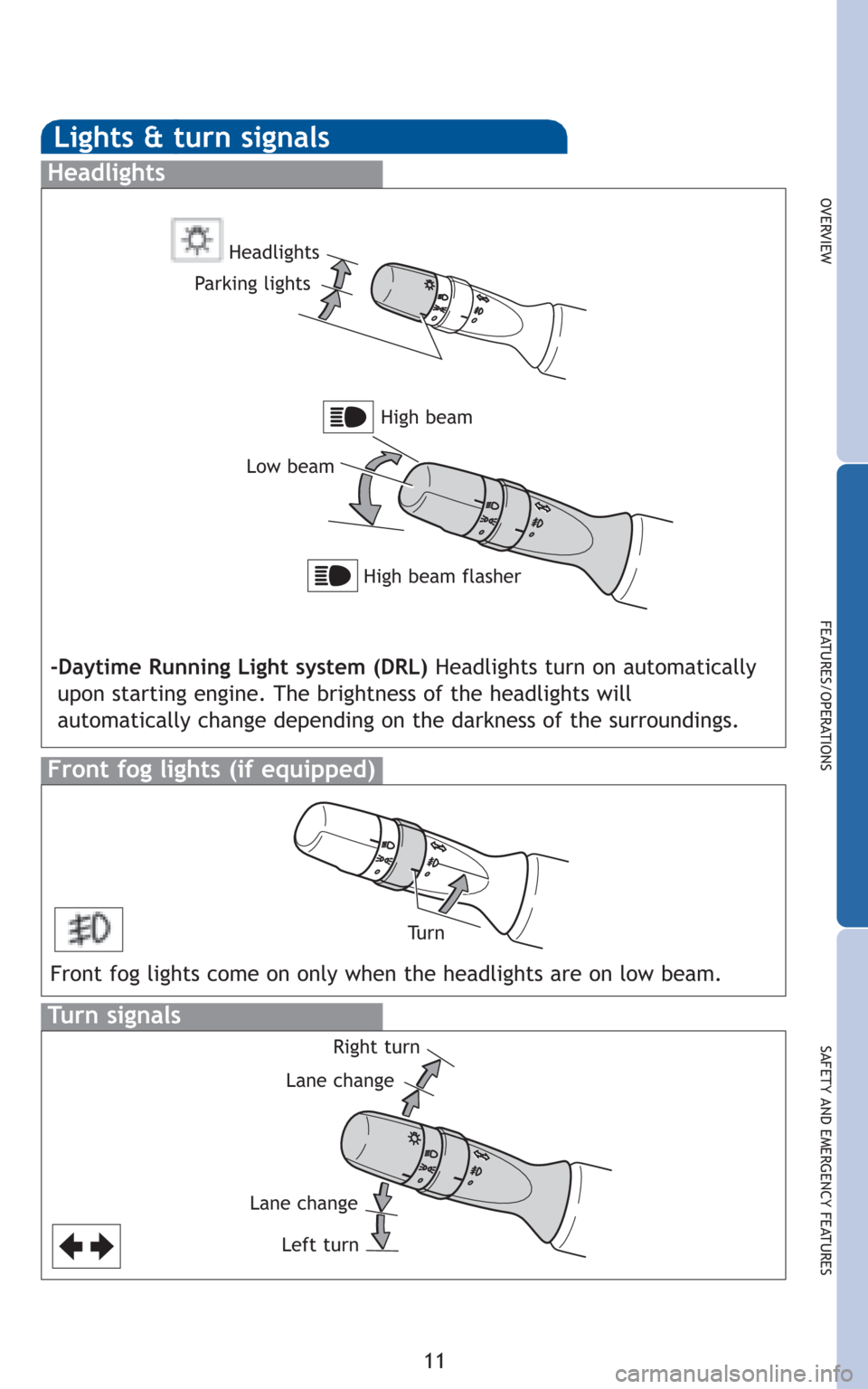

Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Headlights turn on automatically
upon starting engine. The brightness of the headlights will
automatically change depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turnHigh beam
Headlights
Parking lights
Tu r n

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

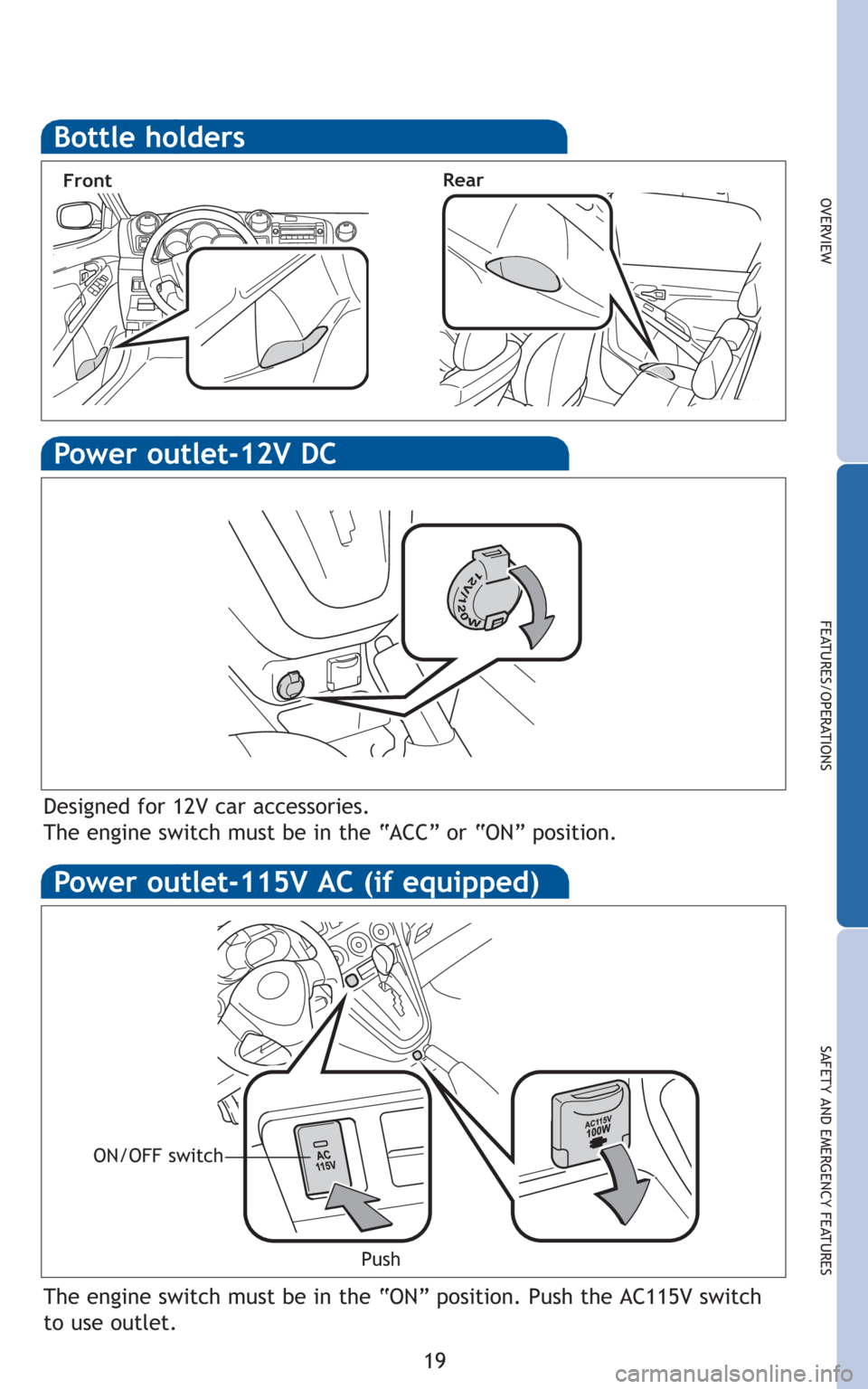

Power outlet-12V DC
Power outlet-115V AC (if equipped)
Designed for 12V car accessories.
The engine switch must be in the “ACC” or “ON” position.
The engine switch must be in the “ON” position. Push the AC115V switch
to use outlet.
ON/OFF switch
Push
Bottle holders
FrontRear
