window TOYOTA MATRIX 2013 E140 / 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Corolla Matrix
INDEX
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry1 6 Air Conditioning/Heating 16Audio 14-15Auto lock/unlock2 8Automatic Transmission 8Auxiliary storage 17Bottle holders 19Clock 10Cruise control 17Cup holders 18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®) 18Tilt and telescopic steering wheel 10Windows-Power 12Windshield wipers & washers 12 Doors-Child safety locks 20Floor mat installation 23Seat belts 21Seat belts-Shoulder belt anchor 20Spare tire & tools 21Star Safety SystemTM 22-23Tire Pressure Monitoring (warning) System 20
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
126923_2013Matrix.indd 17/21/12 1:36 AM

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Ignition switch
Cruise control*
Power outside rearview mirror control
Headlight, turn signal and front fog light*
controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seat belt reminder light
Engine immobilizer indicator
Emergency flasher button
Audio system
Air Conditioning controls
Outside rearview mirrors*/Rear window defogger button
Power outlet (115V)*
AUX or AUX/USB port
Power outlet (12V) or cigarette lighter
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
VSC/TRAC OFF switch
Auxiliary storage
* If equipped
Steering wheel controls
126923_2013Matrix.indd 27/21/12 1:36 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Steering wheel audio controls
Ignition switch
Cruise control*
Power outside rearview mirror control
Headlight, turn signal and front fog light*
controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seat belt reminder light
Engine immobilizer indicator
Emergency flasher button
Audio system
Air Conditioning controls
Outside rearview mirrors*/Rear window defogger button
Power outlet (115V)*
AUX or AUX/USB port
Power outlet (12V) or cigarette lighter
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
VSC/TRAC OFF switch
Auxiliary storage
*
If equipped
126923_2013Matrix.indd 37/21/12 1:36 AM

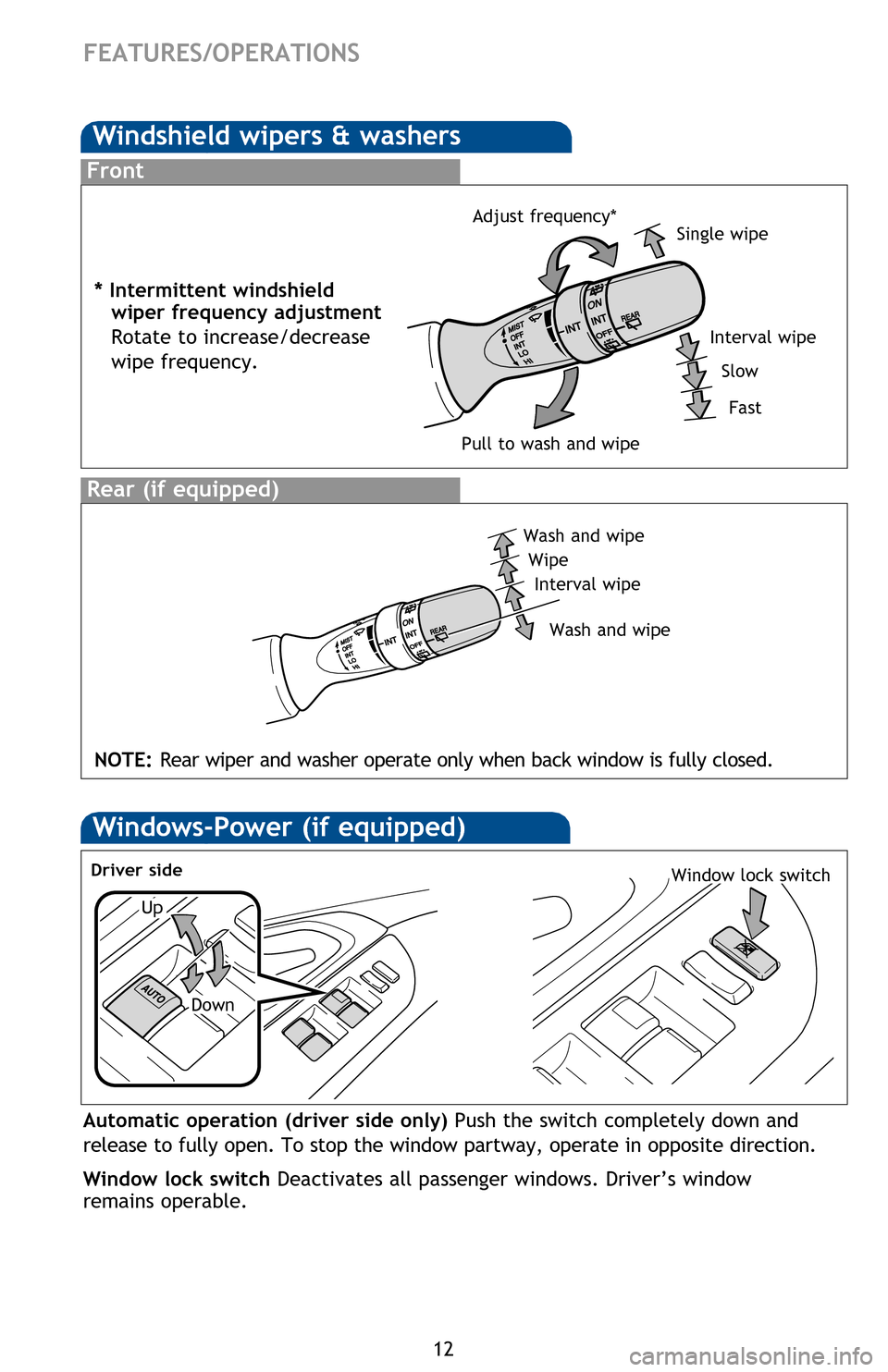

12
FEATURES/OPERATIONS
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop the window partway, operate in opposite d\
irection.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Door-Back
Windshield wipers & washers
Front
Rear (if equipped)
Interval wipe
Wash and wipe
Wipe
Wash and wipe
Moonroof (if equipped)
Sliding operation
Door locks-Power (if equipped)
Push once to open partway; again to
open completely.
NOTE: Rear wiper and washer operate only when back window is fully closed.
Interval wipe
Single wipe
SlowFast
Pull to wash and wipe Adjust frequency*
* Intermittent windshield
wiper frequency adjustment
Rotate

to increase/decrease
wipe

frequency.
126923_2013Matrix.indd 127/26/12 4:46 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

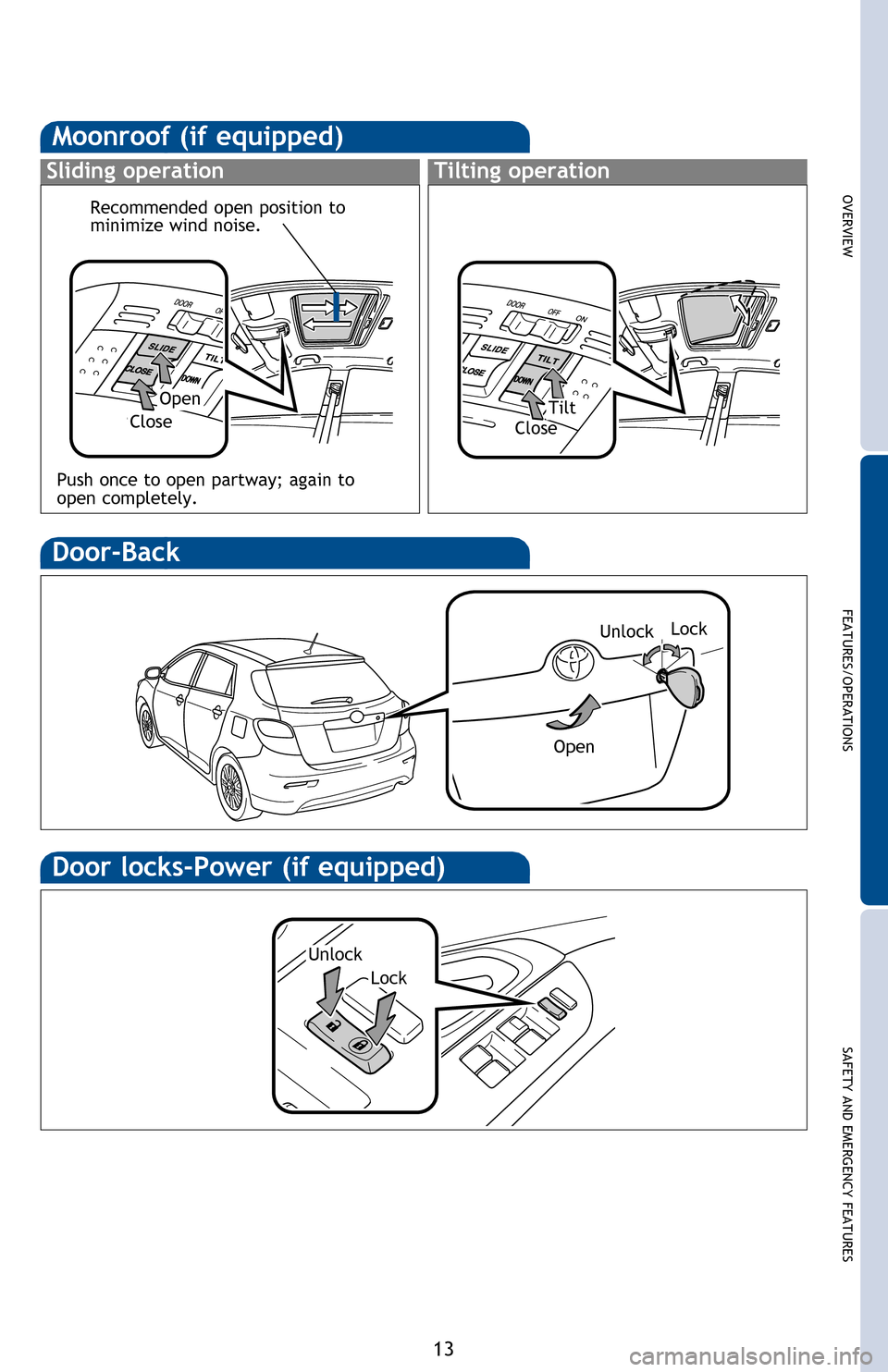

13
Window lock switch
Automatic operation (driver side only) Push the switch completely down and
release
to fully open. To stop the window partway, operate opposite direction.
Window
lock switch Deactivates all passenger windows. Driver’s window
remains
operable.
Door-Back
Lock
Unlock
Open
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltClose
Close
Recommended open position to
minimize
wind noise.
Door locks-Power (if equipped)
Lock
Unlock
Push once to open partway; again to
open
completely.
NOTE: Rear wiper and washer operate only when back window is fully closed.
Interval wipe
126923_2013Matrix.indd 137/21/12 1:37 AM

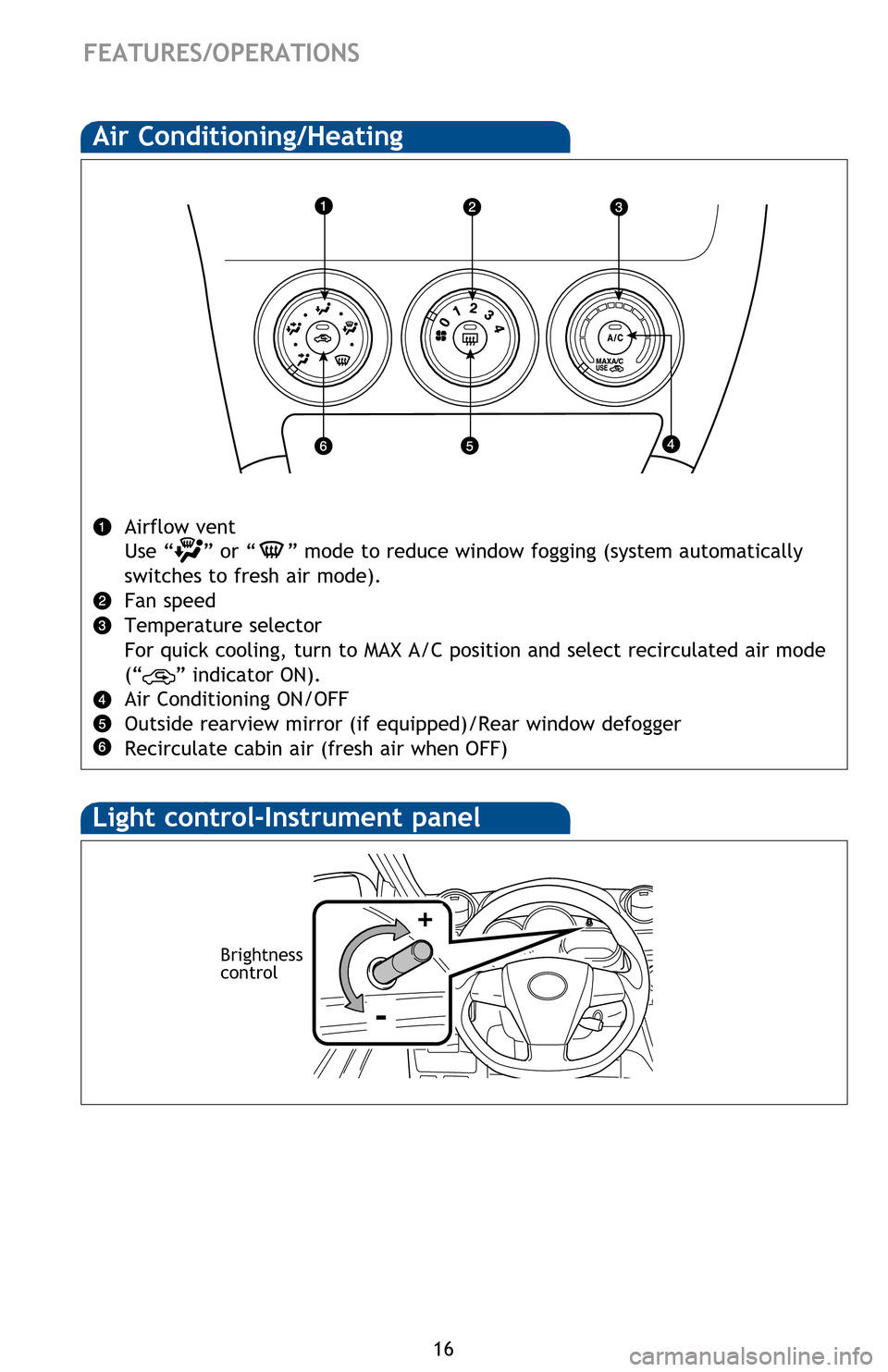

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
Use “
” or “” mode to reduce window fogging (system automatically
switches to fresh air mode).
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror (if equipped)/Rear window defogger
Recirculate cabin air (fresh air when OFF)
Light control-Instrument panel
Brightness
control
-
+
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
Auxiliary storage
Instrument panel
Overhead console (if equipped)
126923_2013Matrix.indd 167/21/12 1:37 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

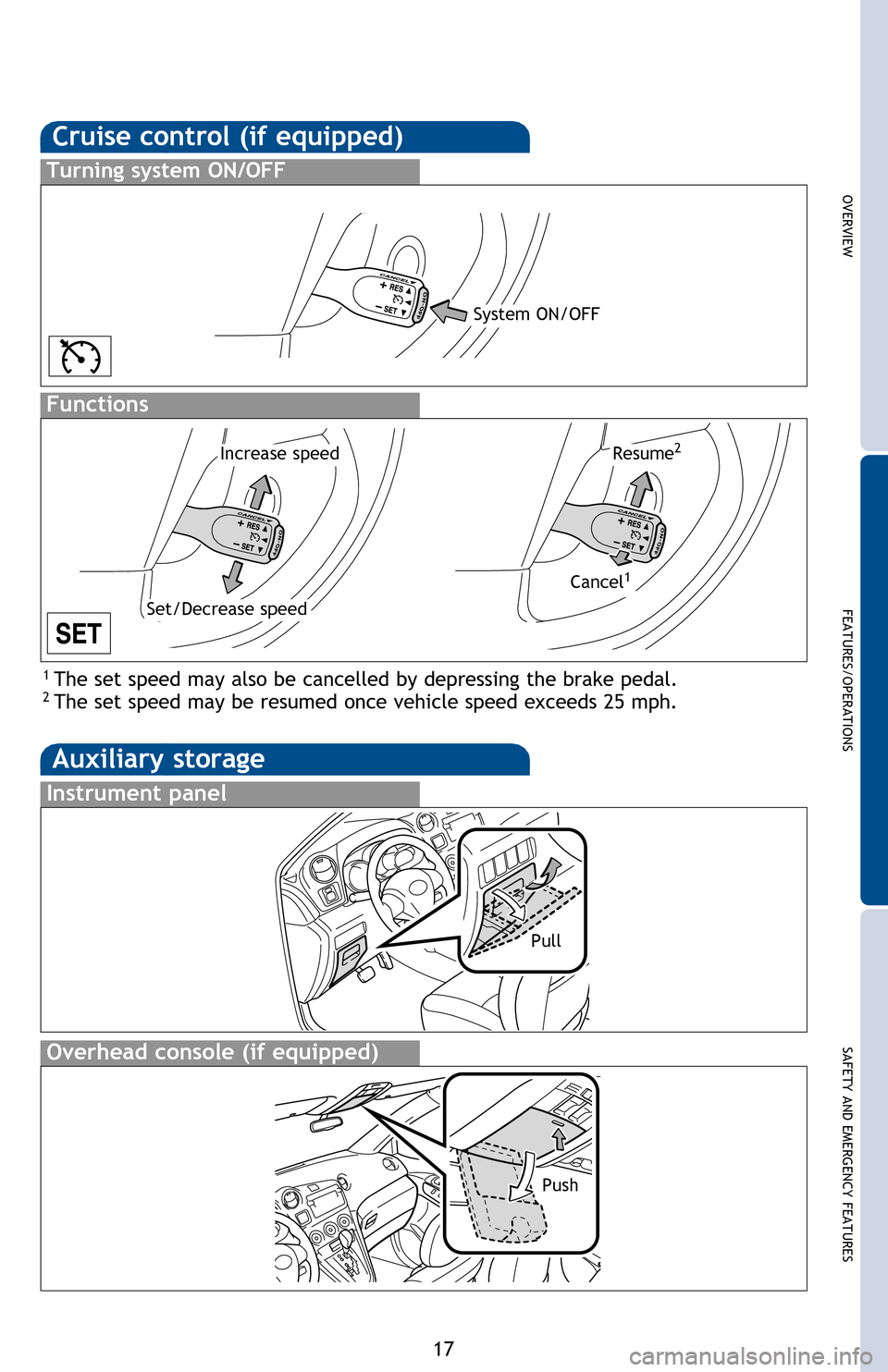

17
Airflow vent
Use “
” or “” mode to reduce window fogging (system automatically
switches to fresh air mode).
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror (if equipped)/Rear window defogger
Recirculate cabin air (fresh air when OFF)
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Set/Decrease speed
Cancel1
Resume2
Auxiliary storage
Instrument panel
Overhead console (if equipped)
Pull
Push
126923_2013Matrix.indd 177/21/12 1:37 AM
