Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine oil filler cap( P. 339)
Engine oil level dipstick ( P. 337)
Brake fluid reservoir ( P. 343)
Fuse box ( P. 369)Battery ( P. 345)
Radiator ( P. 342)
Electric cooling fan
Condenser ( P. 342)
Engine coolant reservoir ( P. 341)
Washer fluid tank ( P. 347)

336 4-3. Do-it-yourself maintenance
2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir( P. 341)
Engine oil filler cap ( P. 339)
Engine oil level dipstick ( P. 337)
Brake fluid reservoir ( P. 343)Fuse box ( P. 369)
Battery ( P. 345)
Radiator ( P. 342)
Electric cooling fans
Condenser ( P. 342)
Washer fluid tank ( P. 347)

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 372) for details about which fuse to check.STEP1
STEP2
STEP3

370 4-3. Do-it-yourself maintenance

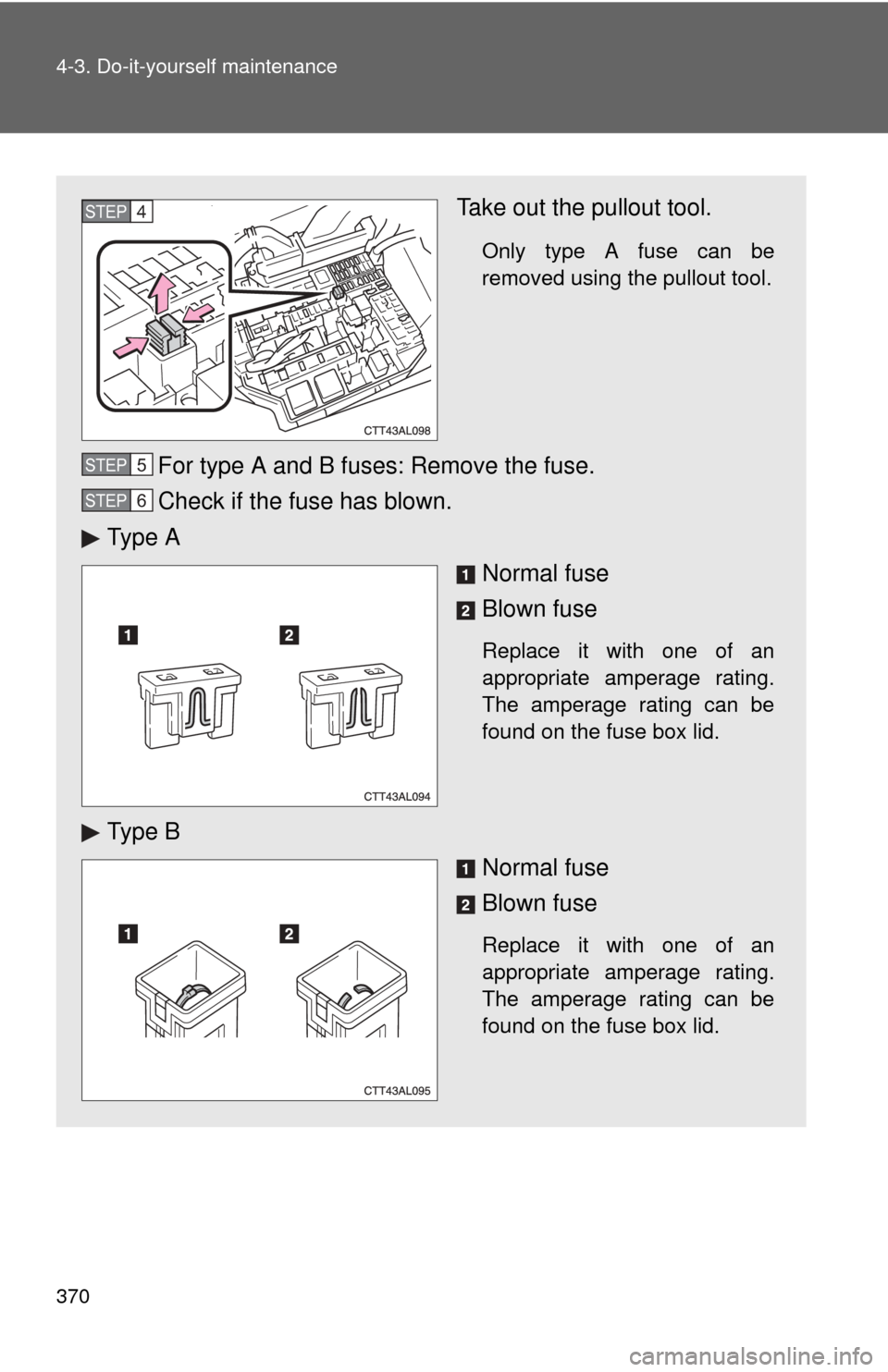

Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
For type A and B fuses: Remove the fuse.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
STEP6

377
4-3. Do-it-yourself maintenance
4
Maintenance and care
24 FR FOG
15 A Front fog lights
25 AM1 7.5 AStarting system, shift lock control
system
26 DEF 30 A Rear window defogger, MIR HTR
27 POWER 30 A Power windows
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. ( P. 378)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
FuseAmpereCircuit
