TOYOTA MIRAI 2016 1.G Quick Reference Guide

19
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESLights & turn signals
Turn signals
Right turn
Lane change
Lane change
Left turn
Headlights
Parking lights
Auto or OFF
DRL OFF
Seat heaters
Rear passenger seat
Touch switch to change temperature
intensity.Push button to change temperature
intensity. Depress again and light
indicates heater is off.
Push
Push
Driver seat
Touch
High Low Off
Push
(1)
(1) In AUTO or position,
push lever away from you
(2) Push
to activate
automatic highbeam
(2)
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or when lock switch on remote is pushed after all doors are locked.

20
FEATURES/OPERATIONS
Automatic air conditioning system
Outside air (indicator off)/Recirculated mode
Windshield defogger
Automatic air
Fan speed (Slower)
Fan speed (Faster)
 $LU

21
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESAudio
Eject CD
Entune™ Premium JBL Audio with Integrated Navigation and App Suite
Seek station/
CD track&'SOD\HU
3XVKWRGLVSOD\
audio screen
Push to access
(QWXQHV\VWHP
7RXFKVFUHHQGLVSOD\
Push to turn
ON/OFF
7XUQIRU
YROXPH
Power outlet
'HVLJQHGIRUFDUDFFHVVRULHV3RZHUVZLWFKPXVWEHVHWDW

22
FEATURES/OPERATIONS
Odometer/trip meter and reset
Audio/Multimedia remote control
Volume:

Mode:
Select:
Talk
Off-hook
On-hook
Steering wheel switches
Wireless charger
Designed for car accessories. Power switch must be set at “ACCESSORY” or “ON”
in order to use power outlets.
(1) Open console box
(2) Place charging side of
portable device down and
light indicates when it is
charging. (orange)
(1) Press power button,
indicator light turns
on when in operation.
(green)
Clock
Clock
Using steering wheel switches, select “Home” from multi-information screen,
then select “
” to set clock:
(1) Select “General”
(2) Select “System Time”
 6HOHFW

23
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESMulti-Information Display
Drive information
• Energy monitor
• Fuel cell system indicator and ECO meter
• Fuel consumption history display
• Drive monitor
• ECO diary
• Suspension of the settings display
Navigation system-linked display
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display
using the meter control switches.
Driving assist systems display
Displays when each driving assistance system is used.
• Dynamic radar cruise control
• LDA (Lane Departure Alert)
• Intuitive parking assist
• PCS (Pre-Collision System)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected.
Select category and items
Select/Set
Return to the previous screen

24
FEATURES/OPERATIONS
Vehicle-to-vehicle distance button Indicators
Set speed Display
Dynamic radar control switch
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Radar Cruise Control.”
Dynamic radar cruise control
Distance control mode
In distance control mode, vehicle will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle traveling in front, and accelerate back up
to the selected speed if the vehicle in front changes lanes or speeds up.
(1) Push the ON-OFF button to activate/deactivate the system.
(2) To set, pull the lever down.
(3) To increase and set speed, push the lever up.
To decrease, push lever down. Move the lever slightly to adjust in 1 mph
increments. Move all way up/down to adjust in 5 mph increments.
(4) To resume set speed, push up and hold.
To cancel pull the lever toward you, or depress the brake pedal. (1) (2) (3)
Increase/Resume
Decrease Cancel
Push the vehicle-to-vehicle distance button to change distance.
PushLong
160 ft.*Medium
130 ft.*Short
100 ft.*Preceding
vehicle mark*Approximately

25
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS

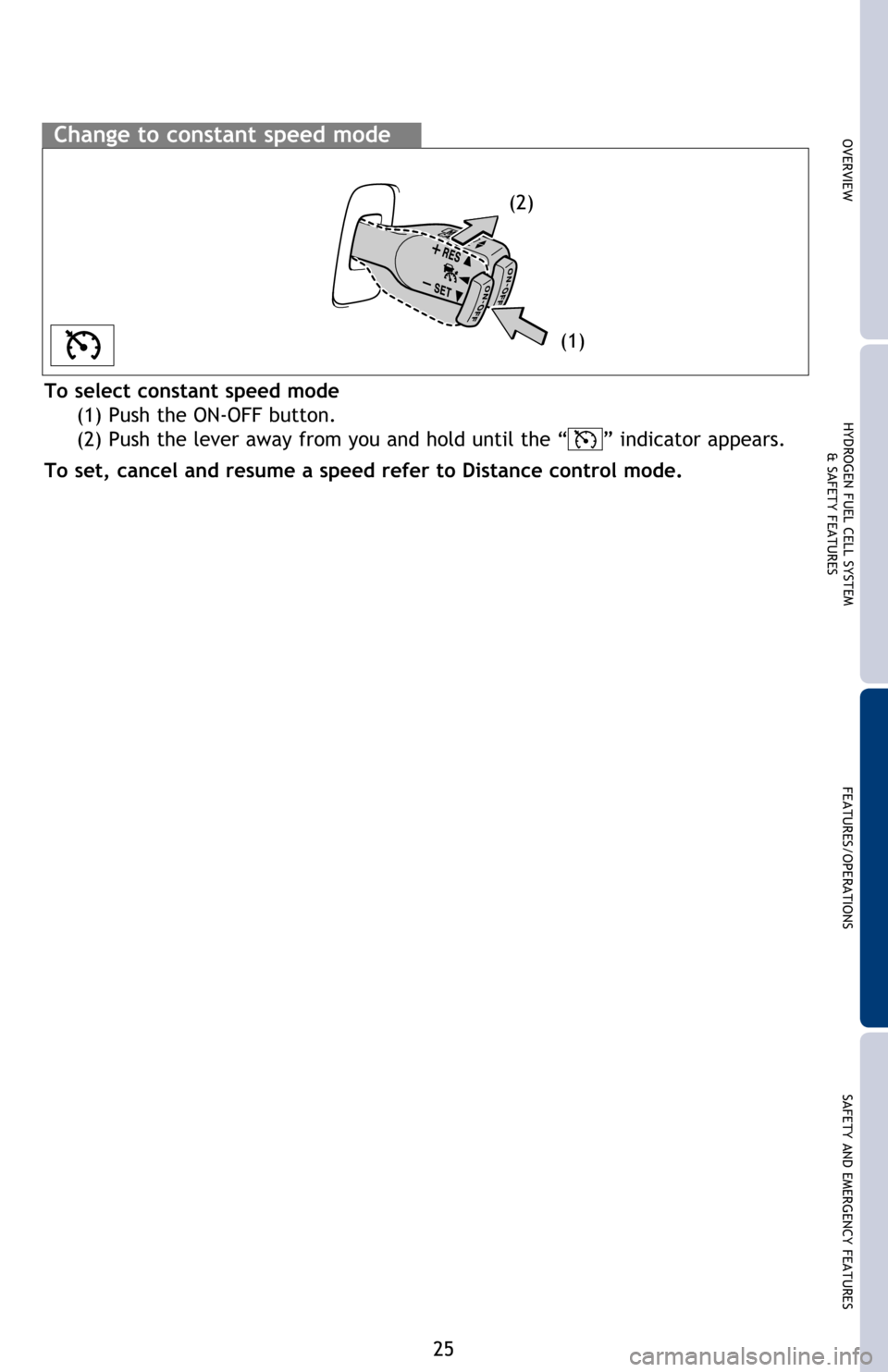

SAFETY AND EMERGENCY FEATURESChange to constant speed mode
To select constant speed mode
(1) Push the ON-OFF button.
(2) Push the lever away from you and hold until the “
” indicator appears.
To set, cancel and resume a speed refer to Distance control mode.(1) (2)

26
SAFETY AND EMERGENCY FEATURES
Emergency tire puncture repair kit
Location
Wheel nut wrench
Towing eyelet
Emergency tire puncture repair kit
Jack handle
Jack
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit (bottle of sealant and compressor.)
After temporarily repairing the tire with the repair kit, have the tire repaired or
replaced by your Toyota dealer.
Refer to the Owner’s Manual for more details.
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
WLUHSUHVVXUHVWRIDFWRU\VSHFL

27
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Garage door openers manufactured under license from HomeLink®
FDQbe
programmed to operate garage doors, gates, entry doors door locks, home lighting
systems, security systems and other devices.
5HIHUWR

28
Moving the lever to lock position will allow the door to be opened only from the
outside.
Rear door
Doors-Child safety locks
Lock
SAFETY AND EMERGENCY FEATURES
Door locks
Unlock
Lock
Always align the ¨ marks
7KHUHDUHWZRW\SHVRI7R\RWD
