ESP TOYOTA MIRAI 2016 1.G Quick Reference Guide

12
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES

Pre-Collision System (PCS)
When a high possibility of a frontal collision is detected by the radar sensor, a
buzzer sounds and a message urging the driver to take evasive action appears
on the multi-information display. If the driver then applies brakes, the system
applies greater brake force in relation to how strongly the brake pedal is
depressed. If the system determines that a collision is unavoidable, the brakes
are automatically applied to reduce the collision speed. The alert timing for the
pre-collision system can be changed or turned on/off, as necessary, by pressing
TRAC switch.
The system is enabled each time the power switch is turned to ON mode.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.


Each time the Pre-Collision System switch is pressed, the response to the distance
changes as follows:
Far
Middle
Near
Press the TRAC switch for 3 seconds or more.
Changing the pre-collision warning timing
Disabling the Pre-Collision System

15
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

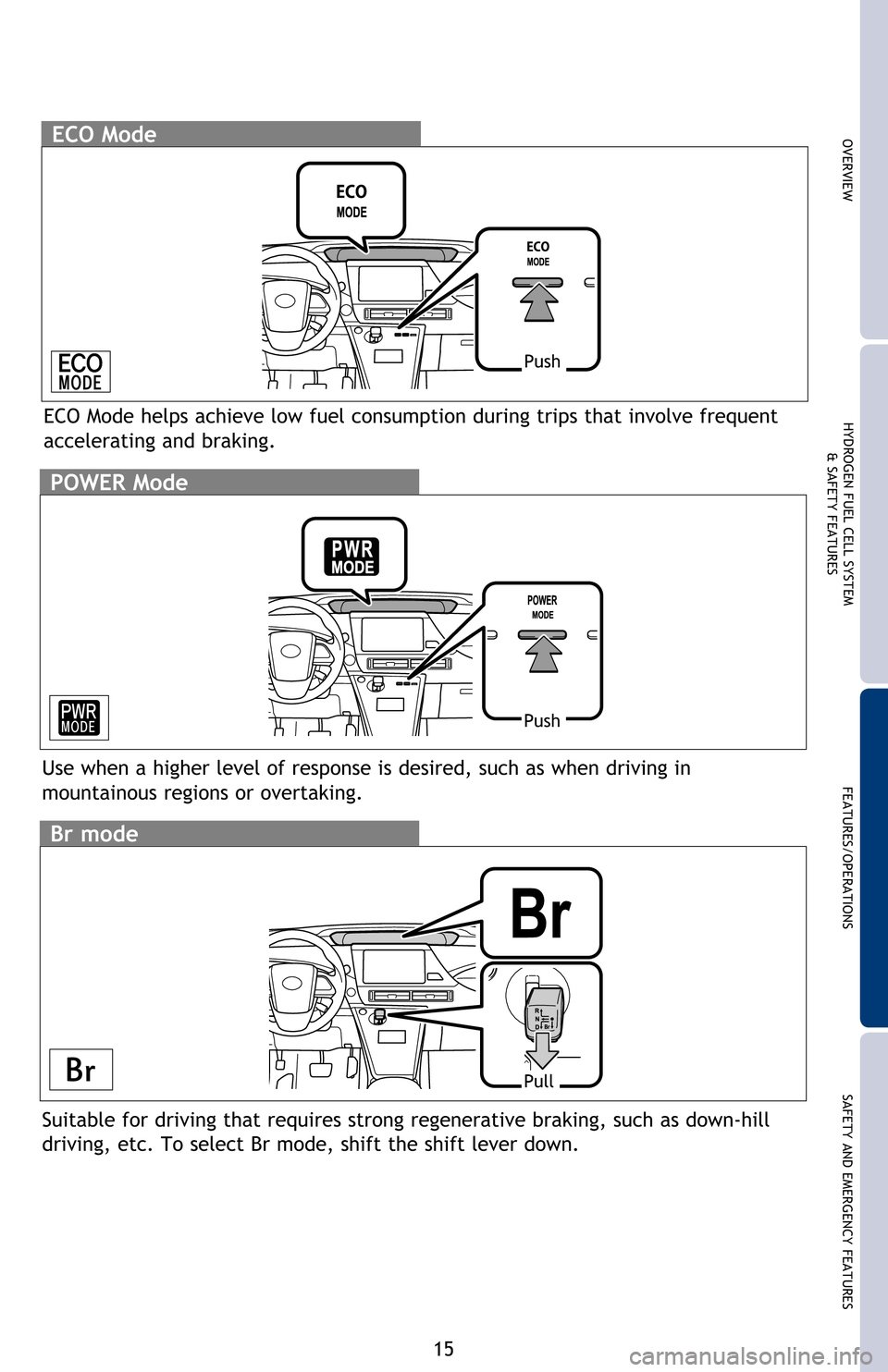

POWER Mode
Use when a higher level of response is desired, such as when driving in
mountainous regions or overtaking.
Br mode
Suitable for driving that requires strong regenerative braking, such as down-hill
driving, etc. To select Br mode, shift the shift lever down.
Push
Pull
ECO Mode
Push
ECO Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
