tow TOYOTA MIRAI 2016 1.G Quick Reference Guide

18
FEATURES/OPERATIONS

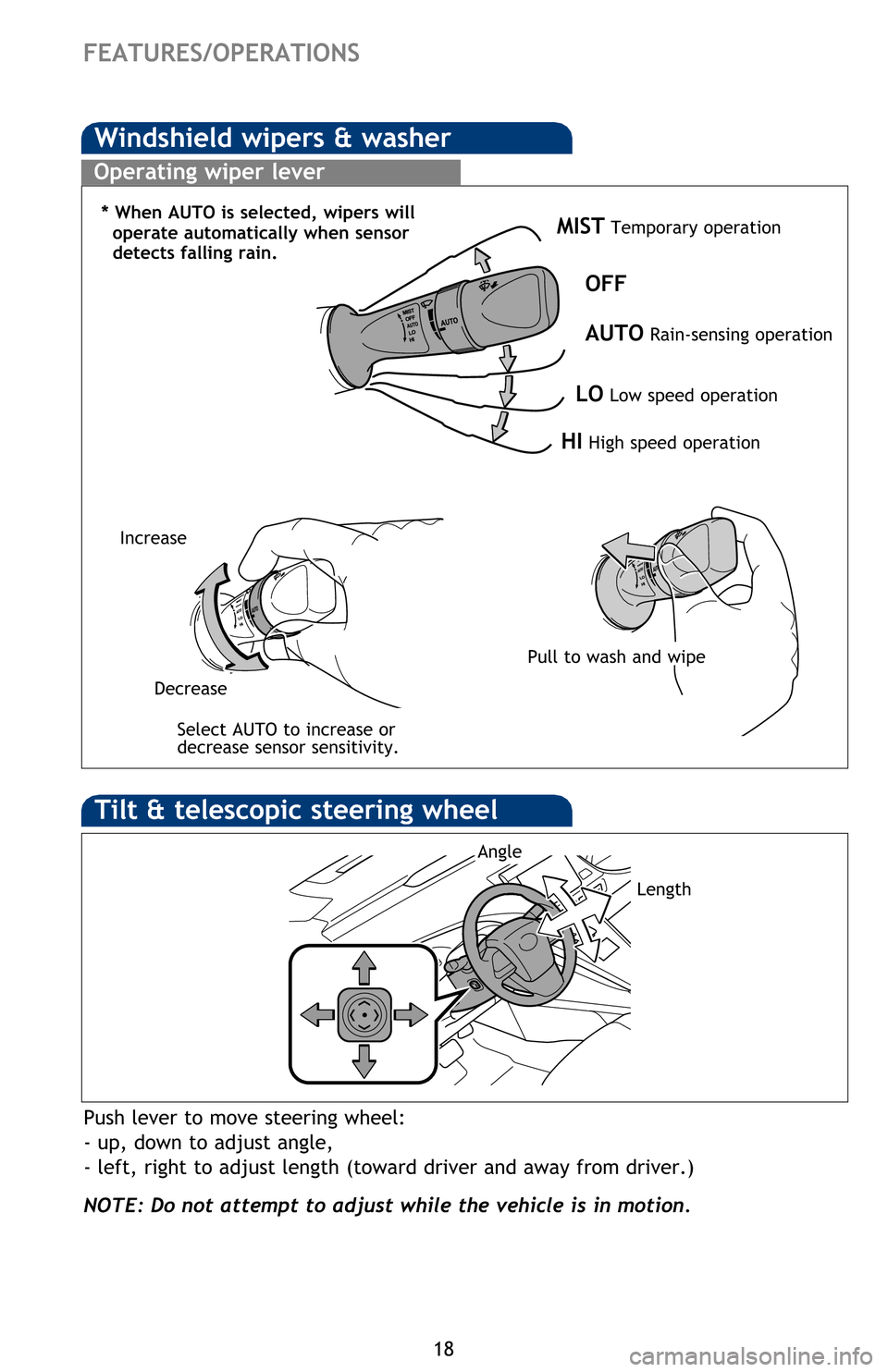

Windshield wipers & washer
MIST Temporary operation
AUTO Rain-sensing operation
LO Low speed operation
HI High speed operation
OFF
Pull to wash and wipe
Select AUTO to increase or
decrease sensor sensitivity.
Operating wiper lever
* When AUTO is selected, wipers will
operate automatically when sensor
detects falling rain.
Increase
Decrease
Push lever to move steering wheel:
- up, down to adjust angle,
- left, right to adjust length (toward driver and away from driver.)
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescopic steering wheel
Length
Angle

24
FEATURES/OPERATIONS
Vehicle-to-vehicle distance button Indicators
Set speed Display
Dynamic radar control switch
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Radar Cruise Control.”

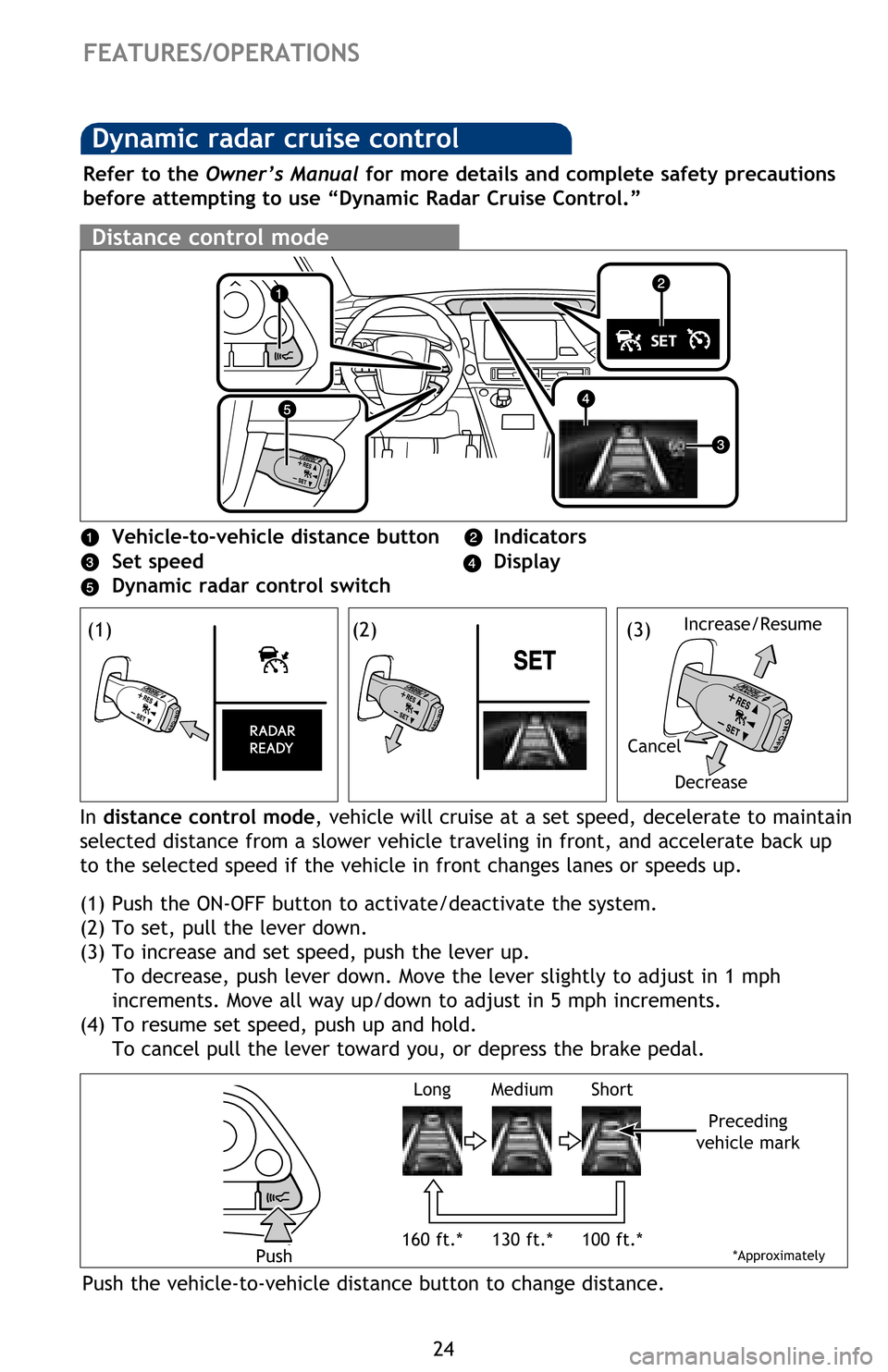

Dynamic radar cruise control
Distance control mode
In distance control mode, vehicle will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle traveling in front, and accelerate back up
to the selected speed if the vehicle in front changes lanes or speeds up.
(1) Push the ON-OFF button to activate/deactivate the system.
(2) To set, pull the lever down.
(3) To increase and set speed, push the lever up.
To decrease, push lever down. Move the lever slightly to adjust in 1 mph
increments. Move all way up/down to adjust in 5 mph increments.
(4) To resume set speed, push up and hold.
To cancel pull the lever toward you, or depress the brake pedal. (1) (2) (3)
Increase/Resume
Decrease Cancel
Push the vehicle-to-vehicle distance button to change distance.
PushLong
160 ft.*Medium
130 ft.*Short
100 ft.*Preceding
vehicle mark*Approximately

26
SAFETY AND EMERGENCY FEATURES

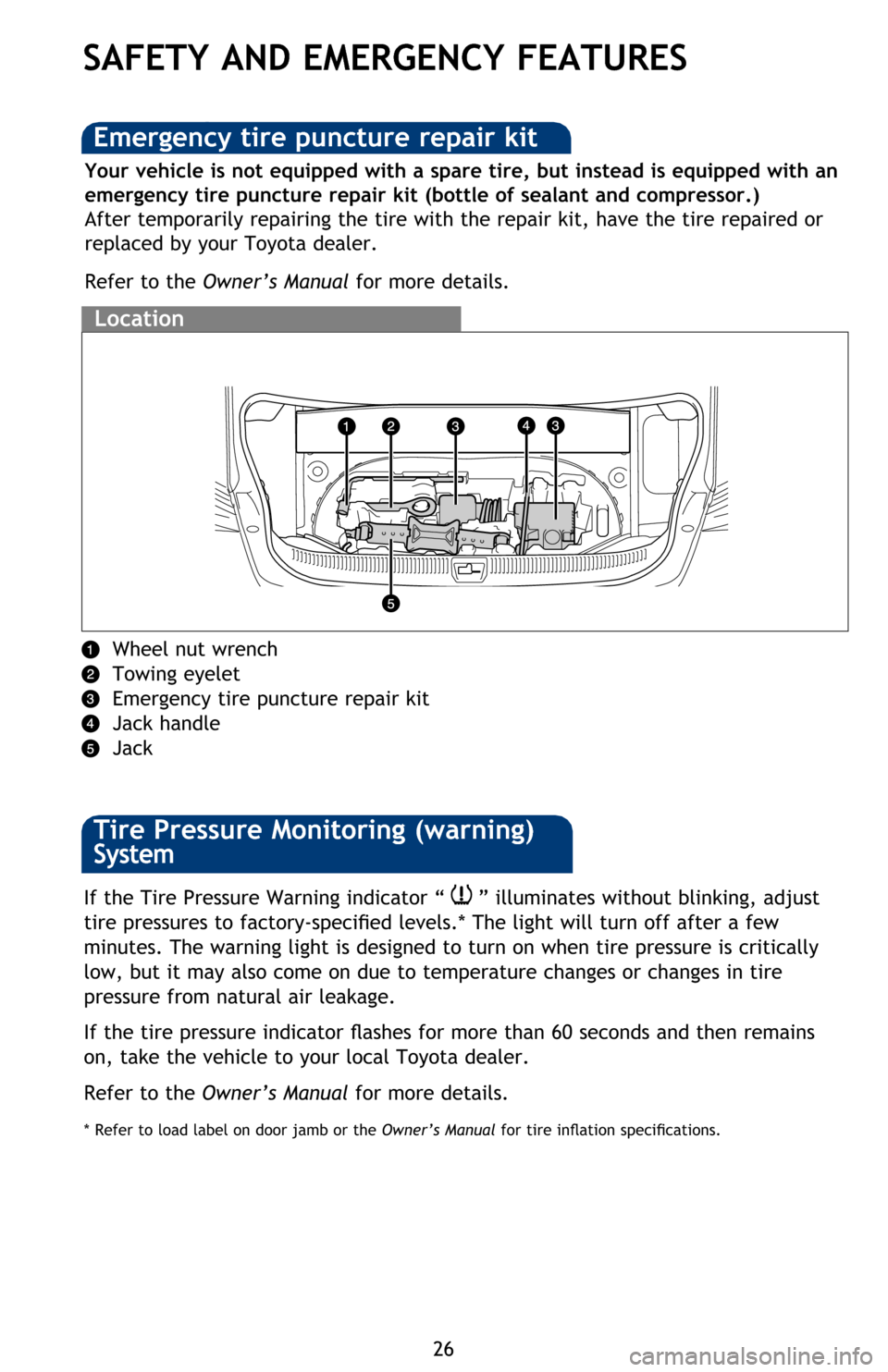

Emergency tire puncture repair kit
Location
Wheel nut wrench
Towing eyelet
Emergency tire puncture repair kit
Jack handle
Jack
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit (bottle of sealant and compressor.)
After temporarily repairing the tire with the repair kit, have the tire repaired or
replaced by your Toyota dealer.
Refer to the Owner’s Manual for more details.
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
WLUHSUHVVXUHVWRIDFWRU\VSHFL
