warning TOYOTA MIRAI 2016 1.G Quick Reference Guide

1
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEWFEATURES/OPERATIONS
Automatic air conditioning system 20
Audio 21
Automatic Transmission 14-15
Auto lock/unlock1,2 14
Bluetooth® Device Pairing Section 30-39Clock 22
Dynamic radar cruise control 24-25
Lights
1 & turn signals 19
Multi-Information display 23
Parking brake 16
Power outlet 21
Seat adjustments-Front 16
Seat heaters 19
Seats-Head restraints 17
Seats-Folding down rear seats 17
Starting your vehicle 14
Steering wheel switches 22
Windows-Power 17
Windshield wipers & washer 18
Tilt & telescopic steering wheel 18
USB/AUX port 21
Wireless charger 22



Door locks 28
Doors-Child safety locks 28
Emergency tire puncture repair kit 26
Floor mat installation 28
Garage door opener (Homelink®)
3 27
Seat belts 27
Seat belts-Shoulder belt anchor 27
Star Safety System™ 29
Tire pressure monitoring (warning) system 26
Fuel door release button and cap 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel
2-3Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key System1,2 6-7







Automatic high beams 10
Blind spot monitor (BSM) 13
Hydrogen fuel cell system 9
Lane Departure Alert (LDA) 11
Pre-Collision System (PCS) 12
Water release (H2O) switch 10


















HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
SAFETY AND EMERGENCY FEATURES

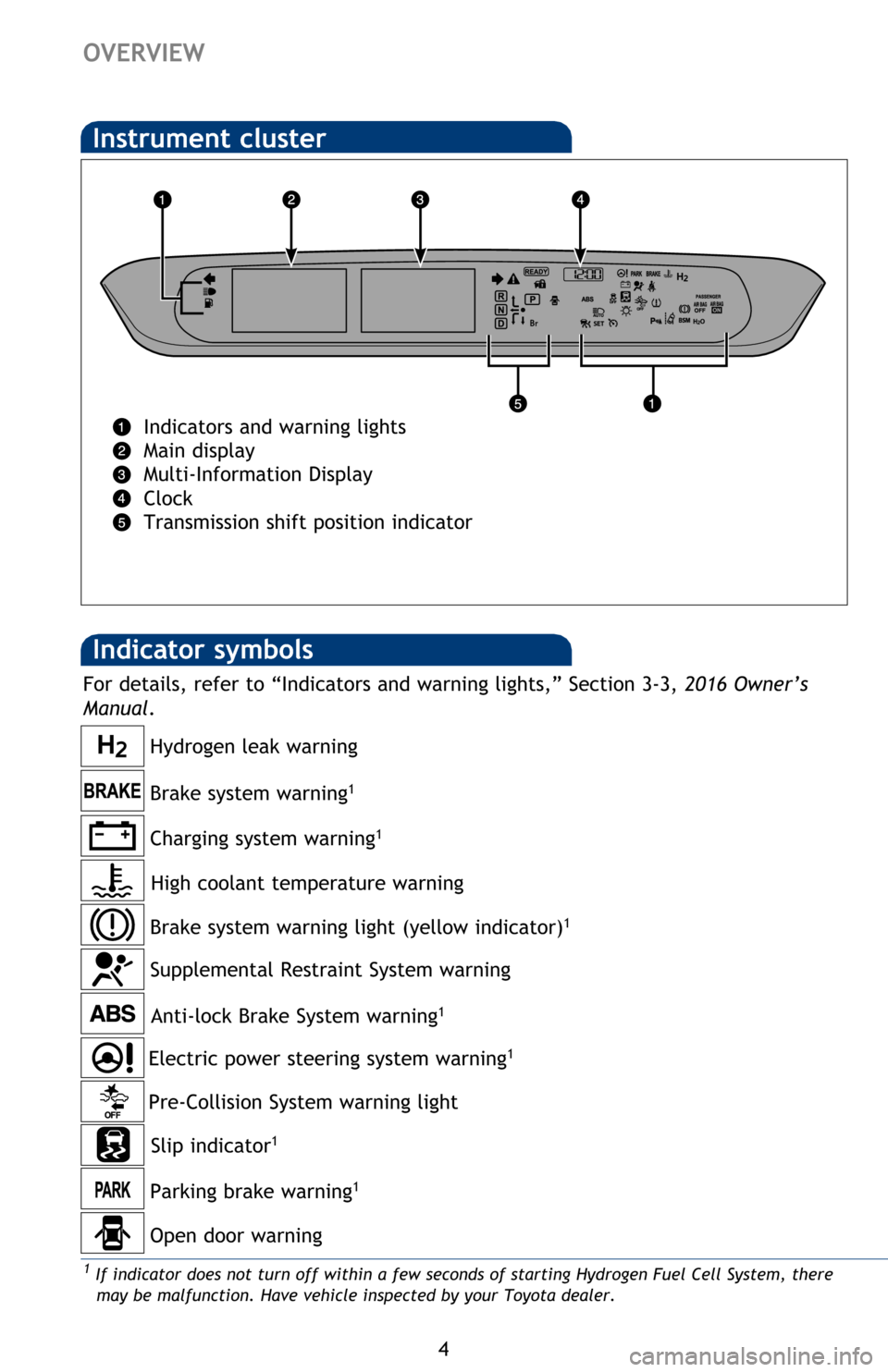

4
OVERVIEW
Indicator symbols
Instrument cluster
Indicators and warning lights
Main display
Multi-Information Display
Clock
Transmission shift position indicator
Anti-lock Brake System warning1
Slip indicator1
Pre-Collision System warning light
Open door warning Hydrogen leak warning
Charging system warning1
Brake system warning1
Parking brake warning1
Electric power steering system warning1
Brake system warning light (yellow indicator)1


,ILQGLFDWRUGRHVQRWWXUQRIIZLWKLQDIHZVHFRQGVRIVWDUWLQJ+\GURJHQ)XHO&HOO6\VWHPWKHUH
 PD\EHPDOIXQFWLRQ+DYHYHKLFOHLQVSHFWHGE\\RXU7R\RWDGHDOHU
For details, refer to “Indicators and warning lights,” Section 3-3,  2ZQHU·V
0DQXDO.
High coolant temperature warning
Supplemental Restraint System warning

12
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES

Pre-Collision System (PCS)
When a high possibility of a frontal collision is detected by the radar sensor, a
buzzer sounds and a message urging the driver to take evasive action appears
on the multi-information display. If the driver then applies brakes, the system
applies greater brake force in relation to how strongly the brake pedal is
depressed. If the system determines that a collision is unavoidable, the brakes
are automatically applied to reduce the collision speed. The alert timing for the
pre-collision system can be changed or turned on/off, as necessary, by pressing
TRAC switch.
The system is enabled each time the power switch is turned to ON mode.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.


Each time the Pre-Collision System switch is pressed, the response to the distance
changes as follows:
Far
Middle
Near
Press the TRAC switch for 3 seconds or more.
Changing the pre-collision warning timing
Disabling the Pre-Collision System

23
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESMulti-Information Display
Drive information
• Energy monitor
• Fuel cell system indicator and ECO meter
• Fuel consumption history display
• Drive monitor
• ECO diary
• Suspension of the settings display
Navigation system-linked display
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display
using the meter control switches.
Driving assist systems display
Displays when each driving assistance system is used.
• Dynamic radar cruise control
• LDA (Lane Departure Alert)
• Intuitive parking assist
• PCS (Pre-Collision System)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected.
Select category and items
Select/Set
Return to the previous screen

26
SAFETY AND EMERGENCY FEATURES
Emergency tire puncture repair kit
Location
Wheel nut wrench
Towing eyelet
Emergency tire puncture repair kit
Jack handle
Jack
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit (bottle of sealant and compressor.)
After temporarily repairing the tire with the repair kit, have the tire repaired or
replaced by your Toyota dealer.
Refer to the Owner’s Manual for more details.
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
WLUHSUHVVXUHVWRIDFWRU\VSHFL
