Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123
Page 13 of 464
13
MIRAI_OM_USA_OM62023U
How to search
■Searching by name• Alphabetical index .......P. 449
■Searching by installation
position• Pictorial index ................P. 14
■Searching by symptom or
sound• What to do if... (Troubleshooting) ........P. 446
■Searching by title• Table of contents .............P. 2
Page 14 of 464
14Pictorial index
MIRAI_OM_USA_OM62023U
Pictorial index
■

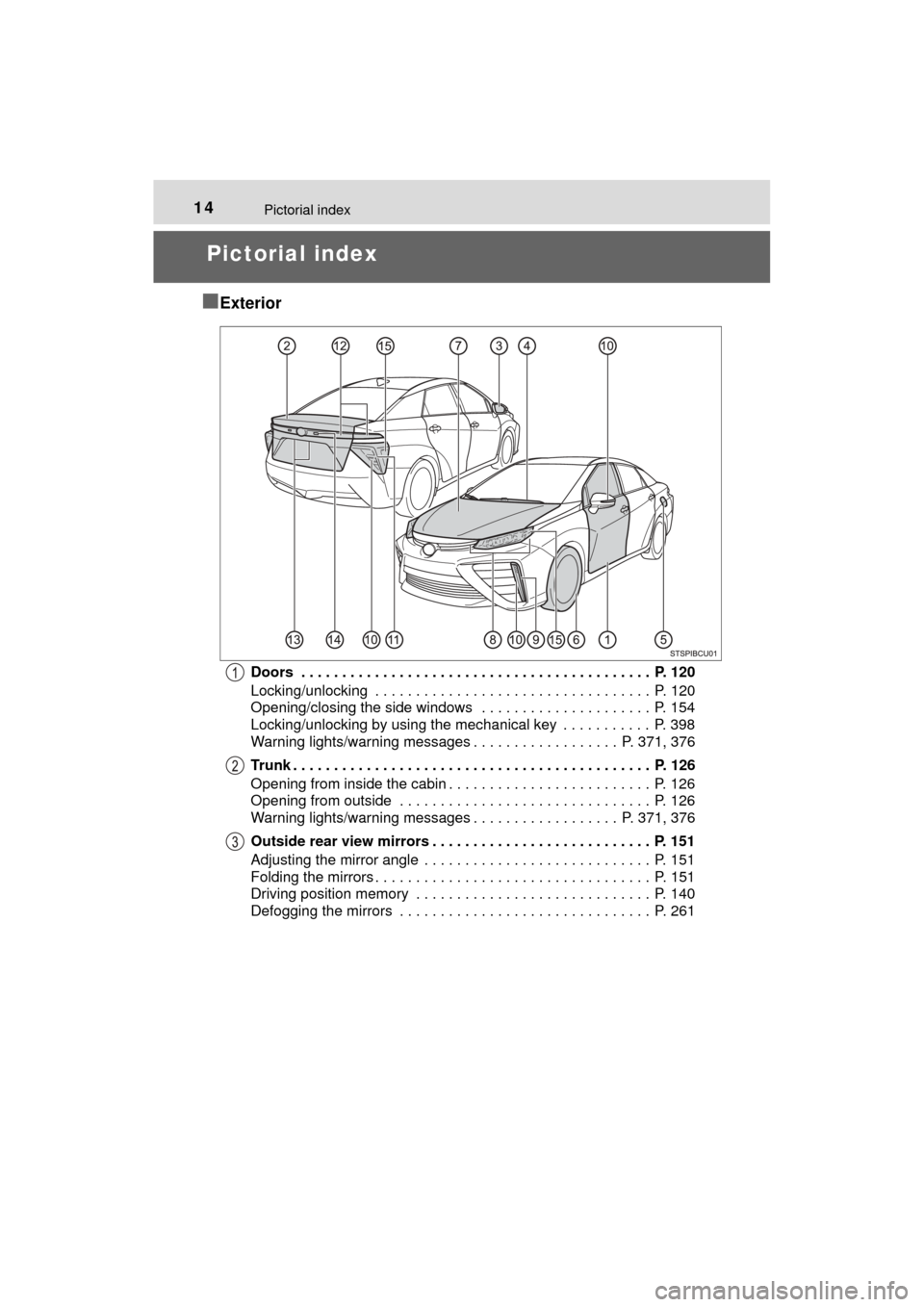

Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 154
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 398
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 371, 376
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Opening from inside the cabin . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 371, 376
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 140
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Page 15 of 464
15Pictorial index
MIRAI_OM_USA_OM62023UWindshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 253
To prevent freezing (windshield wiper de-icer). . . . . . . . . . . . . P. 261
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Fuel door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Fuel type/hydrogen tanks’ fuel capacity . . . . . . . . . . . . . . . . . . P. 418
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 421
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 253
Checking/rotation/tire pressure warning system . . . . . . . . . P. 332
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Parking lights/daytime running lights . . . . . . . . . . . . . . . . . P. 187
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Stop lights
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Light bulbs of the exterior lights for driving
(Replacing method: P. 358)
Page 16 of 464
16Pictorial index
MIRAI_OM_USA_OM62023U
■Instrument panel

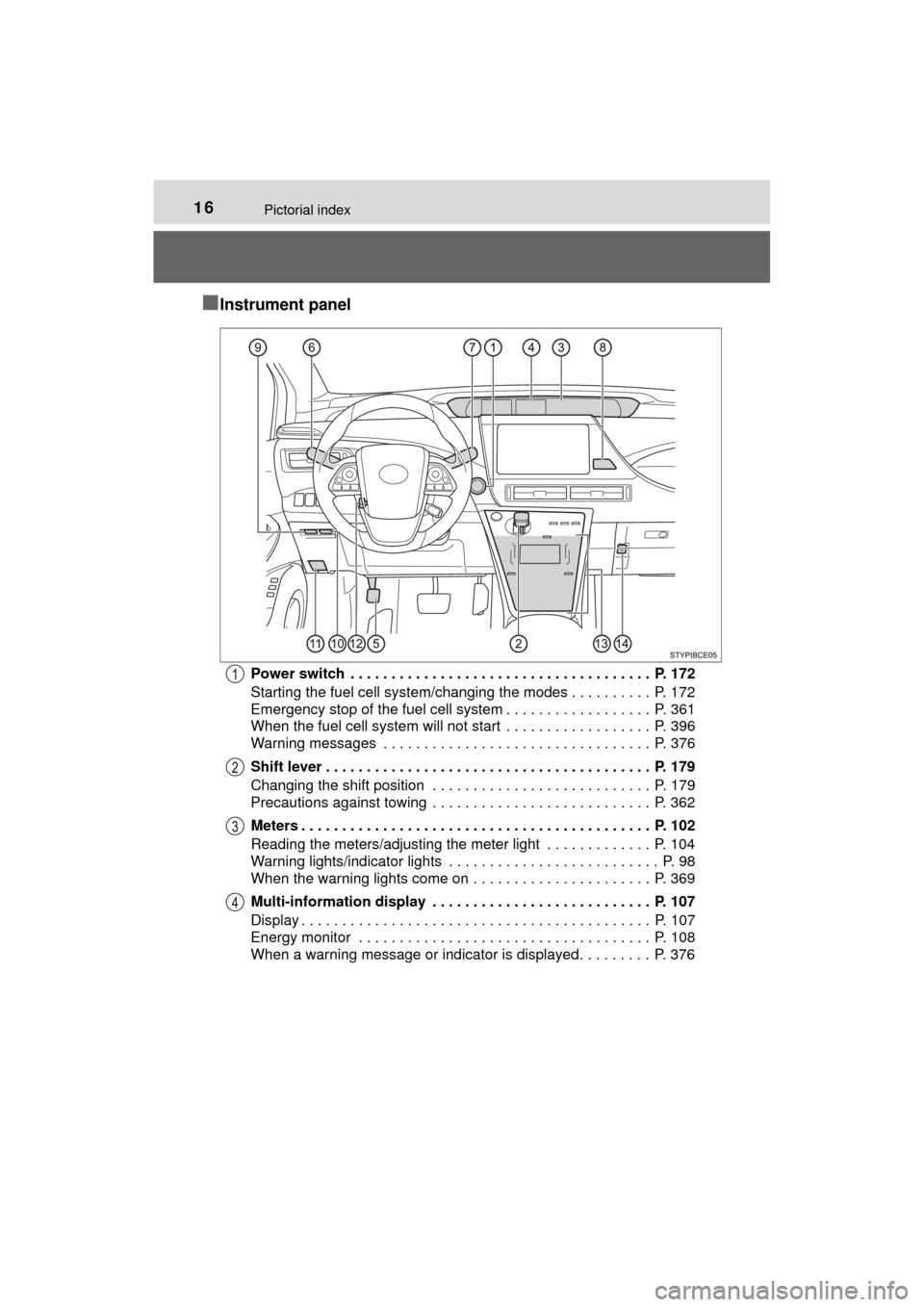

Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Starting the fuel cell system/changing the modes . . . . . . . . . . P. 172
Emergency stop of the fuel cell system . . . . . . . . . . . . . . . . . . P. 361
When the fuel cell system will not start . . . . . . . . . . . . . . . . . . P. 396
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102
Reading the meters/adjusting the meter light . . . . . . . . . . . . . P. 104
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 369
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
When a warning message or indicator is displayed . . . . . . . . . P. 376
Page 17 of 464
17Pictorial index
MIRAI_OM_USA_OM62023UParking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 254
Warning buzzer/warning message. . . . . . . . . . . . . . . . . . P. 371, 376
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Headlights/parking lights/side marker lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 195
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Fuel door opener switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Trunk opener switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Tilt and telescopic steering control switch . . . . . . . . . . . . . P. 147
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Page 18 of 464
18Pictorial index
MIRAI_OM_USA_OM62023U
■Switches

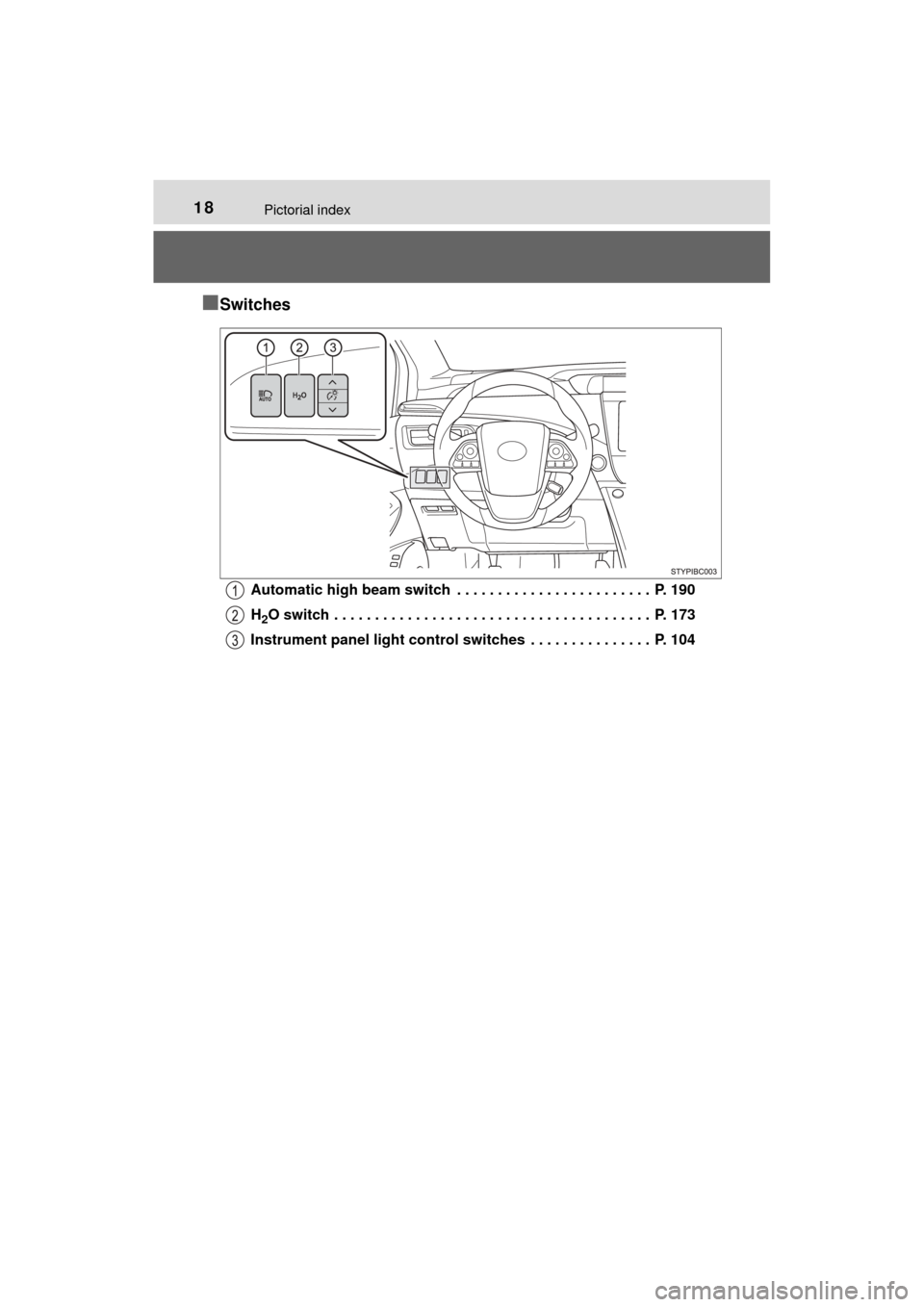

Automatic high beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 190
H
2O switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Instrument panel light control switches . . . . . . . . . . . . . . . P. 104
Page 19 of 464
19Pictorial index

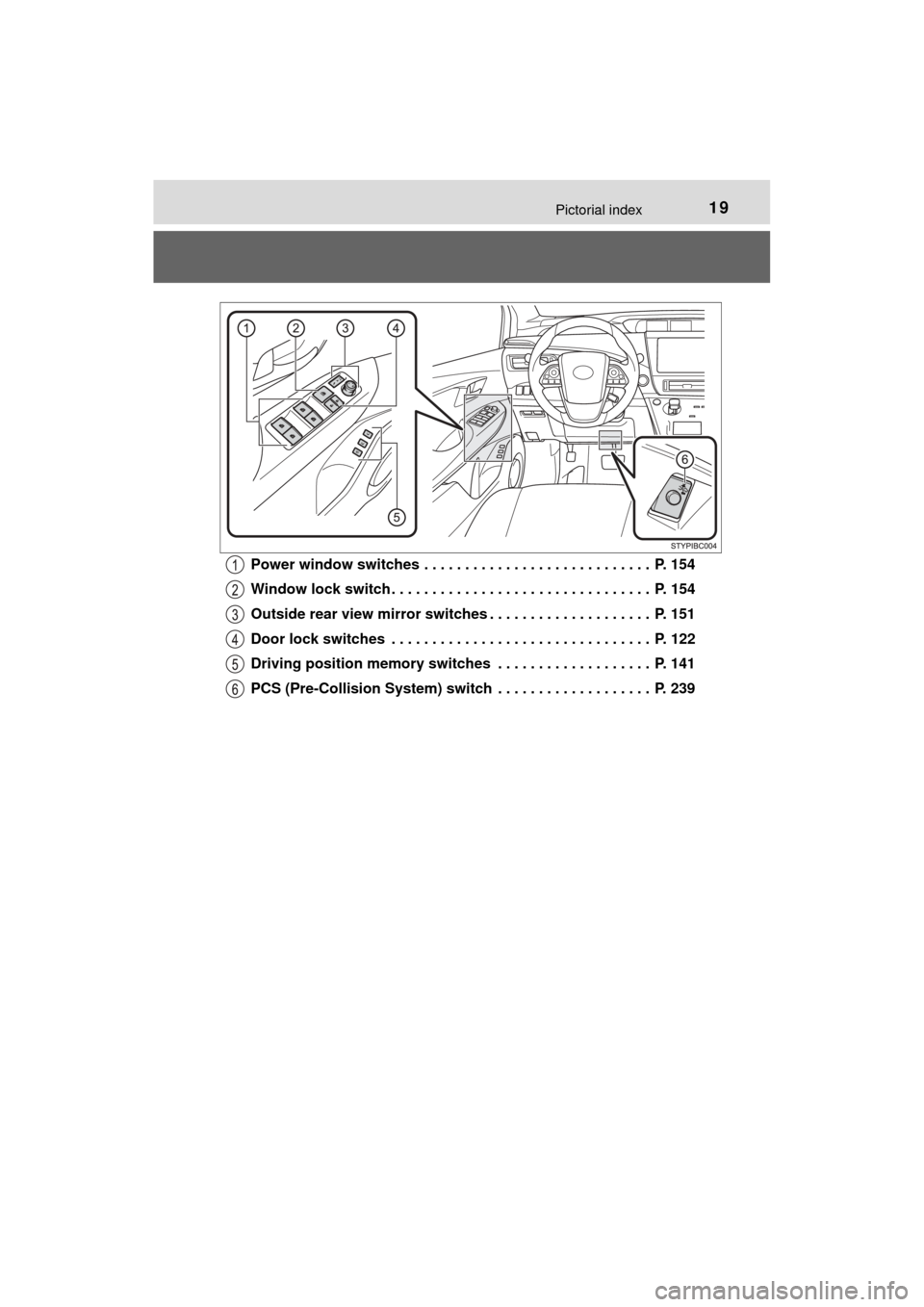

MIRAI_OM_USA_OM62023UPower window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 151
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Driving position memory switches . . . . . . . . . . . . . . . . . . . P. 141
PCS (Pre-Collision System) switch . . . . . . . . . . . . . . . . . . . P. 239
Page 20 of 464
20Pictorial index

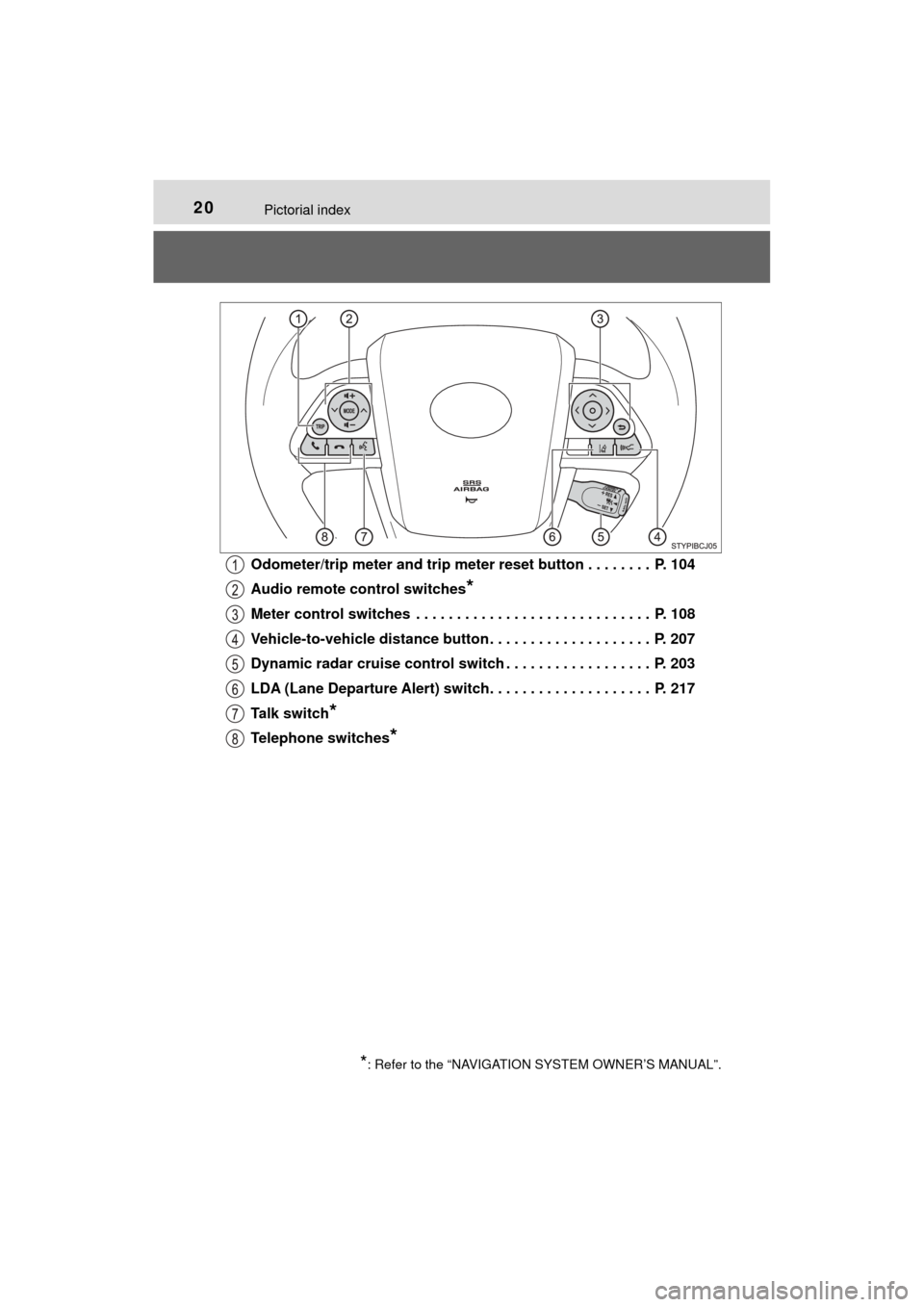

MIRAI_OM_USA_OM62023UOdometer/trip meter and trip meter
reset button . . . . . . . . P. 104
Audio remote control switches
*
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
Vehicle-to-vehicle distance button . . . . . . . . . . . . . . . . . . . . P. 207
Dynamic radar cruise control switch . . . . . . . . . . . . . . . . . . P. 203
LDA (Lane Departure Alert) switch. . . . . . . . . . . . . . . . . . . . P. 217
Talk switch
*
Telephone switches*
