3
Main display Multi-Information Display
Shift position indicator
Clock
“POWER MODE” switch
“ECO MODE” switch
“Traction OFF” or “ON” switch
“P” position switch
Transmission Luggage security system
(disable trunk opener) switch
Audio/Navigation system
1
Emergency flasher switch
1
For details, refer to the “Navigation System Owner’s Manual.”

23
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Audio
USB/AUX port
Power outlet
Entune™ Premium JBL Audio with Integrated Navigation and App Suite
Eject CD
Seek station/
CD trackCD player
Push to display audio screen
Push to access Entune systemTouch screen display
Push to turn ON/OFF
Turn for volume
Designed for car accessories. Power switch must be set at “ACCESSORY”\
or “ON”
in order to use power outlets.
(1) Push to open cover(2) Pull open port cover
(3) Connect device
By inserting a USB or an auxiliary cable plug into the USB/AUX port, you\
can listen
to music from a portable audio device through the vehicle’s speaker s\
ystem while in
USB/AUX mode.
Refer to the Navigation System Owner’s Manual and 2016 Entune™ Aud\
io Quick
Reference Guide for more details.

25
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

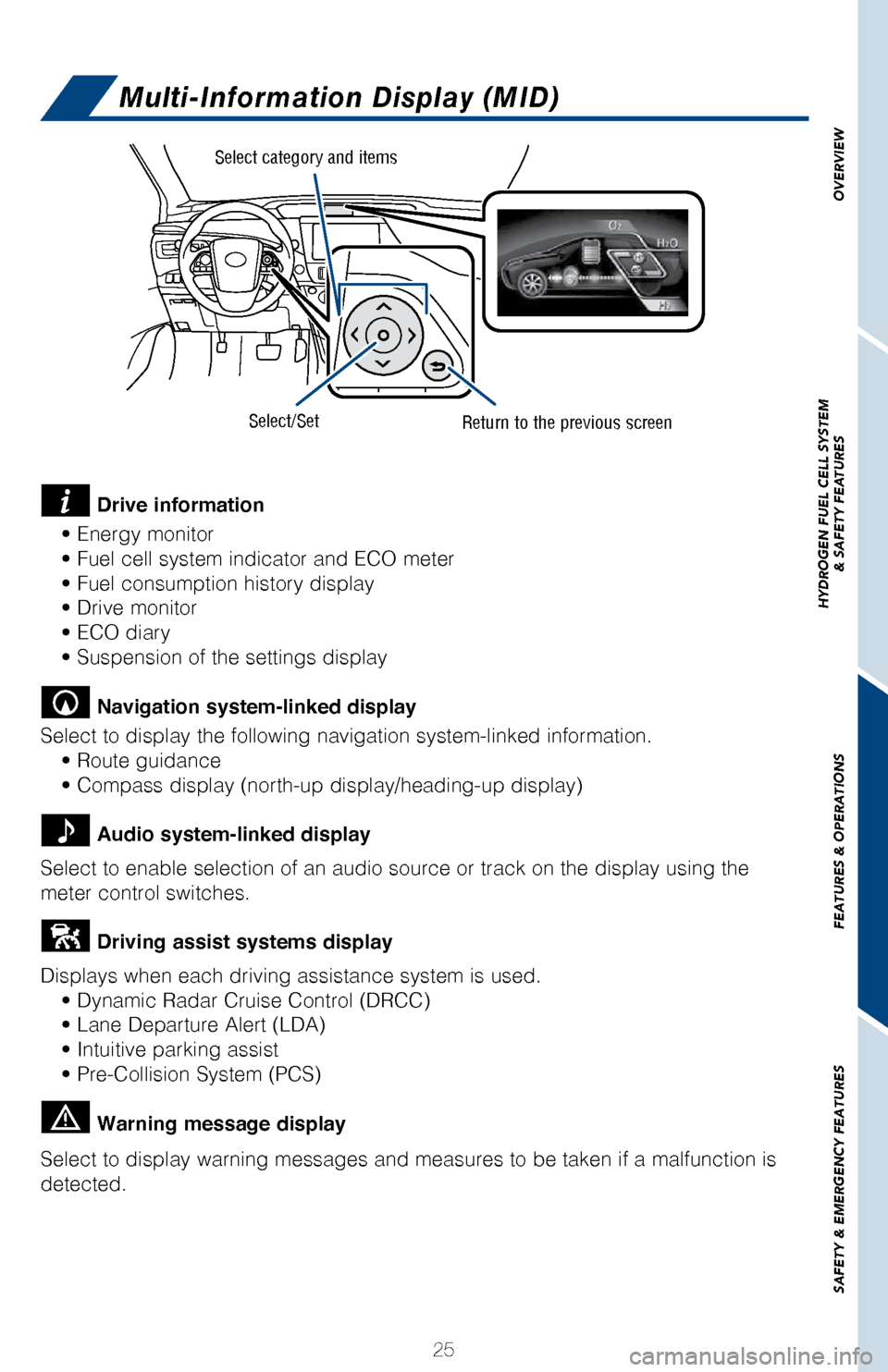

Multi-Information Display (MID)
Select category and items
Select/SetReturn to the previous screen
Drive information
• Energy monitor
• Fuel cell system indicator and ECO meter
• Fuel consumption history display
• Drive monitor
• ECO diary
• Suspension of the settings display

Navigation system-linked display
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display using the
meter control switches.
Driving assist systems display
Displays when each driving assistance system is used.
• Dynamic Radar Cruise Control (DRCC)
• Lane Departure Alert (LDA)
• Intuitive parking assist
• Pre-Collision System (PCS)
Warning message display
Select to display warning messages and measures to be taken if a malfunc\
tion is
detected.
