turn signal TOYOTA MIRAI 2017 1.G Quick Reference Guide

Audio 23
Auto lock/unlock1,2 13
Automatic air conditioning system 22
Automatic High Beams (AHB) 20
Automatic transmission 14-15
Blind Spot Monitor (BSM) 19
Clock 24
Door locks 15
Dynamic Radar
Cruise Control (DRCC) 26-27
Garage door opener (Homelink
®)3 27
Lane Departure Alert (LDA) 17
Lights
1 & turn signals 21
Multi-Information Display (MID) 25
Parking brake 13
Power outlet 23
Pre-Collision System (PCS) 18
Seat adjustments-Front 16
Seat heaters 16
Seats-Folding down rear seats 17
Seats-Head restraints 16
Starting your vehicle 13
Steering wheel switches 24
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
1
INDEX
Fuel door release button and cap 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6-7
Light control-Instrument panel 8
Smart Key System
1,2 7
Hydrogen Fuel Cell System 9-11
Water release (H
2O) switch 12
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel 15
USB/AUX port 23
Windows-Power 21
Windshield wipers & washer 20
Wireless charger 24
Doors-Child safety locks 30
Emergency tire puncture repair kit 28
Floor mat installation 30
Seat belts 29
Seat belts-Shoulder belt anchor 29
Star Safety System
™ 31
Tire pressure monitoring
(warning) system (TPMS) 28
BLUETOOTH® DEVICE
PAIRING SECTION 32-41

2
OVERVIEW
Instrument panel
Steering wheel controls
Multimedia control
switchesCruise control switchPower switch
Parking brake lever
Hood lock release lever
Trunk opener
Fuel door opener Water release switch
Automatic High
Beam switch
Tilt and telescopic steering
control switch
Instrument panel light
control switchesMulti-Information Display
(MID) control switches
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance switchLane Departure Alert
(LDA) ON switch
Turn signal lever and headlight switch Windshield wiper and washer switch

OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
5
Slip indicator1
Vehicle Stability Control OFF indicator
Cruise control indicator2,3
Cruise control SET indicator
Headlight low/high beam indicator
Automatic high beam indicator
Turn signal indicator
Shift position indicator
Charging system warning1
H2O indicator
Engine brake mode indicator
ECO mode indicator
Power restriction indicator
Power mode indicator
Pre-Collision System warning light
Intuitive parking assist indicator
Lane Departure Alert indicator
Blind Spot Monitor indicators
Blind Spot Monitor outside
rearview mirror indicators
2 If this light flashes, refer to “Cruise control,” Section 2-4, 201\
7 Owner’s Manual.3 If this light flashes, refer to “Dynamic Radar Cruise Control,” S\
ection 2-4, 2017 Owner’s Manual.
Electric power steering system warning1
Anti-lock Brake System warning1
Brake system warning1
Parking brake warning1
Brake Override System/
Drive-Start Control warning light
Brake system warning light
(yellow indicator)1
Dynamic Radar Cruise
Control indicator3

OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

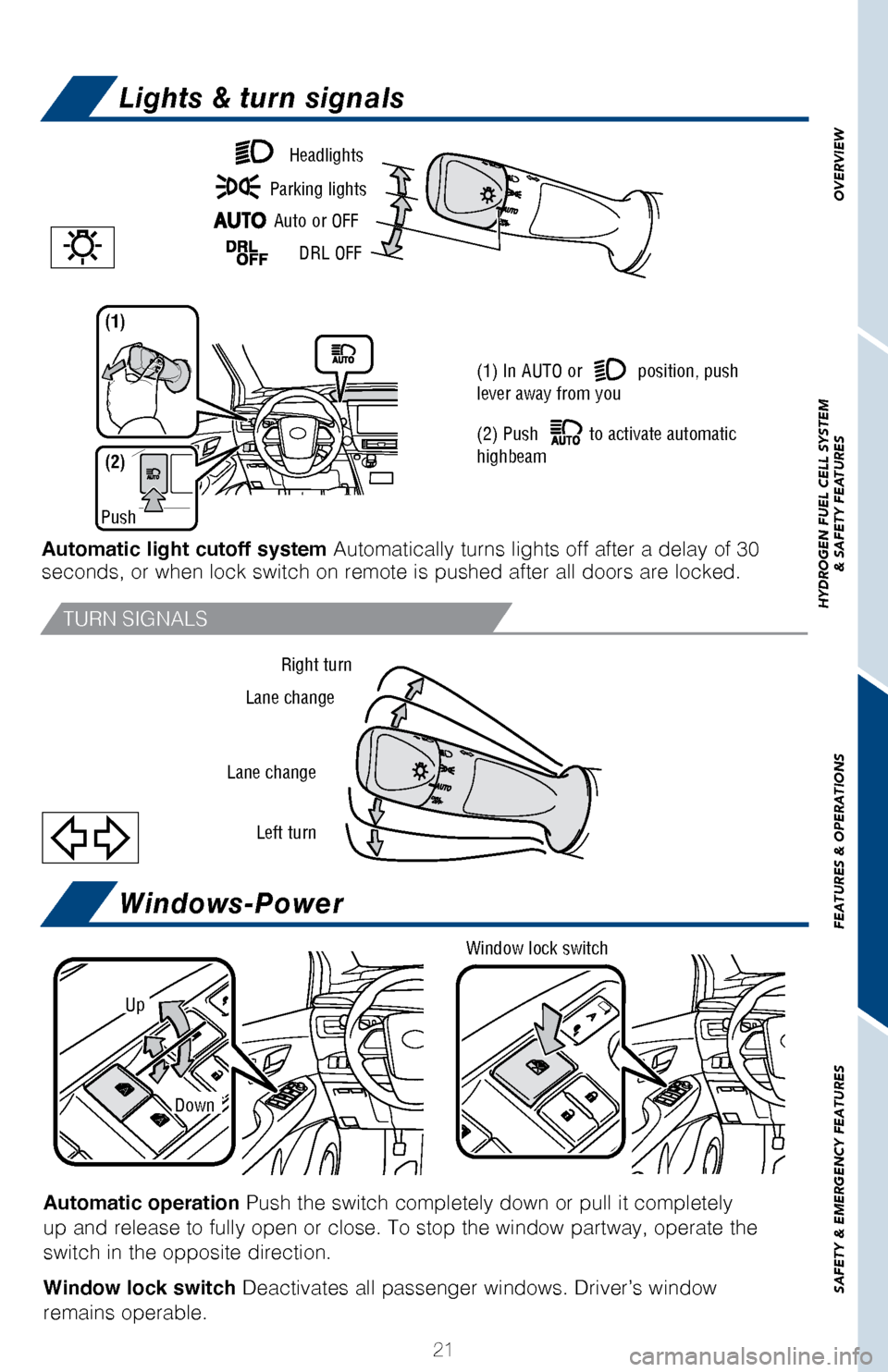

21
TURN SIGNALS
Right turn
Lane change
Lane change Left turn Headlights
Parking lights Auto or OFF
DRL OFF
Push
(1)
(1) In AUTO or position, push
lever away from you
(2) Push
to activate automatic
highbeam
(2)
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or when lock switch on remote is pushed after all doors are loc\
ked.
Windows-Power
Up
Window lock switch
Automatic operation Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, opera\
te the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Down
Lights & turn signals
