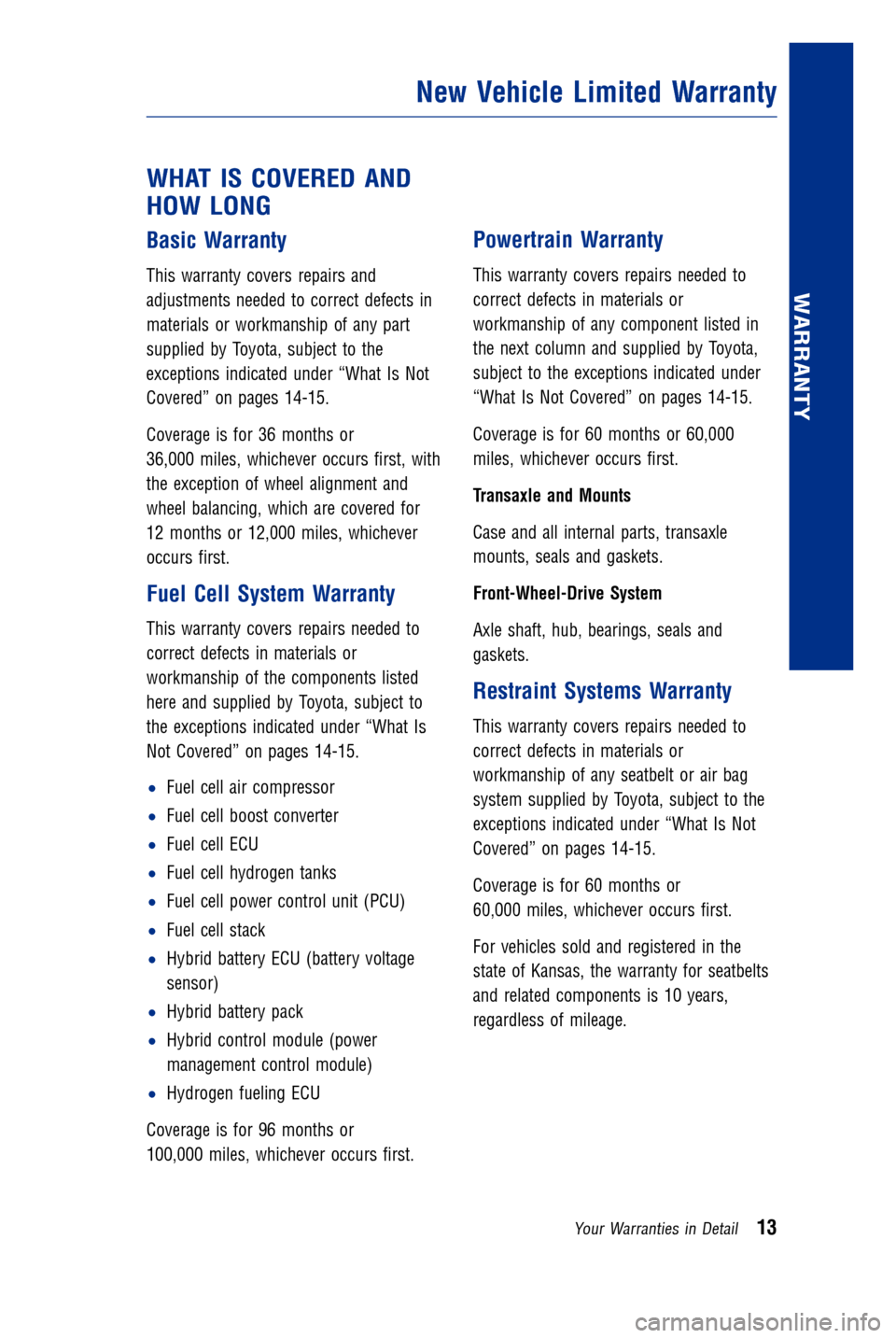

WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 12,000 miles, whichever
occurs first.
Fuel Cell System Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 14-15.
•Fuel cell air compressor
•Fuel cell boost converter
•Fuel cell ECU
•Fuel cell hydrogen tanks
•Fuel cell power control unit (PCU)
•Fuel cell stack
•Hybrid battery ECU (battery voltage
sensor)
•Hybrid battery pack
•Hybrid control module (power
management control module)
•Hydrogen fueling ECU
Coverage is for 96 months or
100,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed in
the next column and supplied by Toyota,
subject to the exceptions indicated under
“What Is Not Covered” on pages 14-15.
Coverage is for 60 months or 60,000
miles, whichever occurs first.
Transaxle and Mounts
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Axle shaft, hub, bearings, seals and
gaskets.
Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any seatbelt or air bag
system supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail13
JOBNAME: 2372857-en-2017_Mira PAGE: 12 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
WARRANTY COVERAGE AT A GLANCE
General Warranty Provisions
WARRANTY
Your Warranties in Detail12

JOBNAME: 2372857-en-2017_Mira PAGE: 13 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 12,000 miles, whichever
occurs first.
Fuel Cell System Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 14-15.
•Fuel cell air compressor
•Fuel cell boost converter
•Fuel cell ECU
•Fuel cell hydrogen tanks
•Fuel cell power control unit (PCU)
•Fuel cell stack
•Hybrid battery ECU (battery voltage
sensor)
•Hybrid battery pack
•Hybrid control module (power
management control module)
•Hydrogen fueling ECU
Coverage is for 96 months or
100,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed in
the next column and supplied by Toyota,
subject to the exceptions indicated under
“What Is Not Covered” on pages 14-15.
Coverage is for 60 months or 60,000
miles, whichever occurs first.
Transaxle and Mounts
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Axle shaft, hub, bearings, seals and
gaskets.
Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any seatbelt or air bag
system supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail13
JOBNAME: 2372857-en-2017_Mira PAGE: 12 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
WARRANTY COVERAGE AT A GLANCE
General Warranty Provisions
WARRANTY
Your Warranties in Detail12

JOBNAME: 2372857-en-2017_Mira PAGE: 27 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1

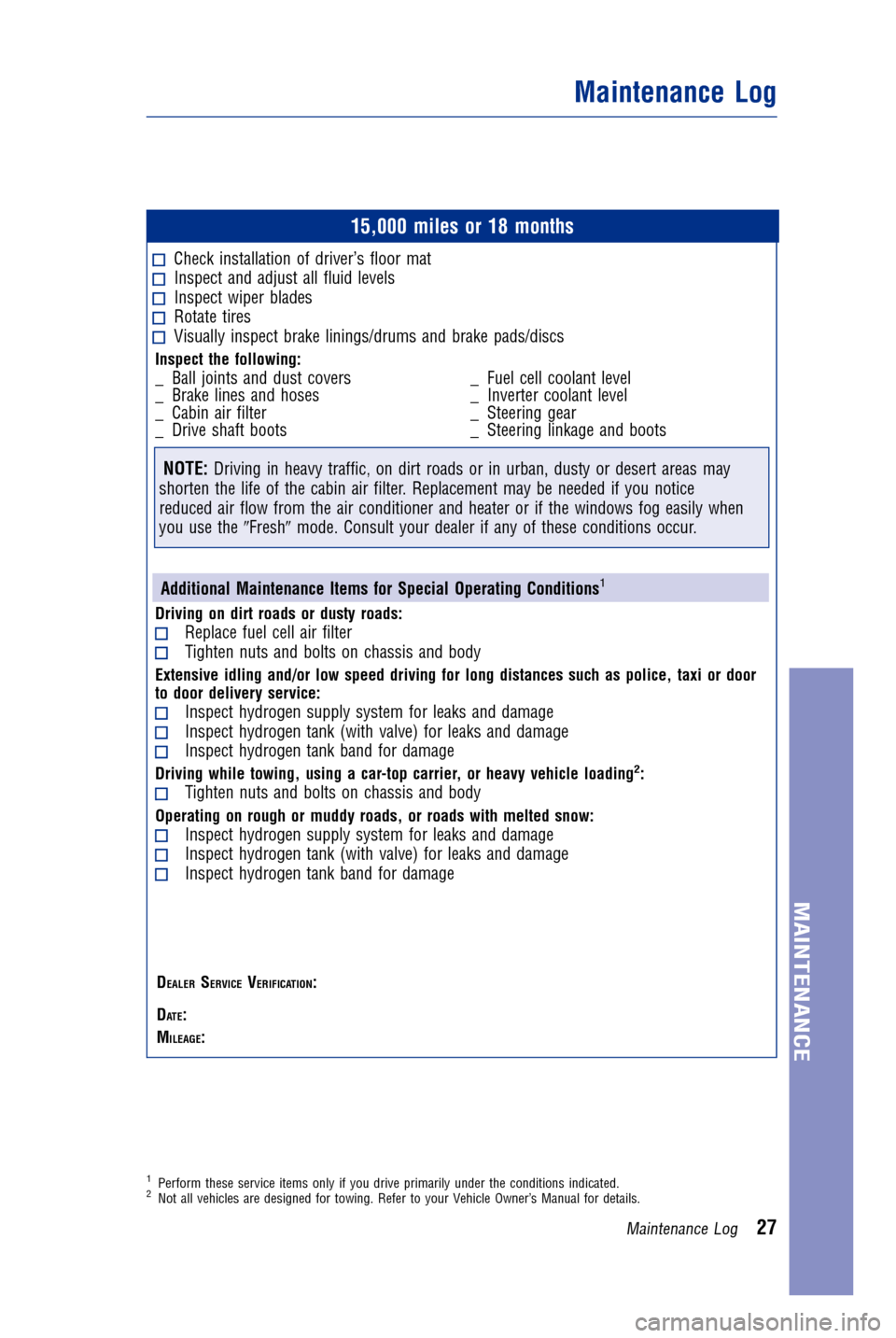

15,000 miles or 18 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots_ Fuel cell coolant level
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Replace fuel cell air filter
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for long distances such as police, taxi or door
to door delivery service:
Inspect hydrogen supply system for leaks and damage
Inspect hydrogen tank (with valve) for leaks and damage
Inspect hydrogen tank band for damage
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
Operating on rough or muddy roads, or roads with melted snow:Inspect hydrogen supply system for leaks and damage
Inspect hydrogen tank (with valve) for leaks and damage
Inspect hydrogen tank band for damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log27
JOBNAME: 2372857-en-2017_Mira PAGE: 26 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1

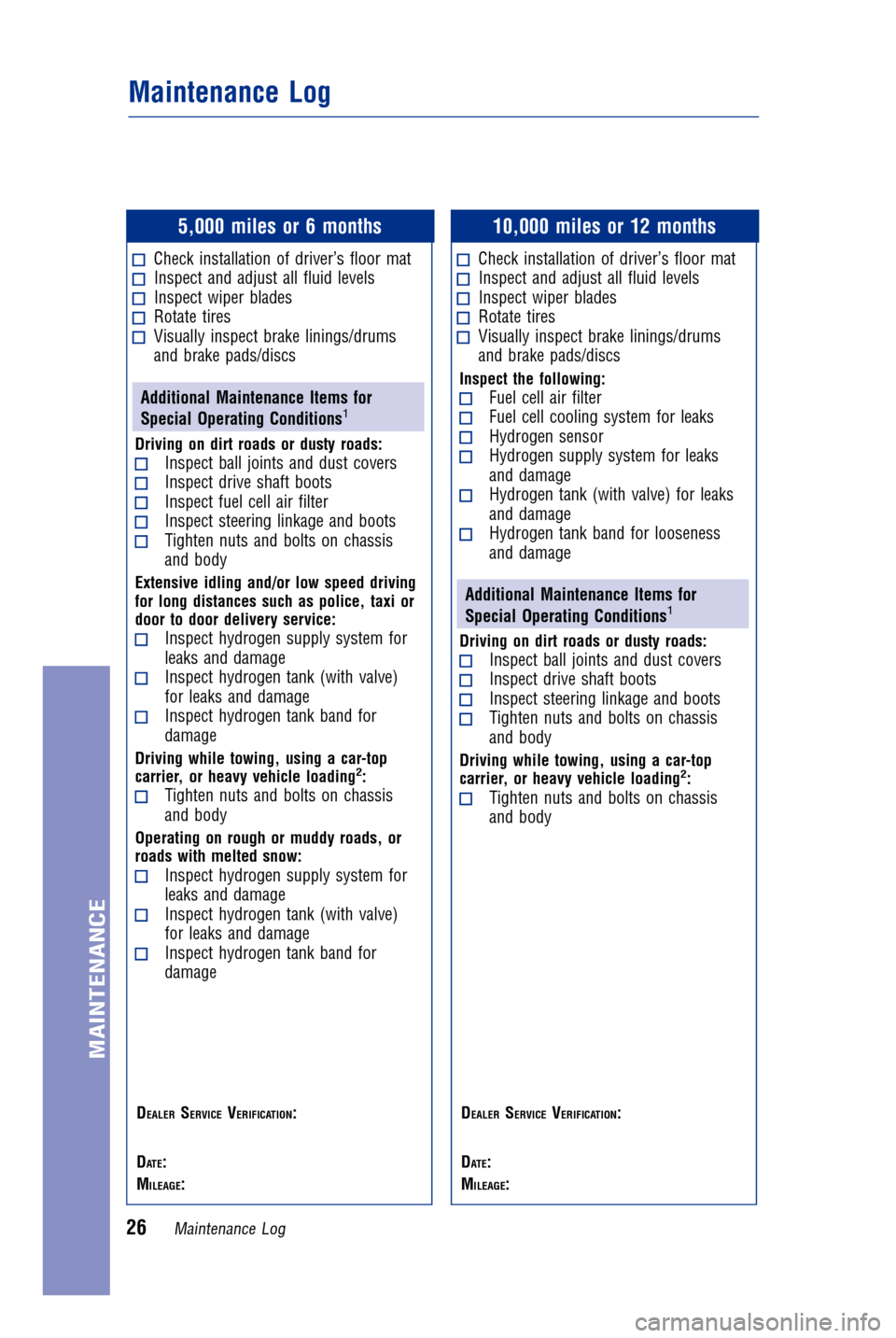

5,000 miles or 6 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect fuel cell air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
10,000 miles or 12 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filterFuel cell cooling system for leaksHydrogen sensorHydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log26

JOBNAME: 2372857-en-2017_Mira PAGE: 27 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
15,000 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots_ Fuel cell coolant level
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Replace fuel cell air filterTighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for long distances such as police, taxi or door
to door delivery service:
Inspect hydrogen supply system for leaks and damageInspect hydrogen tank (with valve) for leaks and damageInspect hydrogen tank band for damage
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
Operating on rough or muddy roads, or roads with melted snow:Inspect hydrogen supply system for leaks and damageInspect hydrogen tank (with valve) for leaks and damageInspect hydrogen tank band for damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log27
JOBNAME: 2372857-en-2017_Mira PAGE: 26 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
5,000 miles or 6 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect fuel cell air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
10,000 miles or 12 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filter
Fuel cell cooling system for leaks
Hydrogen sensor
Hydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log26

JOBNAME: 2372857-en-2017_Mira PAGE: 29 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
30,000 miles or 36 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Replace cabin air filter
Replace fuel cell air filter
Rotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums andbrake pads/discs
3
_ Drive shaft boots
_ Fuel cell coolant level
_ Fuel cell cooling system for leaks
_ Hybrid transaxle for signs of leakage
_ Hydrogen sensor
_ Hydrogen supply system for leaks anddamage _ Hydrogen tank (with valve) for leaks and
damage
_ Hydrogen tank band for looseness and
damage
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.3Inspect thickness measurement and disc runout.
Maintenance Log
MAINTENANCE
Maintenance Log29
JOBNAME: 2372857-en-2017_Mira PAGE: 28 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
20,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filterFuel cell cooling system for leaksHydrogen sensorHydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect fuel cell air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log28

JOBNAME: 2372857-en-2017_Mira PAGE: 29 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1

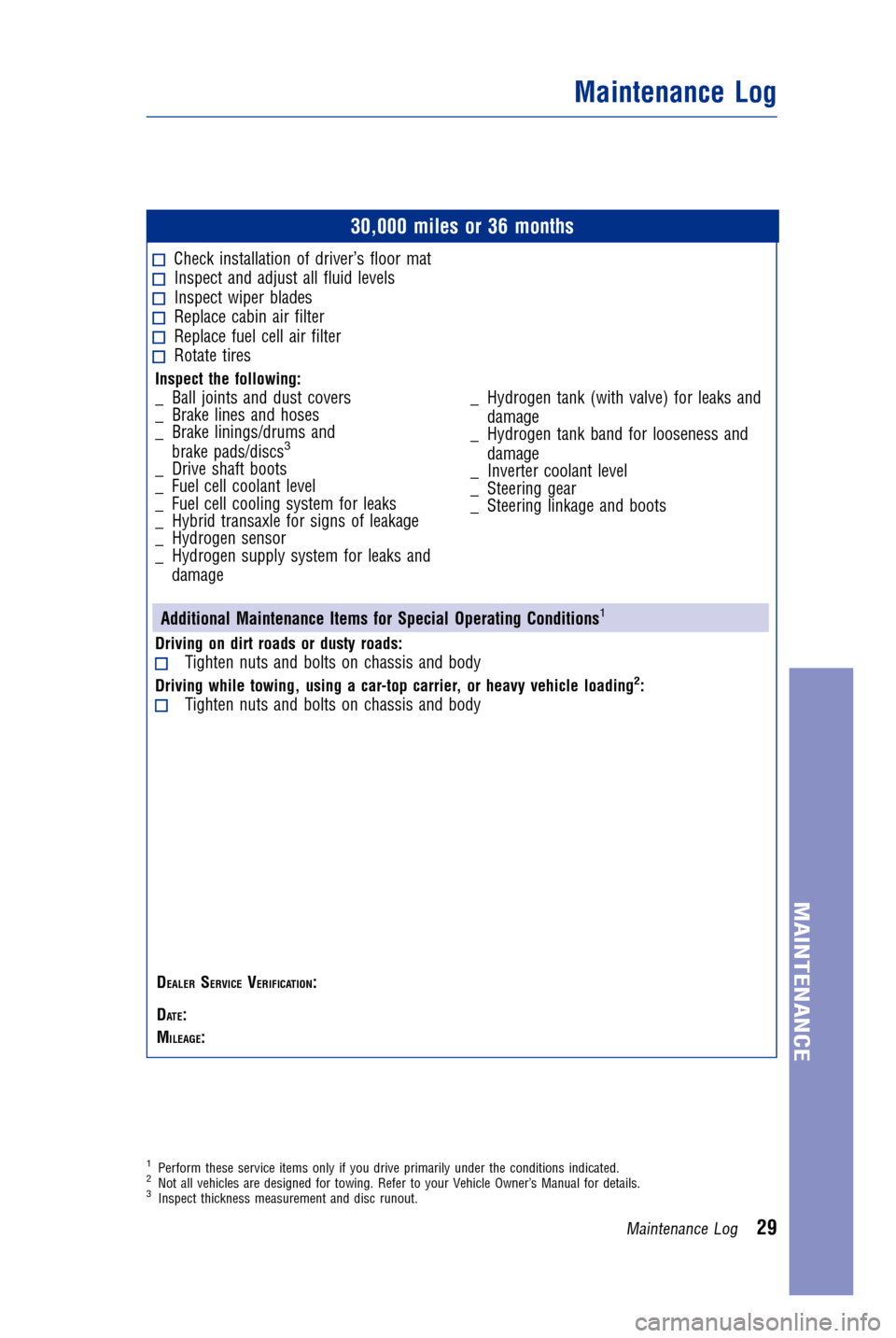

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace fuel cell air filterRotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums andbrake pads/discs
3
_ Drive shaft boots
_ Fuel cell coolant level
_ Fuel cell cooling system for leaks
_ Hybrid transaxle for signs of leakage
_ Hydrogen sensor
_ Hydrogen supply system for leaks anddamage _ Hydrogen tank (with valve) for leaks and
damage
_ Hydrogen tank band for looseness and
damage
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.3Inspect thickness measurement and disc runout.
Maintenance Log
MAINTENANCE
Maintenance Log29
JOBNAME: 2372857-en-2017_Mira PAGE: 28 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1

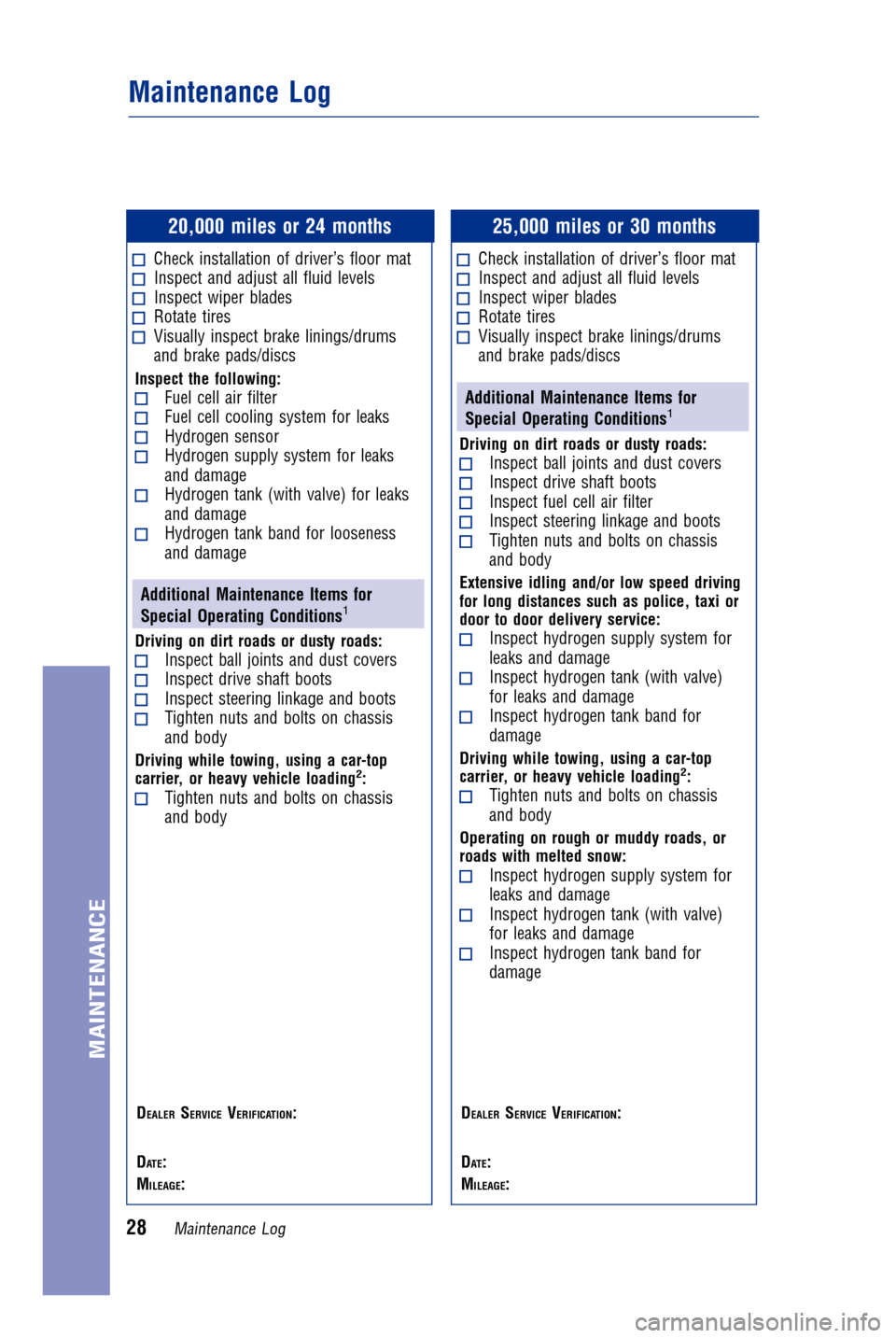

20,000 miles or 24 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filter
Fuel cell cooling system for leaks
Hydrogen sensor
Hydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect fuel cell air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log28

JOBNAME: 2372857-en-2017_Mira PAGE: 31 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
45,000 miles or 54 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots_ Fuel cell coolant level
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Replace fuel cell air filter
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for long distances such as police, taxi or door
to door delivery service:
Inspect hydrogen supply system for leaks and damage
Inspect hydrogen tank (with valve) for leaks and damage
Inspect hydrogen tank band for damage
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
Operating on rough or muddy roads, or roads with melted snow:Inspect hydrogen supply system for leaks and damage
Inspect hydrogen tank (with valve) for leaks and damage
Inspect hydrogen tank band for damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log31
JOBNAME: 2372857-en-2017_Mira PAGE: 30 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1

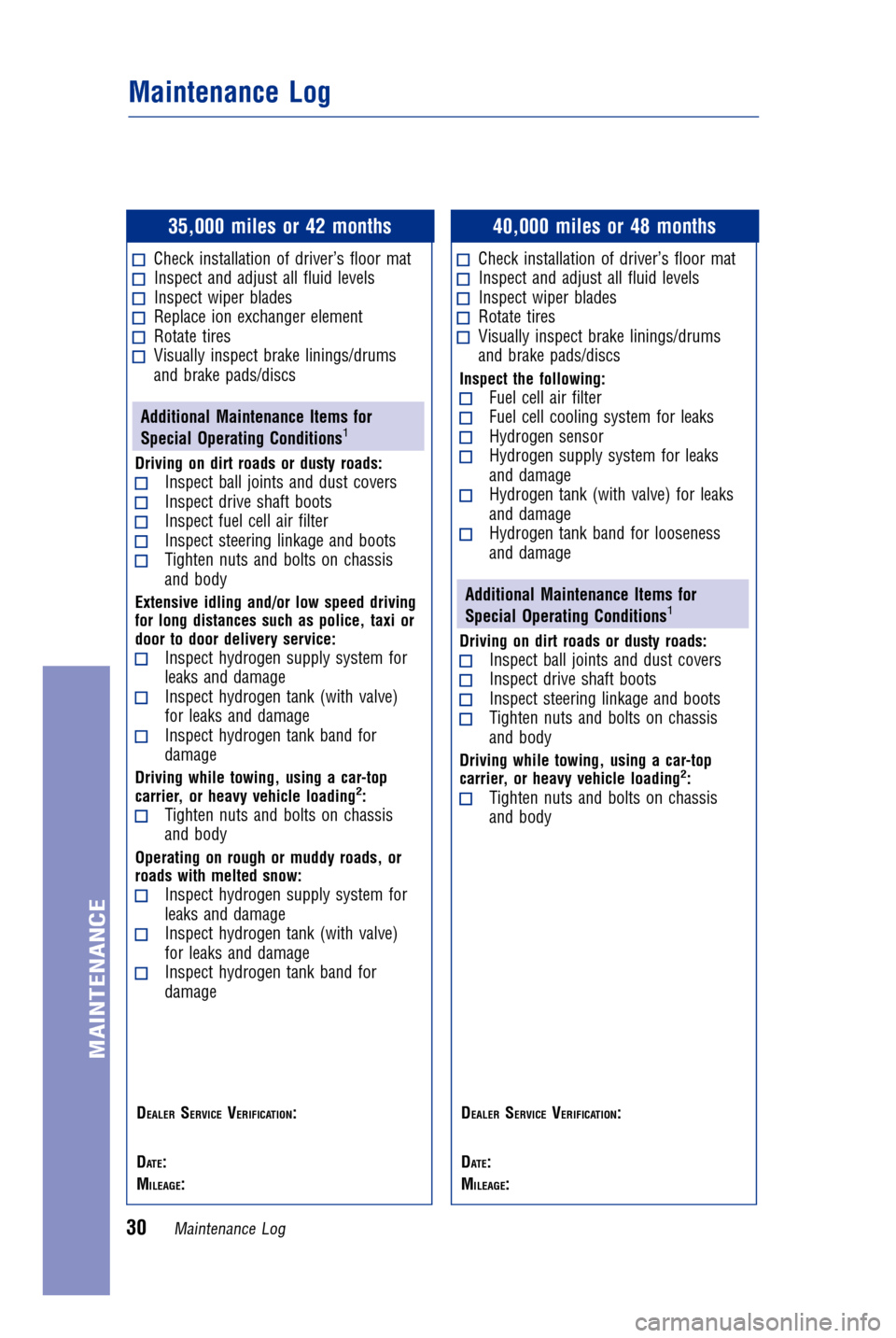

35,000 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace ion exchanger elementRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect fuel cell air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filterFuel cell cooling system for leaksHydrogen sensorHydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log30

JOBNAME: 2372857-en-2017_Mira PAGE: 31 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
45,000 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Cabin air filter
_ Drive shaft boots_ Fuel cell coolant level
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
NOTE:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Replace fuel cell air filterTighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for long distances such as police, taxi or door
to door delivery service:
Inspect hydrogen supply system for leaks and damageInspect hydrogen tank (with valve) for leaks and damageInspect hydrogen tank band for damage
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
Operating on rough or muddy roads, or roads with melted snow:Inspect hydrogen supply system for leaks and damageInspect hydrogen tank (with valve) for leaks and damageInspect hydrogen tank band for damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log31
JOBNAME: 2372857-en-2017_Mira PAGE: 30 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
35,000 miles or 42 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Replace ion exchanger element
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect fuel cell air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filter
Fuel cell cooling system for leaks
Hydrogen sensor
Hydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log30

JOBNAME: 2372857-en-2017_Mira PAGE: 33 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1

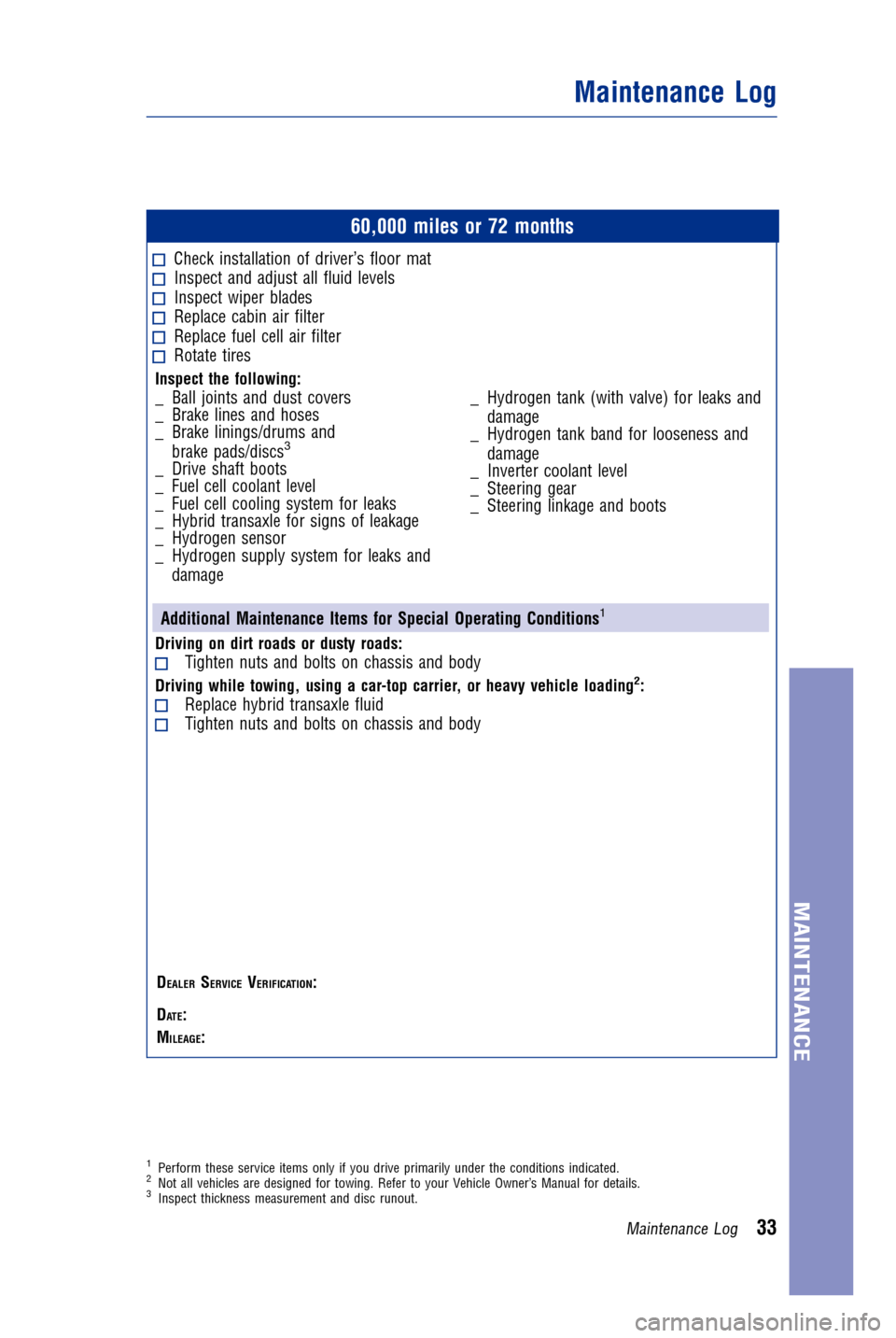

60,000 miles or 72 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Replace cabin air filter
Replace fuel cell air filter
Rotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums andbrake pads/discs
3
_ Drive shaft boots
_ Fuel cell coolant level
_ Fuel cell cooling system for leaks
_ Hybrid transaxle for signs of leakage
_ Hydrogen sensor
_ Hydrogen supply system for leaks anddamage _ Hydrogen tank (with valve) for leaks and
damage
_ Hydrogen tank band for looseness and
damage
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Replace hybrid transaxle fluid
Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.3Inspect thickness measurement and disc runout.
Maintenance Log
MAINTENANCE
Maintenance Log33
JOBNAME: 2372857-en-2017_Mira PAGE: 32 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
50,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filterFuel cell cooling system for leaksHydrogen sensorHydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect fuel cell air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log32

JOBNAME: 2372857-en-2017_Mira PAGE: 33 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
60,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace fuel cell air filterRotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums andbrake pads/discs
3
_ Drive shaft boots
_ Fuel cell coolant level
_ Fuel cell cooling system for leaks
_ Hybrid transaxle for signs of leakage
_ Hydrogen sensor
_ Hydrogen supply system for leaks anddamage _ Hydrogen tank (with valve) for leaks and
damage
_ Hydrogen tank band for looseness and
damage
_ Inverter coolant level
_ Steering gear
_ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Replace hybrid transaxle fluidTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.3Inspect thickness measurement and disc runout.
Maintenance Log
MAINTENANCE
Maintenance Log33
JOBNAME: 2372857-en-2017_Mira PAGE: 32 SESS: 4 OUTPUT: Tue Jul 26 12:59:31 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372857-en-2017_M\
irai.00505-17WMG-MIR_/TS_Warr_Maint_v1
50,000 miles or 60 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Inspect the following:Fuel cell air filter
Fuel cell cooling system for leaks
Hydrogen sensor
Hydrogen supply system for leaks
and damage
Hydrogen tank (with valve) for leaks
and damage
Hydrogen tank band for looseness
and damage
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
55,000 miles or 66 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect fuel cell air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for long distances such as police, taxi or
door to door delivery service:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis
and body
Operating on rough or muddy roads, or
roads with melted snow:
Inspect hydrogen supply system for
leaks and damage
Inspect hydrogen tank (with valve)
for leaks and damage
Inspect hydrogen tank band for
damage
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
Maintenance Log32
