display TOYOTA MIRAI 2018 Owners Manual (in English)

1
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY &
EMERGENCY FEATURES
Audio 23
Auto lock/unlock1,2 13
Automatic air conditioning system 22
Automatic High Beams (AHB) 20
Automatic transmission 14-15
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 19
Clock 26
Door locks 15
Dynamic Radar
Cruise Control (DRCC) 28-29
Garage door opener (Homelink
®)3 29
Lane Departure Alert (LDA) 17
Lights
1 & turn signals 21
Luggage security system 13
Multi-Information Display (MID) 27
Parking brake 13
Power outlets 24
Pre-Collision System (PCS) 18
Seat adjustments-Front 16
Seat heaters 16
Seats-Folding down rear seats 17
Seats-Head restraints 16
Steering wheel switches
& telephone controls (Bluetooth
®) 25
INDEX
Fuel door release button and cap 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
Hydrogen Fuel Cell System 9-11
Water release (H
2O) switch 12
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel 15
USB/AUX port 23
Windows-Power 21
Windshield wipers & washer 20
Wireless charger 24
Emergency tire puncture repair kit 30
Floor mat installation 33
Rear door child safety locks 31
Seat belts 31
Seat belts-Shoulder belt anchor 31
Star Safety System
™ 32-33
Tire Pressure Monitoring
(warning) System (TPMS) 30
BLUETOOTH® DEVICE
PAIRING SECTION 34-36

2
OVERVIEWInstrument panel
Steering wheel controls
Odometer/
trip meter and
tripmeter reset
button
Telephone switches
1
Voice command switch1
Audio switches1
Dynamic Radar Cruise
Control (DRCC)/Cruise
control switch
Power switch
Parking brake lever
Hood lock release lever
Trunk opener
switch
Fuel door opener
switch Water release switch
Automatic High
Beam (AHB) switch
Tilt and telescopic steering
lock release lever
Instrument panel light
control switches
Multi-Information Display
(MID) control switches
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance switchLane Departure Alert
(LDA) switch
Turn signal lever and headlight switch Windshield wiper and washer switch

3
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Main display Multi-Information Display (MID)
Shift position indicator
Clock
VSC OFF switch
“POWER MODE” switch
“ECO MODE” switch
“P” position switch
Shift lever Luggage security system
(disable trunk opener) switch
Audio/Navigation system
1
Emergency flasher switch
1
For details, refer to the “Navigation System Owner’s Manual” or\
“2018 Entune™ 3.0 Audio Quick
Reference Guide.”

4
OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 3, 2018 Owner’s
Manual.
Main display Clock
Transmission shift position indicator
Multi-Information Display (MID)
Automatic high beam (AHB) indicator
Airbag SRS warning1
Airbag ON/OFF indicator
Blind Spot Monitor (BSM) indicator
Blind Spot Monitor (BSM) outside
rearview mirror indicator
Anti-lock Brake System (ABS) warning
1
Brake system warning1
Brake Override System/
Drive-Start Control warning light
Brake system warning
(yellow indicator)1
Indicator symbols
Service indicators and reminders

9
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES
Fuel cell vehicles efficiently use electricity, which is generated by a \
chemical
reaction between hydrogen and oxygen in a fuel cell stack. Excess electr\
icity is
stored in a traction battery that is used to power high voltage systems \
and assist on
initial acceleration.
The fuel is H
2 (compressed hydrogen gas), so the exhaust, when running, is
only water and water vapor. As they do not emit CO
2 (Carbon Dioxide) and NOx
(Nitrogen Oxides) at the tailpipe, fuel cell vehicles are considered z\
ero emission
vehicles.
NOTE: Fuel consumption and energy information of the Hydrogen Fuel Cell
System are shown on the Multi-Information Display.
Fill with fuel at hydrogen stations compliant with SAE J2601.
If you have questions about hydrogen station compliance, consult your Au\
thorized
Mirai Fuel Cell Toyota Dealer.
Observe the notices and cautions shown at the hydrogen station.
The filling time and amount may differ depending on the equipment of the\
hydrogen
station. It may make the possible driving distance shorter. - Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- Drive vehicle smoothly. Avoid abrupt acceleration and deceleration.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
When you arrive at the station, prepare for fueling:
1) Ensure vehicle is OFF and in Park with parking brake set.
2) Press the fuel door release button and refer to instructions in ‘\
Fuel door release button and cap section’ to prepare the vehicle to accept hydrogen fue\
l.
Note: Fuel door will not release the lock if power switch is ON or if READY
indicator is on. The fuel door will automatically re-lock if you don’t open within
30 seconds.
3) Now you are ready to refuel. Outside the vehicle at the pump, use th\
e station’s best practice guidelines and instructions on how to refuel using their n\
ozzle.
For assistance, call Customer Support toll free at 1-800-331-4331.
Hydrogen Fuel Cell System
TIPS FOR IMPROVED FUEL ECONOMY
BEFORE FUELING

17
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Lane Departure Alert (LDA)
While driving on a road that has visible lane markers, this system is de\
signed to
recognize lane markers using a camera sensor and alerts the driver when \
the
vehicle deviates from its lane.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Press the LDA switch (in steering wheel) to turn the LDA system ON, th\
e indicator
will illuminate. Press again to turn OFF.
When the inside of both lane lines turn white:
- Indicates that both right and left lane markers are recognized.
When the inside of either lane line turns white:
- Indicates that the lane marker on the white-marked side is recognized.\
When the inside of both lane lines are black:
- Indicates that no lane markers are recognized or the LDA system is tem\
porarily
canceled.
Camera sensor
Press to ON Multi-Information Display
TURNING THE LDA SYSTEM ON
INDICATION ON THE MULTI-INFORMATION DISPLAY (MID)

18
FEATURES & OPERATIONSPre-Collision System (PCS)
When a high possibility of a frontal collision is detected by the radar \
sensor, a
buzzer sounds and a message urging the driver to take evasive action app\
ears on
the multi-information display. If the driver then applies brakes, the s\
ystem applies
greater brake force in relation to how strongly the brake pedal is depre\
ssed. If
the system determines that a collision is unavoidable, the brakes are au\
tomatically
applied to reduce the collision speed. The system is enabled each time t\
he power
switch is turned to ON mode.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Each time the Pre-Collision System switch is pressed, the response to th\
e distance
changes as follows:
Press the PCS switch for 3 seconds or more.
Far
Near
Middle
(default setting)
CHANGING THE PRE-COLLISION WARNING TIMING
DISABLING THE PRE-COLLISION SYSTEM

19
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

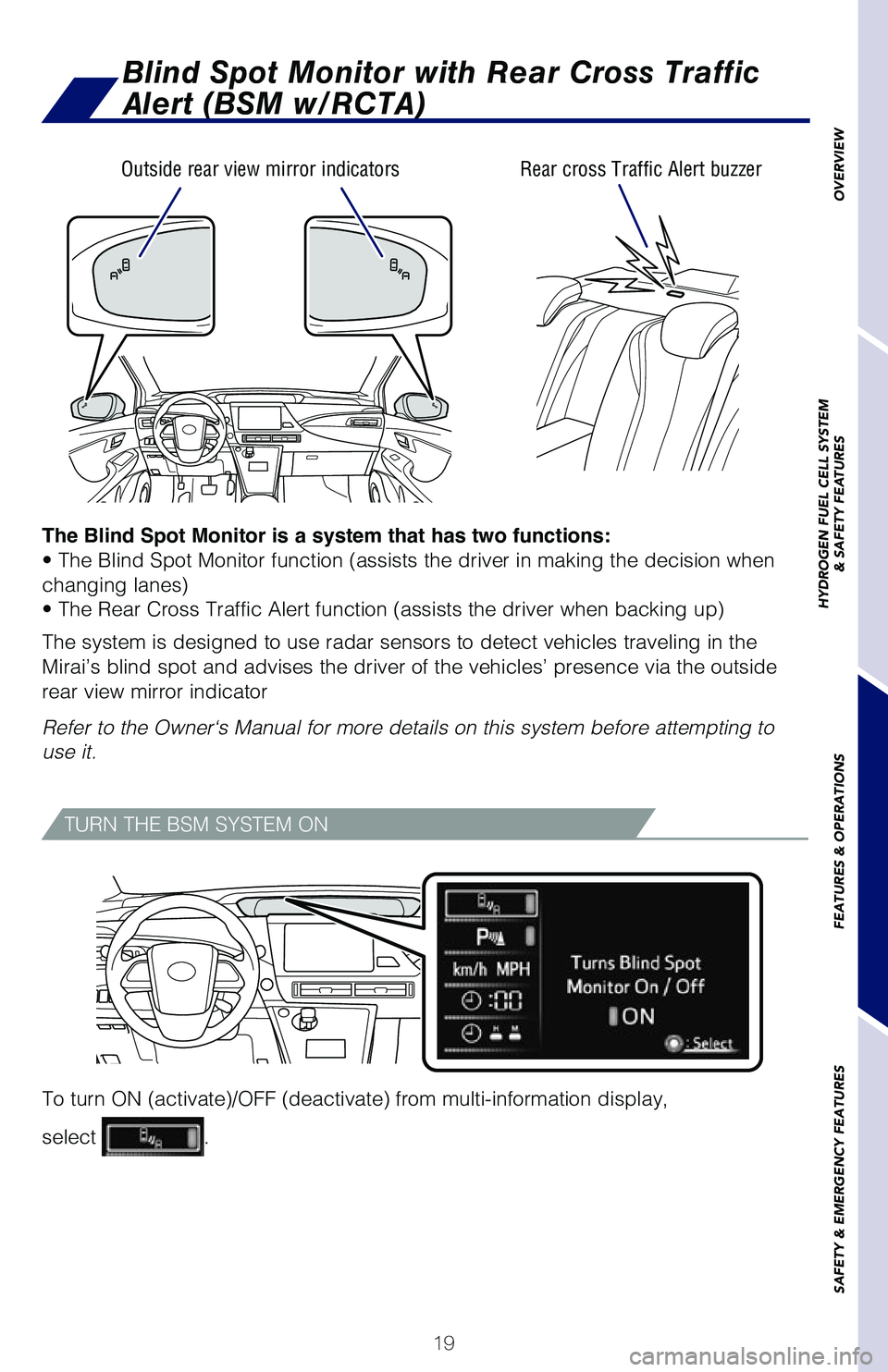

Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Mirai’s blind spot and advises the driver of the vehicles’ presenc\
e via the outside
rear view mirror indicator
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
To turn ON (activate)/OFF (deactivate) from multi-information display,
select
.
Outside rear view mirror indicators
Rear cross Traffic Alert buzzer
TURN THE BSM SYSTEM ON

23

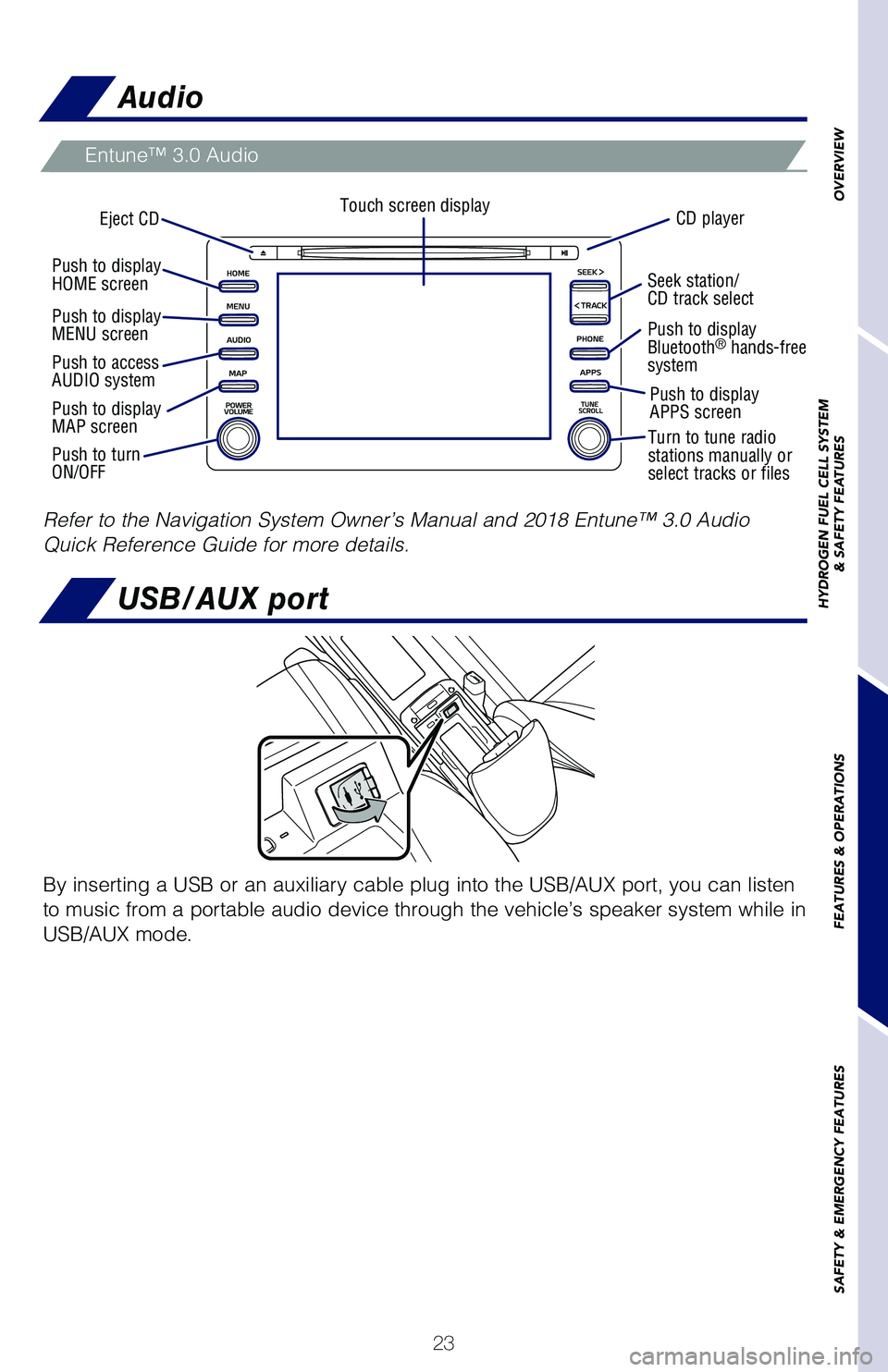

Audio
USB/AUX port
Entune™ 3.0 Audio
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Eject CD CD playerTouch screen display
By inserting a USB or an auxiliary cable plug into the USB/AUX port, you can listen
to music from a portable audio device through the vehicle’s speaker s\
ystem while in
USB/AUX mode.
Refer to the Navigation System Owner’s Manual and 2018 Entune™ 3.0\
Audio
Quick Reference Guide for more details.
Push to turn
ON/OFF
Push to display
HOME screen
Push to access
AUDIO system
Push to display
MAP screen Push to display
MENU screen
Seek station/
CD track select
Turn to tune radio
stations manually or
select tracks or files
Push to display
Bluetooth
® hands-free
system
Push to display
APPS screen

27

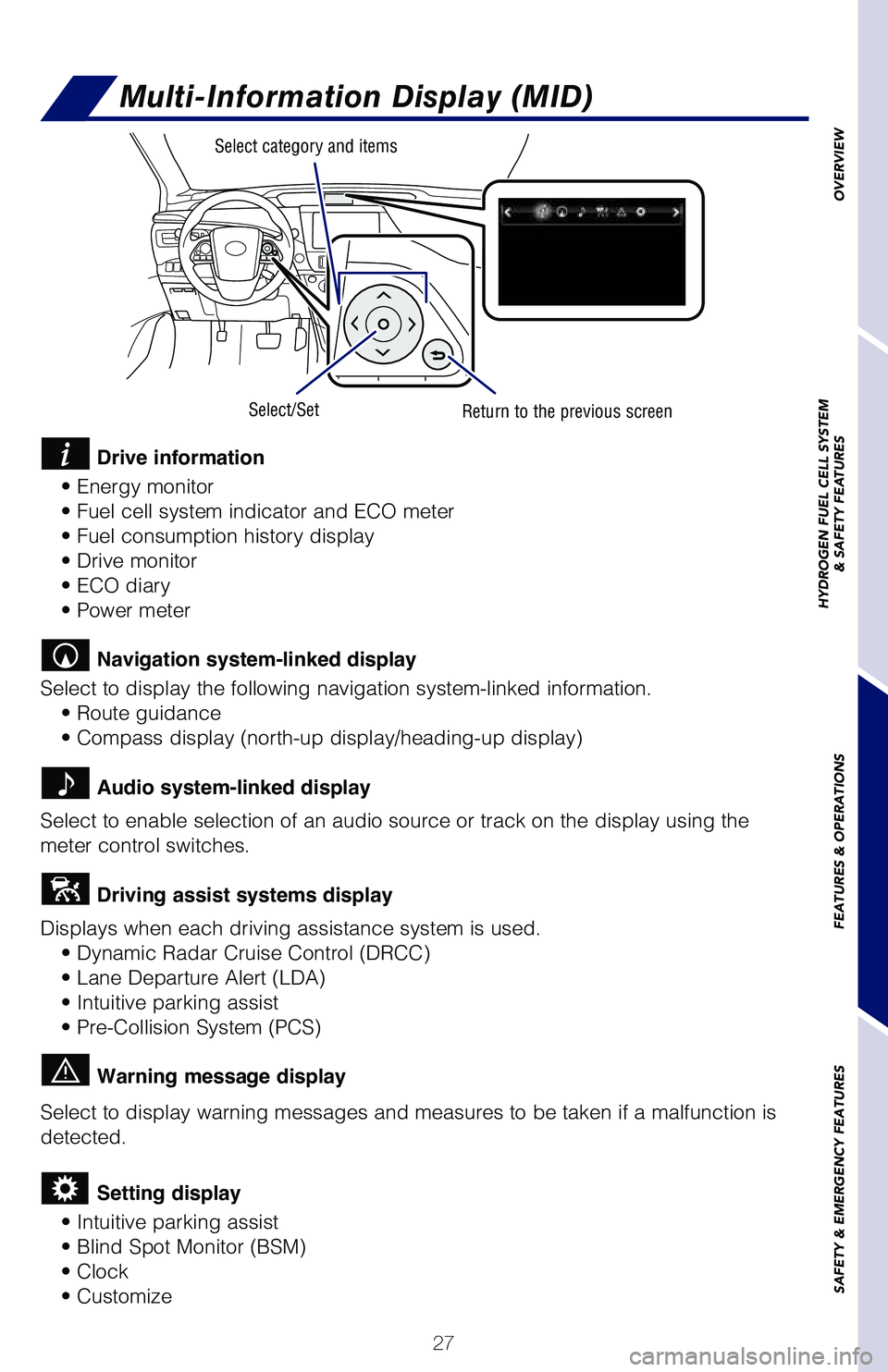

Multi-Information Display (MID)
Select category and items
Select/SetReturn to the previous screen
Drive information
• Energy monitor
• Fuel cell system indicator and ECO meter
• Fuel consumption history display
• Drive monitor
• ECO diary
• Power meter
Navigation system-linked display
Select to display the following navigation system-linked information. • Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display us\
ing the
meter control switches.
Driving assist systems display
Displays when each driving assistance system is used. • Dynamic Radar Cruise Control (DRCC)
• Lane Departure Alert (LDA)
• Intuitive parking assist
• Pre-Collision System (PCS)
Warning message display
Select to display warning messages and measures to be taken if a malfunc\
tion is
detected.
Setting display
• Intuitive parking assist
• Blind Spot Monitor (BSM)
• Clock
• Customize
