fuel cap release TOYOTA MIRAI 2018 Owners Manual (in English)

1
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY &
EMERGENCY FEATURES
Audio 23
Auto lock/unlock1,2 13
Automatic air conditioning system 22
Automatic High Beams (AHB) 20
Automatic transmission 14-15
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 19
Clock 26
Door locks 15
Dynamic Radar
Cruise Control (DRCC) 28-29
Garage door opener (Homelink
®)3 29
Lane Departure Alert (LDA) 17
Lights
1 & turn signals 21
Luggage security system 13
Multi-Information Display (MID) 27
Parking brake 13
Power outlets 24
Pre-Collision System (PCS) 18
Seat adjustments-Front 16
Seat heaters 16
Seats-Folding down rear seats 17
Seats-Head restraints 16
Steering wheel switches
& telephone controls (Bluetooth
®) 25
INDEX
Fuel door release button and cap 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
Hydrogen Fuel Cell System 9-11
Water release (H
2O) switch 12
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel 15
USB/AUX port 23
Windows-Power 21
Windshield wipers & washer 20
Wireless charger 24
Emergency tire puncture repair kit 30
Floor mat installation 33
Rear door child safety locks 31
Seat belts 31
Seat belts-Shoulder belt anchor 31
Star Safety System
™ 32-33
Tire Pressure Monitoring
(warning) System (TPMS) 30
BLUETOOTH® DEVICE
PAIRING SECTION 34-36

8
OVERVIEW
When the fuel door is open, the fuel cell system will not start. When th\
e “READY”
indicator is on, the fuel door will not open.
PushPush
Store capReplace cap
-
+
Brightness control
Alternate fuel door release (located in left rear of trunk)
Remove cap
Pull to left
(1)
(2)
Receptacle
Instrument panel light control
Fuel door release button and cap

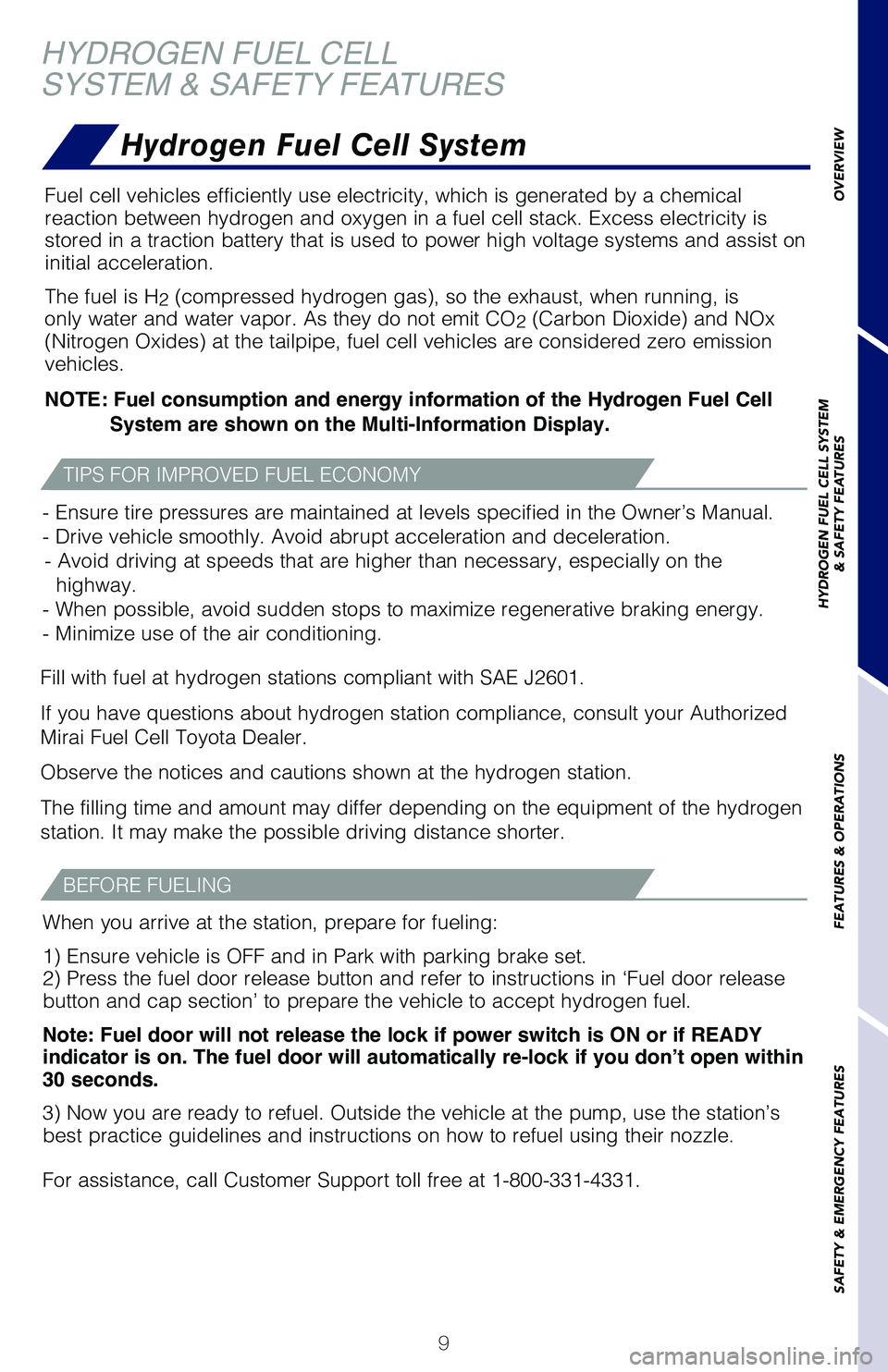

9
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES
Fuel cell vehicles efficiently use electricity, which is generated by a \
chemical
reaction between hydrogen and oxygen in a fuel cell stack. Excess electr\
icity is
stored in a traction battery that is used to power high voltage systems \
and assist on
initial acceleration.
The fuel is H
2 (compressed hydrogen gas), so the exhaust, when running, is
only water and water vapor. As they do not emit CO
2 (Carbon Dioxide) and NOx
(Nitrogen Oxides) at the tailpipe, fuel cell vehicles are considered z\
ero emission
vehicles.
NOTE: Fuel consumption and energy information of the Hydrogen Fuel Cell
System are shown on the Multi-Information Display.
Fill with fuel at hydrogen stations compliant with SAE J2601.
If you have questions about hydrogen station compliance, consult your Au\
thorized
Mirai Fuel Cell Toyota Dealer.
Observe the notices and cautions shown at the hydrogen station.
The filling time and amount may differ depending on the equipment of the\
hydrogen
station. It may make the possible driving distance shorter. - Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- Drive vehicle smoothly. Avoid abrupt acceleration and deceleration.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
When you arrive at the station, prepare for fueling:
1) Ensure vehicle is OFF and in Park with parking brake set.
2) Press the fuel door release button and refer to instructions in ‘\
Fuel door release button and cap section’ to prepare the vehicle to accept hydrogen fue\
l.
Note: Fuel door will not release the lock if power switch is ON or if READY
indicator is on. The fuel door will automatically re-lock if you don’t open within
30 seconds.
3) Now you are ready to refuel. Outside the vehicle at the pump, use th\
e station’s best practice guidelines and instructions on how to refuel using their n\
ozzle.
For assistance, call Customer Support toll free at 1-800-331-4331.
Hydrogen Fuel Cell System
TIPS FOR IMPROVED FUEL ECONOMY
BEFORE FUELING
