spare tire TOYOTA MR2 SPYDER 2002 W30 / 3.G Owners Manual

02 MY MR2 SMT(U) L/O 0108
133
01 06 12
2002 MR2 (OM17493U)
Do not drive with objects left on
top of the instrument panel. They
may interfere with the driver’s field
of view. Or they may move during
sharp vehicle acceleration or turn-
ing, and impair the driver’s control
of the vehicle. In an accident they
may injure the vehicle occupants.Some Toyotas are equipped with a limit-
edslip differential. If one of the rear
wheels begins to spin, the limitedslip dif-
ferential is designed to aid traction by
automatically transmittiing driving force to
the other rear wheel. If you are not sure
whether your vehicle is equipped with one,
you can ask your Toyota dealer.
CAUTION
Do not start or run the engine while
your vehicle is supported by a jack.
The vehicle could be driven off the
jack and could pose a danger or re-
sult in serious injury.
NOTICE
Use only a compact spare tire of the
same size, construction and load ca-
pacity as the original tires on your
Toyota because damage to the limit-
edslip differential could possibly oc-
cur with another tire type.
SB21009
The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.
Limitedslip differential
(on some models)Your Toyota’s identification—
—Vehicle identification
number

02 MY MR2 SMT(U) L/O 0108
152
01 06 12
2002 MR2 (OM17493U)
NOTICE
Do not continue driving with a de-
flated tire. Driving even a short dis-
tance can damage a tire and wheel
beyond repair.

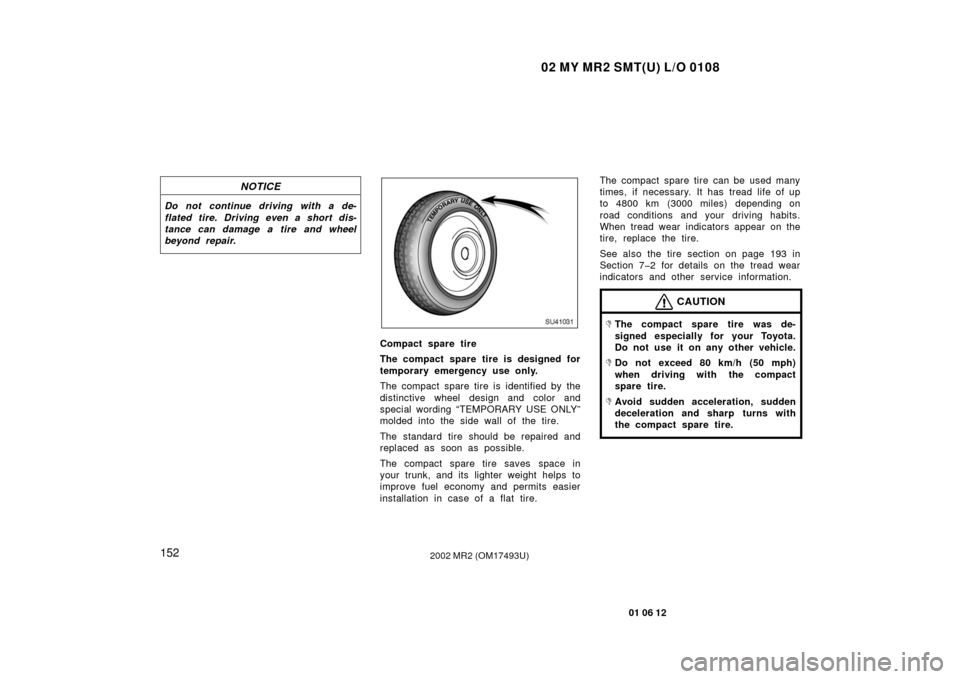

SU41031
Compact spare tire
The compact spare tire is designed for
temporary emergency use only.
The compact spare tire is identified by the
distinctive wheel design and color and
special wording “TEMPORARY USE ONLY”
molded into the side wall of the tire.
The standard tire should be repaired and
replaced as soon as possible.
The compact spare tire saves space in
your trunk, and its lighter weight helps to
improve fuel economy and permits easier
installation in case of a flat tire.The compact spare tire can be used many
times, if necessary. It has tread life of up
to 4800 km (3000 miles) depending on
road conditions and your driving habits.
When tread wear indicators appear on the
tire, replace the tire.
See also the tire section on page 193 in
Section 72 for details on the tread wear
indicators and other service information.
CAUTION
The compact spare tire was de-
signed especially for your Toyota.
Do not use it on any other vehicle.
Do not exceed 80 km/h (50 mph)
when driving with the compact
spare tire.
Avoid sudden acceleration, sudden
deceleration and sharp turns with
the compact spare tire.

02 MY MR2 SMT(U) L/O 0108
153
01 06 12
2002 MR2 (OM17493U)
NOTICE
Your ground clearance is reduced
when the compact spare tire is
installed so avoid driving over ob-
stacles and drive slowly on rough,
unpaved roads and speed bumps.
Also, do not attempt to go through an
automatic car wash as the vehicle
may get caught, resulting in damage.

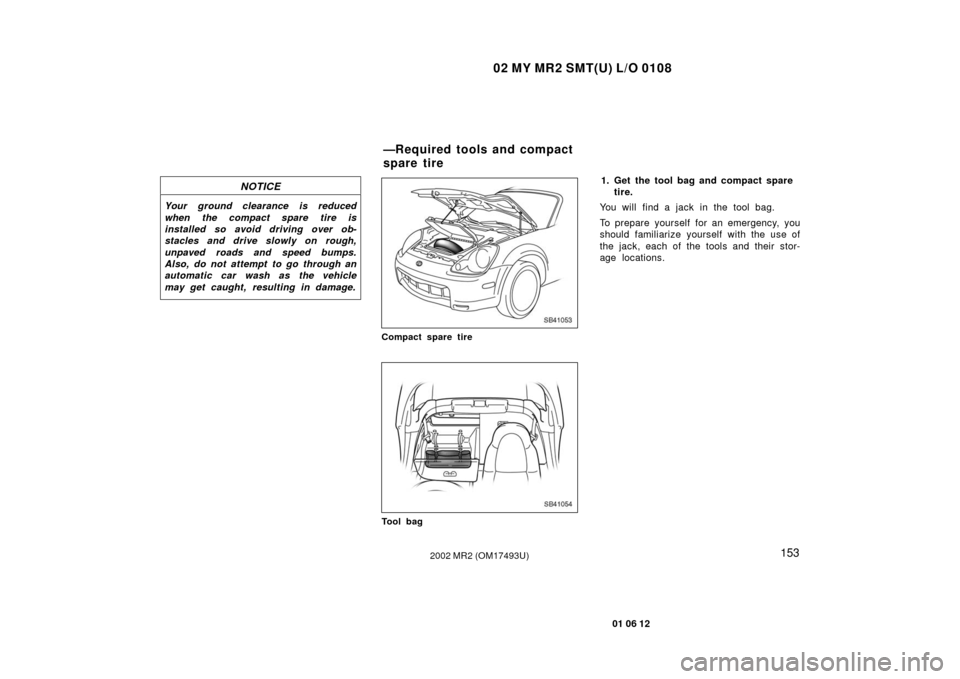

SB41053
Compact spare tire
SB41054
Tool bag
1. Get the tool bag and compact sparetire.
You will find a jack in the tool bag.
To prepare yourself for an emergency, you
should fam iliarize yourself with the use of
the jack, each of the tools and their stor-
age locations.
—Required tools and compact
spare tire

02 MY MR2 SMT(U) L/O 0108
154
01 06 12
2002 MR2 (OM17493U)

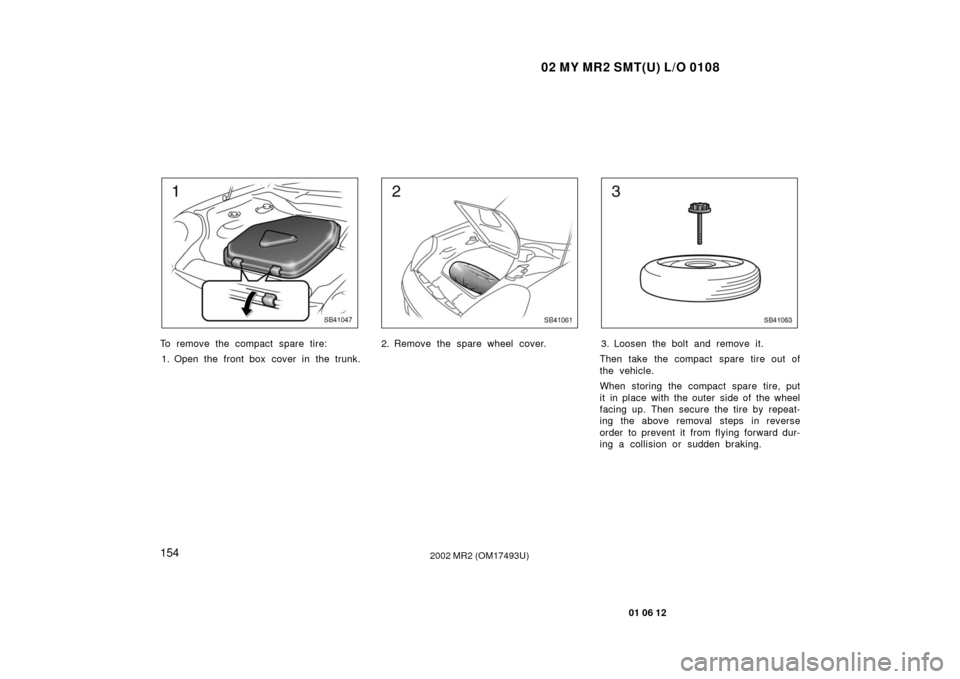

SB41047
To remove the compact spare tire:1. Open the front box cover in the trunk.
SB41061
2. Remove the spare wheel cover.
SB41063
3. Loosen the bolt and remove it.
Then take the compact spare tire out of
the vehicle.
When storing the compact spare tire, put
it in place with the outer side of the wheel
facing up. Then secure the tire by repeat-
ing the above removal steps in reverse
order to prevent it from flying forward dur-
ing a collision or s udden braking.

02 MY MR2 SMT(U) L/O 0108
155
01 06 12
2002 MR2 (OM17493U)

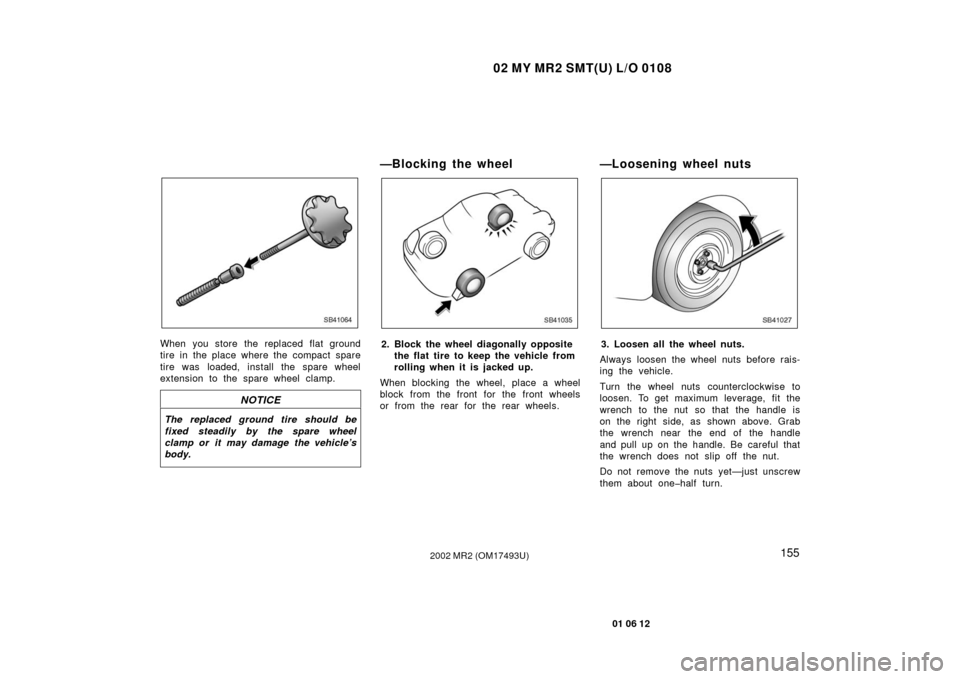

SB41064
When you store the replaced flat ground
tire in the place where the compact spare
tire was loaded, install the spare wheel
extension to the spare wheel clamp.
NOTICE
The replaced ground tire should be
fixed steadily by the spare wheel
clamp or it may damage the vehicle’s
body.
—Blocking the wheel
SB41035
2. Block the wheel diagonally oppositethe flat tire to keep the vehicle from
rolling when it is j acked up.
When blocking the wheel, place a wheel
block from the front for the front wheels
or from the rear for the rear wheels.
—Loosening wheel nuts
SB41027
3. Loosen all the wheel nuts.
Always loosen the wheel nuts before rais-
ing the vehicle.
Turn the wheel nuts counterclockwise to
loosen. To get maximum leverage, fit the
wrench to the nut so that the handle is
on the right side, as shown above. Grab
the wrench near the end of the handle
and pull up on the handle. Be careful that
the wrench does not slip off the nut.
Do not remove the nuts yet—just unscrew
them about onehalf turn.

02 MY MR2 SMT(U) L/O 0108
156
01 06 12
2002 MR2 (OM17493U)

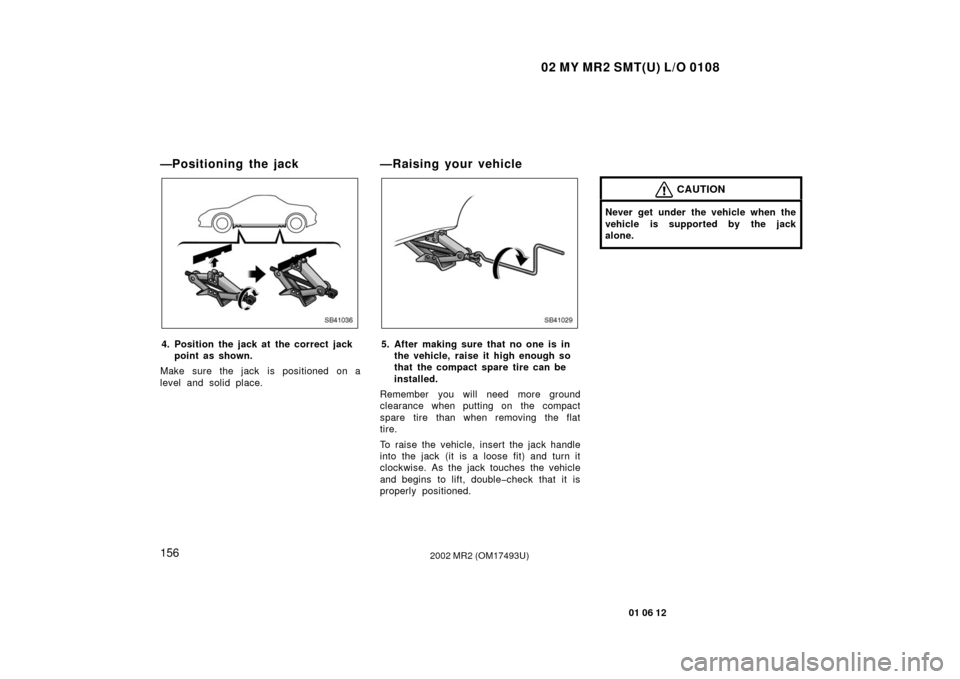

—Positioning the jack
SB41036
4. Position the jack at the correct jackpoint as shown.
Make sure the jack is positioned on a
level and solid place.
—Raising your vehicle
SB41029
5. After making sure that no one is in the vehicle, raise it high enough so
that the compact spare tire can be
installed.
Remember you will need more ground
clearance when putting on the compact
spare tire than when removing the flat
tire.
To raise the vehicle, insert the jack handle
into the jack (it is a loose fit) and turn it
clockwise. As the jack touches the vehicle
and begins to lift, doublecheck that it is
properly positioned.
CAUTION
Never get under the vehicle when the
vehicle is supported by the jack
alone.

02 MY MR2 SMT(U) L/O 0108
157
01 06 12
2002 MR2 (OM17493U)

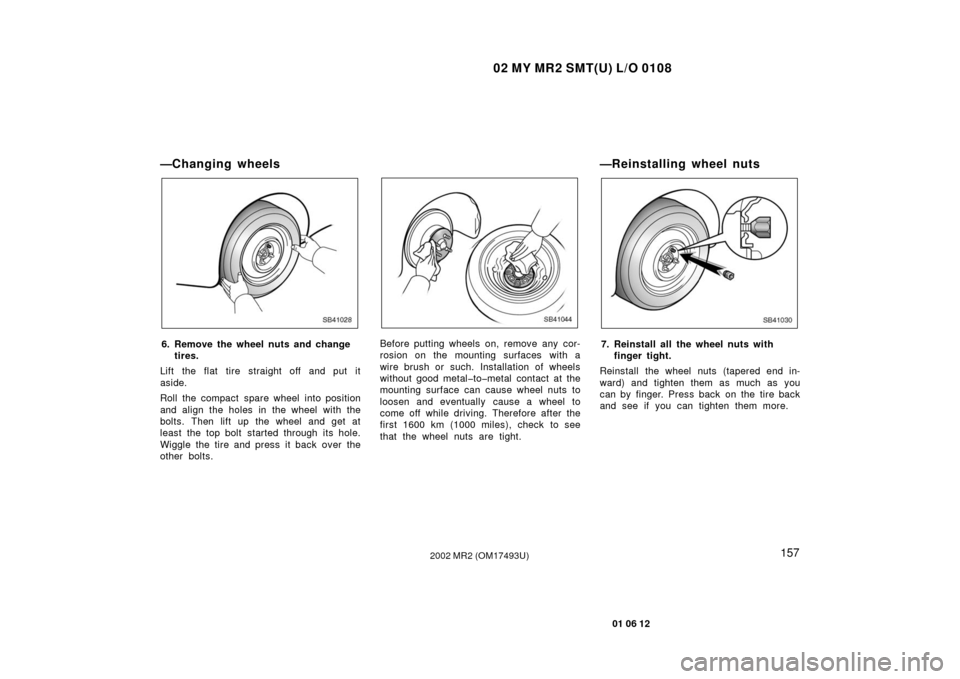

—Changing wheels
SB41028
6. Remove the wheel nuts and changetires.
Lift the flat tire straight off and put it
aside.
Roll the compact spare wheel into position
and align the holes in the wheel with the
bolts. Then lift up the wheel and get at
least the top bolt started through its hole.
Wiggle the tire and press it back over the
other bolts.
SB41044
Before putting wheels on, remove any cor-
rosion on the mounting surfaces with a
wire brush or such. Installation of wheels
without good metaltometal contact at the
mounting surface can cause wheel nuts to
loosen and eventually cause a wheel to
come off while driving. Therefore after the
first 1600 km (1000 miles), check to see
that the wheel nuts are tight.
—Reinstalling wheel nuts
SB41030
7. Reinstall all the wheel nuts with finger tight.
Reinstall the wheel nuts (tapered end in-
ward) and tighten them as much as you
can by finger. Press back on the tire back
and see if you can tighten them more.

02 MY MR2 SMT(U) L/O 0108
158
01 06 12
2002 MR2 (OM17493U)
—Lowering your vehicle
SB41031
8. Lower the vehicle completely andtighten the wheel nuts.
Turn the jack handle counterclockwise to
lower the vehicle.
Use only the wheel nut wrench and turn
it clockwise to tighten the nuts. Do not
use other tools or any additional leverage
other than your hands, such as a hammer,
pipe or your foot. Make sure the wrench
is securely engaged over the nut.
Tighten each nut a little at a time in the
order shown. Repeat the process until all
the nuts are tight.
CAUTION
When lowering the vehicle, make sure
all portions of your body and all oth-
er persons around will not be injured
as the vehicle is lowered to the
ground.
—After changing wheels
9. Check the air pressure of the replaced tire.
Adjust the air pressure to the specification
designated on page 218 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
10. Restow all the tools, jack and flat tire securely.
As soon as possible after changing
wheels, tighten the wheel nuts to the
torque specified on page 218 in Section
8 with a torque wrench. Have a technician
repair the flat tire and replace the com-
pact spare tire with it.

02 MY MR2 SMT(U) L/O 0108
192
01 06 12
2002 MR2 (OM17493U)
Clean all dirt from outside of the reservoir
tank and look at the fluid level. If the fluid
is cold, the level should be in the “COLD”
range. Similarly, if it is hot, the fluid level
should be in the “HOT” range. If the level
is at the low side of either range, add
Toyota P.S fluid EH or equivalent to bring
the level within the range.
To remove the reservoir cap, turn it coun-
terclockwise and lift up. To reinstall it,
turn it clockwise. After replacing the reser-
voir cap, visually check the steering box
case, vane pump and hose connections
for leaks or damage.
CAUTION
The reservoir tank may be hot so be
careful not to burn yourself.
NOTICE
Avoid overfilling, or the power steer-
ing could be damaged.

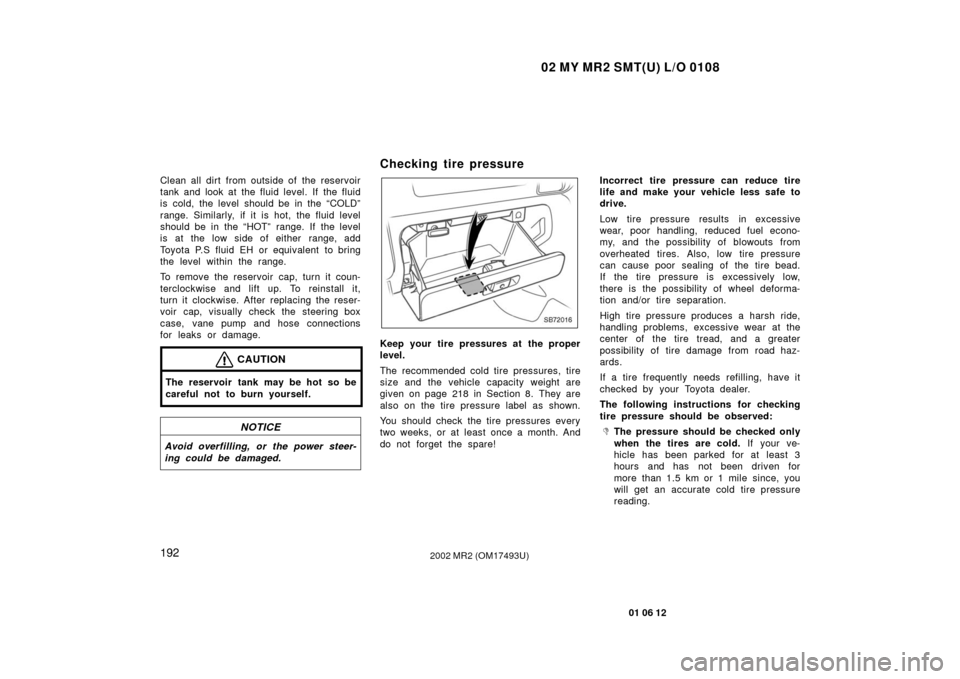

Checking tire pressure
SB72016
Keep your tire pressures at the proper
level.
The recommended cold tire pressures, tire
size and the vehicle capacity weight are
given on page 218 in Section 8. They are
also on the tire pressure label as shown.
You should check the tire pressures every
two weeks, or at least once a month. And
do not forget the spare!Incorrect tire pressure can reduce tire
life and make your vehicle less safe to
drive.
Low tire pressure results in excessive
wear, poor handling, reduced fuel econo-
my, and the possibility of blowouts from
overheated tires. Also, low tire pressure
can cause poor sealing of the tire bead.
If the tire pressure is excessively low,
there is the possibility of w
heel deforma-
tion and/or tire separation.
High tire pressure produces a harsh ride,
handling problems, excessive wear at the
center of the tire tread, and a greater
possibility of tire damage from road haz-
ards.
If a tire frequently needs ref illing, have it
checked by your Toyota dealer.
The following instructions for checking
tire pressure should be observed:
The pressure should be checked only
when the tires are cold. If your ve-
hicle has been parked for at least 3
hours and has not been driven for
more than 1.5 km or 1 mile since, you
will get an accurate cold tire pressure
reading.

02 MY MR2 SMT(U) L/O 0108
193
01 06 12
2002 MR2 (OM17493U)
Always use a tire pressure gauge.
The appearance of a tire can be mis-
leading. Besides, tire pressures that
are even just a few pounds off can
degrade ride and handling.
Take special care when adding air to
the compact spare tire. The smaller
tire size can gain pressure very quick-
ly. Add compressed air in small quanti-
ties and check the pressure often until
it reaches the specified pressure.
Do not bleed or reduce tire pressure
after driving. It is normal for the tire
pressure to be higher after driving.
Never exceed the vehicle capacity
weight. The passenger and luggage
weight should be located so that the
vehicle is balanced.
Be sure to reinstall the tire inflation
valve caps. Without the valve caps,
dirt or moisture could get into the valve
core and cause air leakage. If the caps
have been lost, have new ones put on
as soon as possible.
Checking and replacing tires
SB72007
\f \f
\b\f
CHECKING YOUR TIRES
Check the tire tread for the tread wear
indicators. If the indicators show, re-
place the tires.
The tires on your Toyota have builtin
tread wear indicators to help you know
when the tires need replacement. When
the tread depth wears to 1.6 mm (0.06
in.) or less, the indicators will appear. If
you can see the indicators in two or more
adjacent grooves, the tire should be re-
placed. The lower the tread, the higher
the risk of skidding.
The effectiveness of snow tires is lost
if the tread wears down below 4 mm
(0.16 in.). Check the tires regularly for damage
such as cuts, splits and cracks. If any
damage is found, consult with a techni-
cian and have the tire repaired or re-
placed.
Even if the damage does not appear seri-
ous, a qualified technician should examine
the damage. Objects which have pene-
trated the tire may have caused internal
damage.
Any tires which are over 6 years old
must be checked by a qualified techni-
cian even if damage is not obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This also applies to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
When replacing a tire, use only the
same size and construction as original-
ly installed and with the same or great-
er load capacity.
Using any other size or type of tire may
seriously affect handling, ride, speedome-
ter/odometer calibration, ground clearance,
and clearance between the body and tires
or snow chains.
