TURN SIGNALS

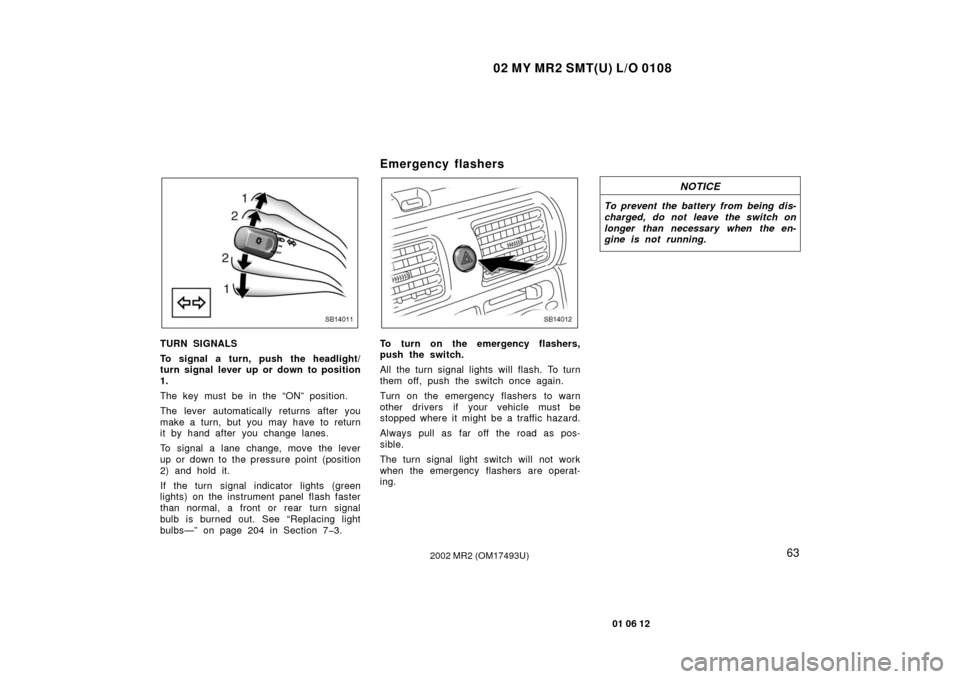

To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs—” on page 204 in Section 73.
Emergency flashers
SB14012
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.

02 MY MR2 SMT(U) L/O 0108
205
01 06 12
2002 MR2 (OM17493U)
Light bulbsBulbNo.WTy p e
Headlights—60/55A
Parking lights—5B
Front turn signal
lights—21B
Front side marker
lights—3.8B
Rear turn signal
lights—21C
Stop/tail lights—21/5B
Stop lights—21B
Backup lights—21B
License plate lights—5B
Interior light—8D
High mounted stop
light—5B
A: HB2 halogen bulbs
B: Wedge base bulbs
C: Single end bulbs
D: Double end bulbs BEFORE REPLACING LIGHT BULBS
Replacing headlights, parking lights and
front turn signal lights.
SB73069
1. Remove the front box cover.

02 MY MR2 SMT(U) L/O 0108
230
01 06 12
2002 MR2 (OM17493U)
H
Hazard switch63
. . . . . . . . . . . . . . . . . . . . . .
Headlight switch 62
. . . . . . . . . . . . . . . . . . . .
High speed operation During breakin 124
. . . . . . . . . . . . . . . . . .
Hood release, Engine 16
. . . . . . . . . . . . . . . .
How to start the engine 138
. . . . . . . . . . . . .
I
Identification
Engine 133 . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 133 . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 76 . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5 . . . . . . . . . . . . . . . . . . . .
Instrument panel Cigarette lighter and ashtray 116 . . . . . . .
Clock 116 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5 . . . . . . . . . . . . . . . . . .
Odometer 69 . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 69 . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 69 . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 64 . . . . . . . . .
Instrument panel overview 2 . . . . . . . . . . . .
Iridiumtipped spark plugs 129 . . . . . . . . . .
J
Jack
Location 153 . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 186 . . . . . . . . . . . . . . .
Jump starting 147 . . . . . . . . . . . . . . . . . . . . . .
K
Key reminder buzzer 74
. . . . . . . . . . . . . . . .
Keys 8,164
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
Light bulbs
Backup lights 209 . . . . . . . . . . . . . . . . . . .
Front turn signal lights 208 . . . . . . . . . . . .
Front side marker lights 208 . . . . . . . . . . .
Headlights 206 . . . . . . . . . . . . . . . . . . . . . . .
License plate lights 210 . . . . . . . . . . . . . . .
Parking lights 207 . . . . . . . . . . . . . . . . . . . .
Rear turn signal lights 209 . . . . . . . . . . . .
Rear turn signal, stop/tail, stop and backup lights 209 . . . . . . . . .
Light bulbs, replacing 204 . . . . . . . . . . . . . . .
Light reminder buzzer 70 . . . . . . . . . . . . . . .
Limitedslip differential 133 . . . . . . . . . . . . .
Lock
Side doors 11 . . . . . . . . . . . . . . . . . . . . . . . .
Steering column 76 . . . . . . . . . . . . . . . . . . .
Low fuel level warning light 70 . . . . . . . . . . .
Low engine oil pressure warning light 70 . . . . . . . . . . . . . . . . . . . . . .
Luggage space 119 . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 132 . . . . . . .
M
Maintenance
Doityourself maintenance 183 . . . . . . .
Does your vehicle need repairing? 177 . . . . . . . . . . . . . . . .
General maintenance 175 . . . . . . . . . . . . .
Maintenance requirements 174 . . . . . . . .
Parts and tools 184 . . . . . . . . . . . . . . . . . . .
Where to go for service 174 . . . . . . . . . . .
Malfunction indicator lamp 70 . . . . . . . . . . .
Manual transmission Driving with a
manual transmission 88 . . . . . . . . . . . . .
Shift pattern 88 . . . . . . . . . . . . . . . . . . . . . .
Shifting speed 88 . . . . . . . . . . . . . . . . . . . .
Maximum allowable speed Manual transmission 88 . . . . . . . . . . . . . .
Sequential manual transmission 77 . . . .
Mirror Antiglare inside rear view 59 . . . . . . . . .
Mirrors
Folding rear view 58 . . . . . . . . . . . . . . . . . .
Outside rear view 58 . . . . . . . . . . . . . . . . .
Power rear view 58 . . . . . . . . . . . . . . . . . . .
N
New vehicle breakin 124
. . . . . . . . . . . . . . .
