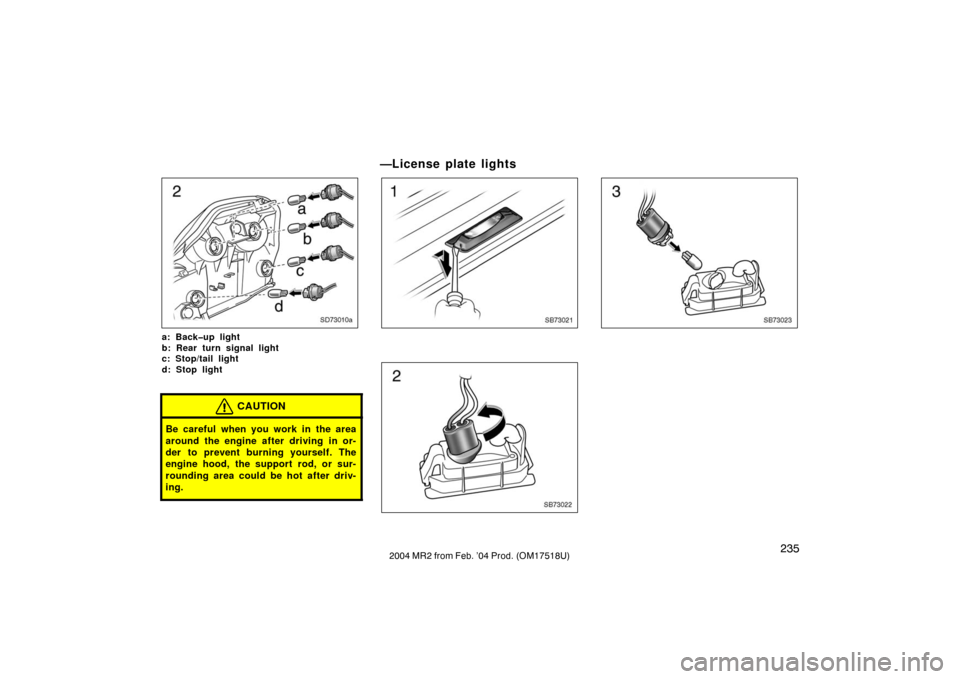

—Rear turn signal, stop/tail,
stop and backup lights

2352004 MR2 from Feb. ’04 Prod. (OM17518U)
SD73010a
a: Backup light
b: Rear turn signal light
c: Stop/tail light
d: Stop light
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
—License plate lights
SB73021
SB73022
SB73023

2362004 MR2 from Feb. ’04 Prod. (OM17518U)

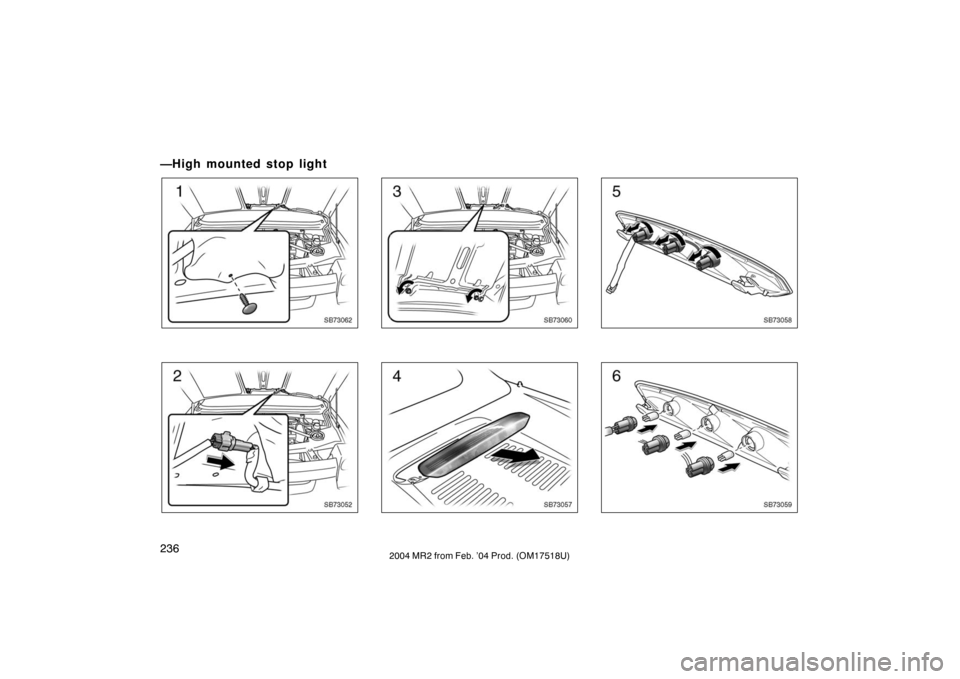

—High mounted stop light
SB73062
SB73052
SB73060
SB73057
SB73058
SB73059

2372004 MR2 from Feb. ’04 Prod. (OM17518U)
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.

2382004 MR2 from Feb. ’04 Prod. (OM17518U)

2392004 MR2 from Feb. ’04 Prod. (OM17518U)
SPECIFICATIONS
Specifications
Dimensions and weight240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

2402004 MR2 from Feb. ’04 Prod. (OM17518U)
Dimensions and weight
Overall length mm (in.) 3885 (153.0)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1240 (48.8)
∗
Wheelbase mm (in.) 2450 (96.5)
Front tread mm (in.) 1475 (58.1)
Rear tread mm (in.) 1460 (57.5)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 193 (425)
∗: Unladen vehicle
Engine
Model: 1ZZ −FE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 79.0  91.5 (3.11  3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 48 (12.7, 10.6)

2412004 MR2 from Feb. ’04 Prod. (OM17518U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity. Oil grade:
API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil.

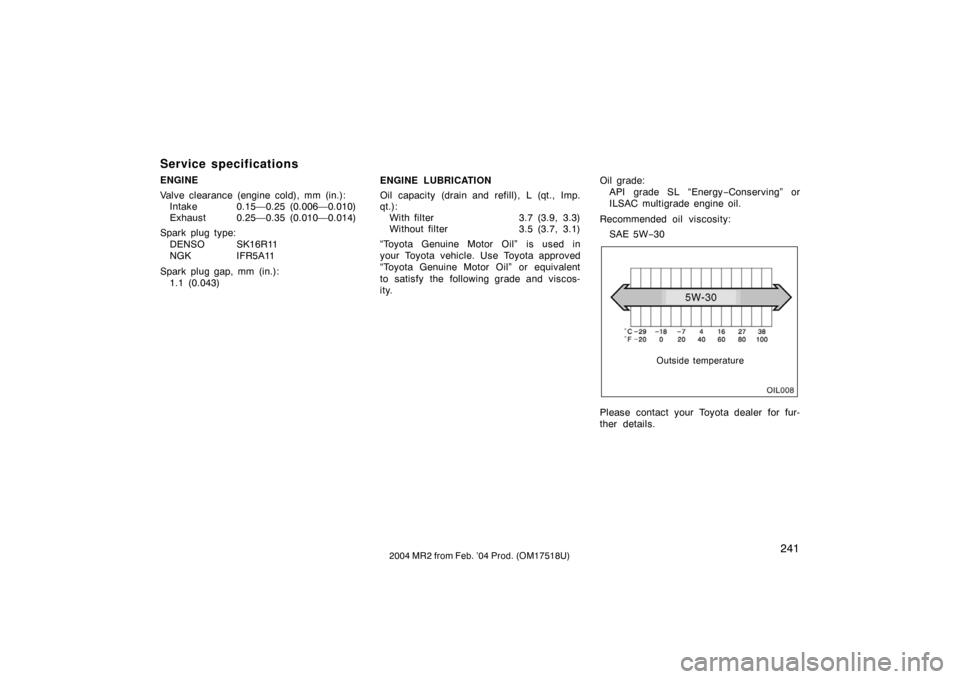

Recommended oil viscosity: SAE 5W −30
OIL008
Outside temperature
Please contact your Toyota dealer for fur-
ther details.

2422004 MR2 from Feb. ’04 Prod. (OM17518U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):10.4 (11.0, 9.2)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max. CLUTCH (manual transmission only)
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): Vehicle with limited −slip differential
1.8 (1.9, 1.6)
Vehicle without limited −slip differential
1.9 (2.0, 1.7)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
SEQUENTIAL MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): Vehicle with limited −slip differential
2.1 (2.2, 1.8)
Vehicle without limited −slip differential
2.3 (2.4, 2.0)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90 SEQUENTIAL MANUAL TRANSMISSION
SYSTEM
Fluid type:
Sequential M/T Fluid or equivalent
NOTICE: Using Fluid other than Toyota
Genuine Sequential M/T Fluid may
cause deterioration in shift performance
and durability, and ultimately damage
the sequential manual transmission of
your vehicle.

2432004 MR2 from Feb. ’04 Prod. (OM17518U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.): 85 (3.4)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 5—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3 STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type: Toyota P.S fluid EH or equivalent
