2282004 MR2 from Feb. ’04 Prod. (OM17518U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the wind-
shield fogs up in the rain. However, if
there is large drop of water on the inside
of the lens, or if there is water pooled
inside the light, contact your Toyota deal-
er.
Page 236 of 259
2292004 MR2 from Feb. ’04 Prod. (OM17518U)
Light bulbsBulbNo.WTy p e
Headlights
(low beam)—55C
Headlights
(high beam)—60B
Front fog lights—51A
Parking lights—5E
Front turn signal
lights—21D
Front side marker
lights—3.8E
Rear turn signal
lights—21D
Stop/tail lights—21/5E
Stop lights—21E
Back −up lights—21E
License plate lights—5E
Interior light—8F
High mounted stop
light—5E
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: H7 halogen bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
BEFORE REPLACING LIGHT BULBS
Replacing headlights, parking lights and
front turn signal lights.
SB73070a

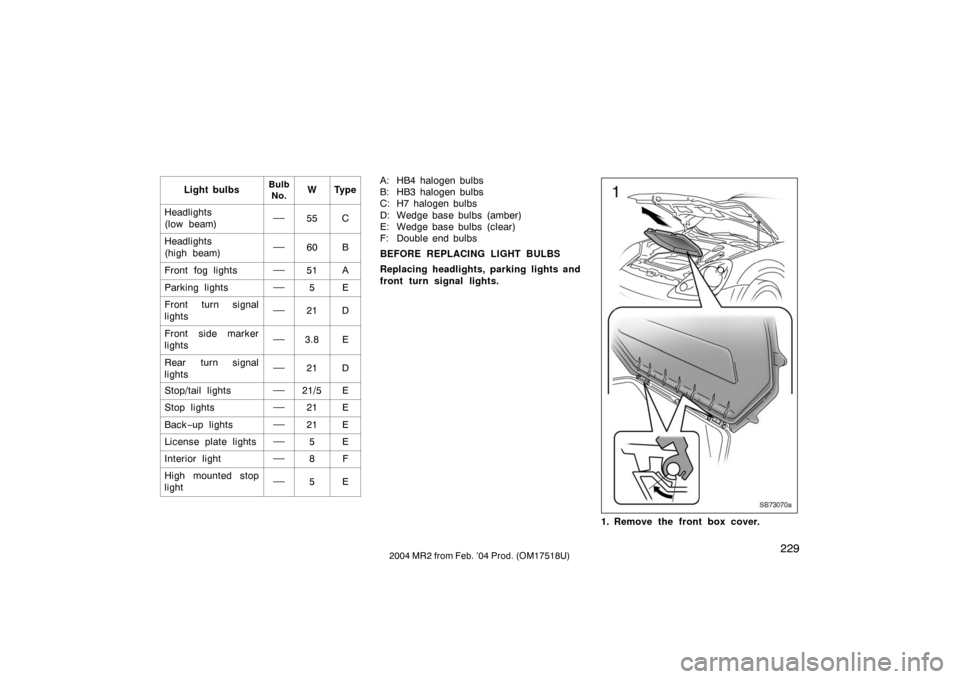

1. Remove the front box cover.
Page 239 of 259
2322004 MR2 from Feb. ’04 Prod. (OM17518U)
SB73078

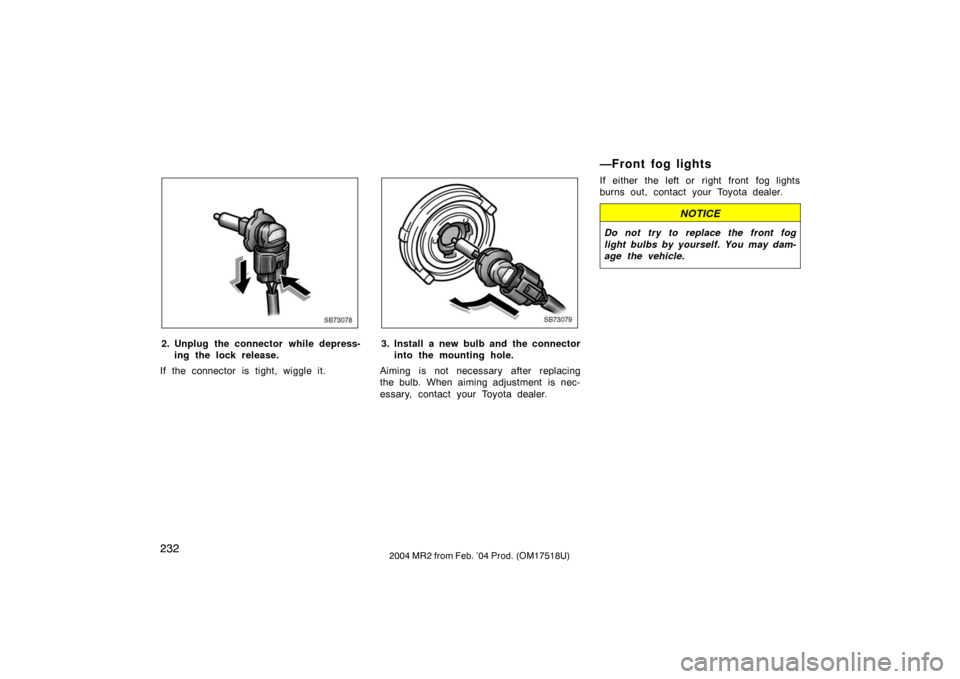

2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.
SB73079
3. Install a new bulb and the connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Front fog lights
If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
