TOYOTA MR2 SPYDER 2005 W30 / 3.G Owners Manual

932005 MR2 from Aug. ’04Prod. (OM17527U)
When leaving the vehicle, stop the
engine and park the vehicle with
the gear engaged. In case you need
to leave the vehicle with the engine
running, apply the parking brakes
firmly, and shift the selector lever
in the “N” position. When the driv-
er’s door is opened with the selec-
tor lever in the “S” position while
stopping with the engine running,
warning buzzer (long pulse sound)
will sound. 10 seconds later, the
“N” indicator in the instrument
cluster will also flash, and the sys-
tem will automatically shift the
transmission gear to the neutral
gear position. If this happens on a
hill when starting off the vehicle,
the vehicle may move unexpectedly
and cause an accident.NOTICE
Do not hold or stop the vehicle on
a hill with the accelerator pedal ap-
plied. Otherwise, the warning buzz-
er (long pulse sound) will sound,
and in some cases the engine will
stall. It will also cause excessive
damage to the clutch.
If the selector lever is operated
more than necessary, the system
may not allow operation of the se-
lector lever for a certain period of
time, and the gear may not be
shifted appropriately. Therefore, do
not operate the selector lever if not
necessary.
(i) Parking
Unlike the automatic transmission, the se-
quential manual transmission does not
have a parking position. The vehicle can
be parked with the selector lever in any
position. Apply the parking brake firmly,
and while depressing the brake pedal,
shift the selector lever into the “R” posi-
tion on a level or downhill, and into the
“S(1)” position on an uphill.
SD16020
1: Uphill
2: Level or downhill
To stop the engine:
Check the transmission gear position by
the gear position indicator, then turn the
ignition switch off to stop the engine. Re-
lease the brake pedal after a few sec-
onds. The selector lever will be locked in
the position just before the ignition switch
was turned off.
You can check the gear position by the
gear position indicator within 5 seconds
after turning the ignition switch off.

942005 MR2 from Aug. ’04Prod. (OM17527U)

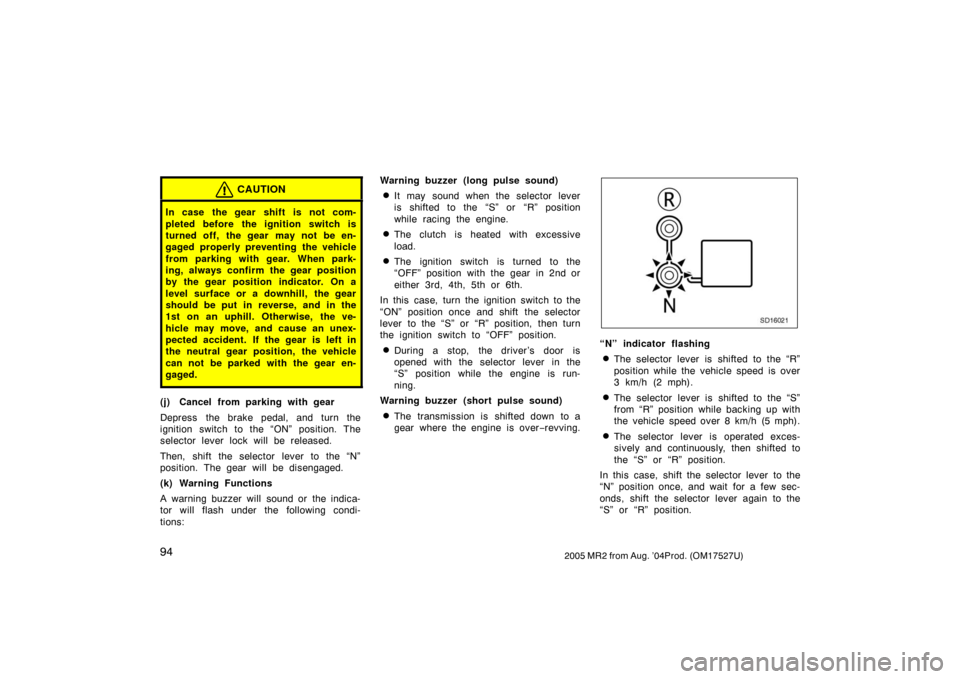

CAUTION
In case the gear shift is not com-
pleted before the ignition switch is
turned off, the gear may not be en-
gaged properly preventing the vehicle
from parking with gear. When park-
ing, always confirm the gear position
by the gear position indicator. On a
level surface or a downhill, the gear
should be put in reverse, and in the
1st on an uphill. Otherwise, the ve-
hicle may move, and cause an unex-
pected accident. If the gear is left in
the neutral gear position, the vehicle
can not be parked with the gear en-
gaged.
(j) Cancel from parking with gear
Depress the brake pedal, and turn the
ignition switch to the “ON” position. The
selector lever lock will be released.
Then, shift the selector lever to the “N”
position. The gear will be disengaged.
(k) Warning Functions
A warning buzzer will sound or the indica-
tor will flash under the following condi-
tions:Warning buzzer (long pulse sound)
It may sound when the selector lever
is shifted to the “S” or “R” position
while racing the engine.
The clutch is heated with excessive
load.
The ignition switch is turned to the
“OFF” position with the gear in 2nd or
either 3rd, 4th, 5th or 6th.
In this case, turn the ignition switch to the
“ON” position once and shift the selector
lever to the “S” or “R” position, then turn
the ignition switch to “OFF” position.
During a stop, the driver ’s door is
opened with the selector lever in the
“S” position while the engine is run-
ning.
Warning buzzer (short pulse sound)
The transmission is shifted down to a
gear where the engine is over−revving.
SD16021
“N” indicator flashing
The selector lever is shifted to the “R”
position while the vehicle speed is over
3 km/h (2 mph).
The selector lever is shifted to the “S”
from “R” position while backing up with
the vehicle speed over 8 km/h (5 mph).
The selector lever is operated exces-
sively and continuously, then shifted to
the “S” or “R” position.
In this case, shift the selector lever to the
“N” position once, and wait for a few sec-
onds, shift the selector lever again to the
“S” or “R” position.

952005 MR2 from Aug. ’04Prod. (OM17527U)
The selector lever is shifted from the
“N” position to the “S” or “R” position
soon after starting the engine.
In this case, shift the selector lever to the
“N” position once, and after a few sec-
onds, shift the selector lever again to the
“S” or “R” position.
When the selector lever is shifted to
the “S” position while starting the en-
gine, the selector lever position and
the gear position do not match.
In this case, shift the selector lever to the
“N” position once and confirm that the
engine has started. Then, shift the selec-
tor lever to the “S” or “R” position.
At the same time when turning the igni-
tion switch to the “ON” position and
shifting the selector lever from the “N”
position to the “S” or “R” position.
In this case, shift the selector lever to the
“N” position once, then shift the selector
lever again to the “S” or “R” position.
At the same time when turning the igni-
tion switch to the “OFF” position and
shifting the selector lever from the “N”
to the “S” or “R” position.In this case, turn the ignition “ON” before
operate the shift lever. Shift the selector
lever to the “N” position once, then shift
the selector lever again to the “S” or “R”
position.
“N” indicator flashing and warning
buzzer (long pulse sound) beeping.
The system is re−trying shift operation
from the “N” to “S” or “R” position due
to shift failure.
Stopping for more than 90 seconds
without depressing the brake pedal,
while the engine is running with the
selector lever in the “S” position.
10 seconds after the driver ’s door is
opened with the selector lever in the
“S” position while the engine is run-
ning.
Turn the ignition switch to the “OFF”
position and shift the selector lever
from the “N” to “S” position at the
same time.
If this condition lasts for a long time, shift
the selector lever to the “N” position once
and shift the selector lever again to the
“S” or “R” position.
SD16022
“1st” indicator blinking
At the same time when turning the igni-
tion switch to the “ON” position and
shifting the selector lever from the “S”
position to the “N” or “R” position.
At the same time when turning the igni-
tion switch to the “OFF” position and
shifting the selector lever from the “S”
to “N” position.
In this case, shift the selector lever to the
“S” position once, then shift the selector
lever again to the “N” position.

962005 MR2 from Aug. ’04Prod. (OM17527U)
SD16023

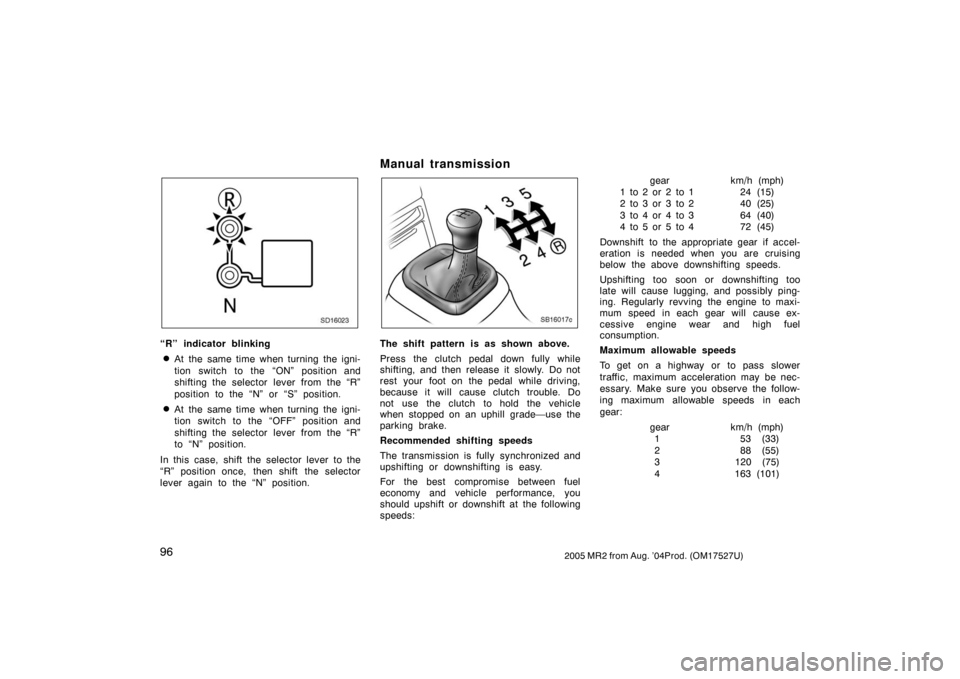

“R” indicator blinking
At the same time when turning the igni-
tion switch to the “ON” position and
shifting the selector lever from the “R”
position to the “N” or “S” position.
At the same time when turning the igni-
tion switch to the “OFF” position and
shifting the selector lever from the “R”
to “N” position.
In this case, shift the selector lever to the
“R” position once, then shift the selector
lever again to the “N” position.
Manual transmission
SB16017c
The shift pattern is as shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. Do
not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.
Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption.
Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
gear km/h (mph)
1 53 (33)
2 88 (55)
3 120 (75)
4 163 (101)

972005 MR2 from Aug. ’04Prod. (OM17527U)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
NOTICE
Make sure the vehicle is completely
stopped before shifting into reverse.
Parking brake
SB16008
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.

982005 MR2 from Aug. ’04Prod. (OM17527U)
Cruise control
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
SB16010a
TURNING THE SYSTEM ON
To operate the cruise control, press the
“ON−OFF” button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the “ONOFF” switch
off when not using the cruise control.
SB16011a
SETTING AT A DESIRED SPEED
On vehicles with sequential manual trans-
mission, the gear position must be “5” or
“6” before you set the cruise control
speed.
Bring your vehicle to the desired speed,
push the lever down in the “−SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.

992005 MR2 from Aug. ’04Prod. (OM17527U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CAUTION
While driving with the cruise control
on, do not shift to the “N” position,
as this may cause engine racing or
overrevving.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the “CANCEL”
direction and releasing it.
b. Depressing the brake pedal.
c. Shifting upward or downward.
d. Pushing “ON−OFF” switch.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESETTING TO A FASTER SPEED
Push the lever up in the “+RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held upward, the vehicle will gradually
gain speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “−SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “−SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “−SET” direction.RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever, by depressing the brake
pedal, or by shifting upward or downward
the selector lever, pushing the lever up in
the “+RES” direction will restore the speed
set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

1002005 MR2 from Aug. ’04Prod. (OM17527U)

1012005 MR2 from Aug. ’04Prod. (OM17527U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio system operating hints109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

1022005 MR2 from Aug. ’04Prod. (OM17527U)
SB17004
AM·FM radio/compact disc player with
changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM” or “DISC” to turn on that
function without pushing “PWR·VOL”. To
turn on the cassette or compact disc play-
er, a cassette or compact disc must be
loaded in the player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM” or “DISC” if the system
is already on but you want to switch from
one function to another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
ReferenceUsing your audio system—
—Some basics
