TOYOTA MR2 SPYDER 2005 W30 / 3.G Owners Manual

2342005 MR2 from Aug. ’04Prod. (OM17527U)

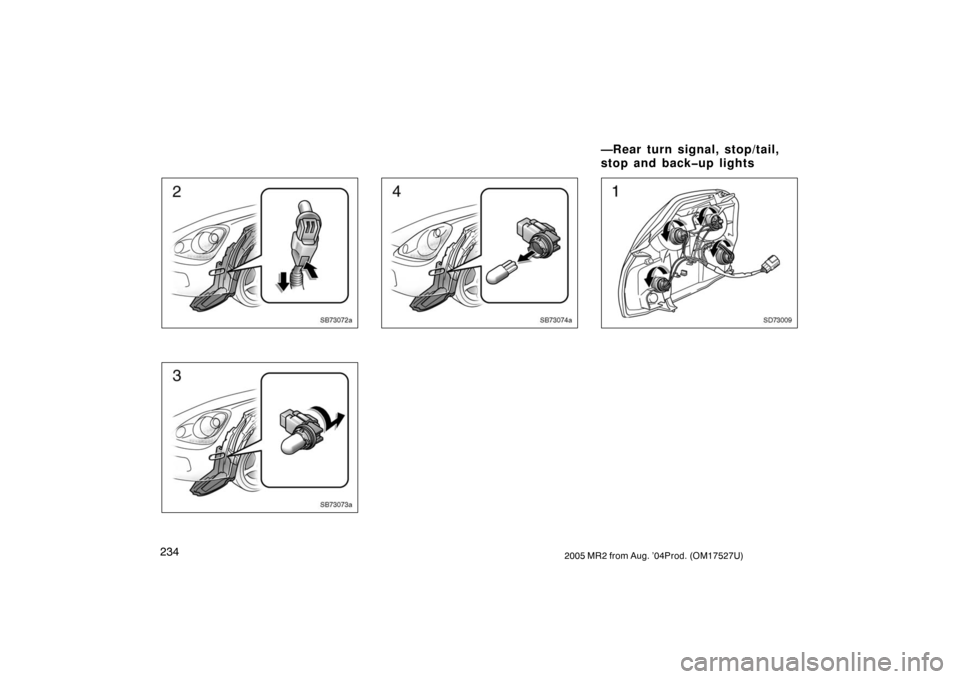

SB73072a
SB73073a
SB73074aSD73009
—Rear turn signal, stop/tail,
stop and backup lights

2352005 MR2 from Aug. ’04Prod. (OM17527U)

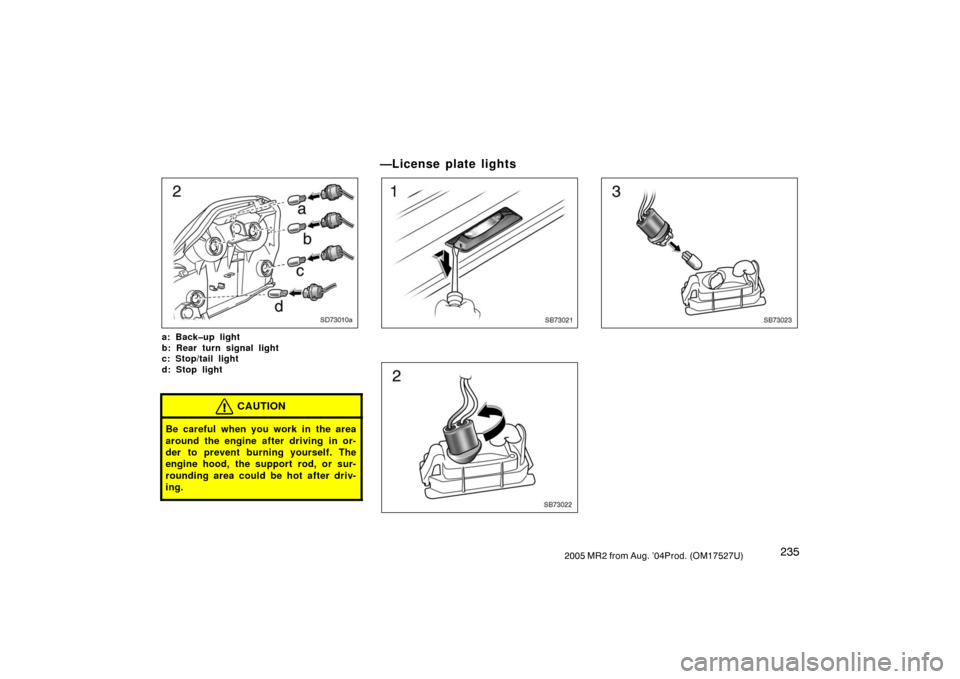

SD73010a
a: Backup light
b: Rear turn signal light
c: Stop/tail light
d: Stop light
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
—License plate lights
SB73021
SB73022
SB73023

2362005 MR2 from Aug. ’04Prod. (OM17527U)

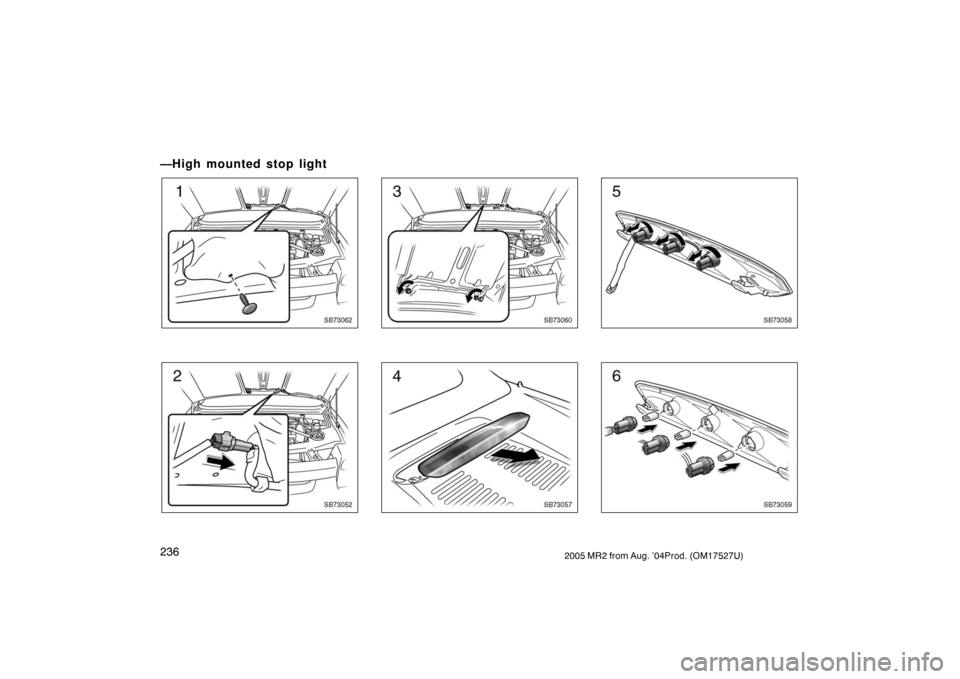

—High mounted stop light
SB73062
SB73052
SB73060
SB73057
SB73058
SB73059

2372005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.

2382005 MR2 from Aug. ’04Prod. (OM17527U)

2392005 MR2 from Aug. ’04Prod. (OM17527U)
SPECIFICATIONS
Specifications
Dimensions and weight240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications241 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires244 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses245 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8

2402005 MR2 from Aug. ’04Prod. (OM17527U)
Dimensions and weight
Overall length mm (in.) 3885 (153.0)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1240 (48.8)
∗
Wheelbase mm (in.) 2450 (96.5)
Front tread mm (in.) 1475 (58.1)
Rear tread mm (in.) 1460 (57.5)
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 193 (425)
∗: Unladen vehicle
Engine
Model:
1ZZ−FE
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
79.0  91.5 (3.11  3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
48 (12.7, 10.6)

2412005 MR2 from Aug. ’04Prod. (OM17527U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.):
1.1 (0.043)ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity.Oil grade:
API grade SL “Energy−Conserving” or
ILSAC multigrade engine oil.

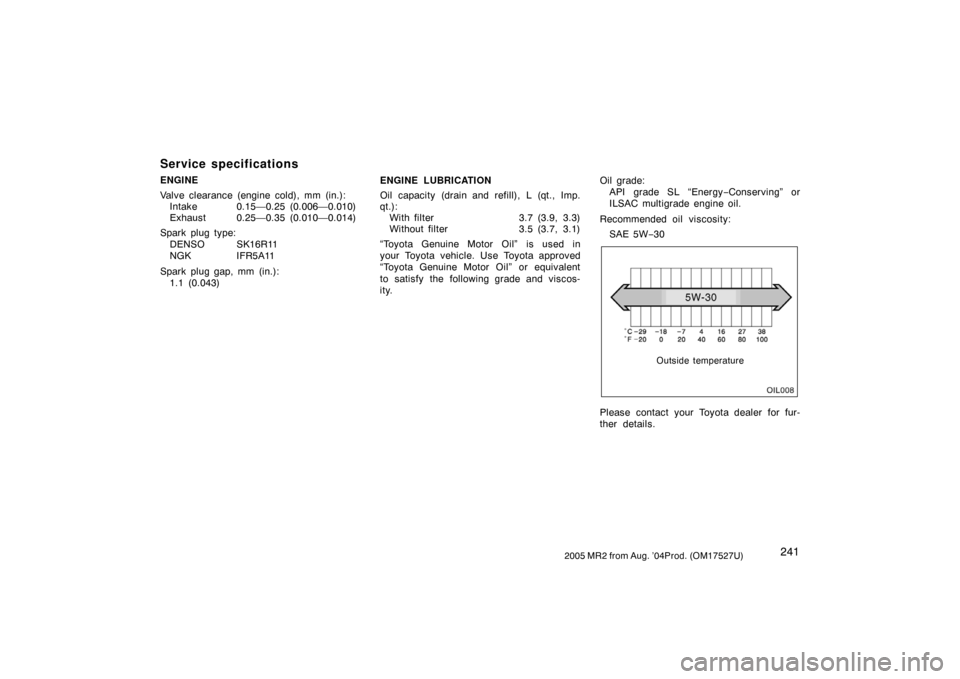

Recommended oil viscosity:
SAE 5W−30
OIL008
Outside temperature
Please contact your Toyota dealer for fur-
ther details.

2422005 MR2 from Aug. ’04Prod. (OM17527U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
10.4 (11.0, 9.2)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non−silicate, non−amine,
non−nitrite, and non−borate coolant with
long−life hybrid organic acid technology.
(Coolant with long−life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.CLUTCH (manual transmission only)
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
Vehicle with limited−slip differential
1.8 (1.9, 1.6)
Vehicle without limited−slip differential
1.9 (2.0, 1.7)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90
SEQUENTIAL MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
Vehicle with limited−slip differential
2.1 (2.2, 1.8)
Vehicle without limited−slip differential
2.3 (2.4, 2.0)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90SEQUENTIAL MANUAL TRANSMISSION
SYSTEM
Fluid type:
Sequential M/T Fluid or equivalent
NOTICE: Using Fluid other than Toyota
Genuine Sequential M/T Fluid may
cause deterioration in shift performance
and durability, and ultimately damage
the sequential manual transmission of
your vehicle.

2432005 MR2 from Aug. ’04Prod. (OM17527U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
85 (3.4)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
5—8 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Toyota P.S fluid EH or equivalent
