child lock TOYOTA MR2 SPYDER 2005 W30 / 3.G Owners Manual

122005 MR2 from Aug. ’04Prod. (OM17527U)
SB12035
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The doors cannot be locked if you leave
the key in the ignition switch.
SB12080a
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
“LOCK” side.
To unlock: Push the switch down on the
“UNLOCK” side.
Both the doors lock or unlock simulta-
neously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

142005 MR2 from Aug. ’04Prod. (OM17527U)
SB12081a
If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
or turn the ignition switch to the
“LOCK” position when you leave
your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

322005 MR2 from Aug. ’04Prod. (OM17527U)

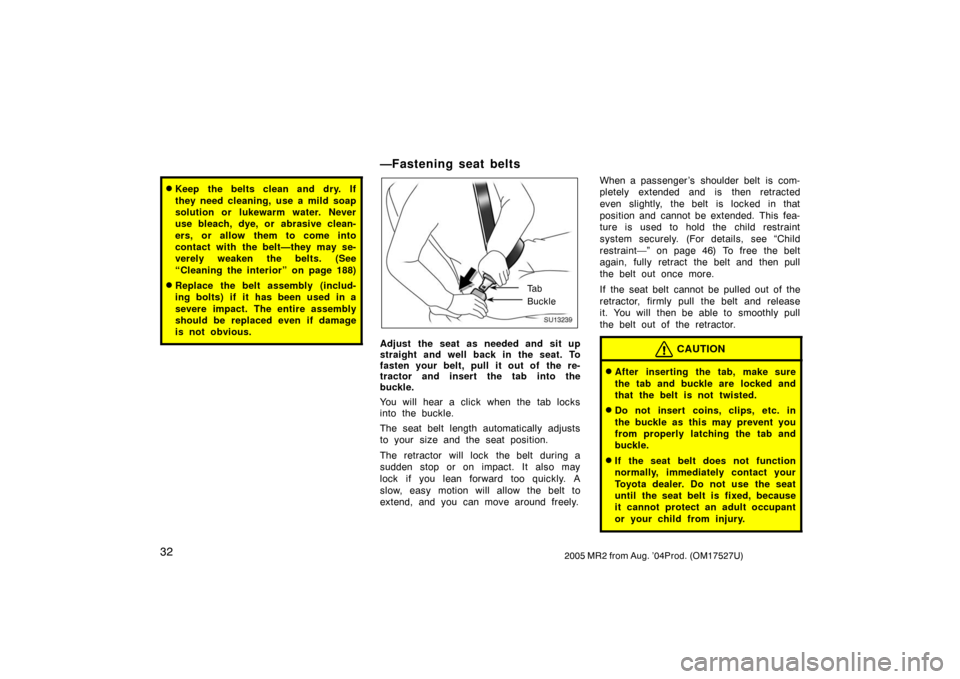

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belt—they may se-
verely weaken the belts. (See
“Cleaning the interior” on page 188)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
—Fastening seat belts
SU13239
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint—” on page 46) To free the belt
again, fully retract the belt and then pull
the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.

342005 MR2 from Aug. ’04Prod. (OM17527U)
—Seat belt extender
If your seat belt cannot be fastened se-
curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper re-
quired length for the extender. Bring the
heaviest coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.

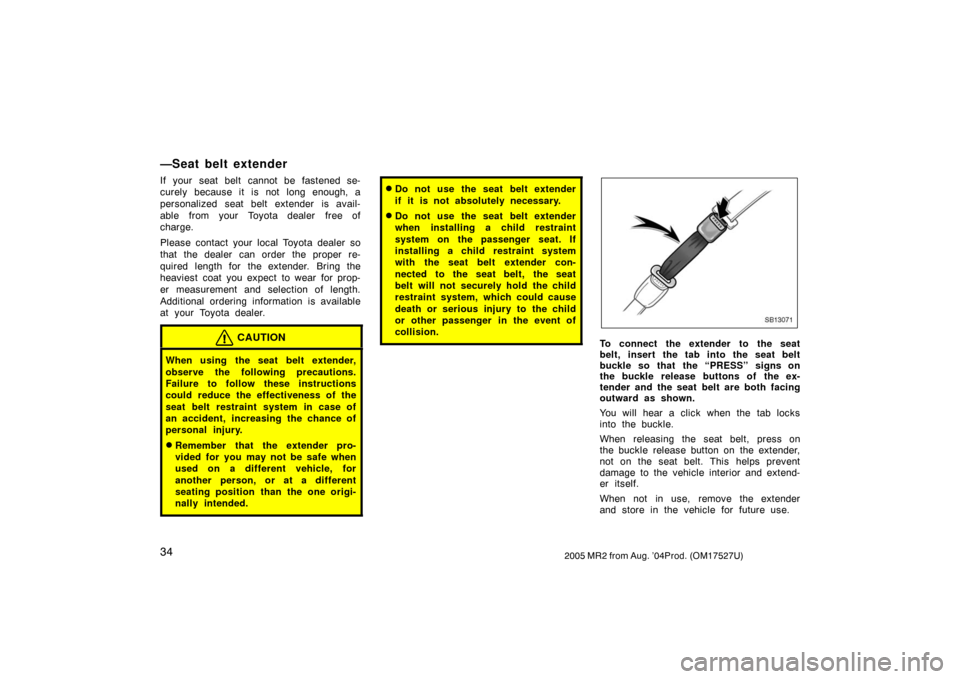

CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
personal injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
Do not use the seat belt extender
if it is not absolutely necessary.
Do not use the seat belt extender
when installing a child restraint
system on the passenger seat. If
installing a child restraint system
with the seat belt extender con-
nected to the seat belt, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child
or other passenger in the event of
collision.
SB13071
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the buckle release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.

352005 MR2 from Aug. ’04Prod. (OM17527U)

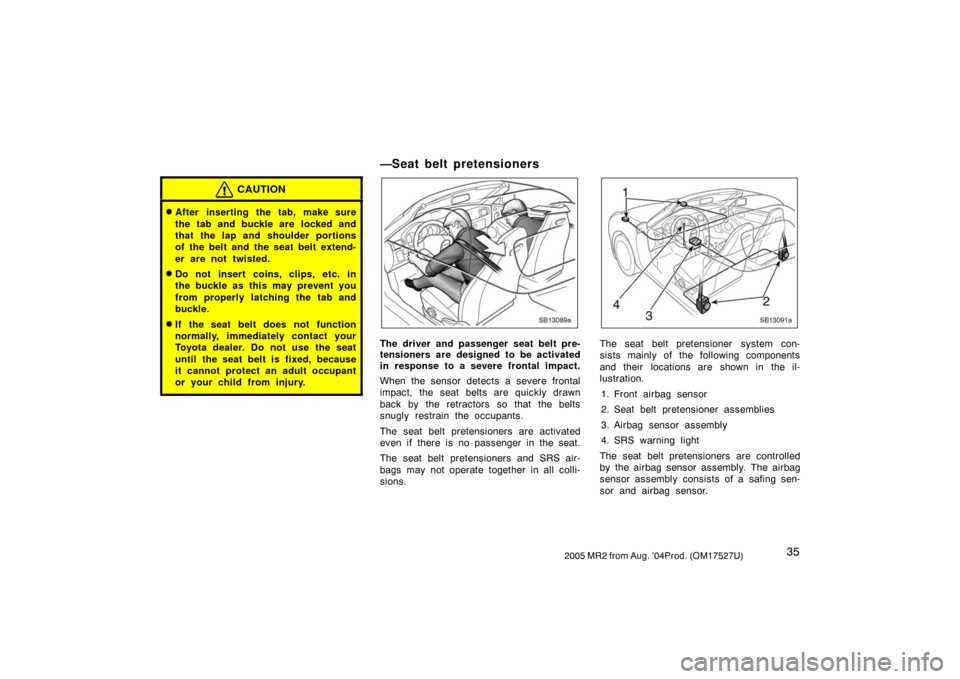

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extend-
er are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
—Seat belt pretensioners
SB13089a
The driver and passenger seat belt pre-
tensioners are designed to be activated
in response to a severe frontal impact.
When the sensor detects a severe frontal
impact, the seat belts are quickly drawn
back by the retractors so that the belts
snugly restrain the occupants.
The seat belt pretensioners are activated
even if there is no passenger in the seat.
The seat belt pretensioners and SRS air-
bags may not operate together in all colli-
sions.
SB13091a
The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-
lustration.
1. Front airbag sensor
2. Seat belt pretensioner assemblies
3. Airbag sensor assembly
4. SRS warning light
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.

492005 MR2 from Aug. ’04Prod. (OM17527U)
—Installation with seat belt
SB13081
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
SB13101
CAUTION
Never install a rearfacing child re-
straint system on the passenger seat
with the passenger airbag manual on
off switch in the “ON” position. In
the event of an accident, the force of
the rapid inflation of the passenger
airbag can cause death or serious in-
jury to the child.
SB13107a
When you put a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and passenger airbag” on
page 37 in this Section.)
The indicator comes on when the system
is off.

502005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
If you must install a rearfacing child
restraint system on the passenger
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.
SB13057
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

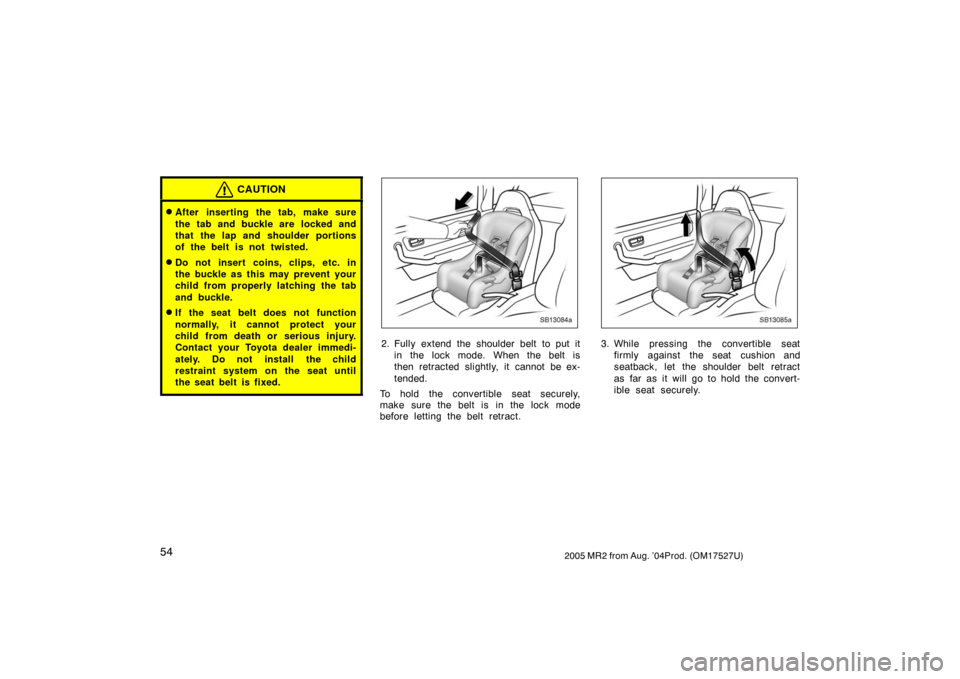

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

512005 MR2 from Aug. ’04Prod. (OM17527U)
SB13058
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
SB13059
3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
SB13060
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

532005 MR2 from Aug. ’04Prod. (OM17527U)

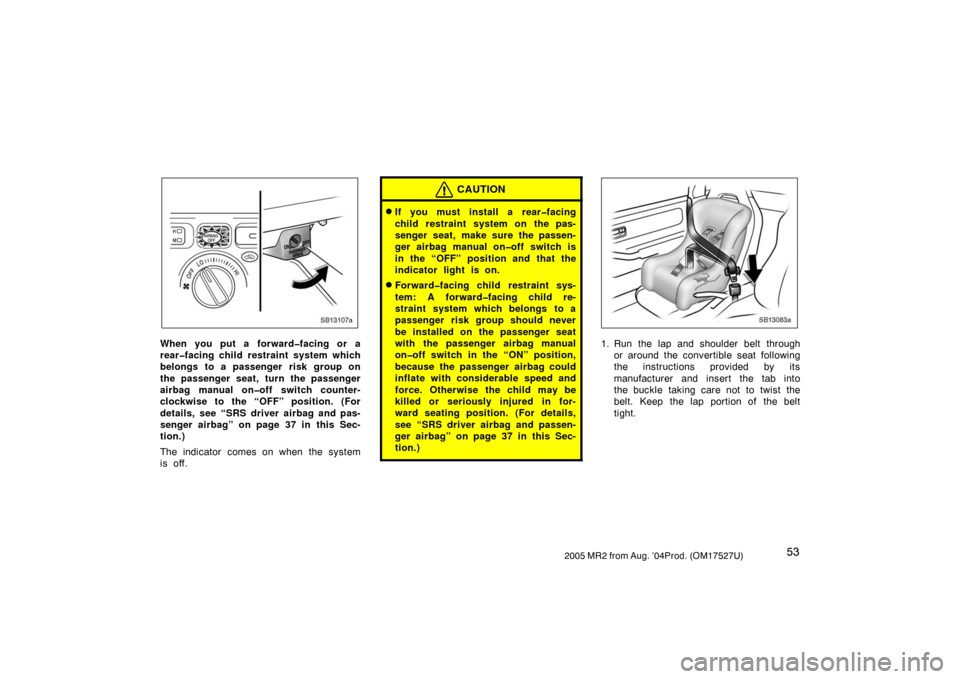

SB13107a
When you put a forwardfacing or a
rearfacing child restraint system which
belongs to a passenger risk group on
the passenger seat, turn the passenger
airbag manual onoff switch counter-
clockwise to the “OFF” position. (For
details, see “SRS driver airbag and pas-
senger airbag” on page 37 in this Sec-
tion.)
The indicator comes on when the system
is off.
CAUTION
If you must install a rearfacing
child restraint system on the pas-
senger seat, make sure the passen-
ger airbag manual onoff switch is
in the “OFF” position and that the
indicator light is on.
Forwardfacing child restraint sys-
tem: A forwardfacing child re-
straint system which belongs to a
passenger risk group should never
be installed on the passenger seat
with the passenger airbag manual
onoff switch in the “ON” position,
because the passenger airbag could
inflate with considerable speed and
force. Otherwise the child may be
killed or seriously injured in for-
ward seating position. (For details,
see “SRS driver airbag and passen-
ger airbag” on page 37 in this Sec-
tion.)
SB13083a
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

542005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13084a
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
SB13085a
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
