TOYOTA PRIUS 2003 1.G Navigation Manual

843. Touch the
“Adjust” switch, the Ad-
just time zone screen appears on the
display.
3UE006a
4. Select your desired time zone. Se- lected switch is highlighted in green.
Touch the
“On” switch and then touch
or switch to set the daylight saving time.
5. Touch the
“OK” switch on the screen
and the Setup screen returns. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE007
3. Touch “km” or “miles” to select
your desired units.
4. Touch the
“OK” switch. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE008
Distance indicationNotifying seasonal restriction

85
3. Touch the
“On” switch of the Notify
seasonal restrict. And then touch
“OK” switch. The screen return to the
current position map.
3UE009
The restricted road icon and the message
may appear on the screen. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE010
3. Touch
the “On” switch on the right of
Voice guide in all modes. 1. Push the
“MENU” switch.
1UE040
2. Touch the “Setup” switch.
3UE001
Voice guidance in all modesCurrent street name

863. Touch the
“On” switch on the right of
Current street name.
The current street name appears on the Map
screen.
3UE011
3UE012T
This system has a function which informs
you of the time to replace certain parts or
components as well as other information
shown on the screen. (See “Information
items” on page 87.) When the system be-
gins operating after reaching either the
Information Item’s date or driving dis-
tance, the Information screen will be dis-
played.
The Information screen will not be displayed
again by touching the
“Do not display
this message again”
switch.
3UE013
1. Push the “INFO” switch to display
the Information Menu screen. Touch
the
“Maintenance” switch to dis-
play the Maintenance screen.
2. Touch your desired icon and input the conditions.
Maintenance information

87
3UE014
Date of notice: Input the next maintenance
date.
Distance of notice: Input the driving dis-
tance until the next maintenance check. You
can input a five−digit number for the driving
distance.
When you touch the
! switch on the
screen, the screen changes to display the
change name screen. Touch the keys to in-
put your desired name and then input the
conditions. After you input the information, touch the
“OK” switch. The screen then returns to
the Maintenance screen. The icon’s color will
change to green after the date or driving dis-
tance are input. The icon’s color will change
to orange when your vehicle needs to be ser-
viced. The following switches appear on the
Maintenance screen.
Delete all: Cancel all conditions which have
been input.
Reset all: Reset the item which has satisfied
either condition.
Touch the
“Off” switch of the Maintenance
screen, and the Information screen will no
longer be displayed.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Owner’s
Manual Supplement / Scheduled
Maintenance”.
 Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been input and the actual
date and driving distance.
Information items
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades
Replace engine coolant

88Replace brake fluid
Replace ATF
Scheduled maintenance
Replace air filter
Personal
3UE013
You can register your dealer’s name and
address. Touch the
“Set dealer”
switch on the Maintenance screen.
3UE015
1. Enter your dealer’s
location address in
the same way as you input any des-
tination. (See page 8 through 22.)
Dealer setting(a) Registering dealer

89

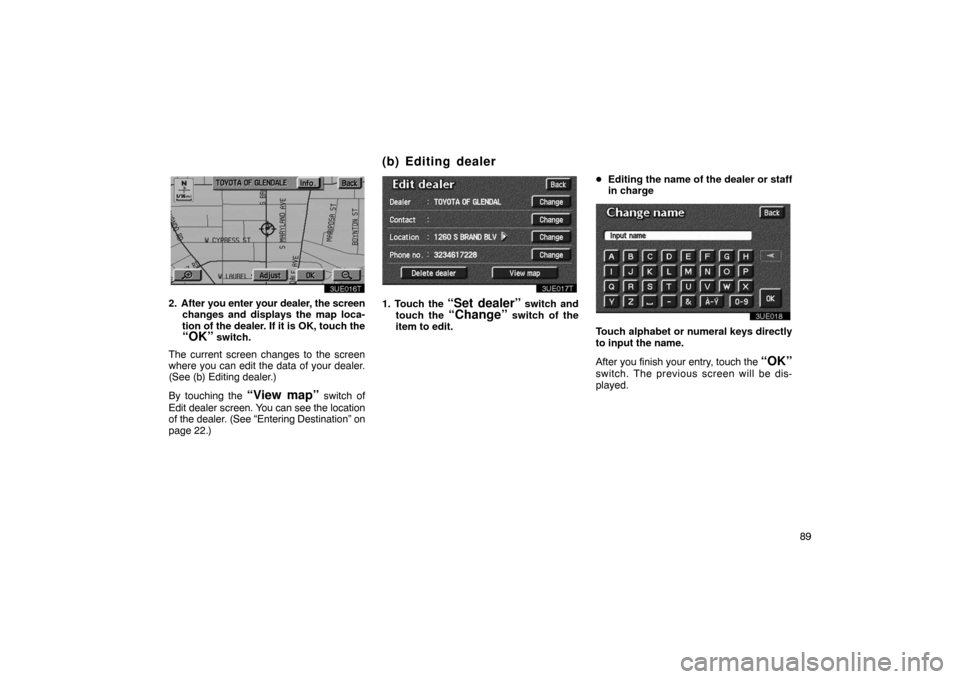

3UE016T
2. After you enter your dealer, the screen
changes and displays the map loca-
tion of the dealer. If it is OK, touch the
“OK” switch.
The current screen changes to the screen
where you can edit the data of your dealer.
(See (b) Editing dealer.)
By touching the
“View map” switch of
Edit dealer screen. Y ou can see the location
of the dealer. (See “Entering Destination” on
page 22.)
3UE017T
1. Touch the “Set dealer” switch and
touch the “Change” switch of the
item to edit.
Editing the name of the dealer or staff
in charge
3UE018
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
“OK”
switch. The previous screen will be dis-
played.
(b) Editing dealer

90

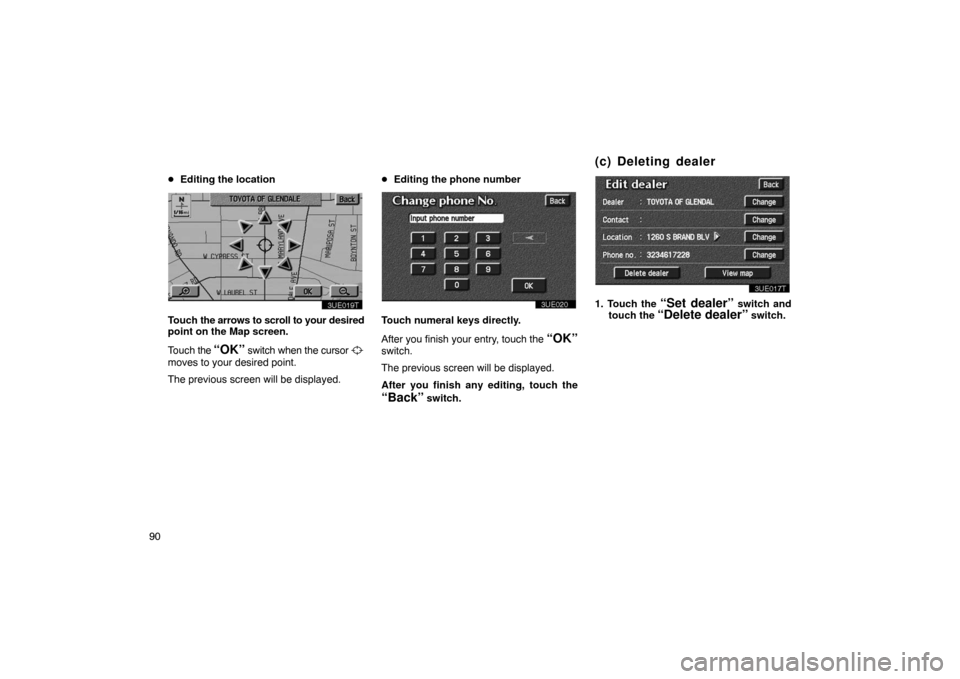

Editing the location
3UE019T
Touch the arrows to scroll to your desired
point on the Map screen.
Touch the
“OK” switch when the cursor
moves to your desired point.
The previous screen will be displayed.
Editing the phone number
3UE020
Touch numeral keys directly.
After you finish your entry, touch the
“OK”
switch.
The previous screen will be displayed.
After you finish any editing, touch the
“Back” switch.
3UE017T
1. Touch the “Set dealer” switch and
touch the “Delete dealer” switch.
(c) Deleting dealer

Publication No. OM47434U
Part No. 01999-47434
Printed in Japan 01−0208−00
91
3UE021T
2. A selected point will appear. Also, amessage will appear at the bottom of
the screen. To delete, touch the
“Yes”switch. To cancel the deletion, touch
the
“No” switch.
