TOYOTA PRIUS 2005 2.G Navigation Manual

111

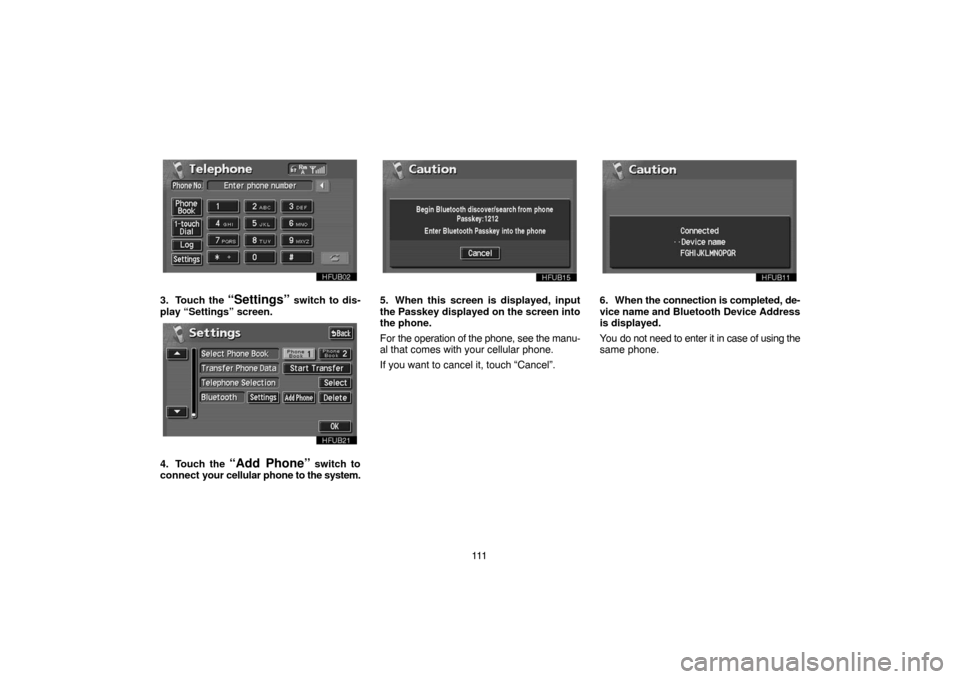

3. Touch the “Settings” switch to dis-
play “Settings” screen.
4. Touch the “Add Phone” switch to
connect your cellular phone to the system.
5. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.6. When the connection is completed, de-
vice name and Bluetooth Device Address
is displayed.
You do not need to enter it in case of using the
same phone.

11 2

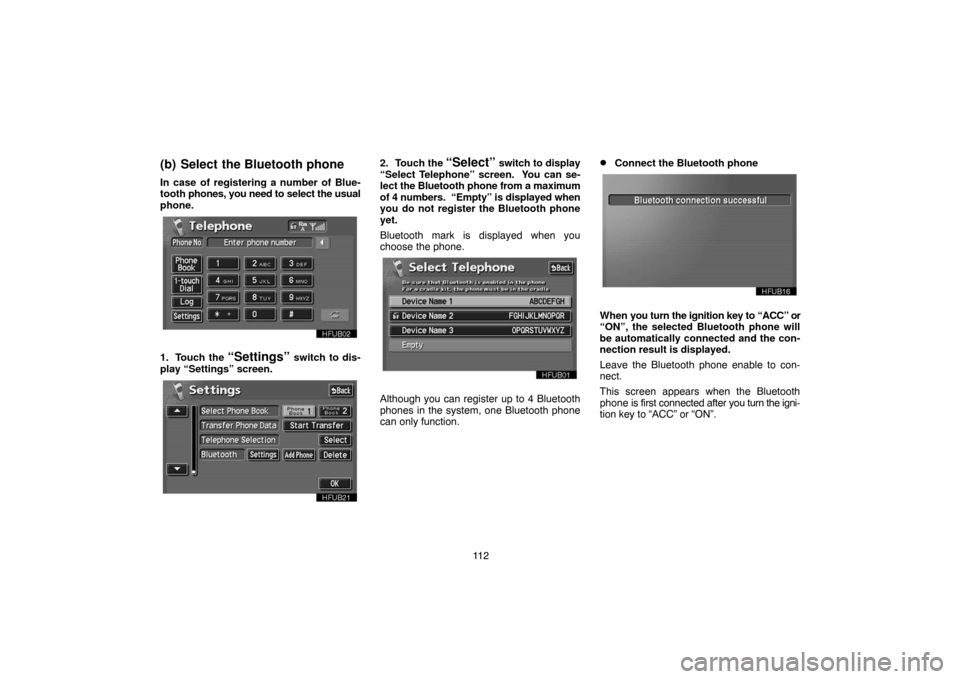

(b) Select the Bluetooth phone
In case of registering a number of Blue-
tooth phones, you need to select the usual
phone.
1. Touch the “Settings” switch to dis-
play “Settings” screen.
2. Touch the “Select” switch to display
“Select Telephone” screen. You can se-
lect the Bluetooth phone from a maximum
of 4 numbers. “Empty” is displayed when
you do not register the Bluetooth phone
yet.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 4 Bluetooth
phones in the system, one Bluetooth phone
can only function.
Connect the Bluetooth phone
When you turn the ignition key to “ACC” or
“ON”, the selected Bluetooth phone will
be automatically connected and the con-
nection result is displayed.
Leave the Bluetooth phone enable to con-
nect.
This screen appears when the Bluetooth
phone is first connected after you turn the igni-
tion key to “ACC” or “ON”.

11 3
Reconnect the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the ignition key is turned to
“ACC” or “ON”, the system automatically
reconnects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

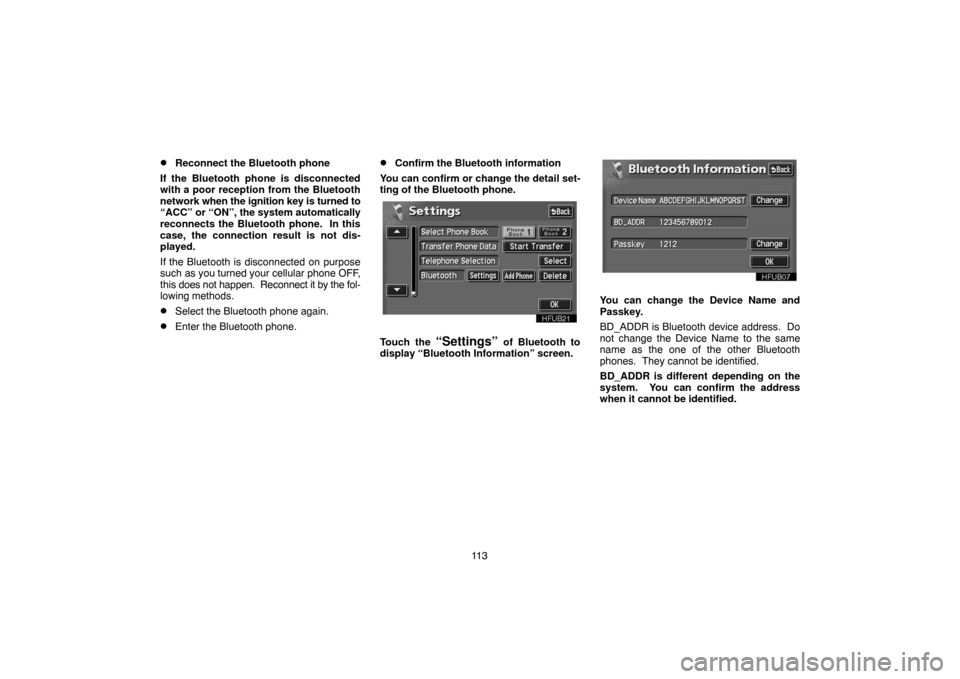

Confirm the Bluetooth information
You can confirm or change the detail set-
ting of the Bluetooth phone.
Touch the “Settings” of Bluetooth to
display “Bluetooth Information” screen.
You can change the Device Name and
Passkey.
BD_ADDR is Bluetooth device address. Do
not change the Device Name to the same
name as the one of the other Bluetooth
phones. They cannot be identified.
BD_ADDR is different depending on the
system. You can confirm the address
when it cannot be identified.

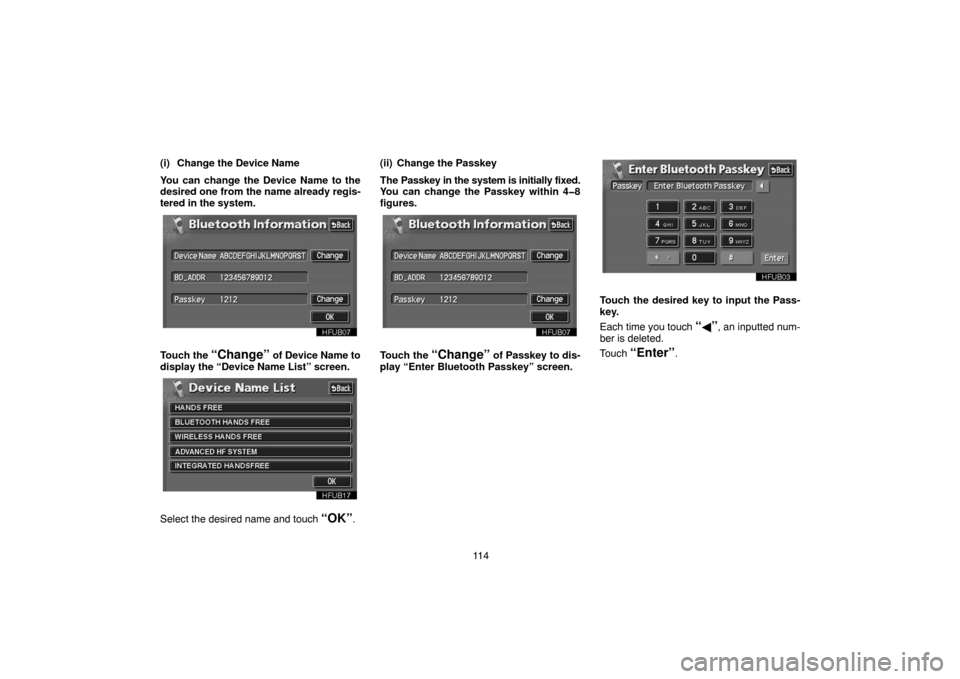

11 4 (i) Change the Device Name
You can change the Device Name to the
desired one from the name already regis-
tered in the system.
Touch the “Change” of Device Name to
display the “Device Name List” screen.
Select the desired name and touch “OK”.(ii) Change the Passkey
The Passkey in the system is initially fixed.
You can change the Passkey within 48
figures.
Touch the “Change” of Passkey to dis-
play “Enter Bluetooth Passkey” screen.
Touch the desired key to input the Pass-
key.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“Enter”.

11 5

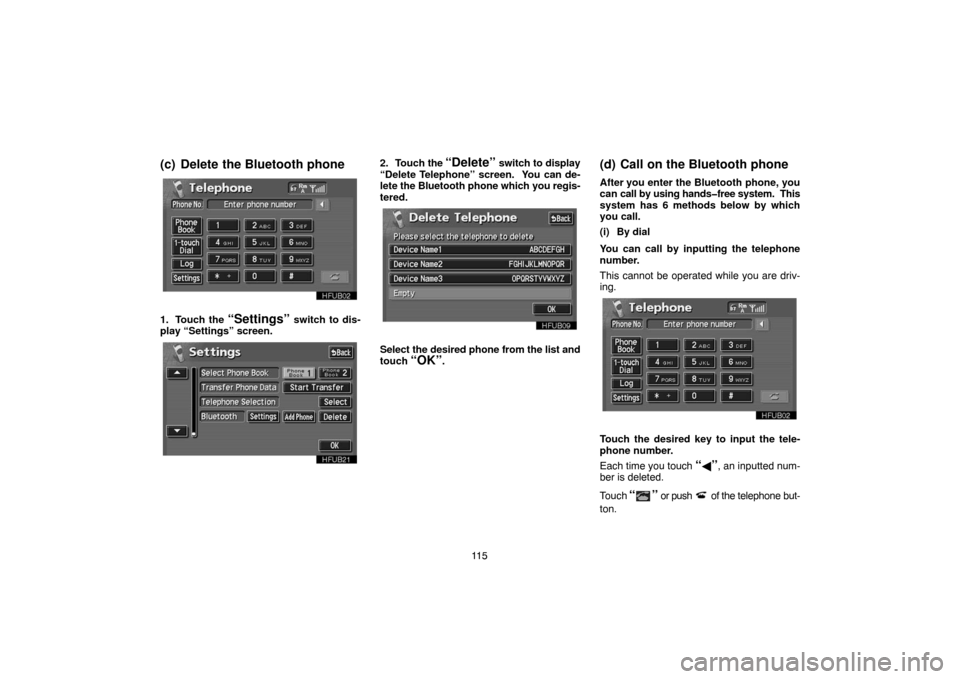

(c) Delete the Bluetooth phone
1. Touch the “Settings” switch to dis-
play “Settings” screen.
2. Touch the “Delete” switch to display
“Delete Telephone” screen. You can de-
lete the Bluetooth phone which you regis-
tered.
Select the desired phone from the list and
touch
“OK”.
(d) Call on the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. This
system has 6 methods below by which
you call.

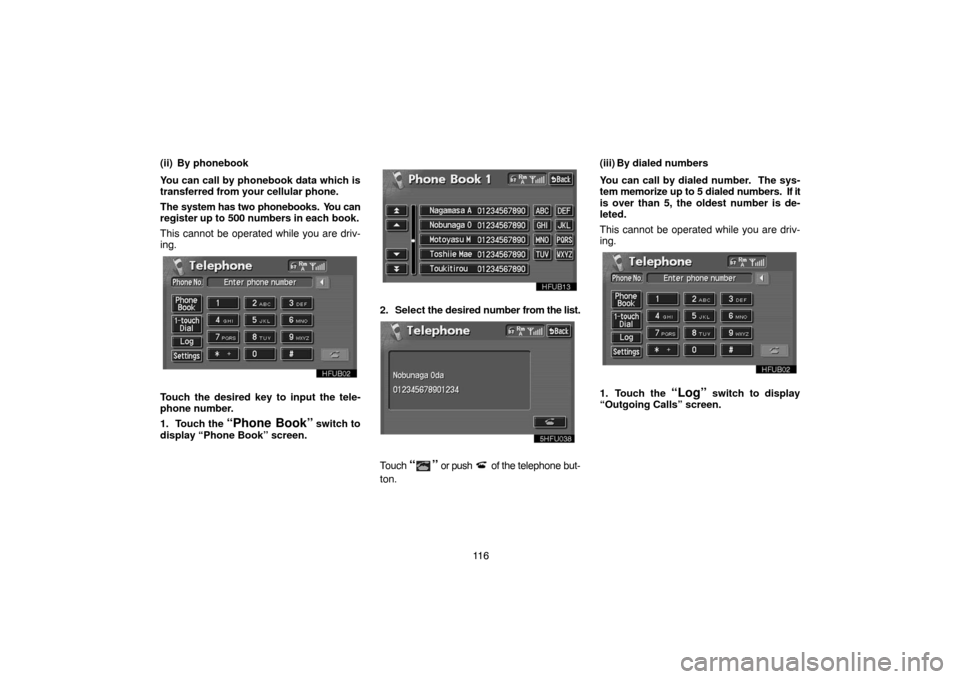

(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“” or push of the telephone but-
ton.

11 6 (ii) By phonebook
You can call by phonebook data which is
transferred from your cellular phone.
The system has two phonebooks. You can
register up to 500 numbers in each book.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
1. Touch the
“Phone Book” switch to
display “Phone Book” screen.
2. Select the desired number from the list.
Touch “” or push of the telephone but-

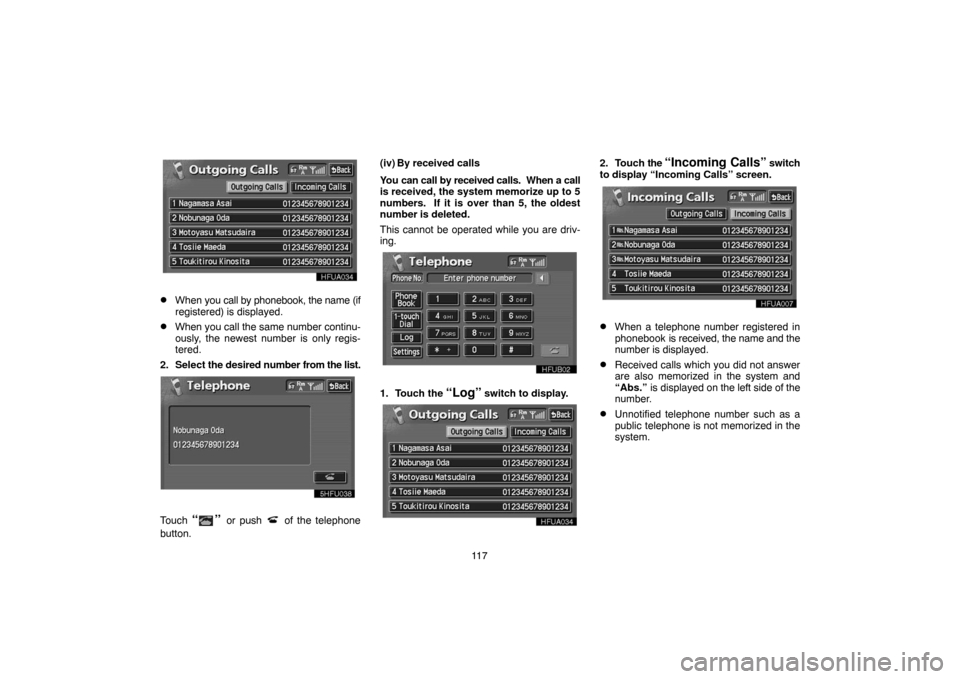

ton.(iii) By dialed numbers
You can call by dialed number. The sys-
tem memorize up to 5 dialed numbers. If it
is over than 5, the oldest number is de-
leted.
This cannot be operated while you are driv-
ing.
1. Touch the “Log” switch to display
“Outgoing Calls” screen.

11 7
When you call by phonebook, the name (if
registered) is displayed.
When you call the same number continu-
ously, the newest number is only regis-
tered.
2. Select the desired number from the list.
Touch “” or push of the telephone
button.(iv) By received calls
You can call by received calls. When a call
is received, the system memorize up to 5
numbers. If it is over than 5, the oldest
number is deleted.
This cannot be operated while you are driv-
ing.
1. Touch the “Log” switch to display.
2. Touch the “Incoming Calls” switch
to display “Incoming Calls” screen.
When a telephone number registered in
phonebook is received, the name and the
number is displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Unnotified telephone number such as a
public telephone is not memorized in the
system.

11 8 3. Select the desired number from the list.
Touch “” or push of the telephone
button.
A international phone call may not be made
depending on the cellular phone which you

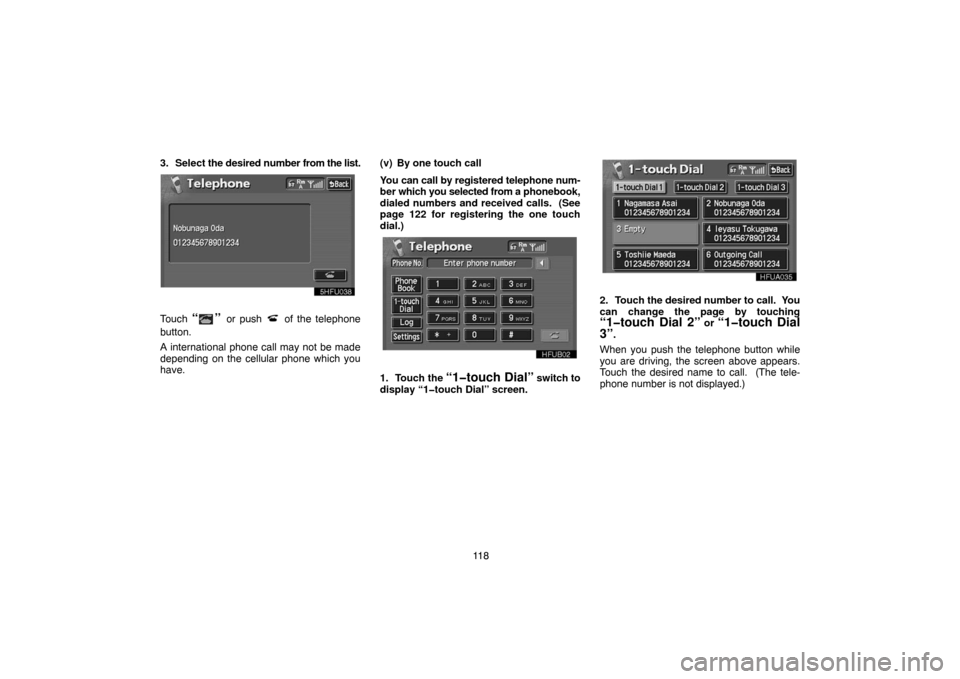

have.(v) By one touch call
You can call by registered telephone num-
ber which you selected from a phonebook,
dialed numbers and received calls. (See
page 122 for registering the one touch
dial.)
1. Touch the “1touch Dial” switch to
display “1touch Dial” screen.
2. Touch the desired number to call. You
can change the page by touching
“1touch Dial 2” or “1touch Dial
3”
.
When you push the telephone button while
you are driving, the screen above appears.
Touch the desired name to call. (The tele-
phone number is not displayed.)

11 9 (vi) By POI call
You can call by operating a switch when
“Call” is displayed on the screen from
Navigation system. (See page 38 for de-
tails.)

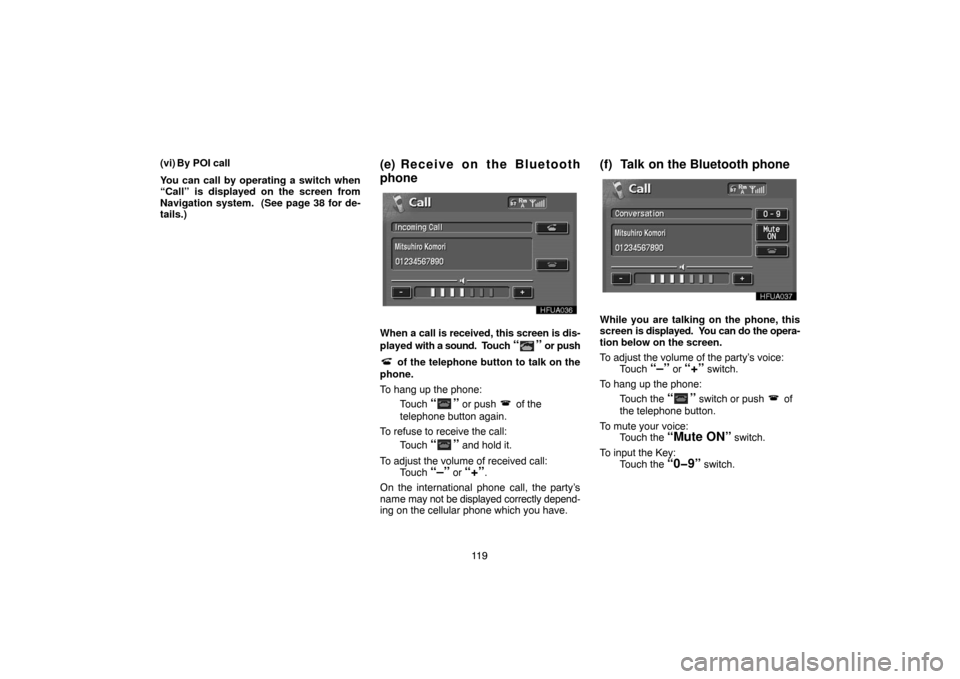

(e) Receive on the Bluetooth
phone
When a call is received, this screen is dis-
played with a sound. Touch
“” or push
of the telephone button to talk on the
phone.
To hang up the phone:
Touch
“” or push of the
telephone button again.
To refuse to receive the call:
Touch
“” and hold it.
To adjust the volume of received call:
Touch
“–” or “+”.
On the international phone call, the party’s
name may not be displayed correctly depend-
ing on the cellular phone which you have.
(f) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the party’s voice:
Touch
“–” or “+” switch.
To hang up the phone:
Touch the
“” switch or push of
the telephone button.
To mute your voice:
Touch the
“Mute ON” switch.

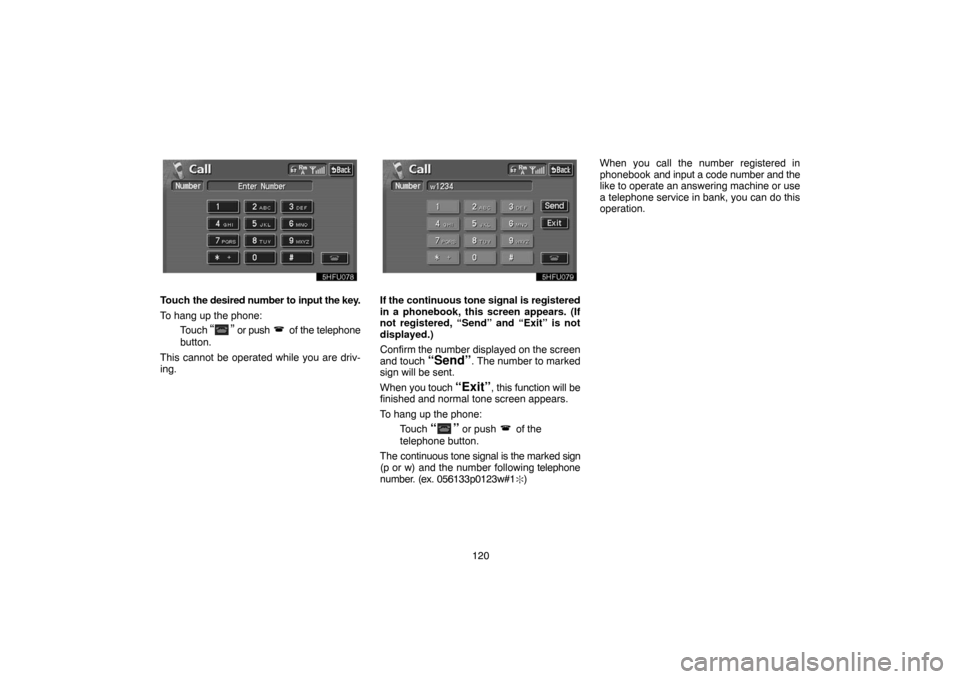

To input the Key:
Touch the
“09” switch.

120
Touch the desired number to input the key.
To hang up the phone:
Touch
“” or push of the telephone
button.
This cannot be operated while you are driv-
ing.
If the continuous tone signal is registered
in a phonebook, this screen appears. (If
not registered, “Send” and “Exit” is not
displayed.)
Confirm the number displayed on the screen
and touch
“Send”. The number to marked
sign will be sent.
When you touch
“Exit”, this function will be
finished and normal tone screen appears.
To hang up the phone:
Touch
“” or push of the
telephone button.
The continuous tone signal is the marked sign
(p or w) and the number following telephone
number. (ex. 056133p0123w#1
)When you call the number registered in
phonebook and input a code number and the
like to operate an answering machine or use
a telephone service in bank, you can do this
operation.
