automatic transmission fluid TOYOTA PRIUS 2005 2.G Scheduled Maintenance Guide

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Inspect thickness measurement and disc runout.4 See page 21 for details.
Maintenance Log: 2005 Prius
30,000 Miles or 36 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace cabin air filter
qReplace engine air filter
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive shaft boots
__ Engine and inverter coolant
4
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTigh ten n uts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
Mileage:
77
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Inspect thickness measurement and disc runout.4 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.5 See page 21 for details.
Maintenance Log: 2005 Prius
60,000 Miles or 72 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace cabin air filter
qReplace engine air filter
qInspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive belts4
__ Drive shaft boots
__ Engine and inverter coolant5
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qRepl ace automatic transmission fluid
qRepl ac e d ifferential oil
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
Mileage:
1111
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1515
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3Inspec tthickness measurement and disc runout.4See p age 21 for details.

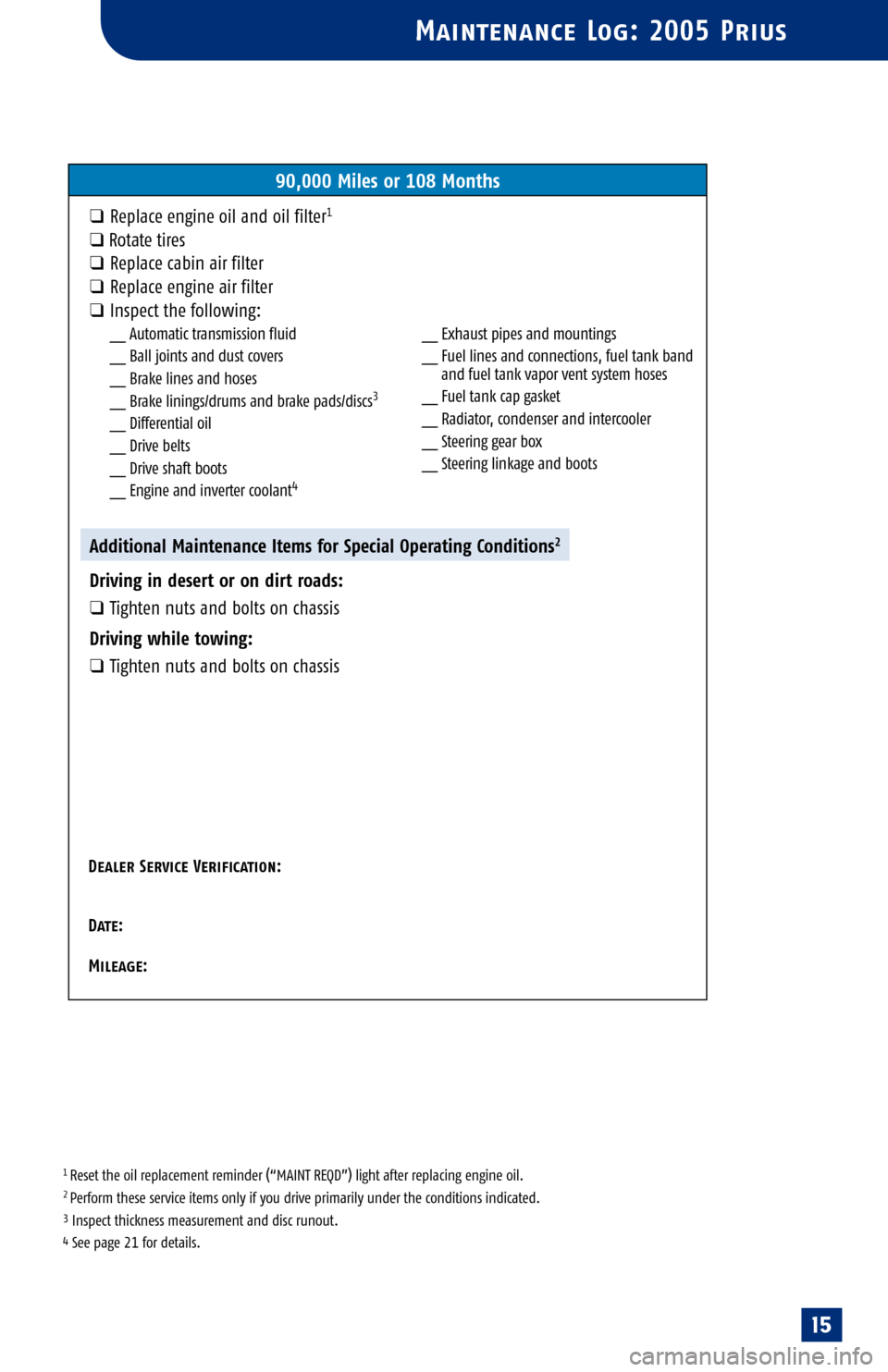

90,000 Miles or 108 Months
q Replace engine oil and oil filter1
qRotate tires
q Replace cabin air filter
qReplace engine air filter
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive belts
__ Drive shaft boots
__ Engine and inverter coolant
4
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots
Maintenance Log: 2005 Prius

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty. Does not apply to PZEV Prius in California, New York,
Massachusetts, Maine and Vermont. For this model, replacement interval is 150,000 miles.
4 Inspect thickness measurement and disc runout.5 See page 21 for details.

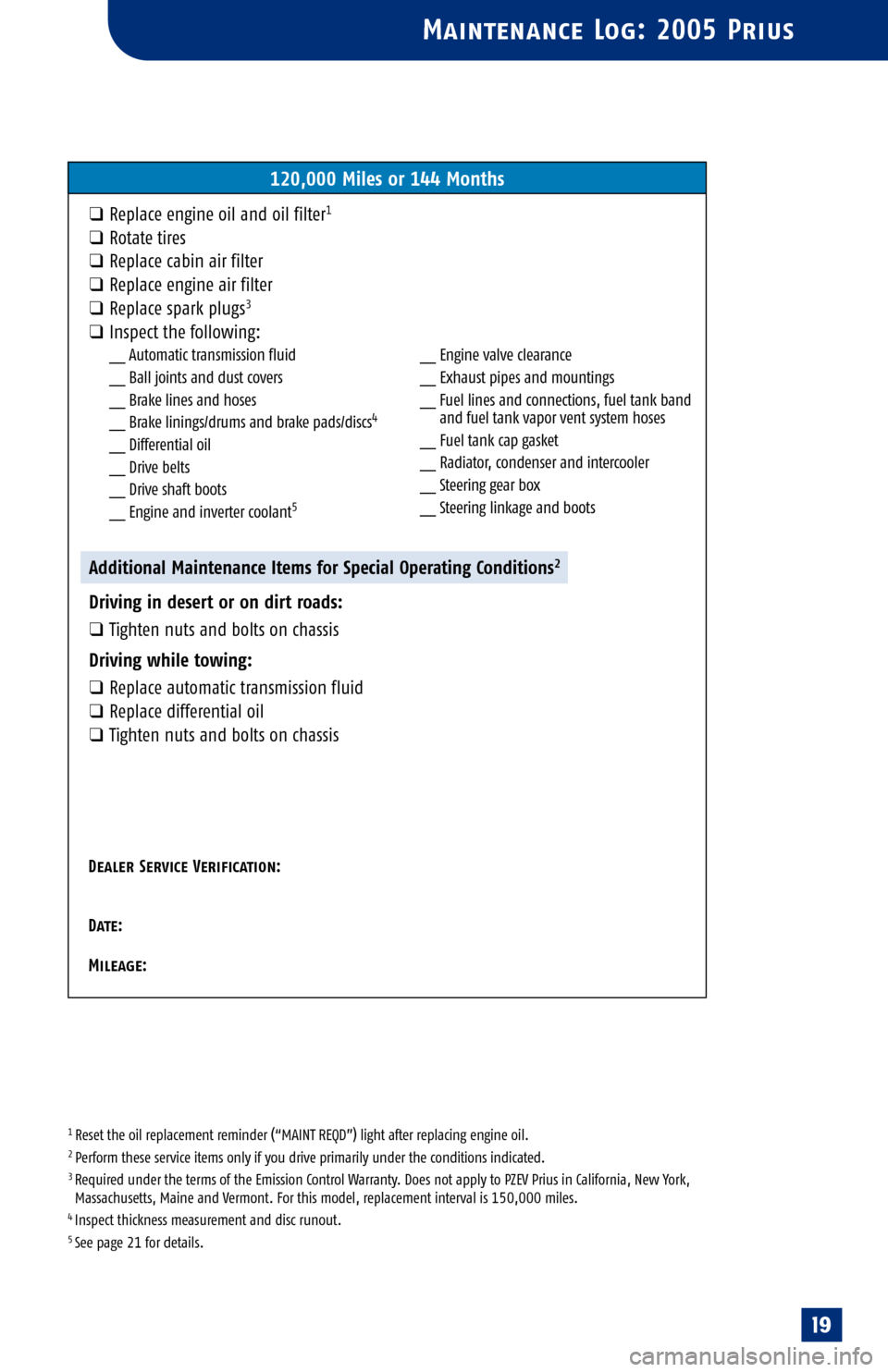

Maintenance Log: 2005 Prius
120,000 Miles or 144 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace cabin air filter
qReplace engine air filter
qReplace spark plugs3
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ B rake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Differential oil
__ Dr ive belts
__ Drive shaft boots
__ Engine and inverter coolant
5
Additional Maintenance Items for Special Operating Conditions2
Dr iving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qReplace automatic transmission fluid
qReplace differential oil
qTighten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
1919
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

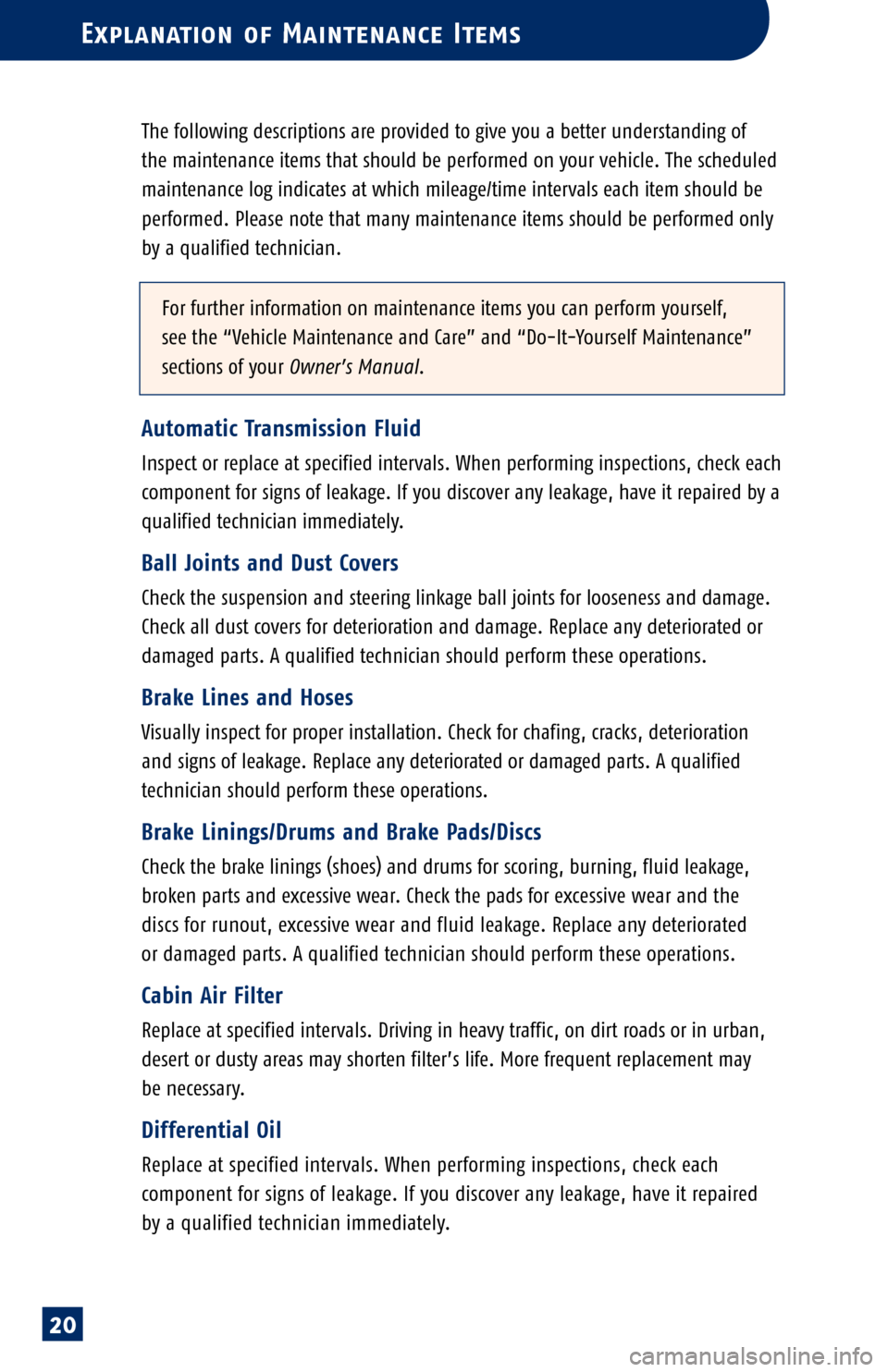

Explanation of Maintenance Items
2020
The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “DoItYourself Maintenance”
sections of your
Owner’s Manual.
Automatic Transmission Fluid
Inspect or replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering linkage ball joints for looseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated ordamaged parts. Aqualified technician should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Check for chafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
technician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check the pads for excessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated ordamaged parts. A qualified technician should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s life. More frequent replacement may
be necessary.
Differential Oil
Replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired by a qualified technician immediately.
