engine coolant TOYOTA PRIUS 2005 2.G Scheduled Maintenance Guide

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 See page 21 for details.
Maintenance Log: 2005 Prius
15,000 Miles or 18 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine and inverter coolant
3
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qInspect engine air filter
qTighten nuts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
55
__ Exhaust pipes and mountings
__ Radiator, condenser and intercooler
__ Steering gear box
__ St eering linkage and boots

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Inspect thickness measurement and disc runout.4 See page 21 for details.
Maintenance Log: 2005 Prius
30,000 Miles or 36 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace cabin air filter
qReplace engine air filter
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive shaft boots
__ Engine and inverter coolant
4
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTigh ten n uts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
Mileage:
77
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 See page 21 for details.
Maintenance Log: 2005 Prius
45,000 Miles or 54 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine and inverter coolant
3
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qIn spec ten gine air filter
qTighten nuts and bolts on chassis
Driving while towing:
qTigh ten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
99
__ Exhaust pipes and mountings
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Inspect thickness measurement and disc runout.4 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.5 See page 21 for details.
Maintenance Log: 2005 Prius
60,000 Miles or 72 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace cabin air filter
qReplace engine air filter
qInspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive belts4
__ Drive shaft boots
__ Engine and inverter coolant5
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qRepl ace automatic transmission fluid
qRepl ac e d ifferential oil
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
Mileage:
1111
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 See page 21 for details.
Maintenance Log: 2005 Prius
75,000 Miles or 90 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine and inverter coolant
3
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qIn spec t engine air filter
qTigh ten n uts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
1313
__ Exhaust pipes and mountings
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1515
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3Inspec tthickness measurement and disc runout.4See p age 21 for details.
90,000 Miles or 108 Months
q Replace engine oil and oil filter1
qRotate tires
q Replace cabin air filter
qReplace engine air filter
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Differential oil
__ Drive belts
__ Drive shaft boots
__ Engine and inverter coolant
4
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots
Maintenance Log: 2005 Prius

Maintenance Log: 2005 Prius

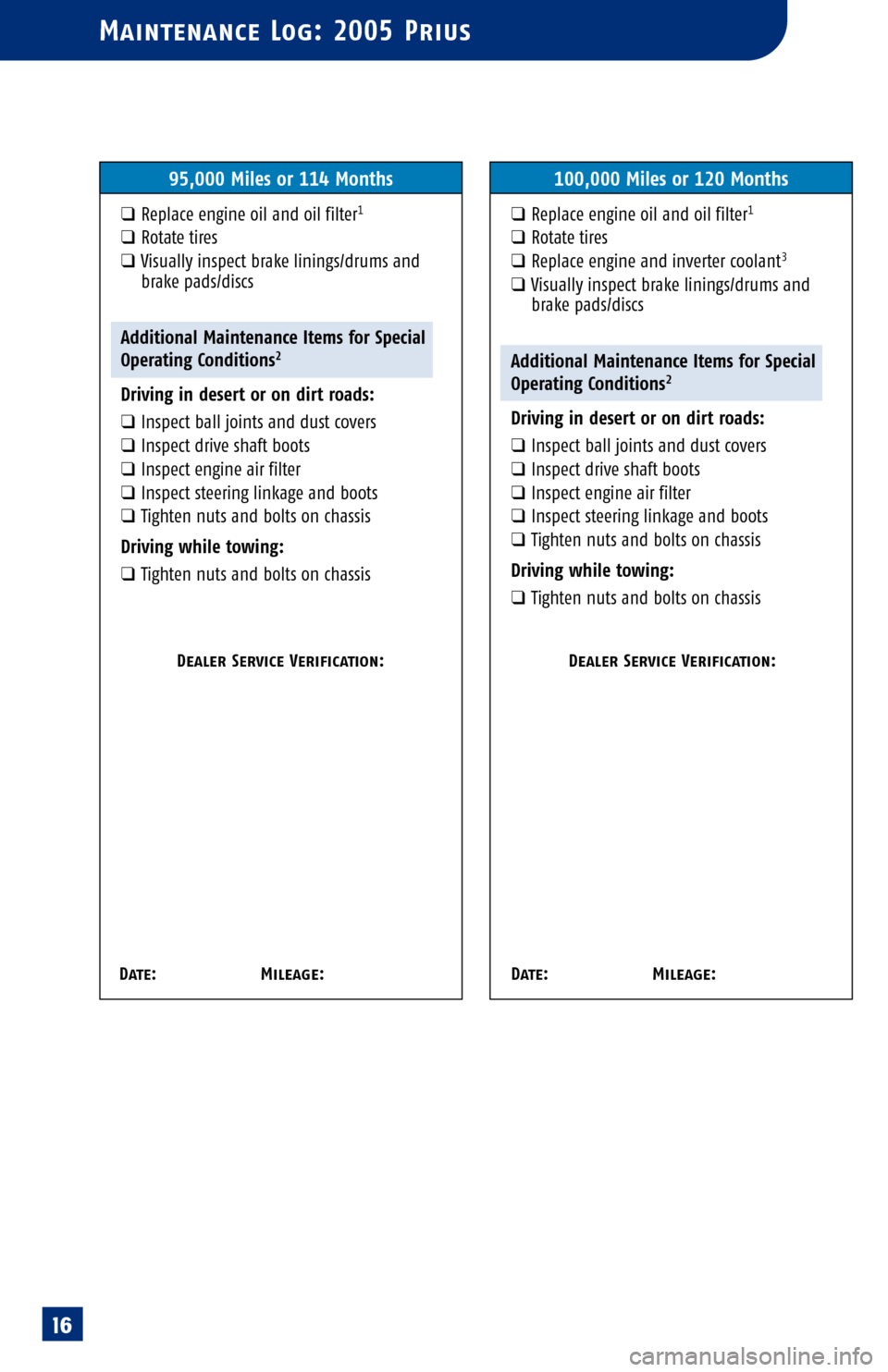

95,000 Miles or 114 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving in desert or on dirt roads:
qInspect ball joints and dust covers
qInspect drive shaft boots
qInspect engine air filter
qInspect steering linkage and boots
qTighten nuts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
100,000 Miles or 120 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace engine and inverter coolant3
qVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving in desert or on dirt roads:
qInspect ball joints and dust covers
qInspect drive shaft boots
qInspect engine air filter
qInspect steering linkage and boots
qTighten nuts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
D ate: Mileage:
Dealer Service Verification:
D ate: Mileage:
1616

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Per for m these service items only if you drive primarily under the conditions indicated.3Init ial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 21
f or det ails.
4 See p age 21 for details.
Maintenance Log: 2005 Prius
105,000 Miles or 126 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and brake pads/discs
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine and inverter coolant
4
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qIn spec t engine air filter
qTigh ten n uts and bolts on chassis
Driving while towing:
qTighten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
1717
__ Exhaust pipes and mountings
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty. Does not apply to PZEV Prius in California, New York,
Massachusetts, Maine and Vermont. For this model, replacement interval is 150,000 miles.
4 Inspect thickness measurement and disc runout.5 See page 21 for details.
Maintenance Log: 2005 Prius
120,000 Miles or 144 Months
qReplace engine oil and oil filter1
qRotate tires
qReplace cabin air filter
qReplace engine air filter
qReplace spark plugs3
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ B rake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Differential oil
__ Dr ive belts
__ Drive shaft boots
__ Engine and inverter coolant
5
Additional Maintenance Items for Special Operating Conditions2
Dr iving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qReplace automatic transmission fluid
qReplace differential oil
qTighten nuts and bolts on chassis
Dealer Service Verification:
D at e :
Mileage:
1919
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator, condenser and intercooler
__ Steering gear box
__ Steering linkage and boots

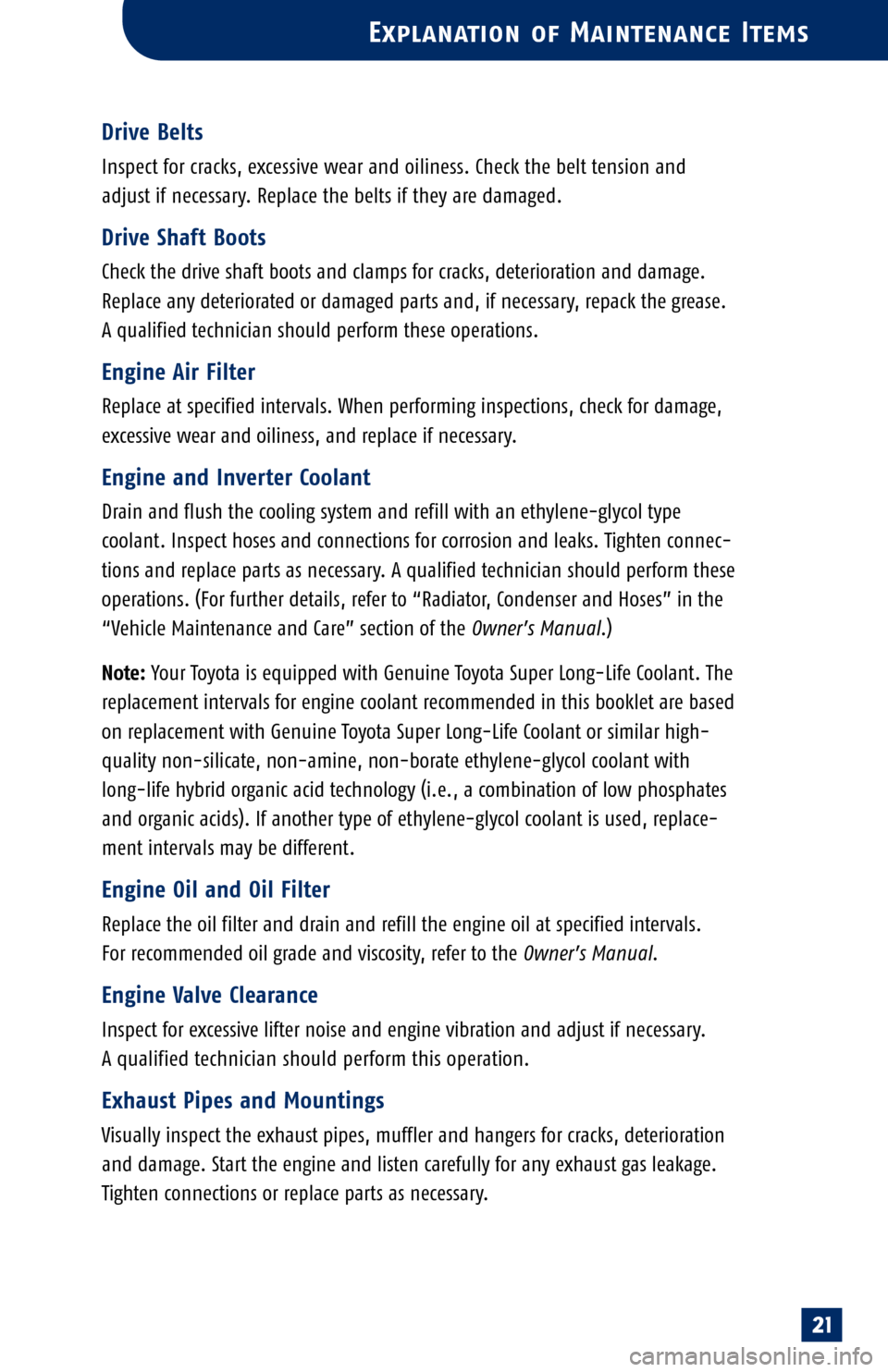

Explanation of Maintenance Items
2121
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration and damage.
Replace any deteriorated or damaged parts and, if necessary, repack the grease.
A qualified technician should perform these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
Engine and Inverter Coolant
Drain and flush the cooling system and refill with an ethyleneglycol type
coolant. Inspect hoses and connections for corrosion and leaks. Tighten connec
tions and replace parts as necessary. A qualified technician should perform theseoperations. (For further details, refer to “Radiator, Condenser and Hoses” in the
“Vehicle Maintenance and Care” section of the
Owner’s Manual.)
Note:YourToyota is equipped with Genuine Toyota Super LongLife Coolant. The
replacement intervals for engine coolant recommended in this booklet are based
on replacement with Genuine Toyota Super LongLife Coolant or similar high
quality nonsilicate, nonamine, nonborate ethyleneglycol coolant withlonglife hybrid organic acid technology (i.e., a combination of low phosphates
and organic acids). If another type of ethyleneglycol coolant is used, replace
ment intervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified intervals.
For recommended oil grade and viscosity, refer to the
Owner’s Manual.
Engine Valve Clearance
Inspectforexcessive lifter noise and engine vibration and adjust if necessary.
Aqualified technician should perform this operation.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration
and damage. Startthe engine and listen carefully for any exhaust gas leakage.
Tighten connections or replace parts as necessary.
