169
You can select the language shown on
the screen. Touch your desired switch
on the screen.
—Screen setting

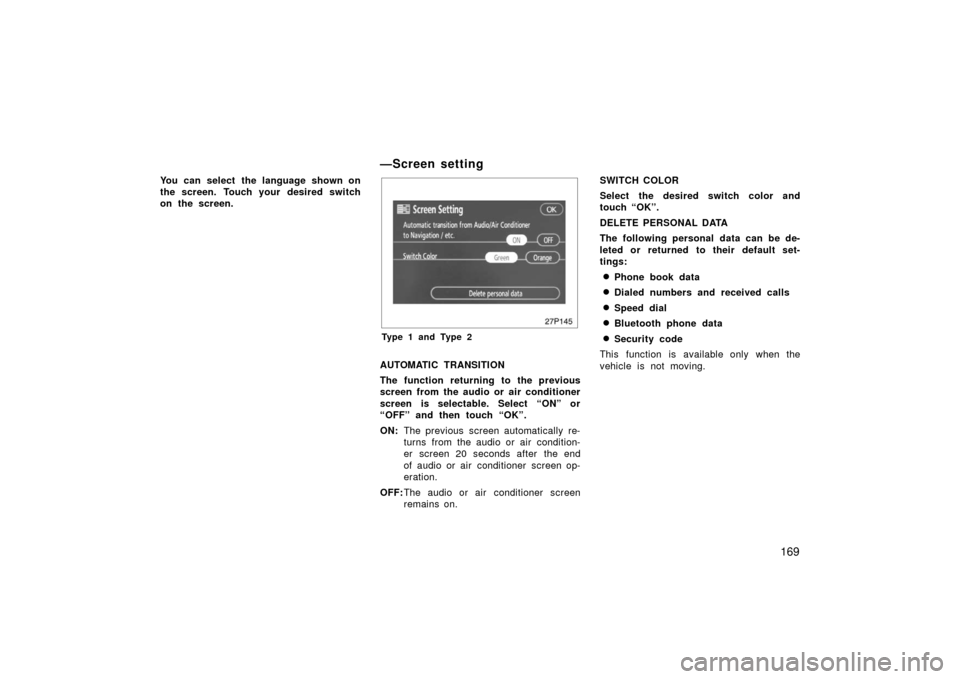

27p145
Type 1 and Type 2
AUTOMATIC TRANSITION
The function returning to the previous
screen from the audio or air conditioner
screen is selectable. Select “ON” or
“OFF” and then touch “OK”.
ON:The previous screen automatically re-
turns from the audio or air condition-
er screen 20 seconds after the end
of audio or air conditioner screen op-
eration.
OFF: The audio or air conditioner screen
remains on. SWITCH COLOR
Select the desired switch color and
touch “OK”.
DELETE PERSONAL DATA
The following personal data can be de-
leted or returned to their default set-
tings:
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.

171

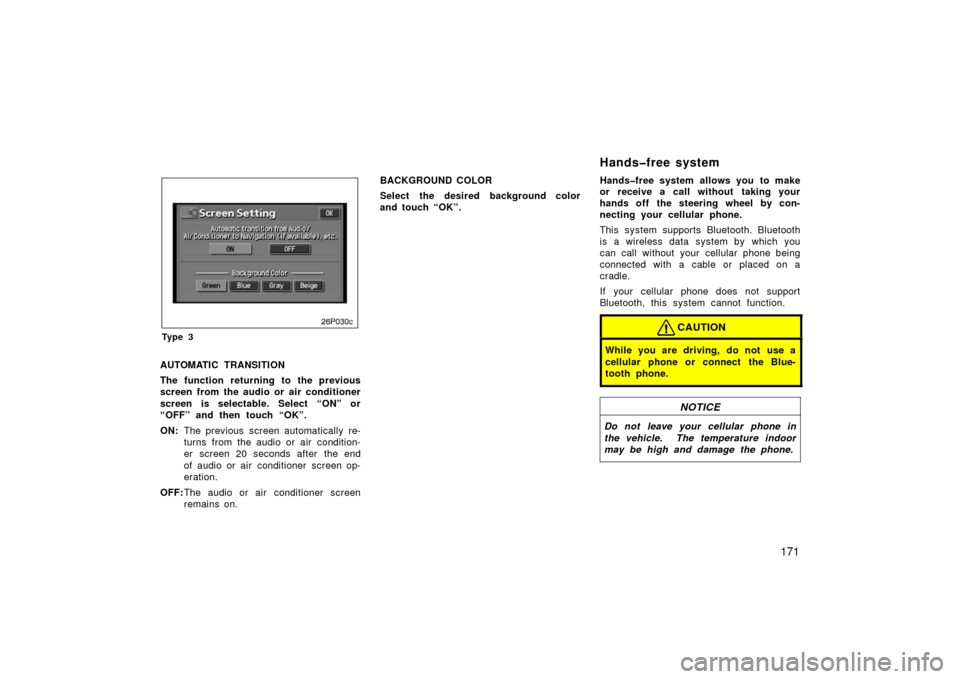

26p030c
Ty p e 3
AUTOMATIC TRANSITION
The function returning to the previous
screen from the audio or air conditioner
screen is selectable. Select “ON” or
“OFF” and then touch “OK”.
ON:The previous screen automatically re-
turns from the audio or air condition-
er screen 20 seconds after the end
of audio or air conditioner screen op-
eration.
OFF: The audio or air conditioner screen
remains on. BACKGROUND COLOR
Select the desired background color
and touch “OK”.
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth. Bluetooth
is a wireless data system by which you
can call without your cellular phone being
connected with a cable or placed on a
cradle.
If your cellular phone does not support
Bluetooth, this system cannot function.
CAUTION
While you are driving, do not use a
cellular phone or connect the Blue-
tooth phone.
NOTICE
Do not leave your cellular phone in
the vehicle. The temperature indoor
may be high and damage the phone.
Handsfree system

173
The other party’s voice outputs from the
driver ’s speaker. When the received calls
or received voice outputs, the audio from
the audio system will be muted.
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not reach
each other. (It is not a malfunc-
tion.)
Keep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your
voice may not reach the other party. Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the air conditioning vents
towards the microphone.
 The sound of the air conditioning
fan is loud.
27p180
1. Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection
to Bluetooth.
“Yellow” indicates a bad connection to
Bluetooth, resulting in possible deteriora-
tion of voice quality.
: no connection to Bluetooth. 2. Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is
connecting or the phone book data is be-
ing transferred.
The amount left does not always corre-
spond with the one of your cellular phone.
This system does not have a charging
function. 3. Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
4. Indicates the level of reception.

Too bad Excellent
The level of reception does not always
correspond with the one of your cellular
phone.

174
INFORMATION
This system supports the following
service.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not sup-
port HFP, you cannot enter the Blue-
tooth phone, and take OPP service
individually.
An antenna for the Bluetooth connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is cov-
ered with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Blue-
tooth SIG. Inc. When you release your vehicle:
A lot of personal data is registered
when you use the handsfree system.
When you release your vehicle, initial-
ize your data.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
phone book data
dialed numbers and received calls
speed dial
Bluetooth phone data
security code

175

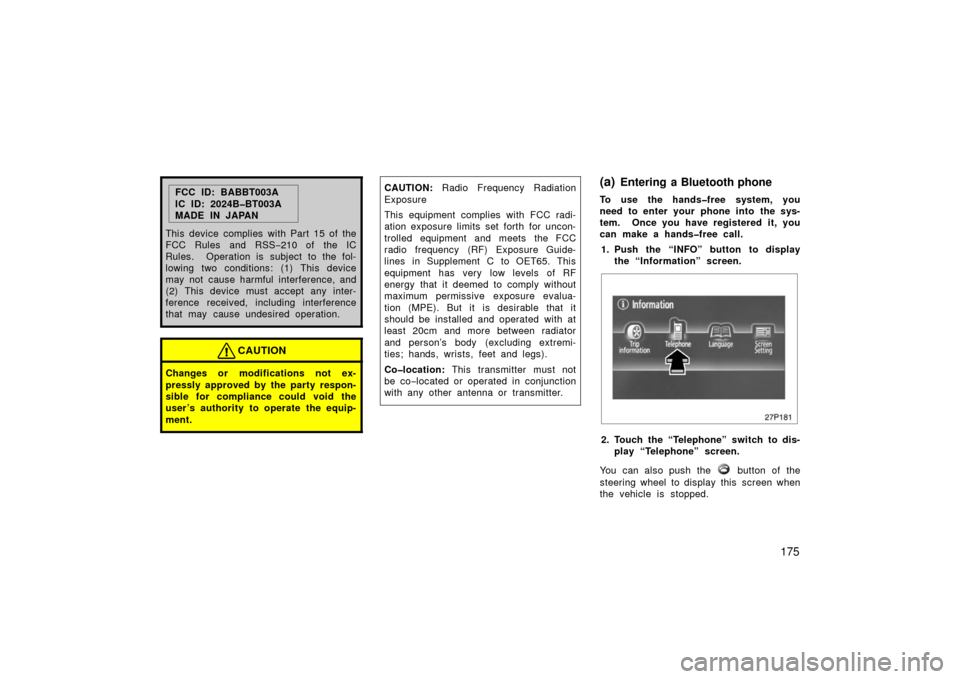

FCC ID: BABBT003A
IC ID: 2024BBT003A
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) This device must accept any inter-
ference received, including interference
that may cause undesired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC
radio frequency (RF) Exposure Guide-
lines in Supplement C to OET65. This
equipment has very low levels of RF
energy that it deemed to comply without
maximum permissive exposure evalua-
tion (MPE). But it is desirable that it
should be installed and operated with at
least 20cm and more between radiator
and person’s body (excluding extremi-
ties; hands, wrists, feet and legs).
Colocation: This transmitter must not
be co− located or operated in conjunction
with any other antenna or transmitter.(a)Entering a Bluetooth phone
To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
1. Push the “INFO” button to display the “Information” screen.
27p181
2. Touch the “Telephone” switch to dis-play “Telephone” screen.
You can also push the
button of the
steering wheel to display this screen when
the vehicle is stopped.

176
27p182
3. Touch the “Settings” switch to dis-play “Settings” screen.
27p183
4. Touch the “Bluetooth” switch to dis-play the “Bluetooth Settings” screen.
27p184
5. Touch the “Register” switch to con-nect your cellular phone to the sys-
tem.

178
Connecting a Bluetooth phone
(a) automatically

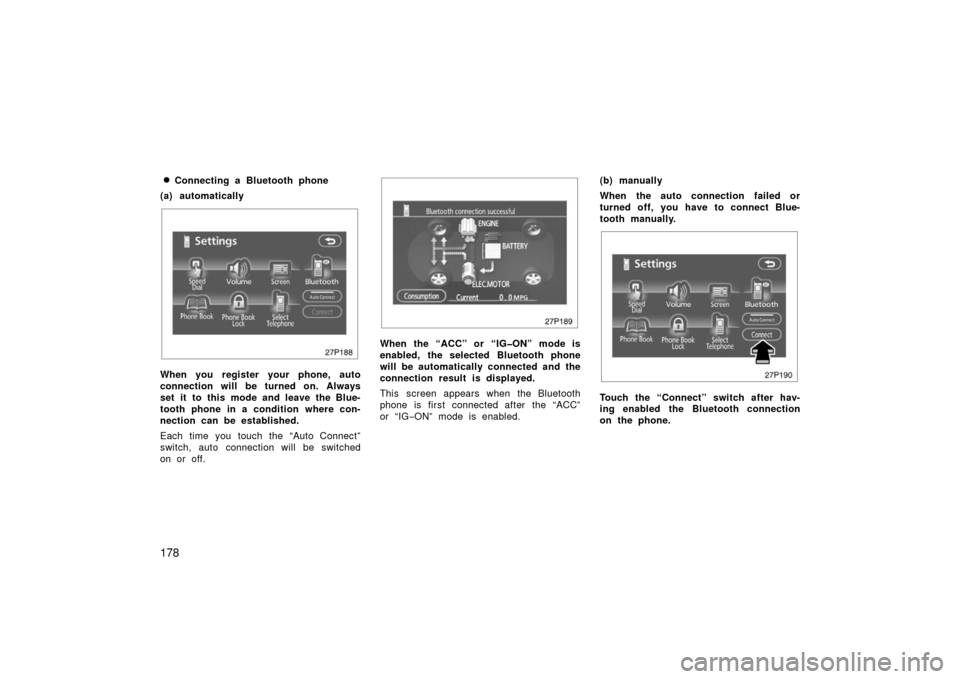

27p188
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the Blue-
tooth phone in a condition where con-
nection can be established.
Each time you touch the “Auto Connect”
switch, auto connection will be switched
on or off.
27p189
When the “ACC” or “IGON” mode is
enabled, the selected Bluetooth phone
will be automatically connected and the
connection result is displayed.
This screen appears when the Bluetooth
phone is first connected after the “ACC”
or “IG −ON” mode is enabled. (b) manually
When the auto connection failed or
turned off, you have to connect Blue-
tooth manually.
27p190
Touch the “Connect” switch after hav-
ing enabled the Bluetooth connection
on the phone.

179

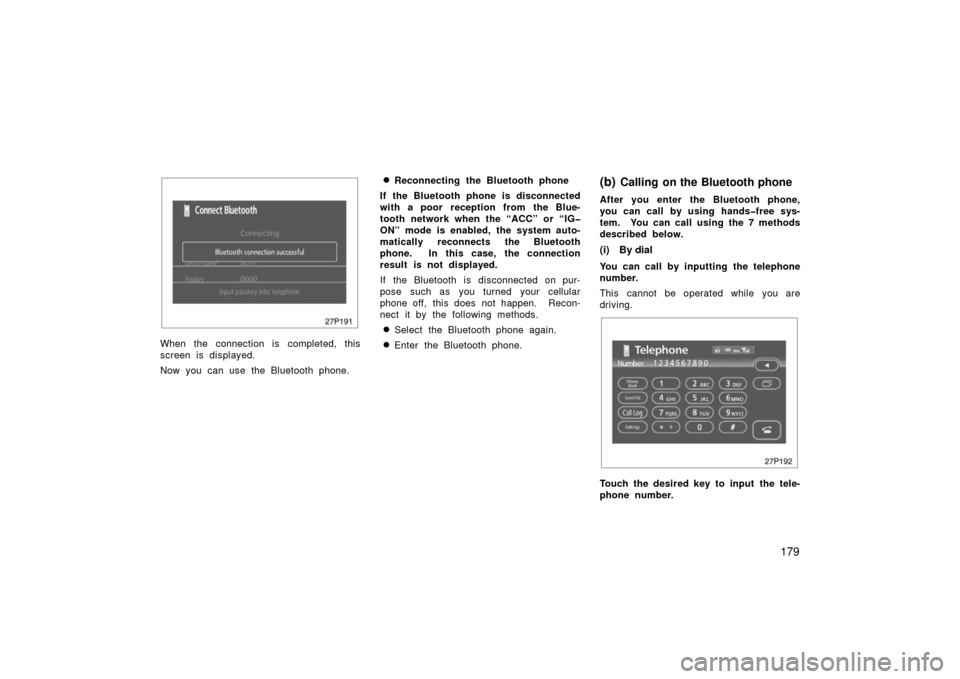

27p191
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Blue-
tooth network when the “ACC” or “IG
ON” mode is enabled, the system auto-
matically reconnects the Bluetooth
phone. In this case, the connection
result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.
(b)Calling on the Bluetooth phone
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are
driving.
27p192
Touch the desired key to input the tele-
phone number.

187
(vii) By POI call (with Navigation System)

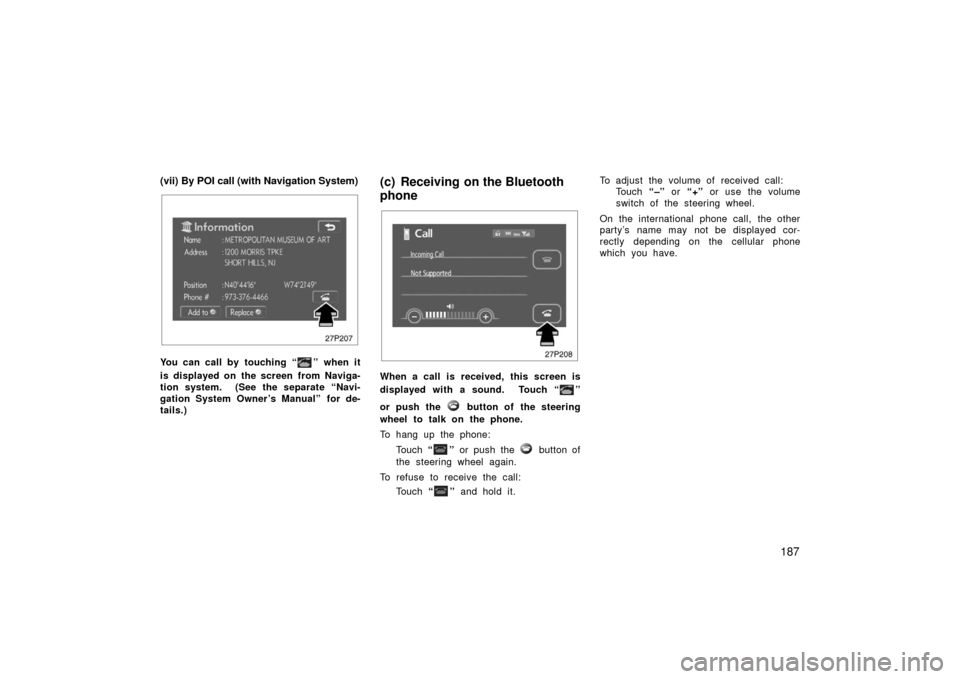

27p207
You can call by touching “” when it
is displayed on the screen from Naviga-
tion system. (See the separate “Navi-
gation System Owner ’s Manual” for de-
tails.)
(c) Receiving on the Bluetooth
phone
27p208
When a call is received, this screen is
displayed with a sound. Touch “
”
or push the
button of the steering
wheel to talk on the phone.
To hang up the phone:
Touch “
” or push the button of
the steering wheel again.
To refuse to receive the call: Touch “
” and hold it. To adjust the volume of received call:
Touch “–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.

190

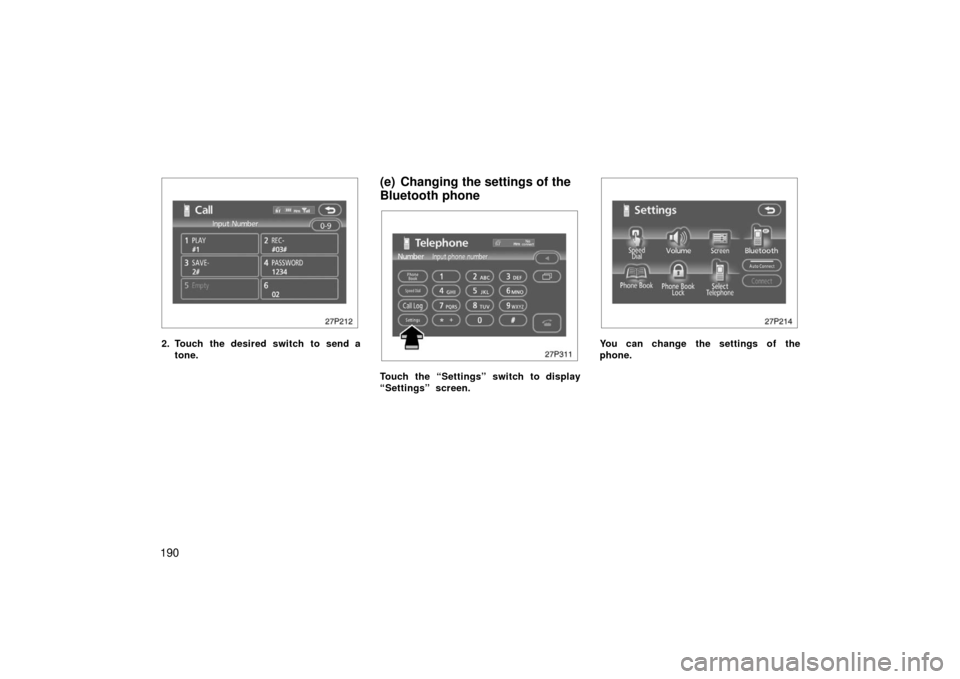

27p212
2. Touch the desired switch to send atone.
(e) Changing the settings of the
Bluetooth phone
27p311
Touch the “Settings” switch to display
“Settings” screen.
27p214
You can change the settings of the
phone.
