buttons TOYOTA PRIUS 2006 2.G Quick Reference Guide

Garage door opener (HomeLink®)
(if equipped)
Indicator light
Buttons
Garage door openers manufactured under license
from HomeLink®* can be programmed to operate
garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact the T oyota
Customer Experience Center at 18003314331, or
visit http://www .homelink.com
* HomeLink®
is a registered trademark of Johnson Controls, Inc.
BASIC HYBRID VEHICLE OPERATION
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
16

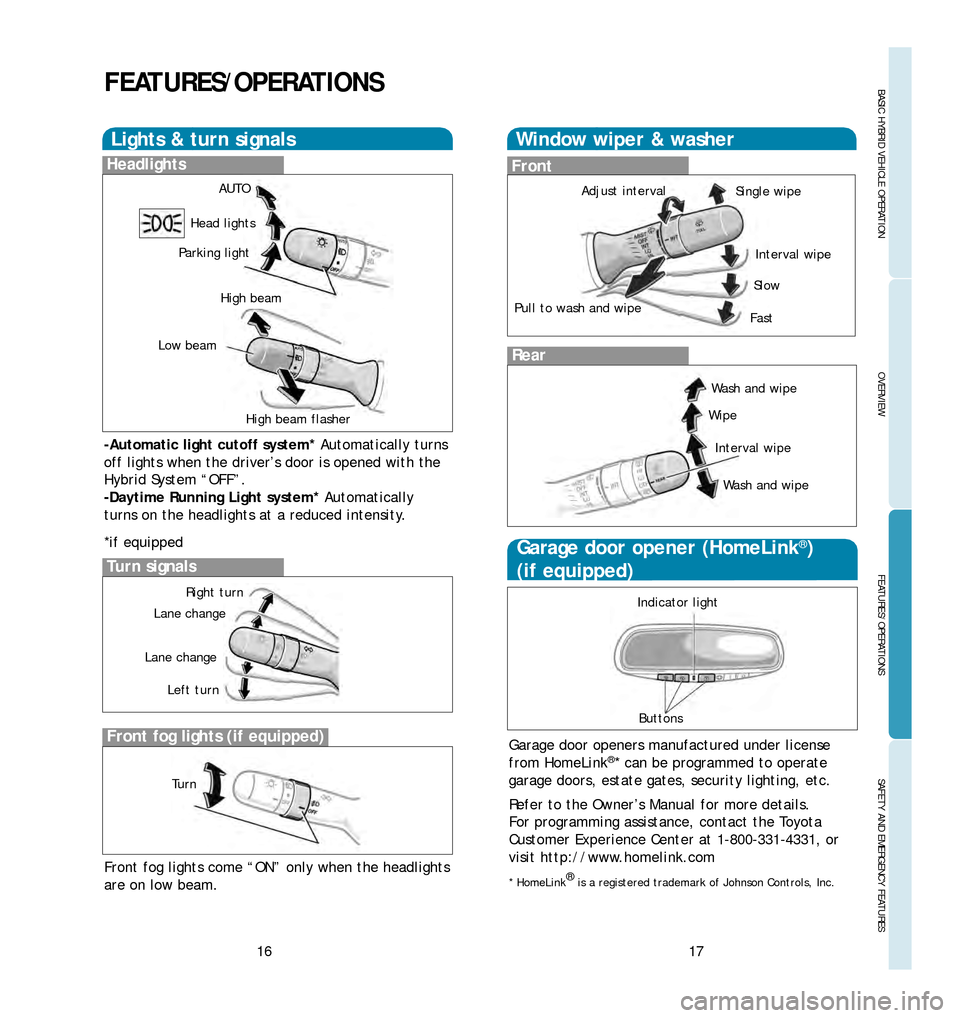

FEATURES/OPERATIONS
Lights & turn signals
Headlights
Automatic light cutoff system* Automatically turns
off lights when the driver’
s door is opened with the
Hybrid System “OFF”.
Daytime Running Light system* Automatically
turns on the headlights at a reduced intensity.
*if equipped
T urn signals
Front fog lights (if equipped)
Front fog lights come “ON” only when the headlights
are on low beam.
Window wiper & washer
Front
Rear
17
Low beam AUTO
Head lights
High beam
High beam flasher
Parking light
Right turn
Left turn Turn Adjust interval
Single wipe
Interval wipe
Wash and wipe Wash and wipe Slow
Interval wipe Fast
Wipe
Pull to wash and wipe
Lane change
Lane change
06 Prius PRG Inside 11/10/05 5:44 PM Page 16

1819
OVERVIEW
BASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

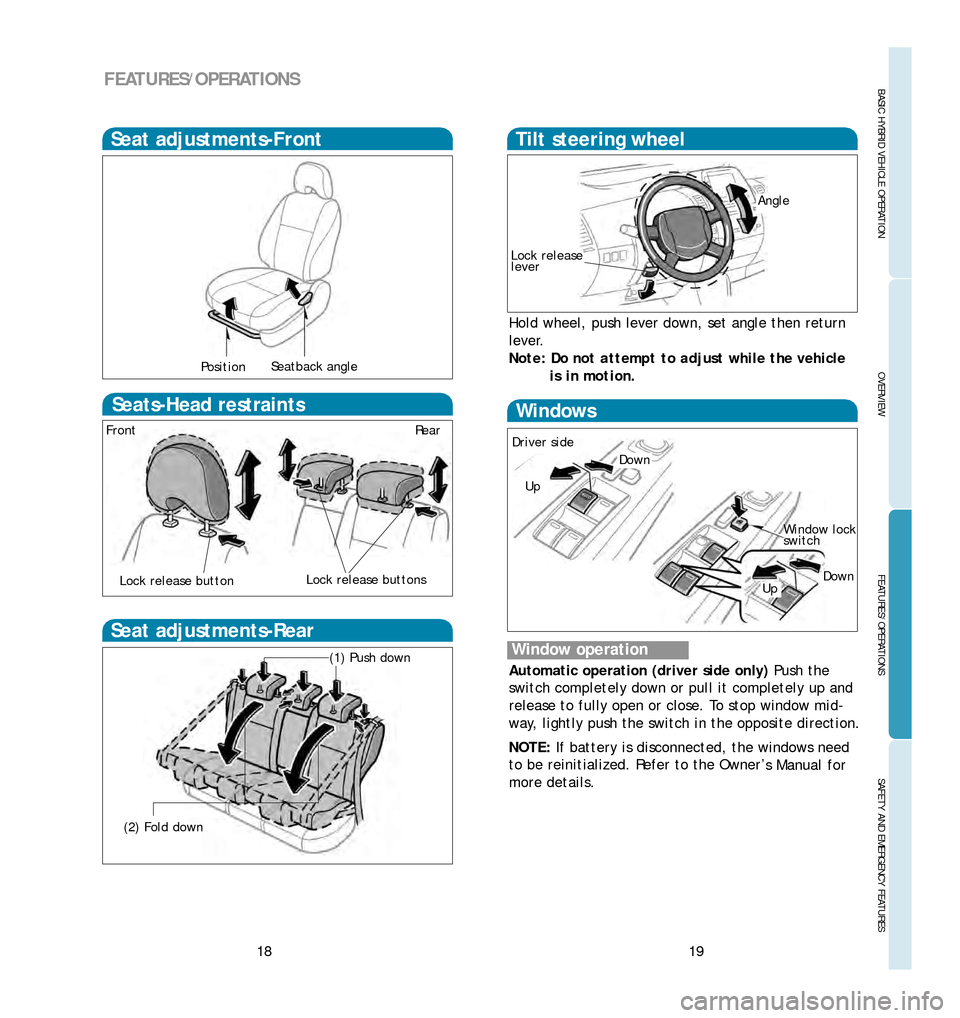

Windows
Window operation
Automatic operation (driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close. To stop window mid
way
, lightly push the switch in the opposite direction.
NOTE: If battery is disconnected, the windows need
to be reinitialized. Refer to the Owner’
s Manual for
more details.
W indow lock
switch
SeatsHead restraints
Lock release button
Seat adjustmentsFront
Seat adjustmentsRear
UpDownLock release buttons
Front
Rear
Position
(2) Fold down (1) Push down
Seatback angle
Driver side
Down
Up
Tilt steering wheel
Hold wheel, push lever down, set angle then return
lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Angle
Lock release
lever
06 Prius PRG Inside 11/10/05 5:44 PM Page 18
