navigation TOYOTA PRIUS 2006 2.G Quick Reference Guide

11
OVERVIEW
BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10

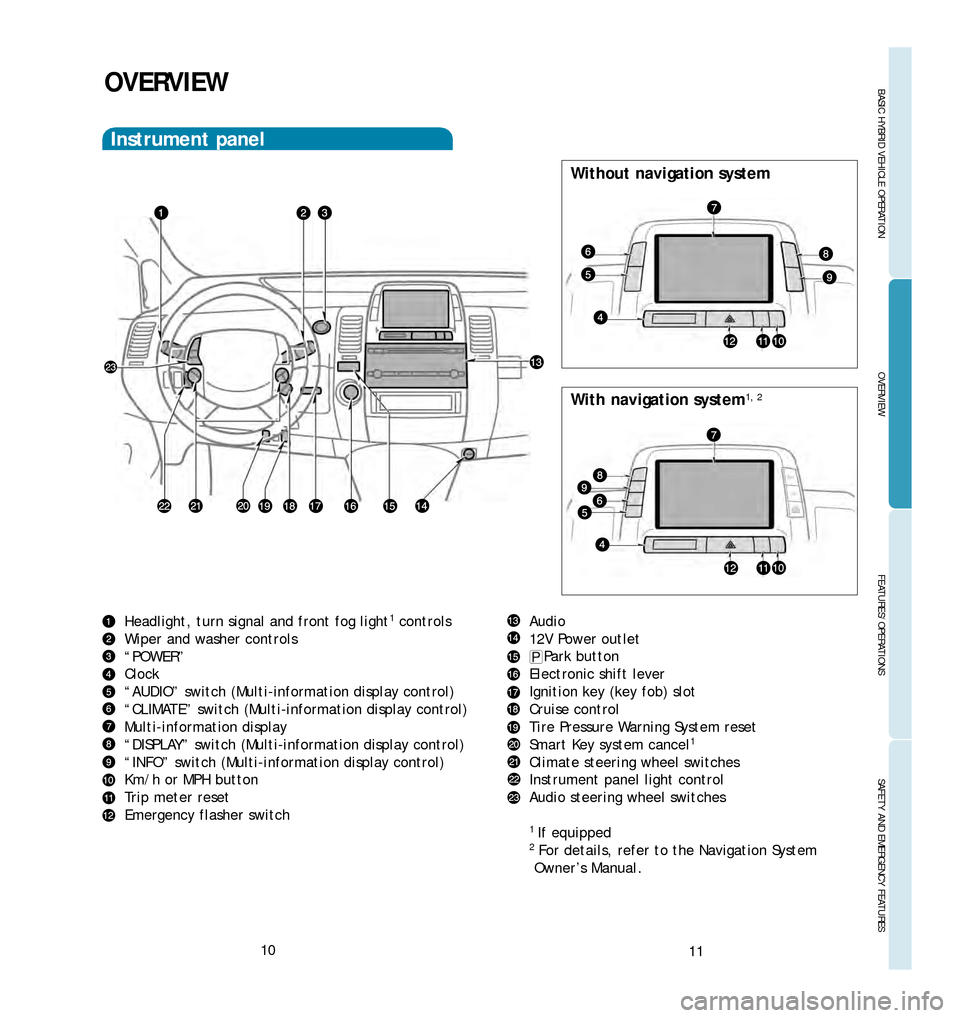

OVERVIEW
Headlight, turn signal and front fog light1controls
Wiper and washer controls
“POWER”
Clock
“AUDIO” switch (Multiinformation display control)
“CLIMATE” switch (Multiinformation display control)
Multiinformation display
“DISPLA Y” switch (Multiinformation display control)
“INFO” switch (Multiinformation display control)
Km/h or MPH button
Trip meter reset
Emergency flasher switch Audio
12V Power outlet
Park button
Electronic shift lever
Ignition key (key fob) slot
Cruise control
Tire Pressure Warning System reset
Smart Key system cancel
1
Climate steering wheel switches
Instrument panel light control
Audio steering wheel switches
1If equipped2For details, refer to the Navigation System
Owner ’s Manual .
Instrument panel
With navigation system1, 2
Without navigation system
06 Prius PRG Inside 11/10/05 5:44 PM Page 10

BASIC HYBRID VEHICLE OPERATION
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
20

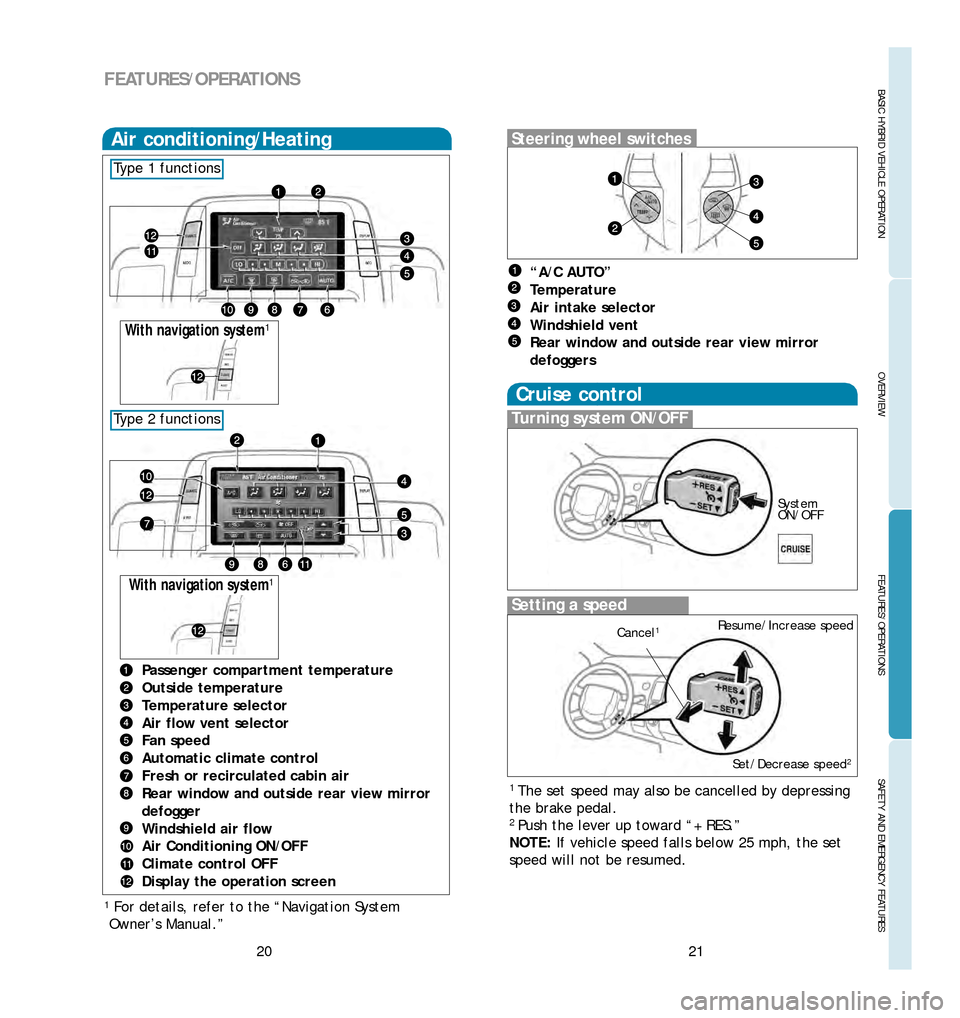

FEATURES/OPERATIONS
Setting a speed
System
ON/OFF
Resume/Increase speed
Cancel
1
Set/Decrease speed2
Cruise control
P assenger compartment temper ature
Outside temperature
Temperature selector
Air flow vent selector
Fan speed
Automatic climate control
Fresh or recirculated cabin air
Rear window and outside rear view mirror
defogger
Windshield air flow
Air Conditioning ON/OFF
Climate control OFF
Display the operation screen
Air conditioning/Heating
With navigation system1
1For details, refer to the “Navigation System
Owner’s Manual .” “A/C AUTO”
T
emper

ature
Air intake selector
Windshield vent
Rear window and outside rear view mirror
defoggers
Steering wheel switches
1The set speed may also be cancelled by depressing
the brake pedal.
2Push the lever up toward “+ RES.”
NOTE: If vehicle speed falls below 25 mph, the set
speed will not be resumed.
Turning system ON/OFF
With navigation system1
Type 2 functions
Type 1 functions
06 Prius PRG Inside 11/10/05 5:44 PM Page 20

23
OVERVIEW
BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
22
FEATURES/OPERATIONS
RADIO
To preset a station Tune in the desired station and
touch a station selector icon (16) until you hear a
beep.
To scan for stations Push “SCAN.” Push again to hold
selection.
CD PLAYER
To scan tracks on a disc Touch “SCAN” icon on the
display. Push again to hold selection.
CD Changer (T
ype 3 only)
T o load one disc

Push “LOAD” and insert 1 disc.
To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Shutter will close
and then reopen for next disc.
To select a file (MP3/WMA only) Turn “TUNE•FILE”
to file up/down.
1For details, refer to theNavigation System Owner’s
Manual.
AudioAudio operation screen
T ype 2 additional functions
Type 3 additional functions
Push
Audio
operation
screen
“ +”
V olume control
“MODE”
Push to turn audio “ON” and select an audio
mode.
Push and hold to turn the audio system “OFF .”
“

” switch
In r adio mode Push to select a preset station;
push and hold to seek a station.
In CD mode Push to skip up or down to
next/previous track.
>>
Steering wheel switches
Type 1 functions
Audio file search
With
navigation
system
Eject CDPush to turn
ON/OFF
Load CD(s) Station/CD track scan
Mode
Seek station/CD track select
Audio
Seek station/CD track or
audio file selectCD/AUX mode select
Push to turn
ON/OFF
06 Prius PRG Inside 11/10/05 5:44 PM Page 22
