TOYOTA PRIUS 2007 2.G Navigation Manual

91
OTHER FUNCTIONS
Other functions
Maintenance information 92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar with memo95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding a memo96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing a memo97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memo list98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speech command system99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help screen101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen adjustment101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen setting102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting a language105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

92
Maintenance information —
— Maintenance information
setting
When the navigation System is turned on, the
“Information” screen displays when it is time
to replace a part or certain components. (See
page 2.)

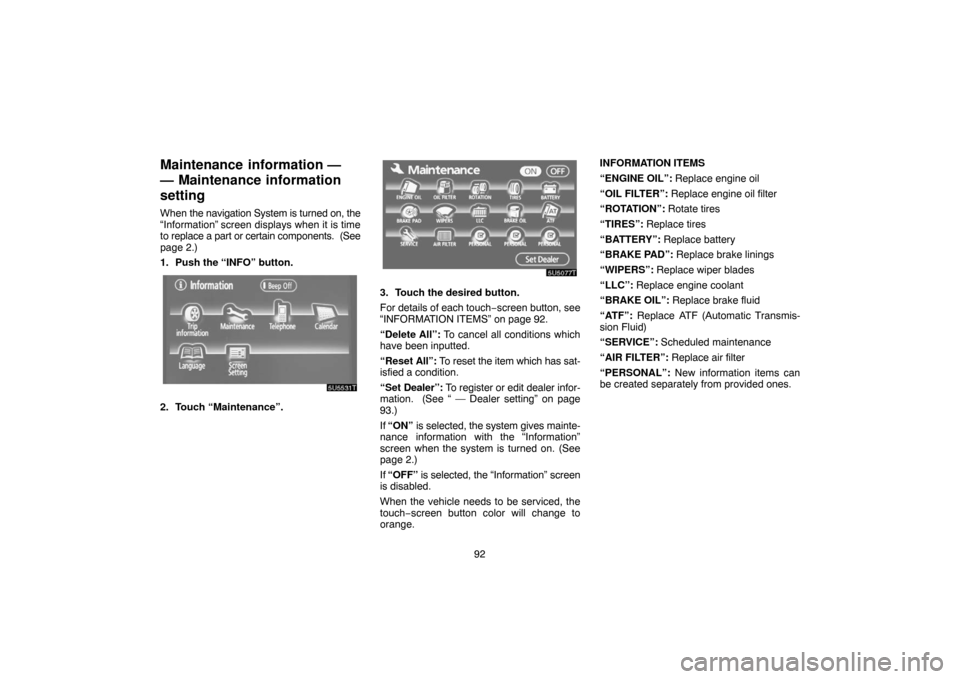

1. Push the “INFO” button.
5U5531T
2. Touch “Maintenance”.
3. Touch the desired button.
For details of each touch−screen button, see
“INFORMATION ITEMS” on page 92.
“Delete All”: To cancel all conditions which
have been inputted.
“Reset All”: To reset the item which has sat-
isfied a condition.
“Set Dealer”: To register or edit dealer infor-
mation. (See “ — Dealer setting” on page
93.)
If “ON” is selected, the system gives mainte-
nance information with the “Information”
screen when the system is turned on. (See
page 2.)
If “OFF” is selected, the “Information” screen
is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange.INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF (Automatic Transmis-
sion Fluid)
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items can
be created separately from provided ones.

93

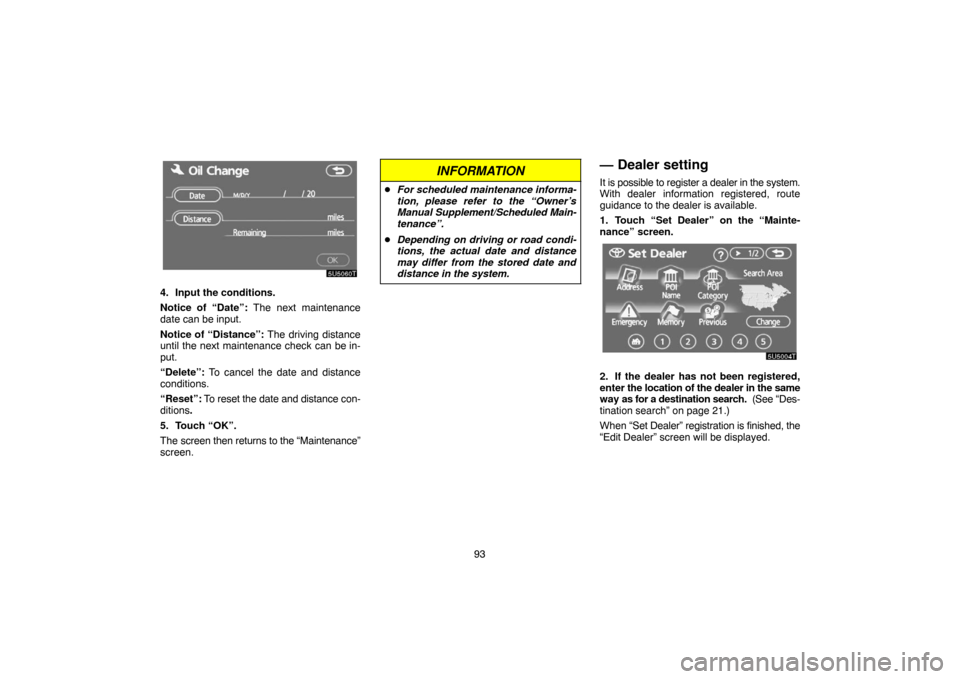

4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving distance
until the next maintenance check can be in-
put.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance con-
ditions.
5. Touch “OK”.
The screen then returns to the “Maintenance”
screen.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Owner’s
Manual Supplement/Scheduled Main-
tenance”.
Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.
— Dealer setting
It is possible to register a dealer in the system.
With dealer information registered, route
guidance to the dealer is available.
1. Touch “Set Dealer” on the “Mainte-
nance” screen.
2. If the dealer has not been registered,
enter the location of the dealer in the same
way as for a destination search. (See “Des-
tination search” on page 21.)
When “Set Dealer” registration is finished, the
“Edit Dealer” screen will be displayed.

94

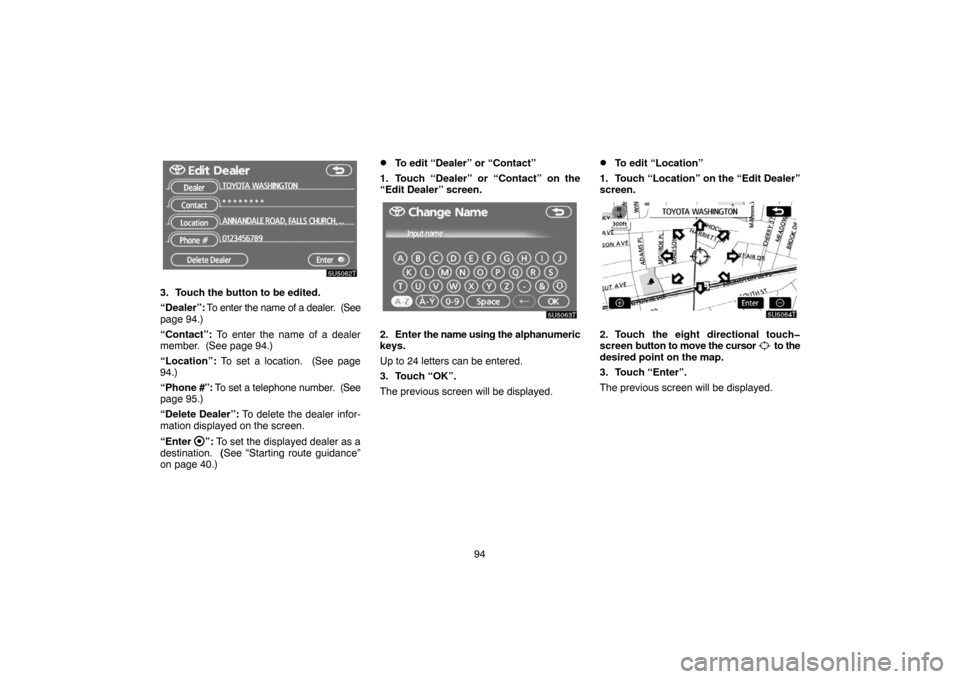

3. Touch the button to be edited.
“Dealer”: To enter the name of a dealer. (See
page 94.)
“Contact”: To enter the name of a dealer
member. (See page 94.)
“Location”: To set a location. (See page
94.)
“Phone #”: To set a telephone number. (See
page 95.)
“Delete Dealer”: To delete the dealer infor-
mation displayed on the screen.
“Enter
”: To set the displayed dealer as a
destination. (See “Starting route guidance”
on page 40.)
To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Dealer”
screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

95

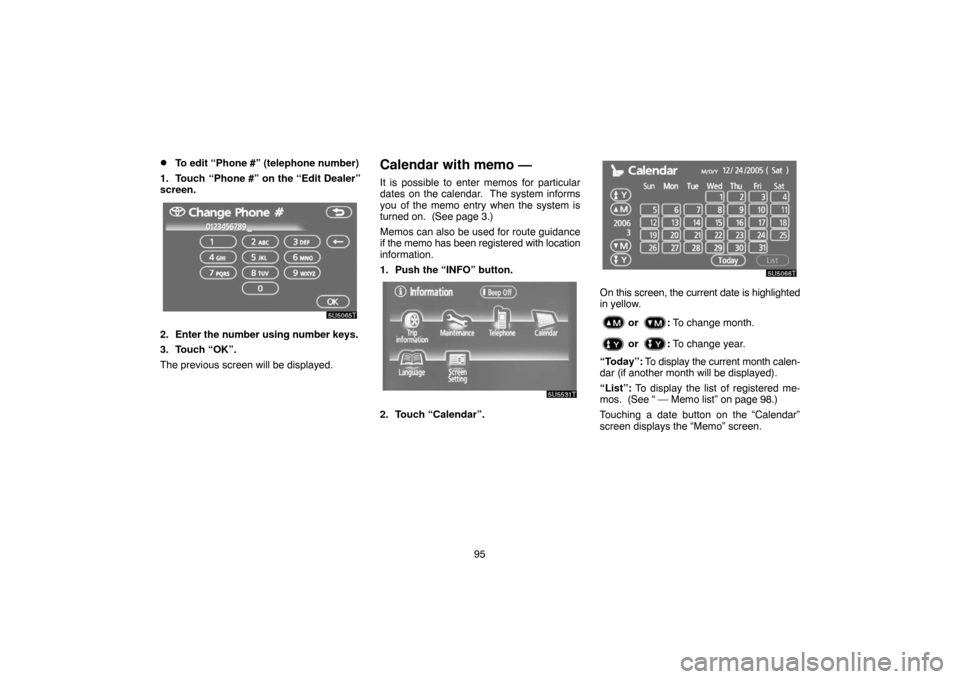

To edit “Phone #” (telephone number)
1. Touch “Phone #” on the “Edit Dealer”
screen.
2. Enter the number using number keys.
3. Touch “OK”.
The previous screen will be displayed.
Calendar with memo —
It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 3.)
Memos can also be used for route guidance
if the memo has been registered with location
information.
1. Push the “INFO” button.
5U5531t
2. Touch “Calendar”.
On this screen, the current date is highlighted
in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month calen-
dar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 98.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.

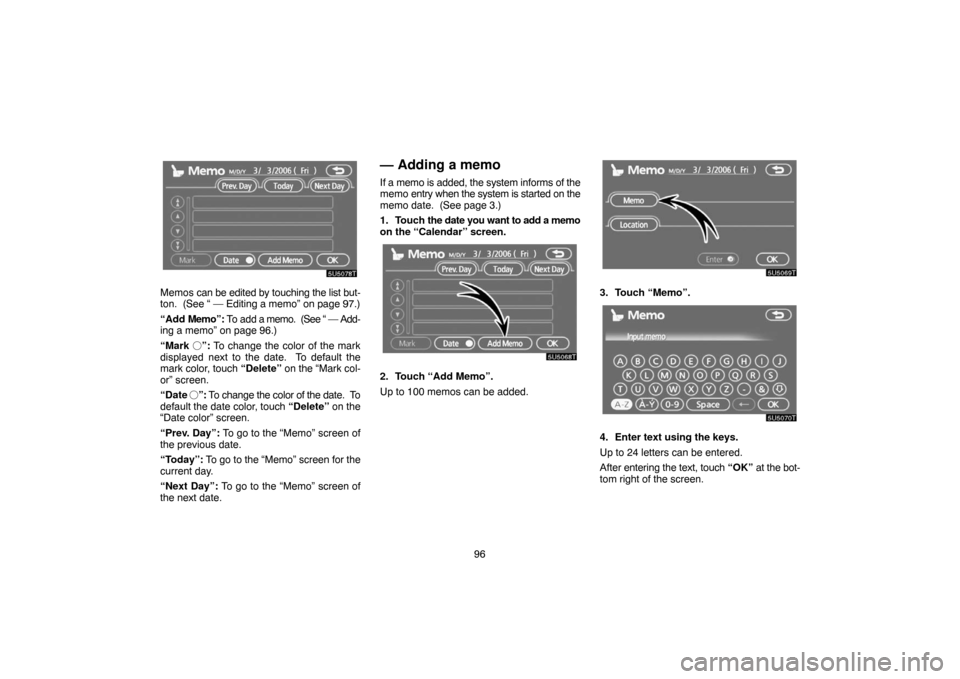

96

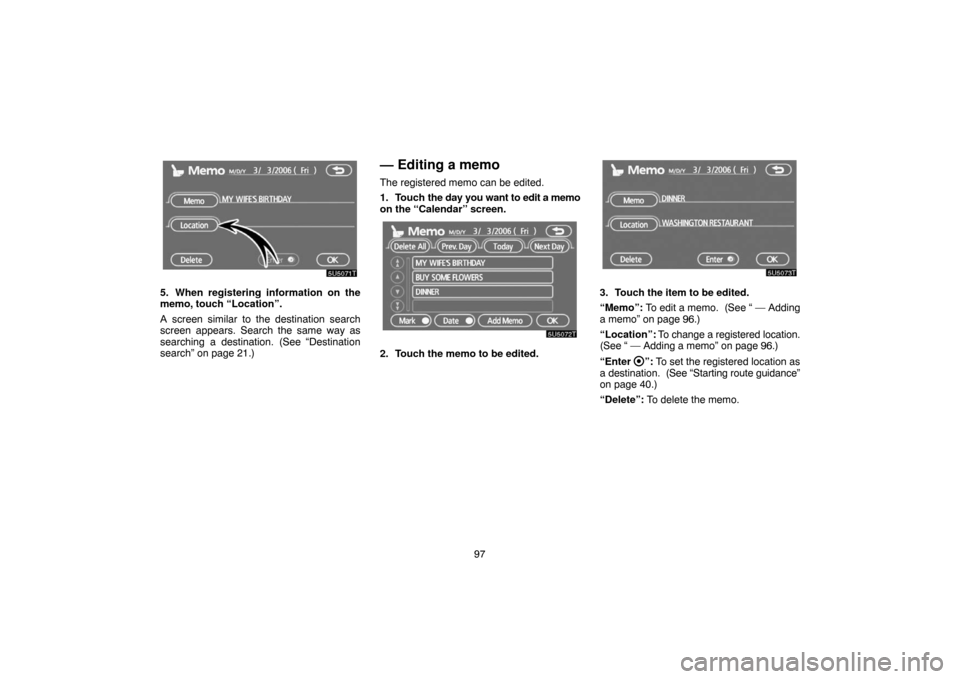

Memos can be edited by touching the list but-
ton. (See “ — Editing a memo” on page 97.)
“Add Memo”: To add a memo. (See “ — Add-
ing a memo” on page 96.)
“Mark ”: To change the color of the mark
displayed next to the date. To default the
mark color, touch “Delete” on the “Mark col-
or” screen.
“Date ”: To change the color of the date. To
default the date color, touch “Delete” on the
“Date color” screen.
“Prev. Day”: To go to the “Memo” screen of
the previous date.
“Today”: To go to the “Memo” screen for the
current day.
“Next Day”: To go to the “Memo” screen of
the next date.
— Adding a memo
If a memo is added, the system informs of the
memo entry when the system is started on the
memo date. (See page 3.)
1. Touch the date you want to add a memo
on the “Calendar” screen.
2. Touch “Add Memo”.
Up to 100 memos can be added.
3. Touch “Memo”.
4. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the bot-
tom right of the screen.

97
5. When registering information on the
memo, touch “Location”.
A screen similar to the destination search
screen appears. Search the same way as
searching a destination. (See “Destination
search” on page 21.)
— Editing a memo
The registered memo can be edited.
1. Touch the day you want to edit a memo
on the “Calendar” screen.
2. Touch the memo to be edited.
3. Touch the item to be edited.
“Memo”: To edit a memo. (See “ — Adding
a memo” on page 96.)
“Location”: To change a registered location.
(See “ — Adding a memo” on page 96.)
“Enter
”: To set the registered location as
a destination. (See “Starting route guidance”
on page 40.)
“Delete”: To delete the memo.

98

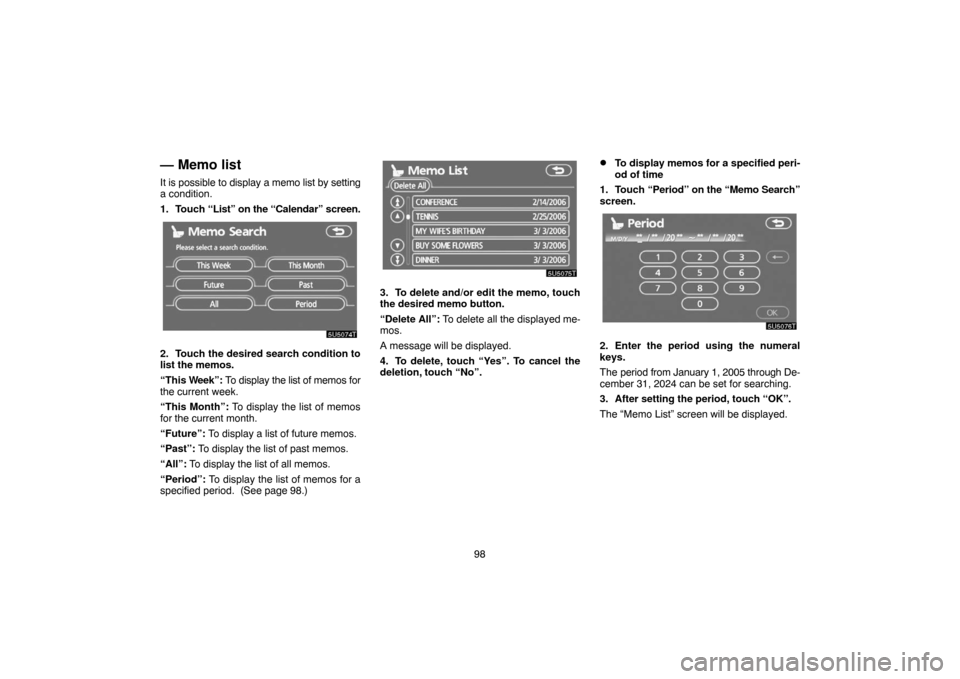

— Memo list
It is possible to display a memo list by setting
a condition.
1. Touch “List” on the “Calendar” screen.
2. Touch the desired search condition to
list the memos.
“This Week”: To display the list of memos for
the current week.
“This Month”: To display the list of memos
for the current month.
“Future”: To display a list of future memos.
“Past”: To display the list of past memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos for a
specified period. (See page 98.)
3. To delete and/or edit the memo, touch
the desired memo button.
“Delete All”: To delete all the displayed me-
mos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.

99
Speech command system
The speech command system enables
you to operate the navigation system, au-
dio system and air conditioning system by
giving a command.
ucps004

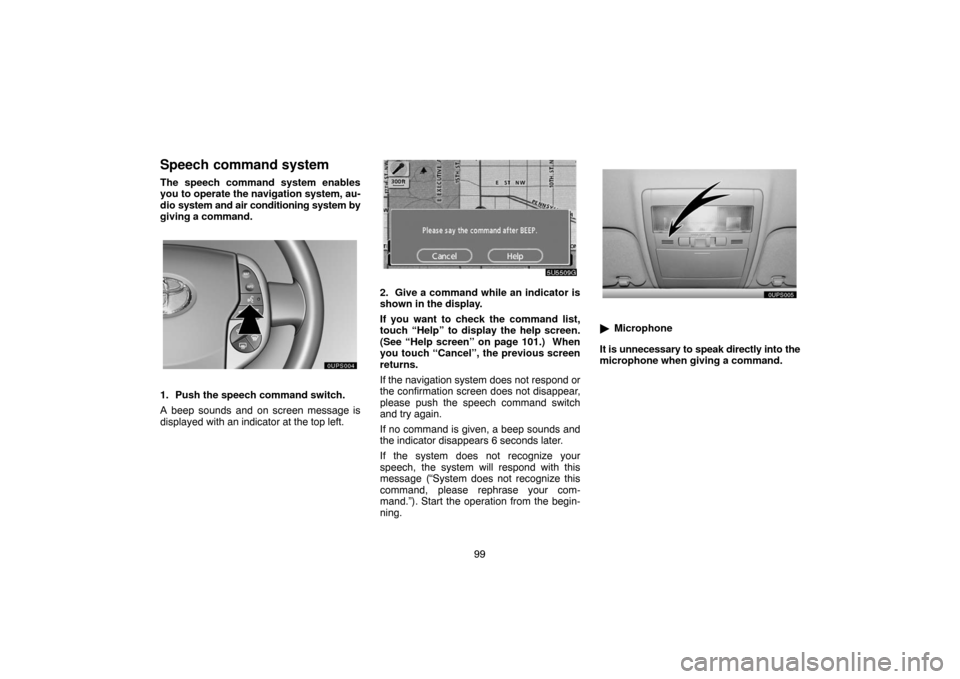

1. Push the speech command switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
5U5509g
2. Give a command while an indicator is
shown in the display.
If you want to check the command list,
touch “Help” to display the help screen.
(See “Help screen” on page 101.) When
you touch “Cancel”, the previous screen
returns.
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the speech command switch
and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your com-
mand.”). Start the operation from the begin-
ning.
oups005
Microphone
It is unnecessary to speak directly into the
microphone when giving a command.

100 Speech command example: Searching for
a route to your home.
1. Push the speech command switch.
2. Say “Home”.
You can also say the street name or address.
(ex. say “Woodridge Avenue”.)
If your home is not registered, you will hear
“Home is not registered”.
5U5510G

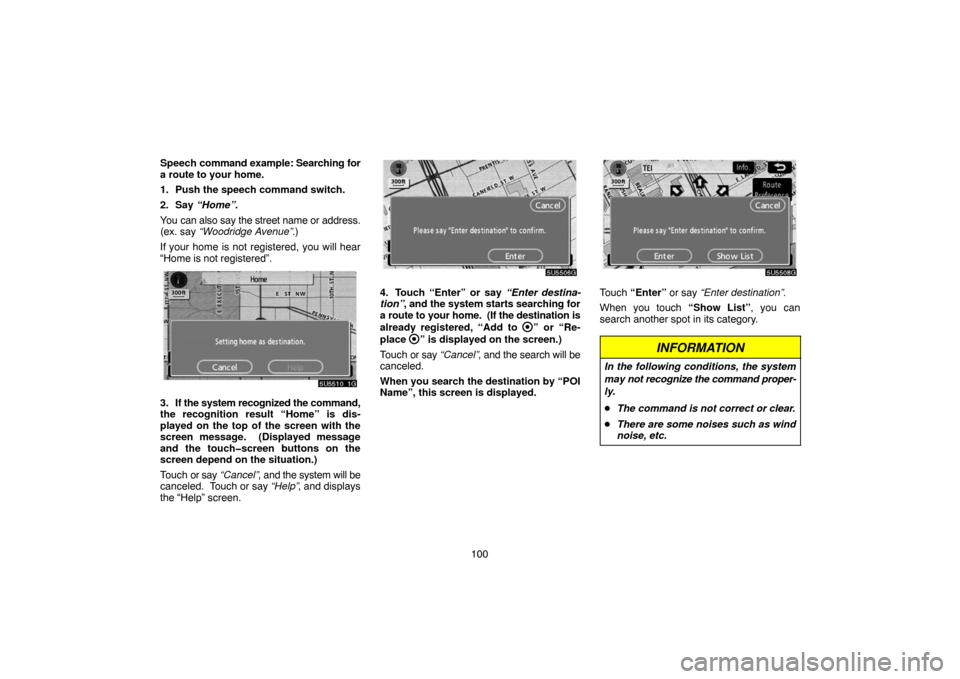

3. If the system recognized the command,
the recognition result “Home” is dis-
played on the top of the screen with the
screen message. (Displayed message
and the touchscreen buttons on the
screen depend on the situation.)
Touch or say “Cancel”, and the system will be
canceled. Touch or say “Help”, and displays
the “Help” screen.
5U5506G
4. Touch “Enter” or say “Enter destina-
tion”, and the system starts searching for
a route to your home. (If the destination is
already registered, “Add to
” or “Re-
place
” is displayed on the screen.)
Touch or say “Cancel”, and the search will be
canceled.
When you search the destination by “POI
Name”, this screen is displayed.
5U5508G
Touch “Enter” or say “Enter destination”.
When you touch “Show List”, you can
search another spot in its category.
INFORMATION
In the following conditions, the system
may not recognize the command proper-
ly.
The command is not correct or clear.
There are some noises such as wind
noise, etc.
