TOYOTA PRIUS 2007 2.G Owners Manual

301
82p007a

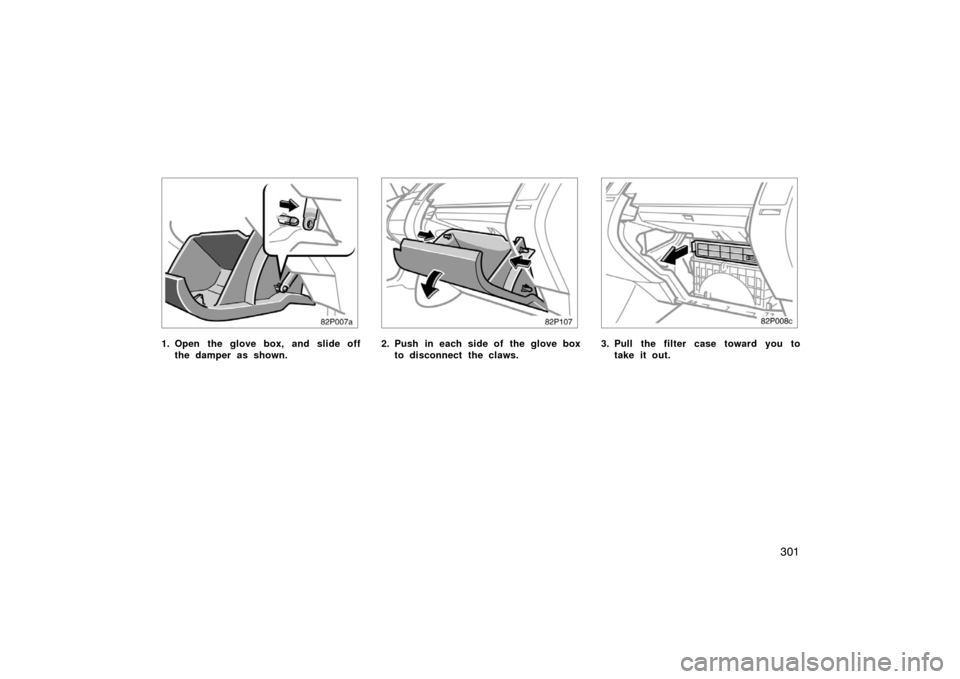

1. Open the glove box, and slide offthe damper as shown.
82p107
2. Push in each side of the glove boxto disconnect the claws.
82p008c
3. Pull the filter case toward you totake it out.

302
82p009b

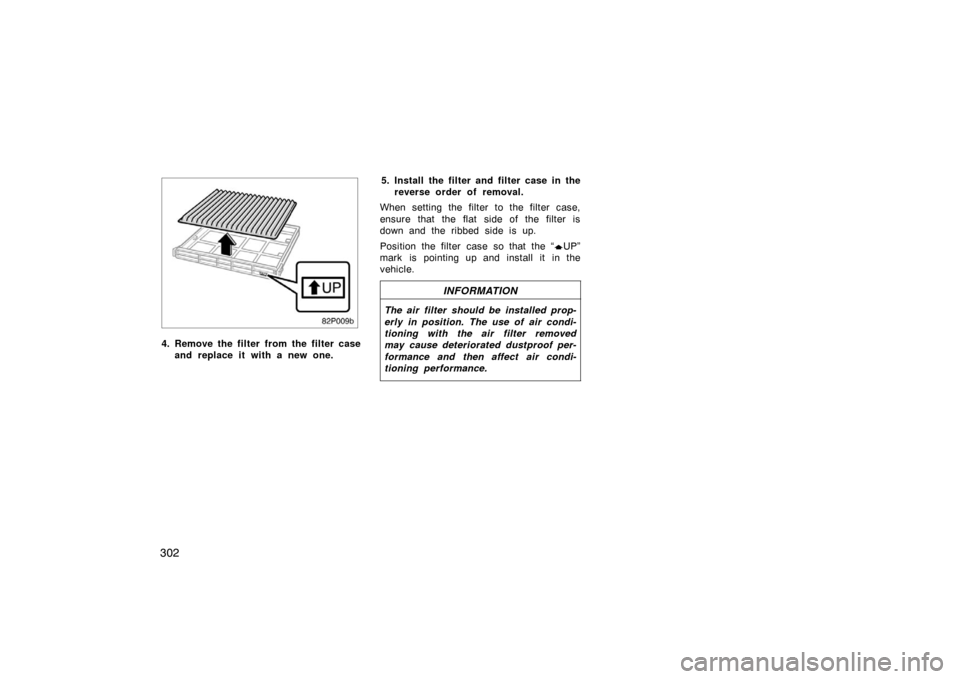

4. Remove the filter from the filter caseand replace it with a new one. 5. Install the filter and filter case in the
reverse order of removal.
When setting the filter to the filter case,
ensure that the flat side of the filter is
down and the ribbed side is up.
Position the filter case so that the “ UP”
mark is pointing up and install it in the
vehicle.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

303
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Rear view monitor system 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 307
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Rear console box 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Glove boxes 308
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Garage door opener 309
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary boxes 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 314
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 314
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage storage box 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 2– 10

304
Clock
28p009d
The digital clock indicates the time.
The hybrid system must be in “ACC” or
“IG−ON”.
To set the hour: Push the “H” button.
To set the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced. The rear view monitor system assists
the driver by displaying an image of
the view behind the vehicle while back-
ing up. The image is displayed in re-
verse on the screen. This allows the
image to appear in the same manner as
that of the rear view mirror.
To display the rear view image on the
screen, place the selector lever in the
“R” position when the “IGON” mode is
enabled.
If you move the selector lever out of the
“R” position, the screen returns to the
previous screen. Operating another func-
tion of the navigation system will display
another screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check be-
hind and all around the vehicle visually.
CAUTION
Never depend on the rear view
monitor system entirely when back-
ing up. Always make sure your in-
tended path is clear.
Use caution just as you would when
backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual con-
ditions. Depicted distances between
objects and flat surfaces will differ
from actual distances. If you back
up while looking only at the screen,
you may hit a vehicle, a person or
an object. When backing up, be
sure to check behind and all around
the vehicle visually and with mir-
rors before proceeding.
Do not use the system when the
back door is not completely closed.
Rear view monitor system

305

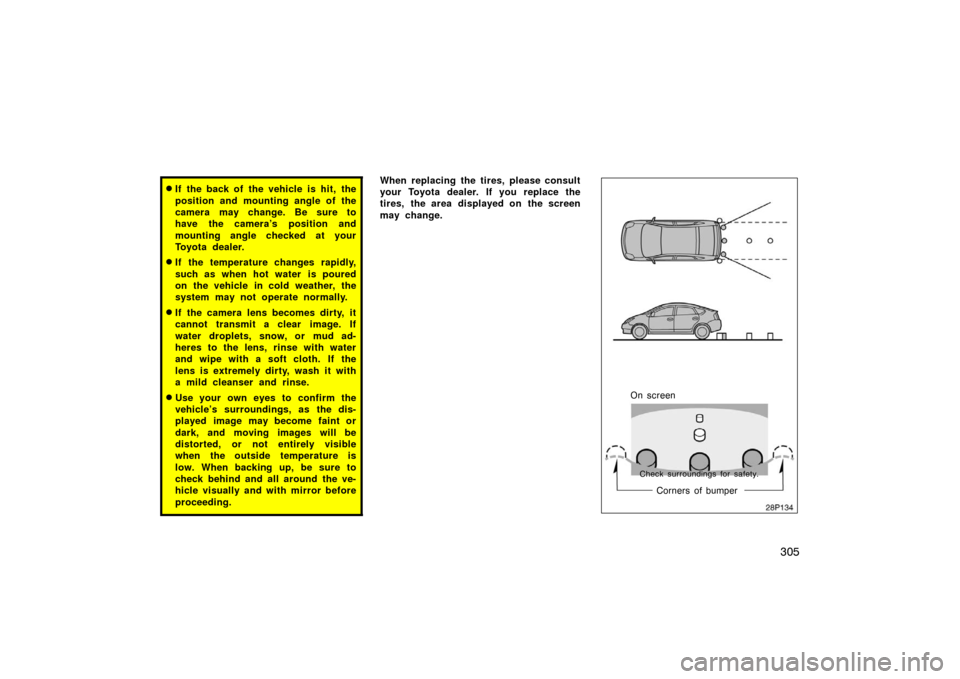

If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud ad-
heres to the lens, rinse with water
and wipe with a soft cloth. If the
lens is extremely dirty, wash it with
a mild cleanser and rinse.
Use your own eyes to confirm the
vehicle’s surroundings, as the dis-
played image may become faint or
dark, and moving images will be
distorted, or not entirely visible
when the outside temperature is
low. When backing up, be sure to
check behind and all around the ve-
hicle visually and with mirror before
proceeding.
When replacing the tires, please consult
your Toyota dealer. If you replace the
tires, the area displayed on the screen
may change.
28P134
On screenCorners of bumper
Check surroundings for safety.

306
AREA DISPLAYED ON SCREEN
Image is displayed approximately level
on screen.
The area detected by the camera is
limited. Objects which are close to
either corner of the bumper or under
the bumper cannot be seen on the
screen.
The area displayed on the screen
may vary according to vehicle orien-
tation or road conditions.
28P135

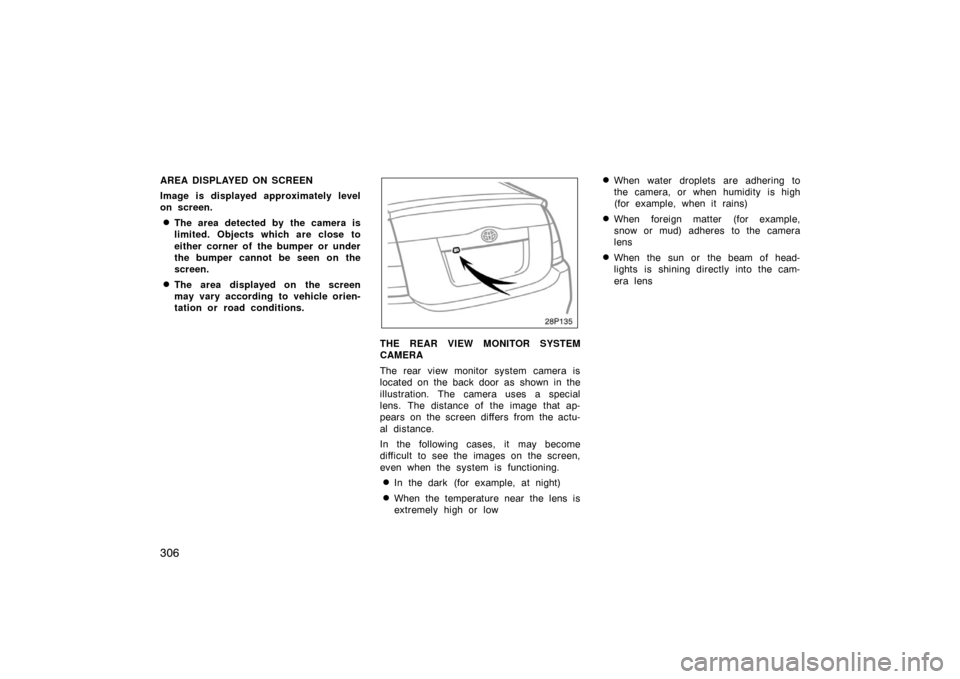

THE REAR VIEW MONITOR SYSTEM
CAMERA
The rear view monitor system camera is
located on the back door as shown in the
illustration. The camera uses a special
lens. The distance of the image that ap-
pears on the screen differs from the actu-
al distance.
In the following cases, it may become
difficult to see the images on the screen,
even when the system is functioning.
In the dark (for example, at night)
When the temperature near the lens is
extremely high or low
When water droplets are adhering to
the camera, or when humidity is high
(for example, when it rains)
When foreign matter (for example,
snow or mud) adheres to the camera
lens
When the sun or the beam of head-
lights is shining directly into the cam-
era lens

307
Check surroundings for safety.
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up
by the camera, the smear effect* peculiar
to the camera may occur.
*: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source
appears to have a vertical streak above
and below it.

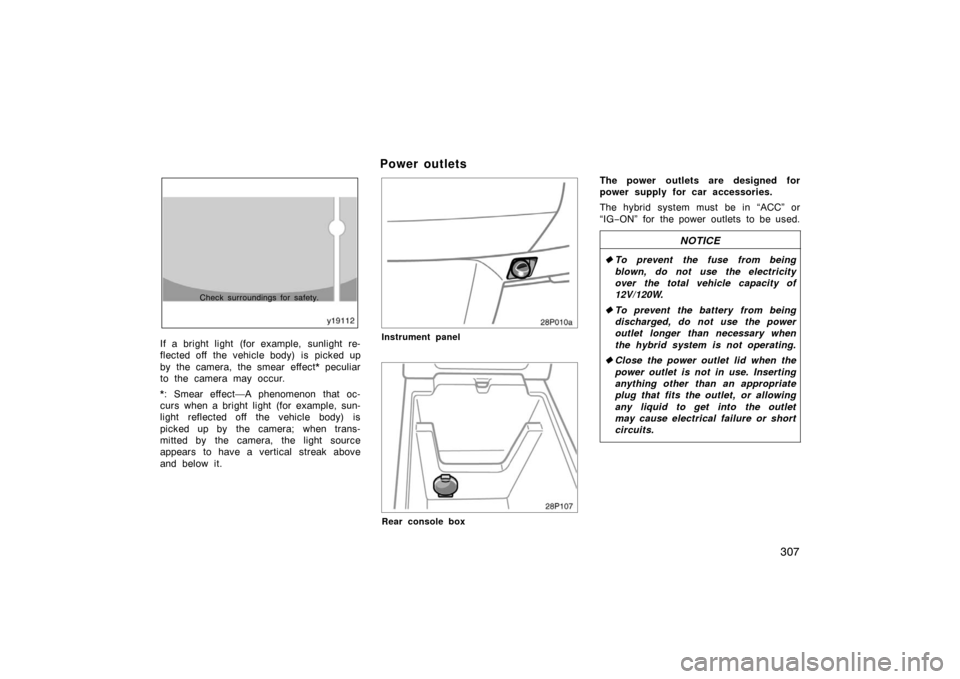

Power outlets
28p010a
Instrument panel
28p107
Rear console box
The power outlets are designed for
power supply for car accessories.
The hybrid system must be in “ACC” or
“IG−ON” for the power outlets to be used.
NOTICE
 To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the hybrid system is not operating.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet
may cause electrical failure or short
circuits.

308

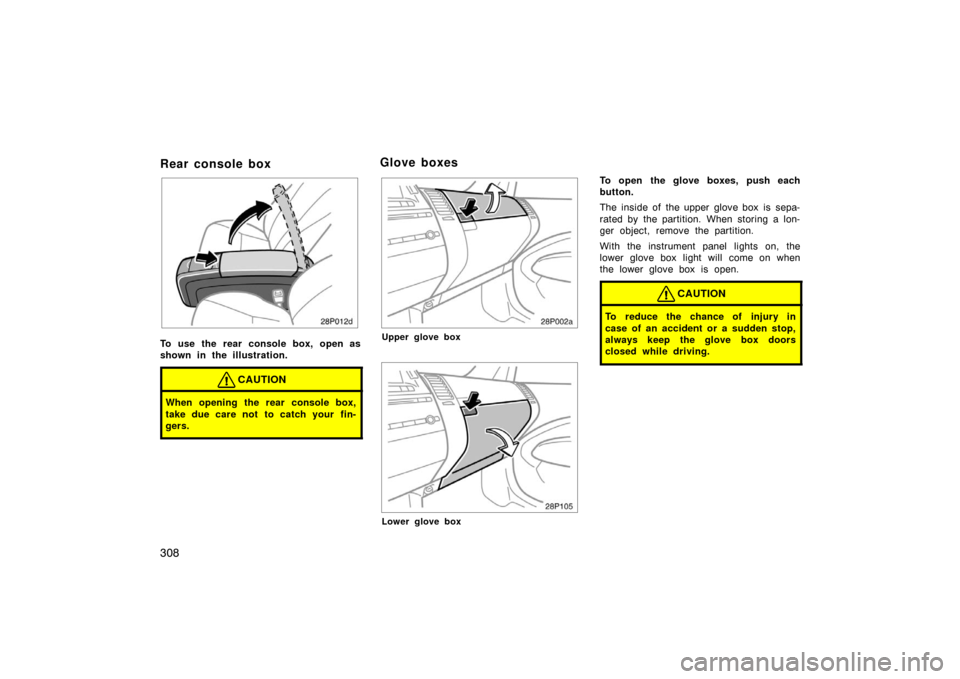

Rear console box
To use the rear console box, open as
shown in the illustration.
CAUTION
When opening the rear console box,
take due care not to catch your fin-
gers.
28p002a
Upper glove box
28p105
Lower glove box
To open the glove boxes, push each
button.
The inside of the upper glove box is sepa-
rated by the partition. When storing a lon-
ger object, remove the partition.
With the instrument panel lights on, the
lower glove box light will come on when
the lower glove box is open.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box doors
closed while driving.
Glove boxes

309

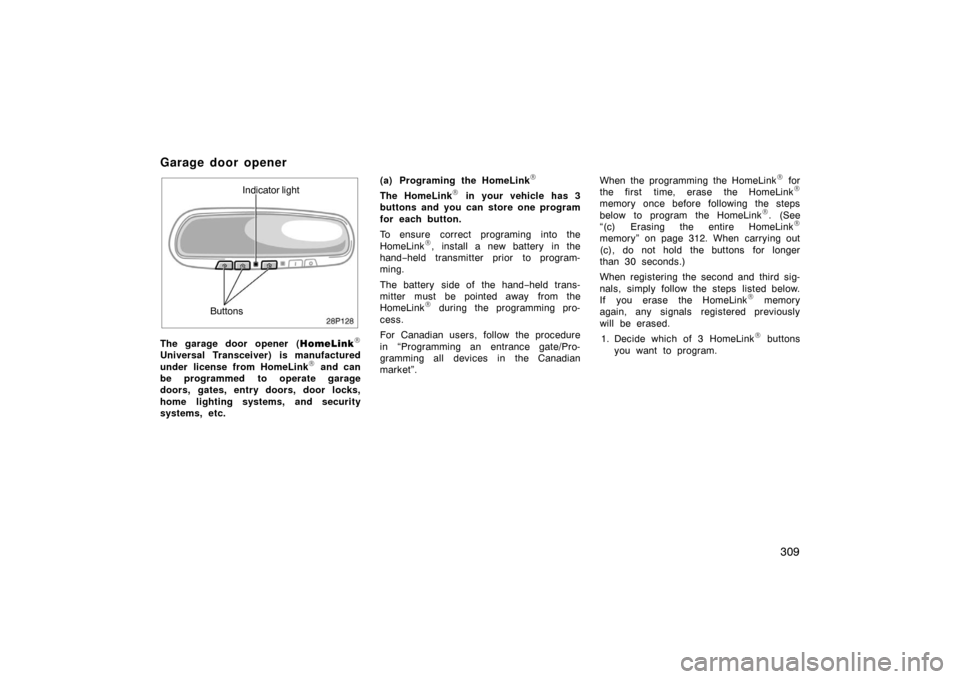

28p128
Indicator light
Buttons
The garage door opener ( HomeLink
\f
Universal Transceiver) is manufactured
under license from HomeLink\f and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc. (a) Programing the HomeLink
\f
The HomeLink\f in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programing into the
HomeLink
\f, install a new battery in the
hand− held transmitter prior to program-
ming.
The battery side of the hand −held trans-
mitter must be pointed away from the
HomeLink
\f during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/Pro-
gramming all devices in the Canadian
market”. When the programming the HomeLink
\f for
the first time, erase the HomeLink\f
memory once before following the steps
below to program the HomeLink\f. (See
“(c) Erasing the entire HomeLink\f
memory” on page 312. When carrying out
(c), do not hold the buttons for longer
than 30 seconds.)
When registering the second and third sig-
nals, simply follow the steps listed below.
If you erase the HomeLink
\f memory
again, any signals registered previously
will be erased.
1. Decide which of 3 HomeLink
\f buttons
you want to program.
Garage door opener

310

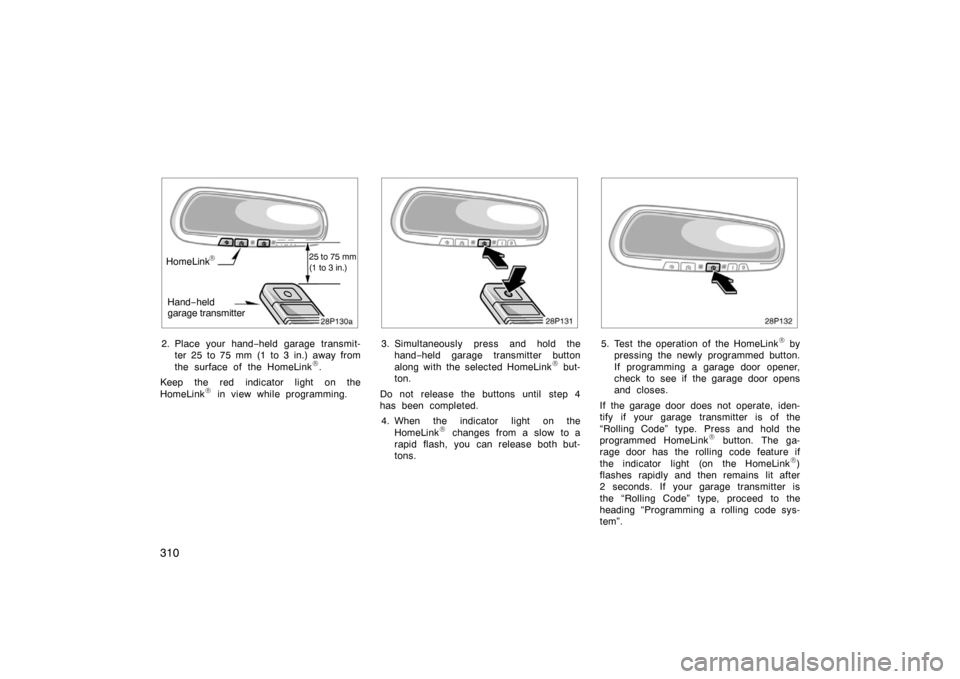

28p130aHomeLink\f25 to 75 mm
(1 to 3 in.)
Hand−held
garage transmitter
2. Place your hand− held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
\f.
Keep the red indicator light on the
HomeLink
\f in view while programming.
28p131
3. Simultaneously press and hold the hand− held garage transmitter button
along with the selected HomeLink
\f but-
ton.
Do not release the buttons until step 4
has been completed. 4. When the indicator light on the HomeLink
\f changes from a slow to a
rapid flash, you can release both but-
tons.
28p132
5. Test the operation of the HomeLink\f by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
“Rolling Code” type. Press and hold the
programmed HomeLink
\f button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
\f)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the “Rolling Code” type, proceed to the
heading “Programming a rolling code sys-
tem”.
