warning TOYOTA PRIUS 2007 2.G Quick Reference Guide

BASIC HYBRID VEHICLE OPERATION
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12
OVERVIEW
Headlight indicator
Low engine oil pressure warning
2
Service indicators and reminder
Speedometer
Fuel gauge
Odometer and two trip meters
Instrument cluster
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning2
Low fuel level indicator1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking
performance.
Indicator symbols
Master warning1
High coolant temperature warning2
Open door warning1
Airbag SRS warning1
1
For details, refer to “Service reminder indicators and warning buzzers-- --
Instrument cluster” Section 2-5, 2007 Owner’s Manual.
2For details, refer to “Service reminder indicators and warning buzzers-- --
Multi-information display” Section 2-5, 2007 Owner’s Manual.
3If this light flashes, see “Cruise control” Section 2-6, 2007 Owner’s Manual.4For details, refer to “Hybrid transaxle” Section 2-6, 2007 Owner’s Manual.5For details, refer to “Smart Key system” Section 2-1, 2007 Owner’s
Manual.
Driving ready light
Engine oil replacement reminder
1
Tu r n signal indicator
Headlight high beam indicator
Cruise control indicator
3
Slip indicator
Hybrid System warning2
Vehicle Stability Control warning1
Tr a c t i o n battery warning2
Electric power steering system
warning2
Smart Key system warning5
Ta i l light indicator
Automatic headlight leveling system warning
2
Running mode position indicator4
Automatic Air Conditioner indicator
Recirculate mode indicator
Windshield air flow indicator
Rear window and outside rear view mirror
defoggers indicator
Hybrid vehicle immobilizer/Theft deterrent
system indicator
Low Tire Pressure Wa r n i n g1
Front passenger occupant classification
indicator

26 27
OVERVIEW BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
27

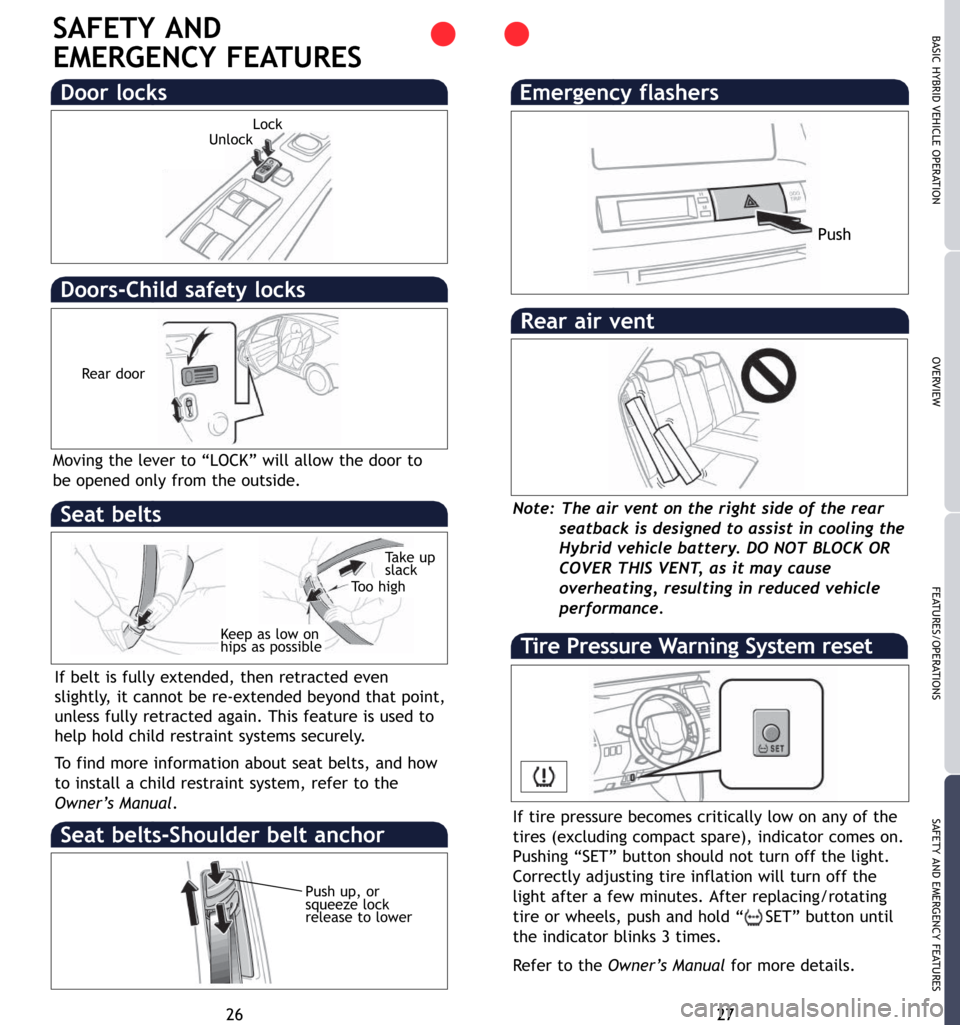

SAFETY AND
EMERGENCY FEATURES
Emergency flashers
Note:The air vent on the right side of the rear
seatback is designed to assist in cooling the
Hybrid vehicle battery. DO NOT BLOCK OR
COVER THIS VENT, as it may cause
overheating, resulting in reduced vehicle
performance.
Rear air vent
Push
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To f i n d more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
To o high
Seat belts
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Doors-Child safety locks
Door locks
Seat belts-Shoulder belt anchor
Unlock
Rear door
Push up, or
squeeze lock
release to lower Lock
If tire pressure becomes critically low on any of the
tires (excluding compact spare), indicator comes on.
Pushing “SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the
light after a few minutes. After replacing/rotating
tire or wheels, push and hold “ SET” button until
the indicator blinks
3 times.
Refer to the Owner’s Manualfor more details.
Tire Pressure Warning System reset
