TOYOTA PRIUS 2008 2.G Navigation Manual

BASIC FUNCTIONS
29
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
position and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To edit a memory point, touch “Edit”. (See
“ — Editing memory points” on page 89.)
To delete a memory point, touch “Delete”.
If
is touched, the registered telephone
number can be called.DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
position and phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered telephone
number can be called.

BASIC FUNCTIONS
30
Any one of the screen configurations can
be selected .
1. Touch this button to display the fol-
lowing screen.
2. To select the desired screen config-
uration, touch one of the following but-
tons.Depending on the conditions, certain
screen configuration buttons cannot be
selected.
:To display the single map screen.
(See page 31.)
:To display the dual map screen.
(See page 31.)
:To display the compass mode
screen. (See page 32.)
:To display the turn list screen.
(See page 62.)
:To display the arrow screen. (See
page 62.)
:To display the freeway information
screen. (See page 61.)
:To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
61.)
— Switching the screens

BASIC FUNCTIONS
31
Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map
on the left is the main map.
The right side map can be edited.
Touch the right side map to display the
edit screen.
This screen can perform the following pro-
cedures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete edi-
ting.
The screen returns to the dual map screen.

BASIC FUNCTIONS
32
COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information about the destination and cur-
rent position, as well as a compass, is dis-
played on the screen.
The destination mark is displayed in the di-
rection of the destination. When driving re-
fer to the longitude and latitude coordi-
nates, and the compass, to make sure that
your vehicle is headed in the direction of
the destination.
INFORMATION
When the vehicle travels out of the
coverage area, the guidance screen
changes to the compass mode
screen.
Touch or to change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
or until the scale bar
changes. By continuing to touch the but-
ton, the scale bar changes smoothly.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north−up symbol or heading−up symbol at
the top left of the screen.
INFORMATION
When the map scale is at the maxi-
mum range of 250 miles (400 km),
is not shown. When the map
scale is at the minimum range of 150
feet (50 m), is not shown. In
areas where the foot print map is
available the map scale changes from
to when at the minimum
range.
— Map scale

BASIC FUNCTIONS
33
For the area which is covered by the foot
print map (Some areas in the following cit-
ies: Detroit, Chicago, N.Y., L.A), you can
switch to the foot print map on a scale of 75
feet (25 m).
To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scroll-
ing on the foot print map (one
touch scroll) while driving.
To display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map will change into a single map dis-
play.
2. Using the eightdirection arrow,
move the cursor to the position of the
building to display building informa-
tion.
3. Touch “Building Info.”.
— Foot print map

BASIC FUNCTIONS
34
Details of POIs in some buildings may be
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.Northup screen
Headingup screen
The orientation of the map can be changed
from North−up to Heading−up by touching
the orientation symbol at the top left of the
screen.
Northup symbol
Regardless of the direction of vehicle trav-
el, North is always up.
Headingup symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
— Orientation of the map

SECTION 2
DESTINATION SEARCH
35
DESTINATION SEARCH
Destination search
Quick reference (“Destination” screen) 36. . . . . . . . . . . . . . . . . . . .
Destination search 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the search area38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home40 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access40 . . . . . . . . . . . . . . . . . . . .
Destination search by “Address”41 . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI* Name” 44. . . . . . . . . . . . . . . . . . . . .
Destination search by “POI* Category” 47. . . . . . . . . . . . . . . . . .
Destination search by “Emergency”50 . . . . . . . . . . . . . . . . . . . . .
Destination search by “Memory”51 . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Previous”51 . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map”52 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection”52 . . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit”53 . . . . . . . . . . . . . . .
Destination search by “Coordinates”54 . . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #”55 . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*: Point of Interest

DESTINATION SEARCH
36

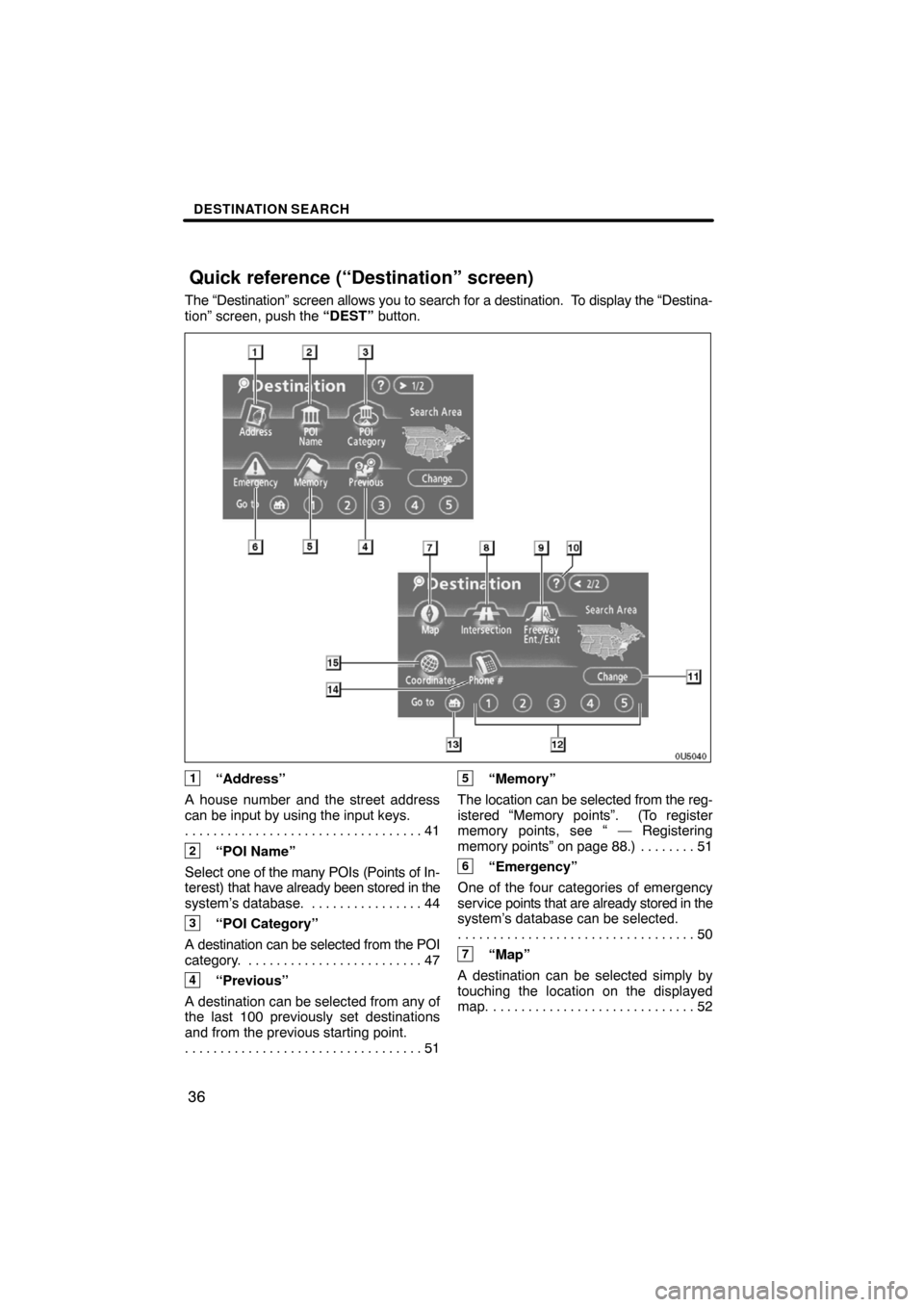

The “Destination” screen allows you to search for a destination. To display the “Destina-
tion” screen, push the “DEST” button.
1“Address”
A house number and the street address
can be input by using the input keys.
41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“POI Name”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 44. . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 47. . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point.
51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 88.) 51. . . . . . . .
6“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected.
50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Map”
A destination can be selected simply by
touching the location on the displayed
map. 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)

DESTINATION SEARCH
37
8“Intersection”
The names of two intersecting streets can
be entered. This is helpful if only the gen-
eral vicinity, not the specific address, is
known. 52. . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Freeway Ent./Exit”
The name of a freeway (interstate) en-
trance or exit can be entered. 53. . . . . . .
10“?”
Function help for the “Destination” screen
can be viewed on this screen. 25. . . . . . .
11“Change”
To change the search area, touch this but-
ton. 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Quick access touchscreen but-
tons
One of 5 preset destinations can be se-
lected by touching the screen directly. To
use this function, it is necessary to set the
“Quick Access” for each memory point.
(To register a “Quick Access”, see “ —
Editing memory points” on page 89.)
40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Home touchscreen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see “ — Registering home” on
page 94.) 40. . . . . . . . . . . . . . . . . . . . . . . . .
14“Phone #”
A destination can be entered by the tele-
phone number. 55. . . . . . . . . . . . . . . . . . . .
15“Coordinates”
A destination can be set by using latitude
and longitude as coordinates. 54. . . . . . .
Destination search —

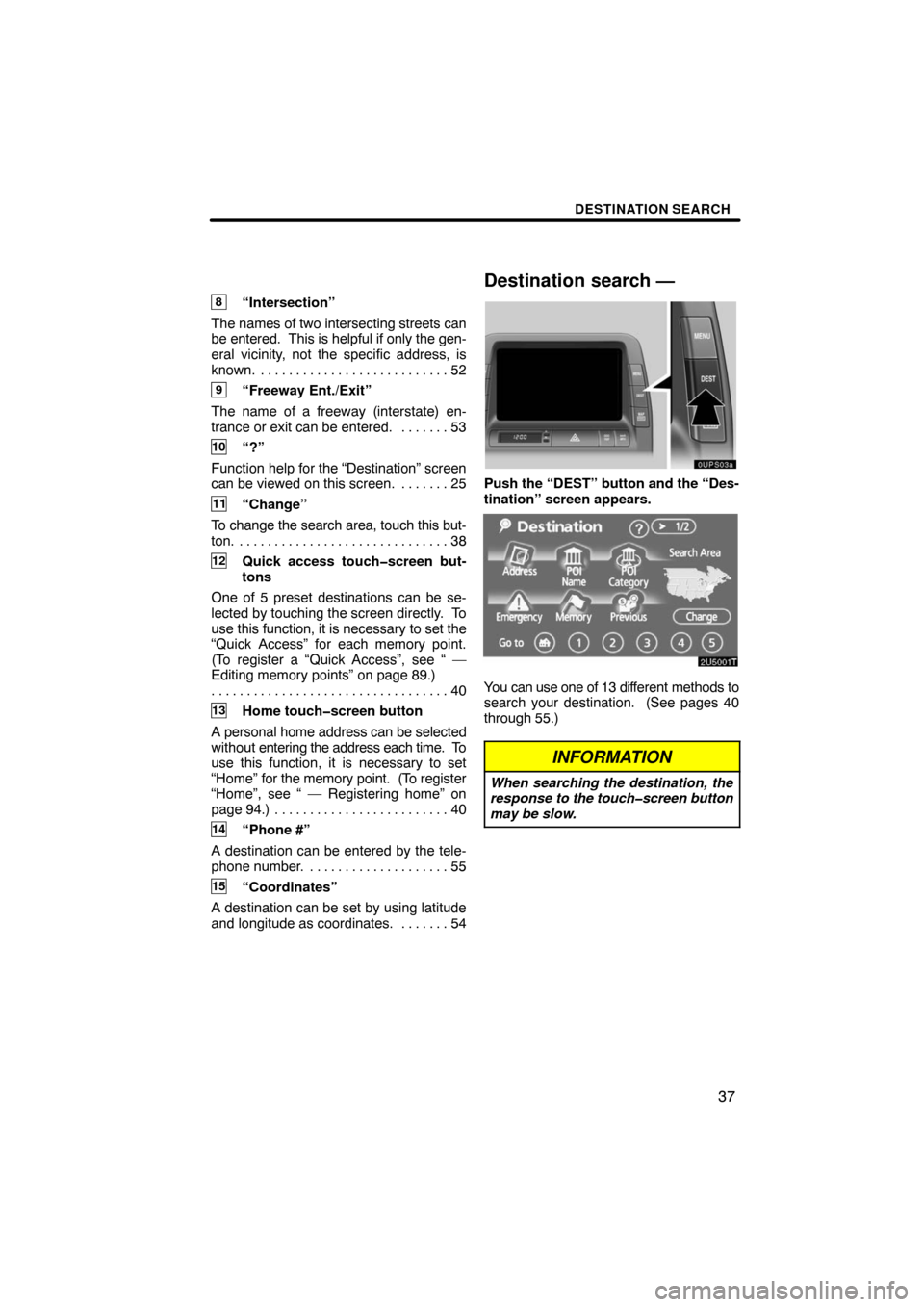

Push the “DEST” button and the “Des-
tination” screen appears.
You can use one of 13 different methods to
search your destination. (See pages 40
through 55.)
INFORMATION
When searching the destination, the
response to the touchscreen button
may be slow.

DESTINATION SEARCH
38

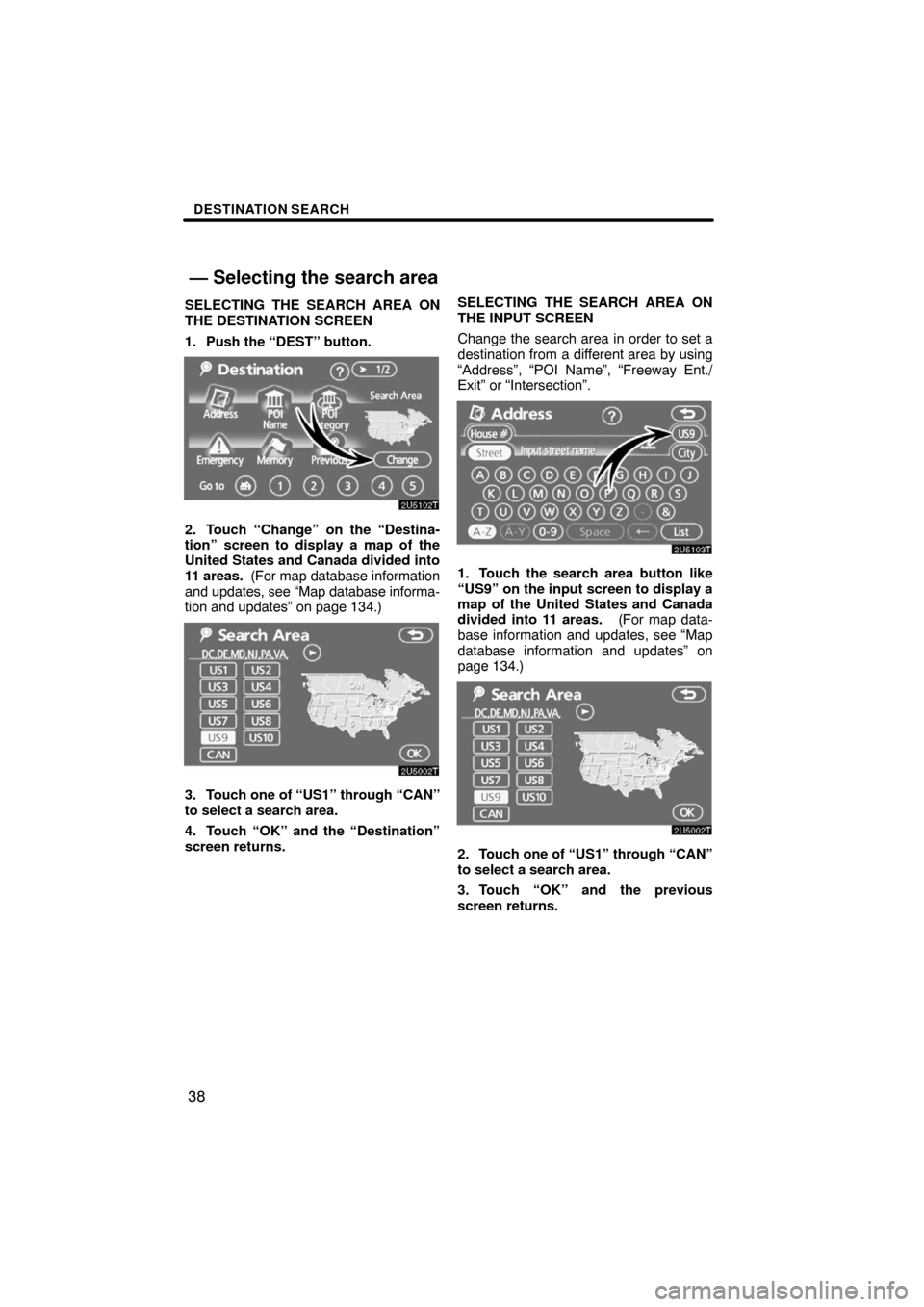

SELECTING THE SEARCH AREA ON
THE DESTINATION SCREEN
1. Push the “DEST” button.
2. Touch “Change” on the “Destina-
tion” screen to display a map of the
United States and Canada divided into
11 areas. (For map database information
and updates, see “Map database informa-
tion and updates” on page 134.)
3. Touch one of “US1” through “CAN”
to select a search area.
4. Touch “OK” and the “Destination”
screen returns.SELECTING THE SEARCH AREA ON
THE INPUT SCREEN
Change the search area in order to set a
destination from a different area by using
“Address”, “POI Name”, “Freeway Ent./
Exit” or “Intersection”.
1. Touch the search area button like
“US9” on the input screen to display a
map of the United States and Canada
divided into 11 areas. (For map data-
base information and updates, see “Map
database information and updates” on
page 134.)
2. Touch one of “US1” through “CAN”
to select a search area.
3. Touch “OK” and the previous
screen returns.
— Selecting the search area
