AUDIO SYSTEM
170
U6024GI
“Select” for File: The desired file can be
selected in a list. This function is available
only when the vehicle is not moving.
Touch “Select” . The file list is displayed.
U6027GS
Touch the desired file number . The chang-
er will start playing the selected file from
the beginning.
: By touching this touch−screen but-
ton, the list moves up by 5 file groups. If
this touch −screen button is touched when
the top page of the list is dis played, the last
page is displayed.
: By touching this touch−screen but-
ton, the list moves down by 5 file groups.
If this touch−screen button is touched
when the last page of the list is displayed,
the top page is displayed.

AUDIO SYSTEM
175
1Indicates the condition of the
Bluetooth connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of audio quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
Remaining charge is not displayed while
the Bluetooth is connecting.
The amount left does not always corre-
spond with the one of your portable player.
This system doesn’t have a charging func-
tion. An antenna for the Bluetooth
connection is built in to the display. The
indication of the Bluetooth
connection may turn yellow and the
system
may not function when you use
the Bluetooth portable player in the
following conditions.
Your portable player is hiding behind
from the display (behind the seat or in
the glove box or console box).
Your portable player touches or is cov-
ered with metal materials.
Leave the Bluetooth  portable player in a
place where the “Blue” indication is dis-
played.
The portable player information is regis-
tered when the Bluetooth audio system is
connected. When you release possession
of your vehicle, remove your portable play-
er. (See “(a) Removing a Bluetooth  au-
dio” on page 296.)

AUDIO SYSTEM
177
Touch “Connect”.
U6033GS
When the connection is completed, this
screen is displayed. Now you can use the
portable player.
U6034GS
This screen will appear when the connec-
tion has failed.
When the connection method is
“From Portable Player”
Operate the portable player and con-
nect it to the Bluetooth  audio system.
For the operation procedure for the
portable player, see the instruction
manual that comes with it.
Touch “Connect”.
U6035GS
Connect the portable audio player to the
Bluetooth  audio system.
U6036GS
This screen will appear when the connec-
tion has been successfully established.

AUDIO SYSTEM
178

Reconnecting the portable player
If the portable player is disconnected with
a poor reception from the Bluetooth  net-
work when the “POWER” switch is in AC-
CESSORY or ON mode, the system auto-
matically reconnects the portable player.
In this case, the connection result is not
displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your portable
player off, this does not happen.
Reconnect it by the following method.
Select the portable player again.
Enter the portable player. (b) Playing a Bluetooth
audio
Playing and pausing a Bluetooth
audio
U6032GI
Push the “AUX” button or push the
“AUDIO” button to display this screen
and touch the “BT” tab if the
Bluetooth  audio player is alreay
connected.
Touch
and the music will start playing.
Touch
and the music will pause.
Touch
and the music will start playing
again.
Depending on the portable player that is
connected to the system, the music may
start playing when touching
while it is
paused. On the other h and, the music may
pause when touching
while it is play-
ing.

AUDIO SYSTEM
179
Some titles may not be displayed depend-
ing on the type of portable player.
Selecting a desired track
U6011vnia
“SEEK/TRACK” button: Use for direct
access to a desired track.
Push the “” or “” button of
“SEEK/TRACK” and repeat it until the de-
sired track number appears on the screen.
As you release the button, the portable
player will start playing the selected track
from the beginning.
Fast forward:
Push and hold the “ ” button of
“SEEK/TRACK” to fast forward the play-
er. When you release the button, the porta-
ble player will resume playing from that
position.
Reverse:
Push and hold the “ ” button of
“SEEK/TRACK” to reverse the player.
When you release the button, the player
will resume playing.
INFORMATION
Depending on the portable player that
is connected to the system, certain
functions may not be available.

AUDIO SYSTEM
187
MP3/WMA FILES
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio
compression standards.
The MP3/WMA player can play MP3
and WMA files on CD −ROM, CD−R
and CD −RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file, add
the appropriate file extension (.mp3 or
.wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
The player can play only the first ses-
sion using multi −session compatible
CDs.
MP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and Ver.
2.3 formats. The unit cannot display
disc title, track title and artist name in
other formats.
WMA files can contain a WMA tag that
is used in the same way as an ID3 tag.
WMA tags carry information such as
track title, artist name.
The emphasis function is available
only when playing MP3/WMA files re-
corded at 32, 44.1 and 48 kHz. (The
system can play MP3 files with sam-
pling frequencies of 16, 22.05, and 24
kHz. However, the emphasis function
is not available for files recorded at
these frequencies.)
The sound quality of MP3/WMA files
generally improves with higher bit rate-
s. In order to achieve a reasonable lev-
el of sound quality, discs recorded with
a bit rate of at least 128 kbps are rec-
ommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160 kbps
WMA files:
Ver. 7, 8 CBR—48 to 192 kbps
Ver. 9 CBR—48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs re-
corder using packet write data transfer
(UDF format). Discs should be re-
corded using “pre −mastering” software
rather than packet− write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast−forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 levels
deep can be played. However, the
start of playback may be delayed when
using discs containing numerous lev-
els of folders. For this reason, we rec-
ommend creating discs with no more
than two levels of folders.
It is possible to play up to 192 folders or
255 files on one disc.

ADVANCED PARKING GUIDANCE SYSTEM
192
The advanced parking guidance sys-
tem helps back up parking by display-
ing a rearview image in order to pro-
vide a reference for back up
maneuvering, as well as automatically
controlling the steering wheel when
backing into a target parking position
set on the screen. The system will not
automatically back up or regulate
speed.
The advanced parking guidance system is
not an automatic parking system. It is a
system to assist back up parking.
As the system only assists with parking in
a set target parking position, there are
times when the system will be unable to
render this assistance, depending on fac-
tors such as road surface or vehicle condi-
tion, or the distance to the set target park-
ing position.
Depending on the characteristics of the
camera lens, the distance to or position of
people or obstacles shown on the screen
may differ slightly from actual conditions.
SELECTING A LANGUAGE
See “  Selecting a language” on page 237
for the procedure to select a language.
Once you select a language, the advanced
parking guidance system will indicate that
language until you select another lan-

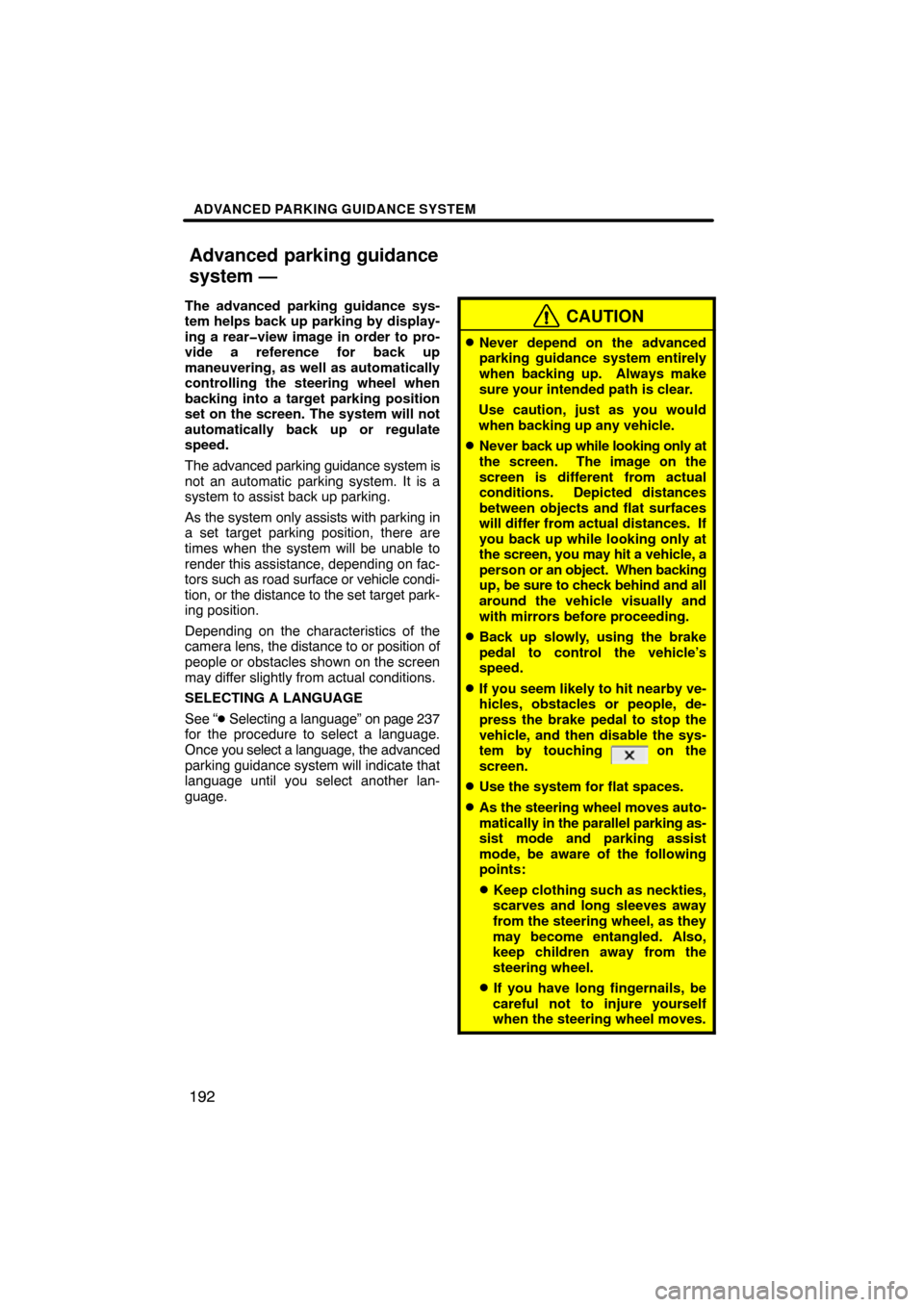

guage.CAUTION
Never depend on the advanced
parking guidance system entirely
when backing up. Always make
sure your intended path is clear.
Use caution, just as you would
when backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual
conditions. Depicted distances
between objects and flat surfaces
will differ from actual distances. If
you back up while looking only at
the screen, you may hit a vehicle, a
person or an object. When backing
up, be sure to check behind and all
around the vehicle visually and
with mirrors before proceeding.
Back up slowly, using the brake
pedal to control the vehicle’s
speed.
If you seem likely to hit nearby ve-
hicles, obstacles or people, de-
press the brake pedal to stop the
vehicle, and then disable the sys-
tem by touching on the
screen.
Use the system for flat spaces.
As the steering wheel moves auto-
matically in the parallel parking as-
sist mode and parking assist
mode, be aware of the following
points:
Keep clothing such as neckties,
scarves and long sleeves away
from the steering wheel, as they
may become entangled. Also,
keep children away from the
steering wheel.
If you have long fingernails, be
careful not to injure yourself
when the steering wheel moves.
Advanced parking guidance
system —

ADVANCED PARKING GUIDANCE SYSTEM
193

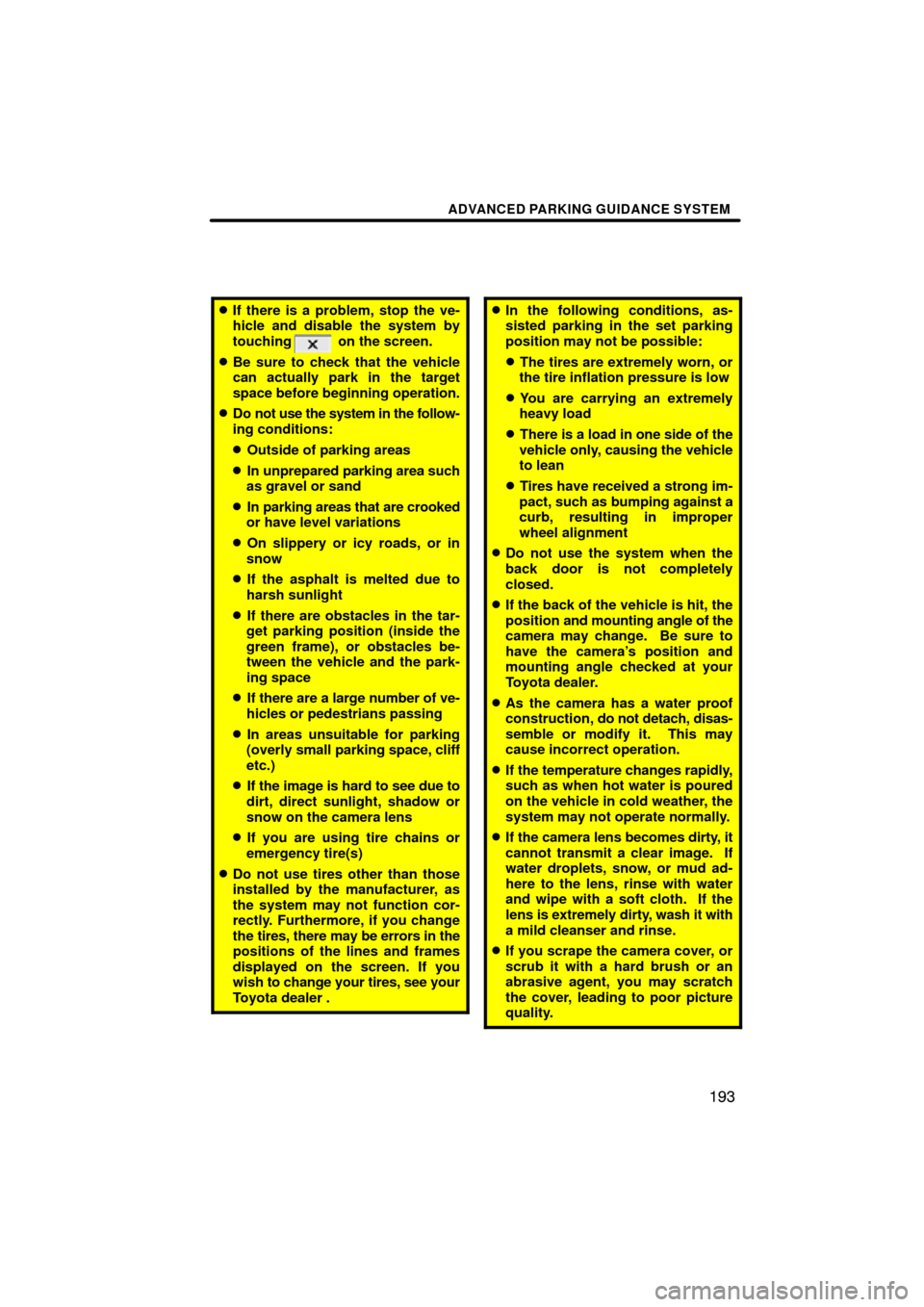

If there is a problem, stop the ve-
hicle and disable the system by
touching on the screen.
Be sure to check that the vehicle
can actually park in the target
space before beginning operation.
Do not use the system in the follow-
ing conditions:
Outside of parking areas
In unprepared parking area such
as gravel or sand
In parking areas that are crooked
or have level variations
On slippery or icy roads, or in
snow
If the asphalt is melted due to
harsh sunlight
If there are obstacles in the tar-
get parking position (inside the
green frame), or obstacles be-
tween the vehicle and the park-
ing space
If there are a large number of ve-
hicles or pedestrians passing
In areas unsuitable for parking
(overly small parking space, cliff
etc.)
If the image is hard to see due to
dirt, direct sunlight, shadow or
snow on the camera lens
If you are using tire chains or
emergency tire(s)
Do not use tires other than those
installed by the manufacturer, as
the system may not function cor-
rectly. Furthermore, if you change
the tires, there may be errors in the
positions of the lines and frames
displayed on the screen. If you
wish to change your ti res, see your
Toyota dealer .
In the following conditions, as-
sisted parking in the set parking
position may not be possible:
The tires are extremely worn, or
the tire inflation pressure is low
You are carrying an extremely
heavy load
There is a load in one side of the
vehicle only, causing the vehicle
to lean
Tires have received a strong im-
pact, such as bumping against a
curb, resulting in improper
wheel alignment
Do not use the system when the
back door is not completely
closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
As the camera has a water proof
construction, do not detach, disas-
semble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud ad-
here to the lens, rinse with water
and wipe with a soft cloth. If the
lens is extremely dirty, wash it with
a mild cleanser and rinse.
If you scrape the camera cover, or
scrub it with a hard brush or an
abrasive agent, you may scratch
the cover, leading to poor picture
quality.

ADVANCED PARKING GUIDANCE SYSTEM
195

Area displayed on screen
Image is displayed approximately level
on screen.
Corners of bumper
On screen
The area covered by the camera is limi-
ted. Objects which are close to either
corner of the bumper or under the
bumper cannot be seen on the screen.
The area displayed on the screen may
vary according to vehicle orientation or
road conditions.

ADVANCED PARKING GUIDANCE SYSTEM
197
Instructions given are only examples.
When and how much to turn the steer-
ing wheel will vary according to traffic
conditions, road surface conditions,
vehicle condition, etc. when parking.
It is necessary to be fully aware of this
before using the
advanced parking
guidance system.
Also, when parking, be sure to check
that the parking space will accommo-
date your vehicle before maneuvering
into it.
CAUTION
Depending on the circumstances of
the vehicle (number of passengers,
amount of luggage, etc.), the set tar-
get parking position displayed on the
screen may change. Be sure to check
visually behind and all around the ve-
hicle before proceeding.
(a) To activate the advanced parking
guidance system
To activate the advanced parking guid-
ance system, shift to “R” when the
“POWER” switch is in ON mode.
If you move the shift position out of “R”,
the screen returns to the previous
screen. Operating another function of
the navigation system will display
another screen.
Even if the shift position is in “R”, if you
push any of the mode buttons around
the display, such as “MAP/VOICE” or
“INFO·PHONE” , the screen will switch
to that mode.
—Maneuvering when
parking
