TOYOTA PRIUS 2010 3.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine coolant reservoir
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS
(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a
beep sounds, you may begin
driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in theOwner’s
Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the
highway.
-When possible, avoid sudden stops to maximize regenerative braking
energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “POWER” switch or ignition switch OFF.
Refer to theOwner’s Manualfor more details.

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Transmission
* The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Eco Mode
Push
Eco Mode helps achieve low fuel consumption during trips that involve
frequent accelerating and braking.
Refer to theOwner’s Manualfor more details.
Park button
Reverse
Neutral
Drive
Engine brake*
Power Mode
Use when a higher level of response is desired, such as when driving in
mountainous regions.
Refer to theOwner’s Manualfor more details.
Push

12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV-Drive Mode (if equipped)
EV-Drive Mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under
certain driving conditions.
Refer to theOwner’s Manualfor more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Height crank (driver side; if equipped)
Lumbar support (driver side; if equipped)
Seats-Head restraints
Front Rear center
Lock release button
Lock release button
Rear outboard
Lock release button
(2) Fold down(1) Press down
Seats-Folding down second row seats

14
FEATURES/OPERATIONS
Windshield wipers & washers
Interval wipe
Single wipe
Slow
FastPull to wash and wipe
Front
Rear (if equipped)
Wash and wipe
Wipe
Interval wipe
Wash and wipe Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Windows-Power
Up
Down
Window lock switch
Automatic operationPush the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

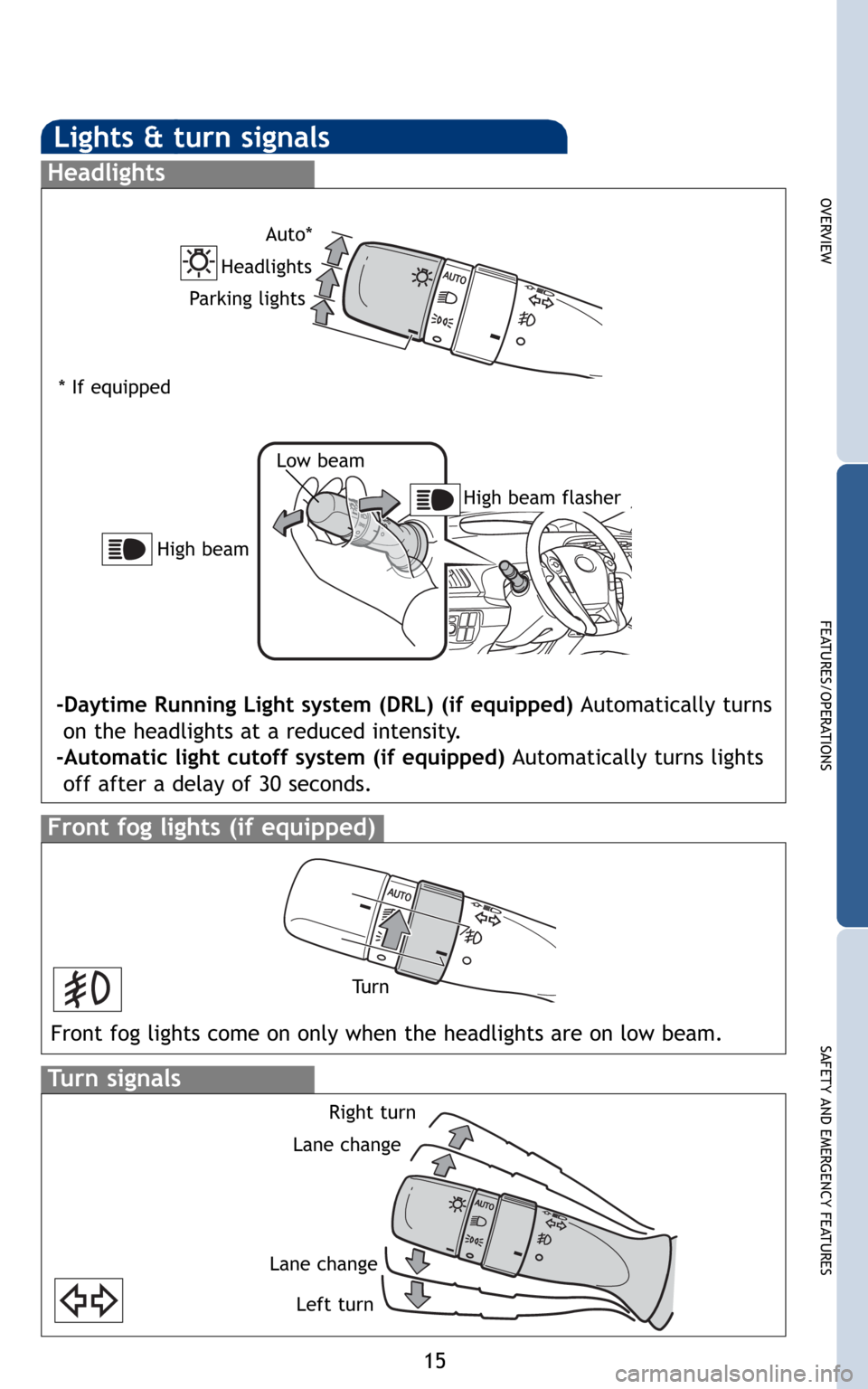

Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) (if equipped)Automatically turns
on the headlights at a reduced intensity.
-Automatic light cutoff system (if equipped)Automatically turns lights
off after a delay of 30 seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn High beam
Auto*
Headlights
Parking lights
Tu r n
* If equipped

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Frontautomatic Air Conditioning
Temperature selector
Temperature setting display
Air outlet display
Fan speed display
Fan speed control
Windshield defogger
Air Conditioning ON/OFF
Micro dust and pollen filter mode (turns off automatically after 3
minutes)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Fresh or recirculated cabin air
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Climate control OFF
Seat heaters (if equipped)
Push Push
Driver seat
Front passenger seat

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Solar ventilation system (if equipped)
With the “POWER” switch in
ON mode, turn on the solar
ventilation switch.
The solar ventilation system allows ventilation of the vehicle interior when
the vehicle is parked in direct sunlight.
Refer to theOwner’s Manualfor more details.On Off
Moonroof (if equipped)
Opening operationClosing operation
Push and holdRecommended driving position to
minimize wind noise.
Push once to tilt up;
again to open partway;
again to open completely.
Push

18
FEATURES/OPERATIONS
Type 2 (with JBL speakers and Bluetooth®function)
Audio
Eject CD
Push to turn
ON/OFF
View CD text Seek station/
CD track select
Station/CD
track scan
Mode Preset buttons - functions in other
modes indicated above number
Ty p e 1
Push to skip
up/down
folder and
radio
category
type
RADIO
To preset stationsTune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stationsPush and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a discPush and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one discPush “LOAD” and insert one disc.
-To load multiple discsPush and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only)Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only)Push either side of “FOLDER.”
Push to
adjust tone
& balanceMute
Load CD(s)
