fuel consumption TOYOTA PRIUS 2010 3.G Quick Reference Guide

4
OVERVIEW
Indicator symbols
Instrument cluster
Service indicator and reminder
Fuel gauge
Transmission shift position indicator
Multi-information display
Instantaneous fuel consumption
Speedometer
Charging system warning1
Brake system warning1
Front passenger occupant classification or front
passenger airbag ON/OFF indicator1
Open door warning
Airbag SRS warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator
1
Low fuel level warning
Brake system warning light (yellow indicator)1
1
If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.

10
FEATURES/OPERATIONS
(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a
beep sounds, you may begin
driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in theOwner’s
Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the
highway.
-When possible, avoid sudden stops to maximize regenerative braking
energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “POWER” switch or ignition switch OFF.
Refer to theOwner’s Manualfor more details.

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

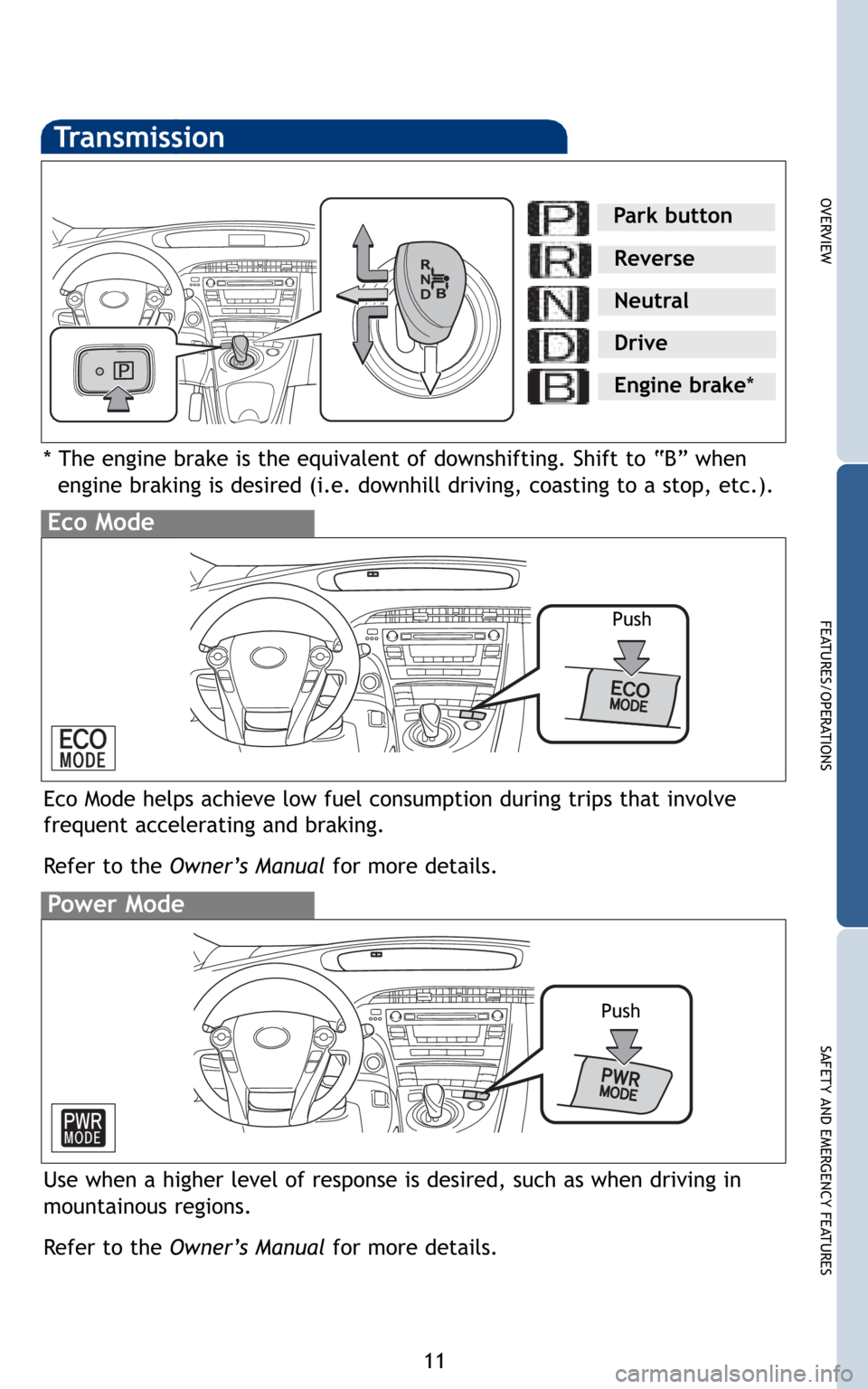

Transmission
* The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Eco Mode
Push
Eco Mode helps achieve low fuel consumption during trips that involve
frequent accelerating and braking.
Refer to theOwner’s Manualfor more details.
Park button
Reverse
Neutral
Drive
Engine brake*
Power Mode
Use when a higher level of response is desired, such as when driving in
mountainous regions.
Refer to theOwner’s Manualfor more details.
Push

22
FEATURES/OPERATIONS
Multi-information display
Push “DISP” to change information in the following:
(1) Energy monitor
(2) Hybrid System Indicator
(3) 5-minute/1-minute interval fuel consumption display
(4) Fuel consumption history display
Push and hold “DISP” to set up the displays.
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-3 in
theOwner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
Microphone (type A)
Audio unitSteering wheel telephone switches
Vo l u m e
Start call
End call
Voice command
button
Microphone (type B)
