TOYOTA PRIUS 2011 3.G Navigation Manual

AUDIO SYSTEM
161
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interfer-
ence in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio com-
munications. However, there is no
guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
—Reorient or relocate the receiving
antenna.
—Increase the separation between
the equipment and receiver.
—Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experi-
enced radio/TV technician for help.
Information to user
Alternation or modifications carried
out without appropriate authoriza-
tion may invalidate the user’s right to
operate the equipment.
INFORMATION
This XM tuner supports “Audio
Services” (Music and Talk) of only
XM  Satellite Radio and “Text
Information”
∗ linked to the respective
“Audio Services”.
∗:Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.

AUDIO SYSTEM
162
(a) Inserting discs
The “POWER” switch must be in ACCES-
SORY or ON mode.
Your CD changer can store up to 4 discs.
You can set a disc at the lowest empty disc
number.
1. Push the “
·CLOSE” button. The
“Load·Eject” screen appears.
U6066GS
2. Touch “Load”. The display opens.
3. The amber indicators at either side
of the slot start blinking. When the indi-
cators change to green, insert only one
disc. After the disc is loaded, the amber
indicators at either side of the slot start
blinking again. When the indicators
change to green, you can insert the
next disc.
4. Push the “
·CLOSE” button to
close the display.
The changer will automatically start play-
ing from the last disc you inserted.
If the label faces down, the disc cannot be
played. In this case, “Check CD” appears
on the screen.
— CD changer operation

AUDIO SYSTEM
163
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the display
closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your
audio system.
Do not insert one disc stacked on
top of another one or feed them in
continuously, to prevent discs
from getting stuck in the changer.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
(b) Ejecting discs
A single disc alone:
1. Push the “·CLOSE” button. The
“Load·Eject” screen appears.
U6019GS
2. Touch the disc number to be
ejected.
The display opens and the amber indica-
tors at either side of the slot start blinking.
After the disc is ejected, the amber indica-
tors change to green. A disc can be in-
serted.

AUDIO SYSTEM
164

All the discs:
1. Push the “·CLOSE” button. The
“Load·Eject” screen appears.
U6020GS
2. Touch “Eject All”.
The display opens and the amber indica-
tors at either side of the slot start blinking.
After the disc is ejected, the blinking indi-
cators stay on. 3. Remove the disc.
The indicators start blinking again and the
next disc is ejected.
If a disc is not removed within 15 seconds
after it is ejected, the operation will be can-
celed.
When
all the discs are removed, the amber
indicators change to green. A disc can be
inserted.
U6018GS
The numbers of the trays where the disc is
not set are dimmed.
NOTICE
If a disc cannot be ejected, do not for-
cibly take out the disc. Keep pushing
the “ ·CLOSE” button for approxi-
mately 5 seconds and release it. At
this time, the audio disc and the map
DVDROM will be ejected.

AUDIO SYSTEM
165
(c) Playing a disc
Push the “CD” button or push the “AU-
DIO” button to display audio screen
and touch the “CD” tab if the discs are
already loaded in the changer.
The discs set in the changer are played
continuously, starting with the last disc you
inserted. The disc number of the disc cur-
rently being played, the track number and
the time from the beginning of the program
appear on the screen.
When play of one disc ends, the first track
of the following disc starts. When play of
the final disc ends, play of the first disc
starts again.
The changer will skip any empty disc trays. (d) Selecting a desired disc
U6021GS
Touch “Change Discs” on
“CD” screen
and touch the desired disc number on
the screen.
The selected disc number is highlighted.
The changer will start playing the selected
disc from the first track.

AUDIO SYSTEM
166
(e) Playing an audio disc
U6113FC
Push the “AUDIO” button and touch the
“CD” tab, then touch the “Change
Discs”. Choose an audio disc number
to display this screen.
SELECTING A DESIRED TRACK
“SEEK/TRACK” button: Use for direct
access to a desired track.
Push the “
” or “” button of
“SEEK/TRACK” and repeat it until the de-
sired track number appears on the screen.
As you release the button, the changer will
start playing the selected track from the
beginning.
“Select” for Track: The desired track can
be selected from a list. This function is
available only when the vehicle is not mov-
ing.
Touch “Select” . The track list is displayed.

AUDIO SYSTEM
167

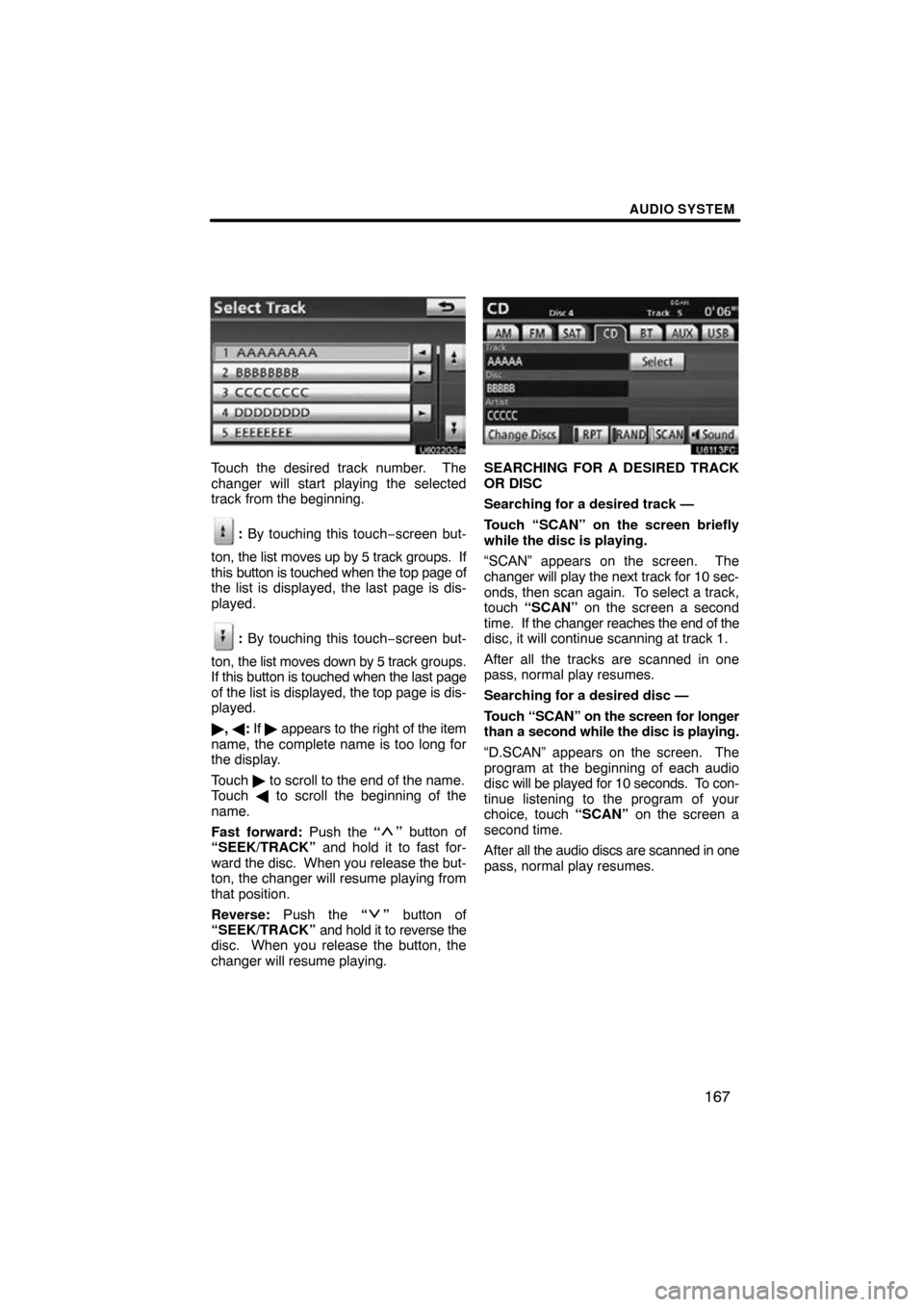

Touch the desired track number. The
changer will start playing the selected
track from the beginning.
: By touching this touch−screen but-
ton, the list moves up by 5 track groups. If
this button is touched when the top page of
the list is displayed, the last page is dis-
played.
: By touching this touch−screen but-
ton, the list moves down by 5 track groups.
If this button is touched when the last page
of the list is displayed, the top page is dis-
played.
 ,  : If  appears to the right of the item
name, the complete name is too long for
the display.
Touch  to scroll to the end of the name.
Touch  to scroll the beginning of the
name.
Fast forward: Push the “
” button of
“SEEK/TRACK” and hold it to fast for-
ward the disc. When you release the but-
ton, the changer will resume playing from
that position.
Reverse: Push the “
” button of
“SEEK/TRACK” and hold it to reverse the
disc. When you release the button, the
changer will resume playing.
U6113FC
SEARCHING FOR A DESIRED TRACK
OR DISC
Searching for a desired track —
Touch “SCAN” on the screen briefly
while the disc is playing.
“SCAN” appears on the screen. The
changer will play the next track for 10 sec-
onds, then scan again. To select a track,
touch “SCAN” on the screen a second
time. If the changer reaches the end of the
disc, it will continue scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.
Searching for a desired disc —
Touch “SCAN” on the screen for longer
than a second while the disc is playing.
“D.SCAN” appears on the screen. The
program at the beginning of each audio
disc will be played for 10 seconds. To con-
tinue listening to the program of your
choice, touch “SCAN” on the screen a
second time.
After all the audio discs are scanned in one
pass, normal play resumes.

AUDIO SYSTEM
168
U6114FC

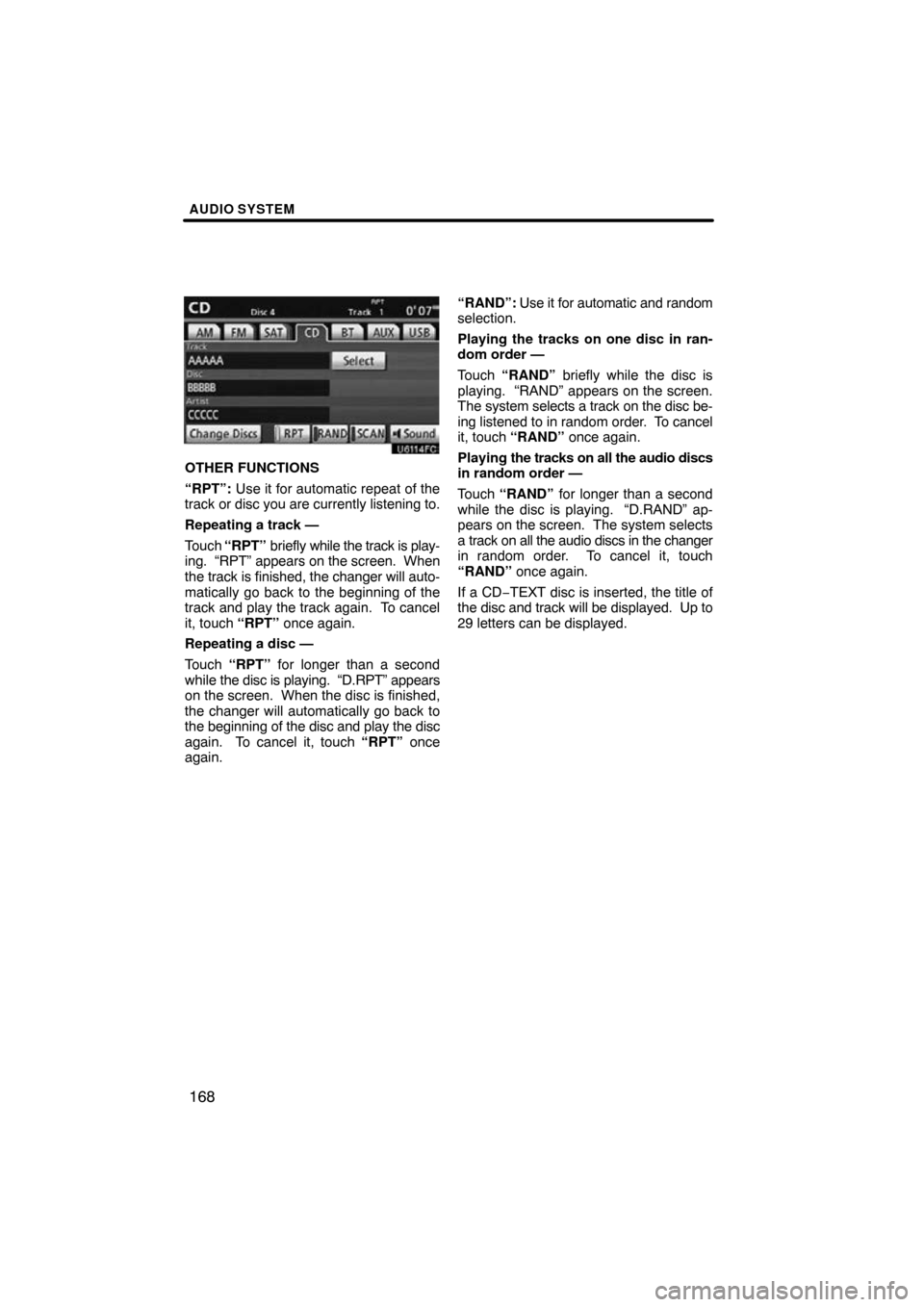

OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the
track or disc you are currently listening to.
Repeating a track —
Touch “RPT” briefly while the track is play-
ing. “RPT” appears on the screen. When
the track is finished, the changer will auto-
matically go back to the beginning of the
track and play the track again. To cancel
it, touch “RPT” once again.
Repeating a disc —
Touch “RPT” for longer than a second
while the disc is playing. “D.RPT” appears
on the screen. When the disc is finished,
the changer will automatically go back to
the beginning of the disc and play the disc
again. To cancel it, touch “RPT” once
again. “RAND”:
Use it for automatic and random
selection.
Playing the tracks on one disc in ran-
dom order —
Touch “RAND” briefly while the disc is
playing. “RAND” appears on the screen.
The system selects a track on the disc be-
ing listened to in random order. To cancel
it, touch “RAND” once again.
Playing the tracks on all the audio discs
in random order —
Touch “RAND” for longer than a second
while the disc is playing. “D.RAND” ap-
pears on the screen. The system selects
a track on all the audio discs in the changer
in random order. To cancel it, touch
“RAND” once again.
If a CD −TEXT disc is inserted, the title of
the disc and track will be displayed. Up to
29 letters can be displayed.

AUDIO SYSTEM
169

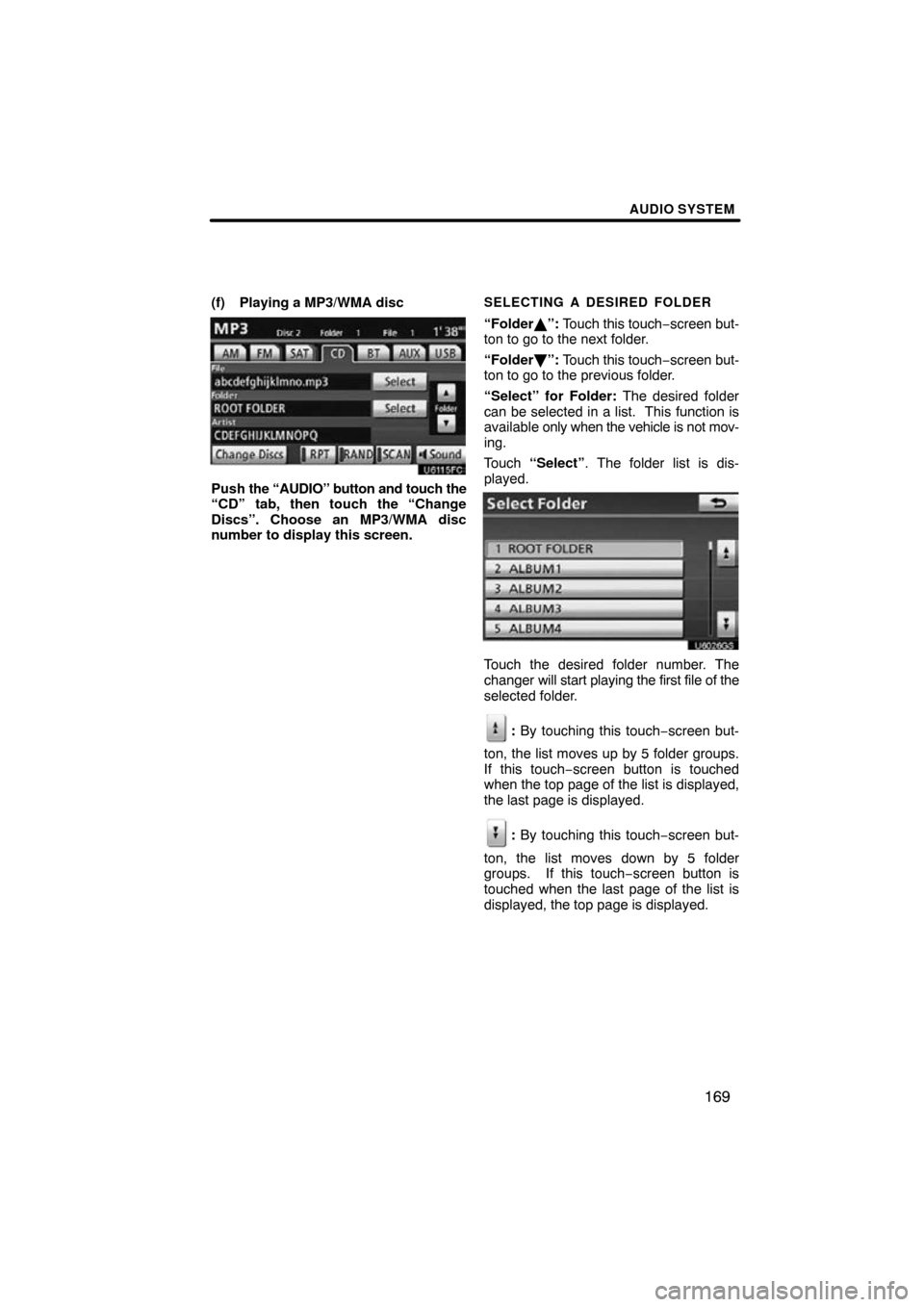

(f) Playing a MP3/WMA disc
U6115FC
Push the “AUDIO” button and touch the
“CD” tab, then touch the “Change
Discs”. Choose an MP3/WMA disc
number to display this screen.
SELECTING A DESIRED FOLDER
“Folder ”: Touch this touch −screen but-
ton to go to the next folder.
“Folder \b”: Touch this touch −screen but-
ton to go to the previous folder.
“Select” for Folder: The desired folder
can be selected in a list. This function is
available only when the vehicle is not mov-
ing.
Touch “Select” . The folder list is dis-
played.
U6026GS
Touch the desired folder number. The
changer will start playing the first file of the
selected folder.
: By touching this touch−screen but-
ton, the list moves up by 5 folder groups.
If this touch−screen button is touched
when the top page of the list is displayed,
the last page is displayed.
: By touching this touch−screen but-
ton, the list moves down by 5 folder
groups. If this touch−screen button is
touched when the last page of the list is
displayed, the top page is displayed.

AUDIO SYSTEM
170
SELECTING A DESIRED FILE

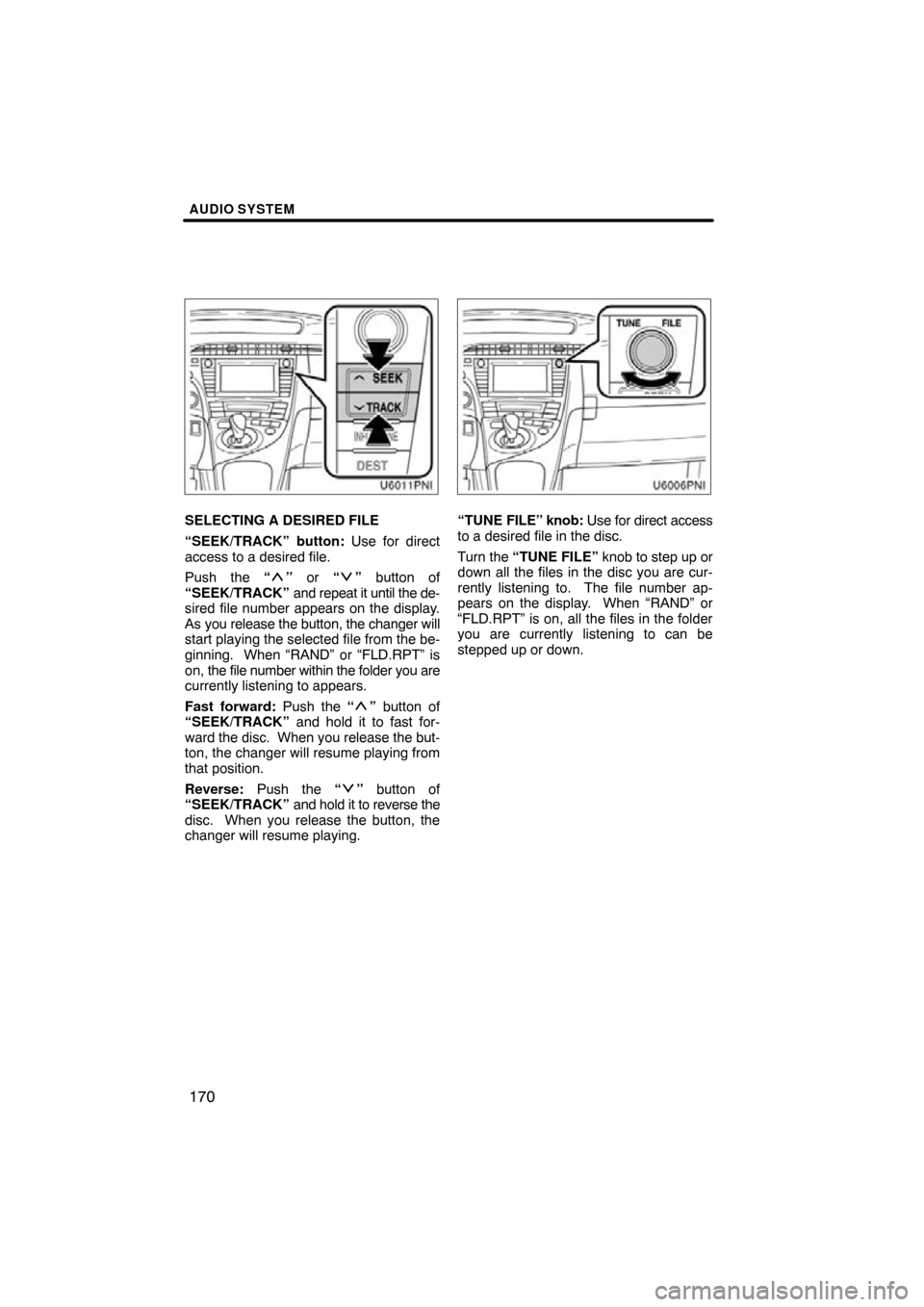

“SEEK/TRACK” button: Use for direct
access to a desired file.
Push the “
” or “” button of
“SEEK/TRACK” and repeat it until the de-
sired file number appears on the display.
As you release the button, the changer will
start playing the selected file from the be-
ginning. When “RAND” or “FLD.RPT” is
on, the file number within the folder you are
currently listening to appears.
Fast forward: Push the “
” button of
“SEEK/TRACK” and hold it to fast for-
ward the disc. When you release the but-
ton, the changer will resume playing from
that position.
Reverse: Push the “
” button of
“SEEK/TRACK” and hold it to reverse the
disc. When you release the button, the
changer will resume playing.
U6006vnia
“TUNE FILE” knob: Use for direct access
to a desired file in the disc.
Turn the “TUNE FILE” knob to step up or
down all the files in the disc you are cur-
rently listening to. The file number ap-
pears on the display. When “RAND” or
“FLD.RPT” is on, all the files in the folder
you are currently listening to can be
stepped up or down.
