bluetooth TOYOTA PRIUS 2011 3.G Navigation Manual

SETUP
289

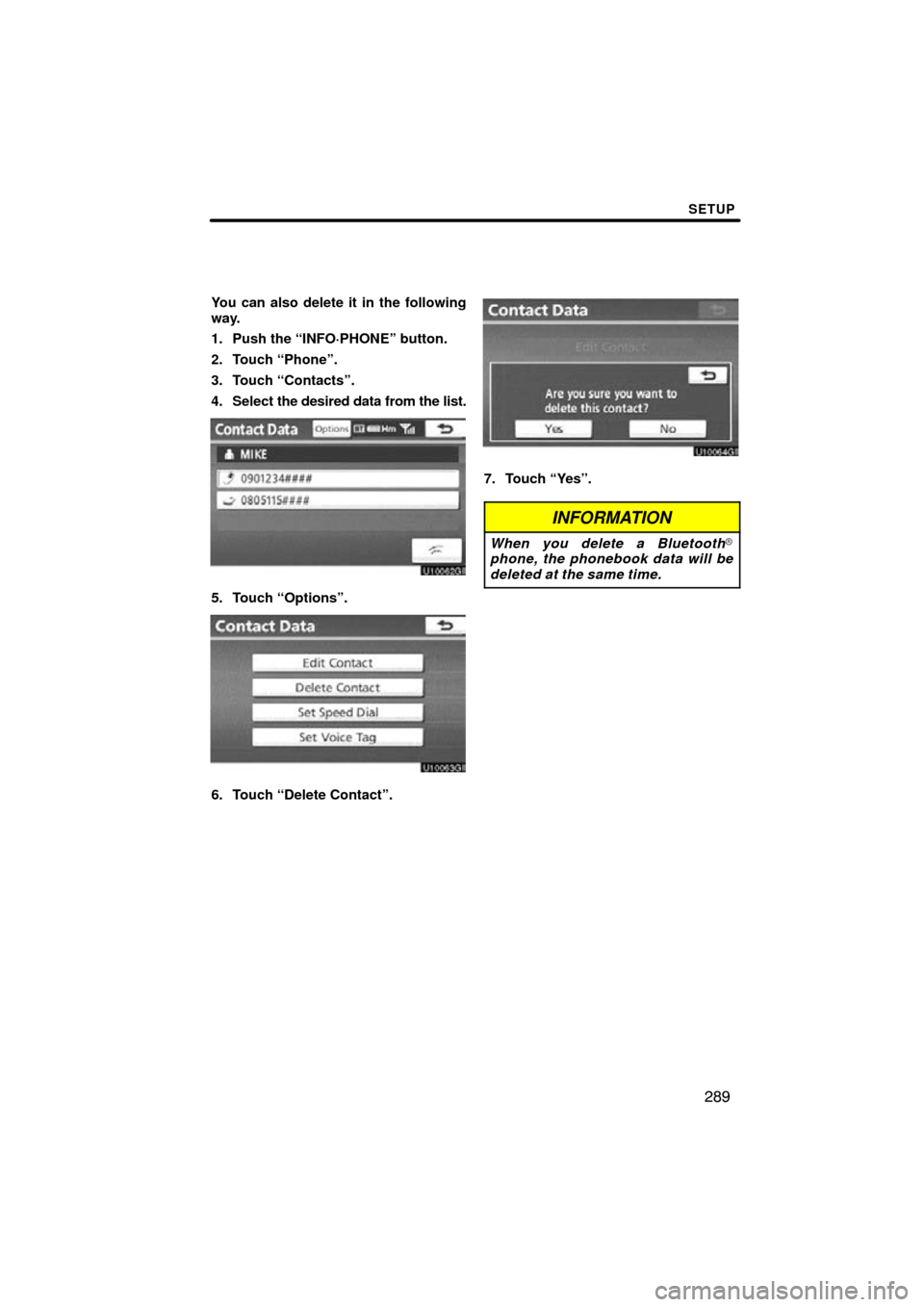

You can also delete it in the following
way.
1. Push the “INFO·PHONE” button.
2. Touch “Phone”.
3. Touch “Contacts”.
4. Select the desired data from the list.
5. Touch “Options”.
6. Touch “Delete Contact”.
7. Touch “Yes”.
INFORMATION
When you delete a Bluetooth
phone, the phonebook data will be
deleted at the same time.

SETUP
302
— Bluetooth

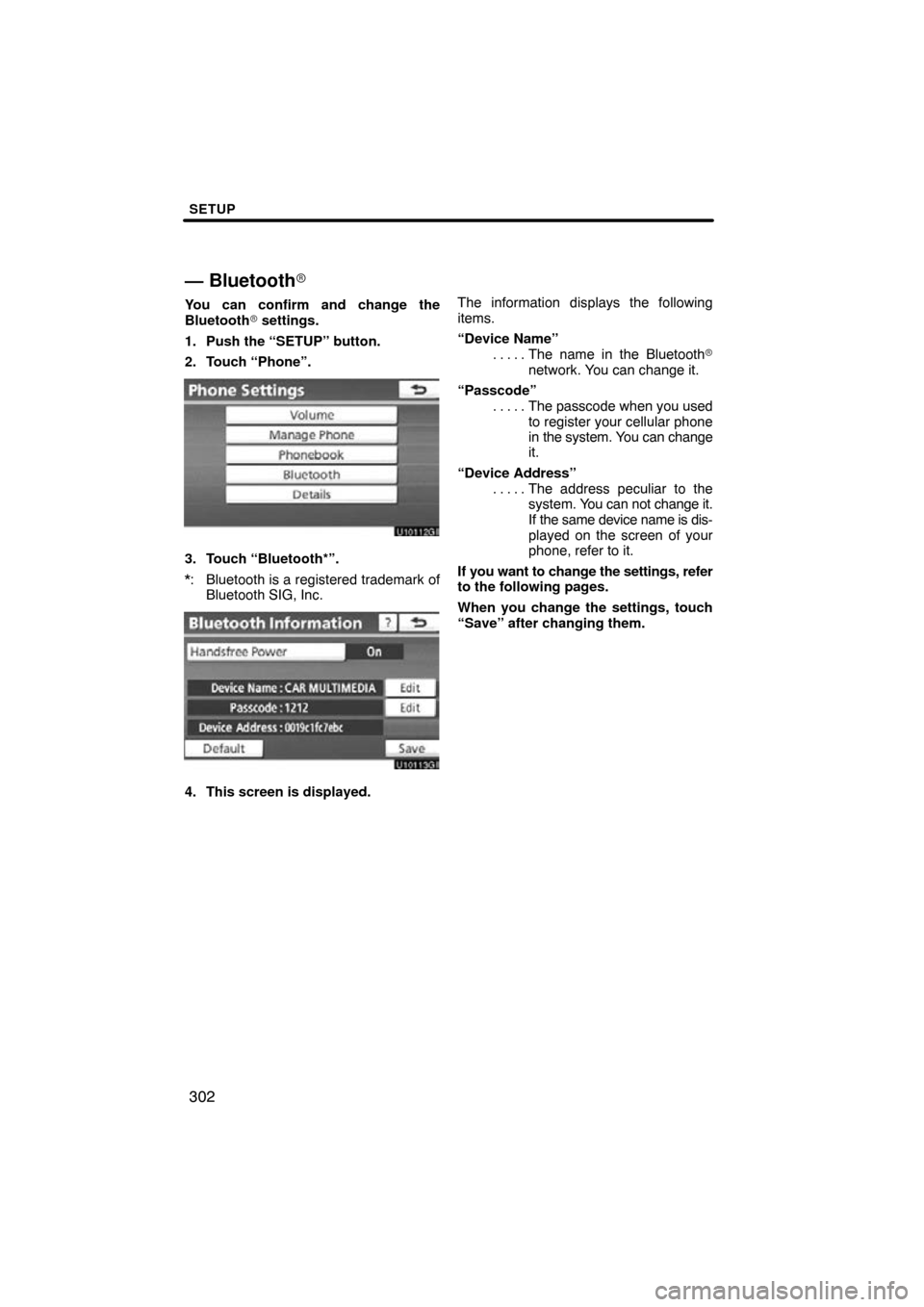

You can confirm and change the
Bluetooth settings.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Bluetooth*”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
4. This screen is displayed. The information displays the following
items.
“Device Name”
The name in the Bluetooth
. . . . .
network. You can change it.
“Passcode” The passcode when you used
. . . . .
to register your cellular phone
in the system. You can change
it.
“Device Address” The address peculiar to the
. . . . .
system. You can not change it.
If the same device name is dis-
played on the screen of your
phone, refer to it.
If you want to change the settings, refer
to the following pages.
When you change the settings, touch
“Save” after changing them.

SETUP
303

Changing the Bluetooth
 settings
You can change the Bluetooth set-
tings according to the following proce-
dures.

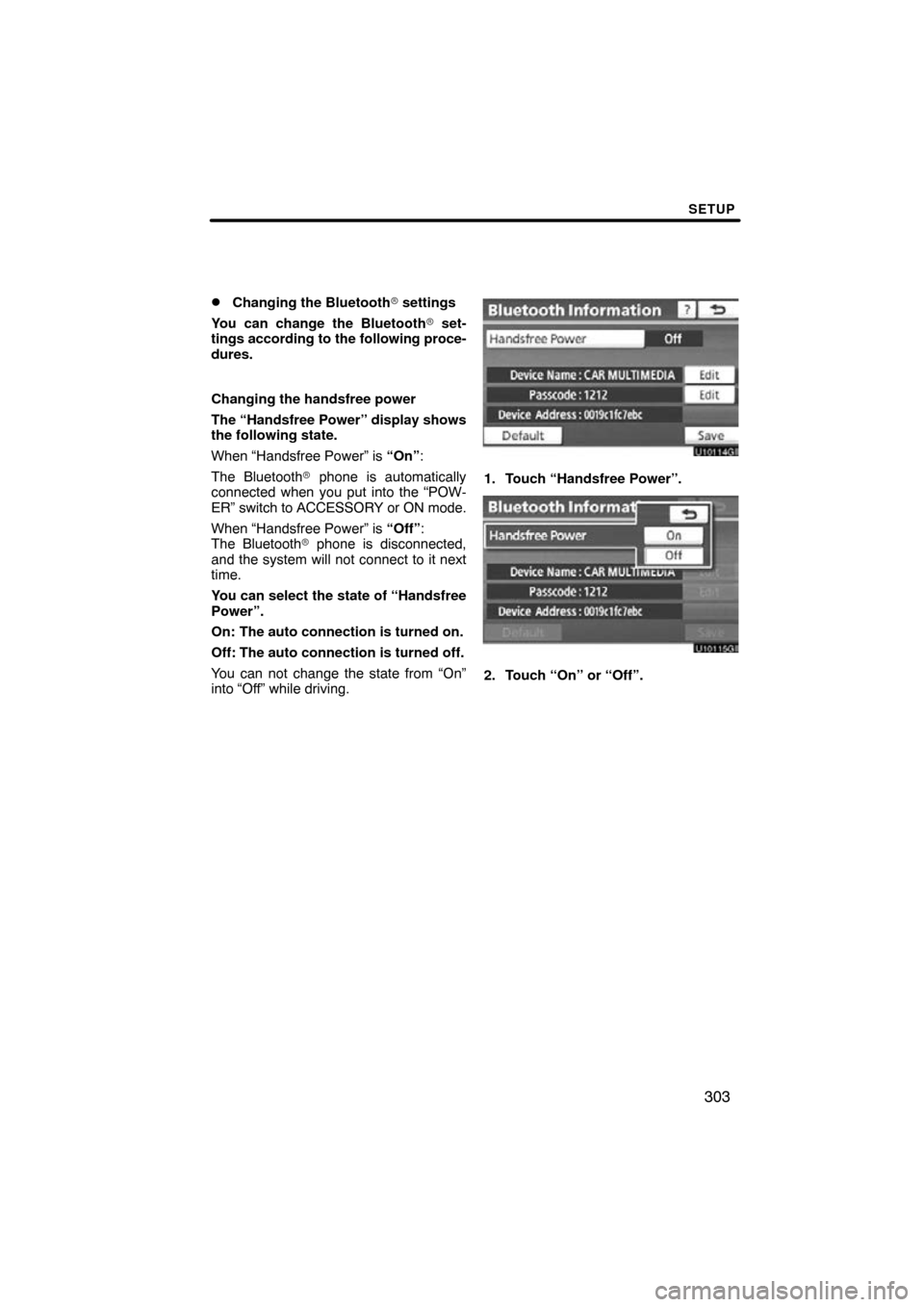

Changing the handsfree power
The “Handsfree Power” display shows
the following state.
When “Handsfree Power” is “On” :
The Bluetooth  phone is automatically
connected when you put into the “POW-
ER” switch to ACCESSORY or ON mode.
When “Handsfree Power” is “Off”:
The Bluetooth  phone is disconnected,
and the system will not connect to it next
time.
You can select the state of “Handsfree
Power”.
On: The auto connection is turned on.
Off: The auto connection is turned off.
You can not change the state from “On”
into “Off” while driving.
1. Touch “Handsfree Power”.
2. Touch “On” or “Off”.

SETUP
304
3. Touch “Save”.
In case that “Handsfree Power” is
changed from “Off” into “On”,
Bluetooth connection will begin.

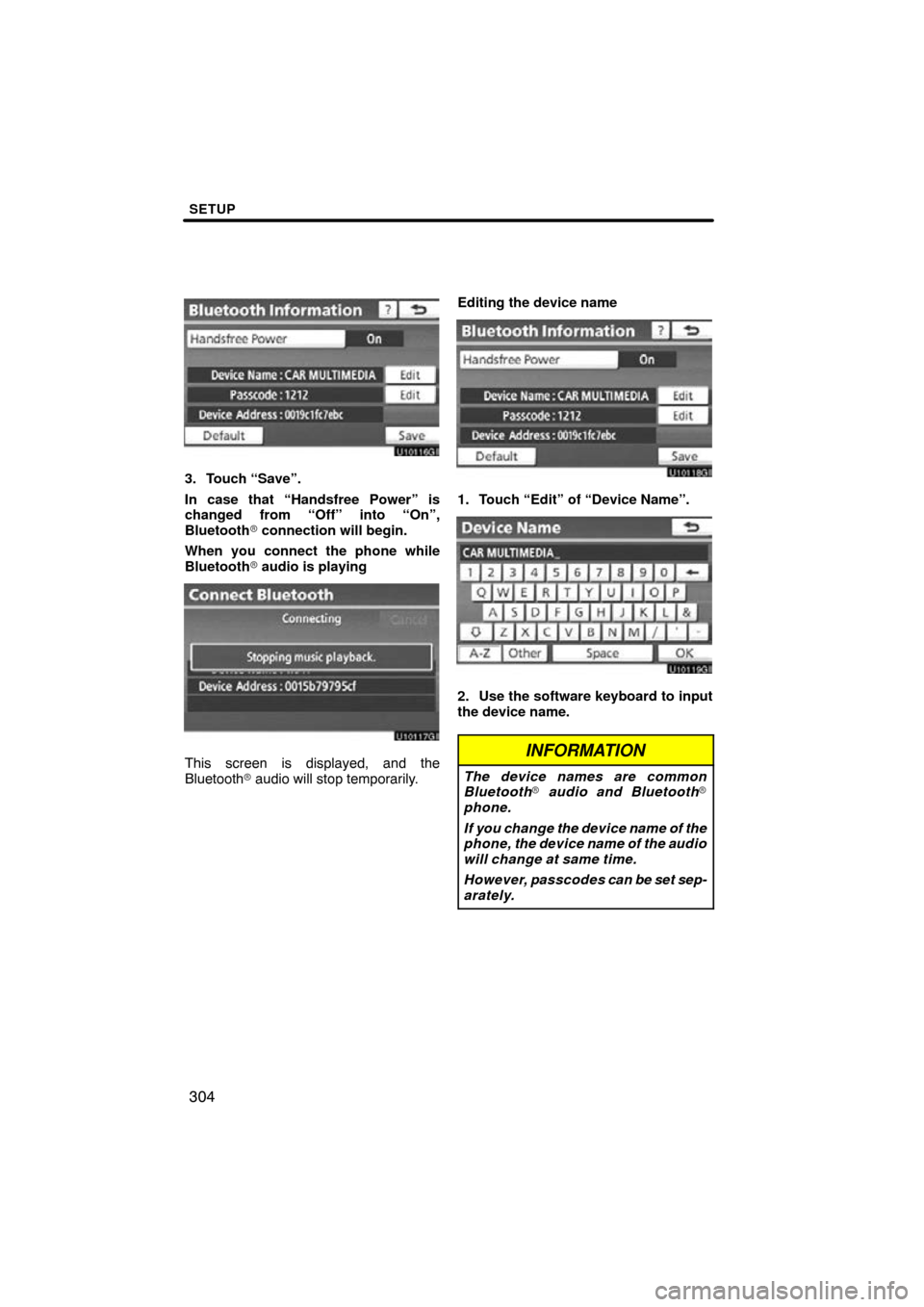

When you connect the phone while
Bluetooth  audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily. Editing the device name
1. Touch “Edit” of “Device Name”.
2. Use the software keyboard to input
the device name.
INFORMATION
The device names are common
Bluetooth
 audio and Bluetooth
phone.
If you change the device name of the
phone, the device name of the audio
will change at same time.
However, passcodes can be set sep-
arately.

SETUP
305

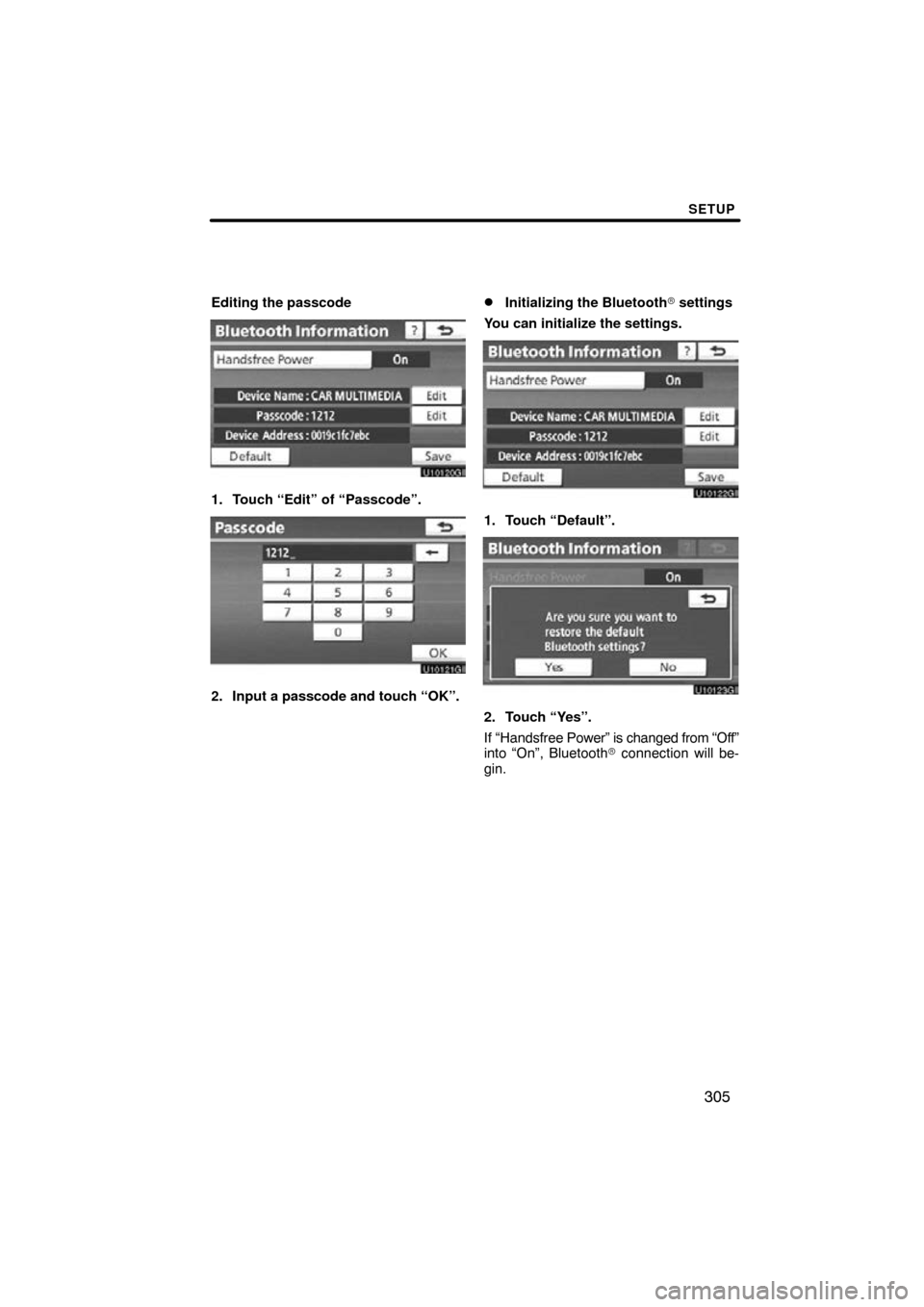

Editing the passcode
1. Touch “Edit” of “Passcode”.
2. Input a passcode and touch “OK”.
Initializing the Bluetooth settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
If “Handsfree Power” is changed from “Off”
into “On”, Bluetooth connection will be-
gin.

SETUP
306

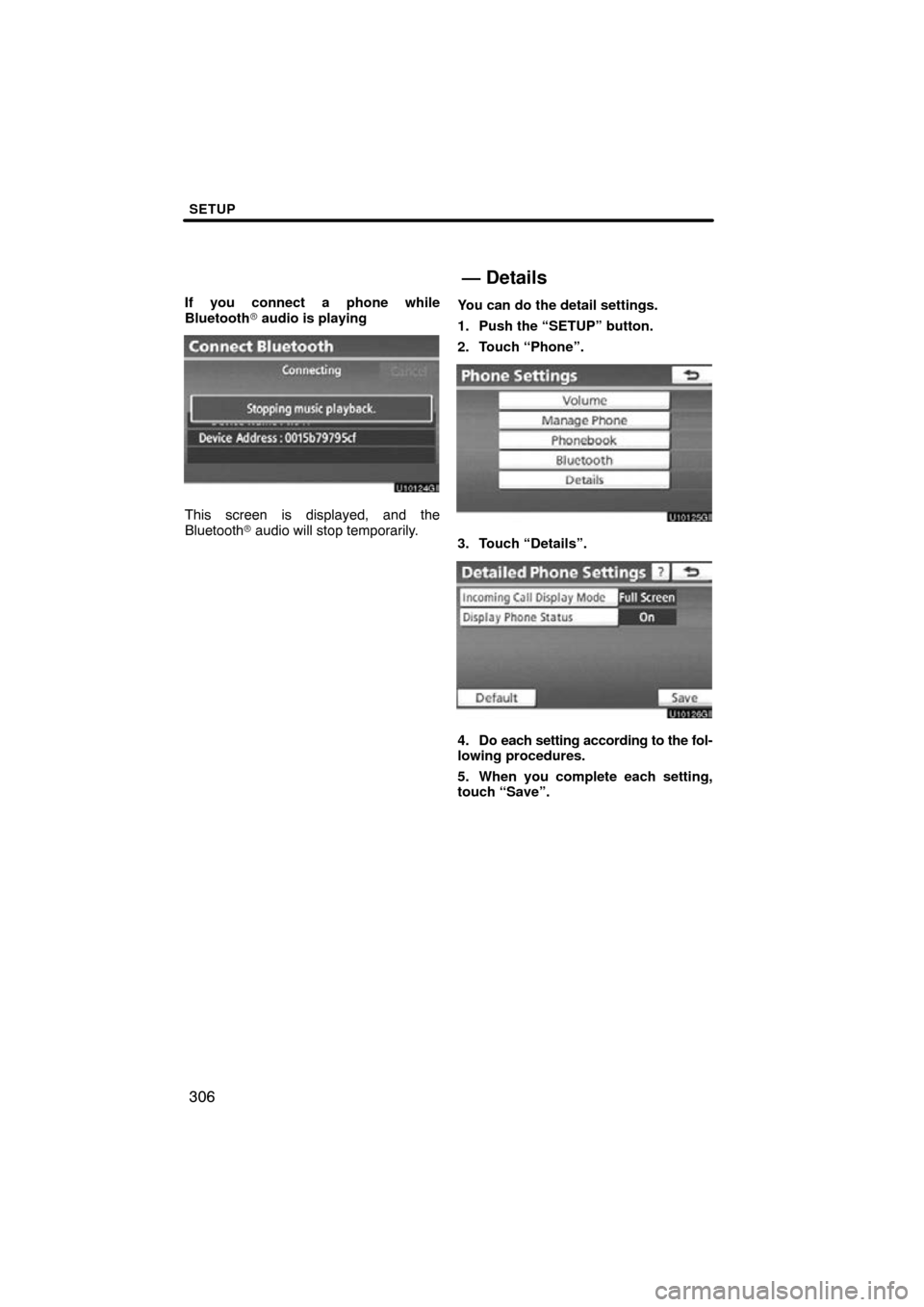

If you connect a phone while
Bluetooth audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily. You can do the detail settings.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Details”.
4. Do each setting according to the fol-
lowing procedures.
5. When you complete each setting,
touch “Save”.
— Details

SETUP
308

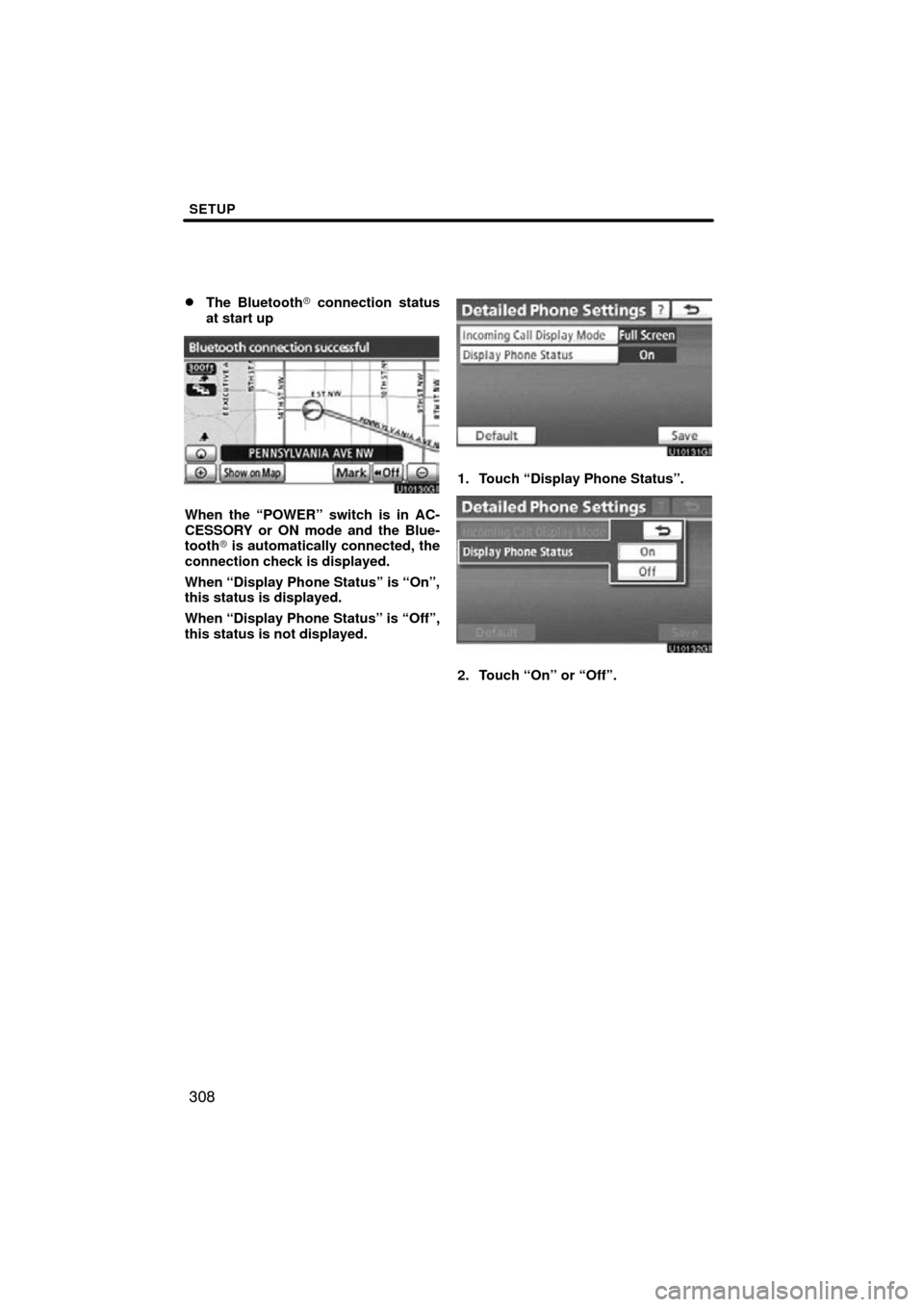

The Bluetooth
connection status
at start up
When the “POWER” switch is in AC-
CESSORY or ON mode and the Blue-
tooth  is automatically connected, the
connection check is displayed.
When “Display Phone Status” is “On”,
this status is displayed.
When “Display Phone Status” is “Off”,
this status is not displayed.
1. Touch “Display Phone Status”.
2. Touch “On” or “Off”.

SETUP
310
U10002GS

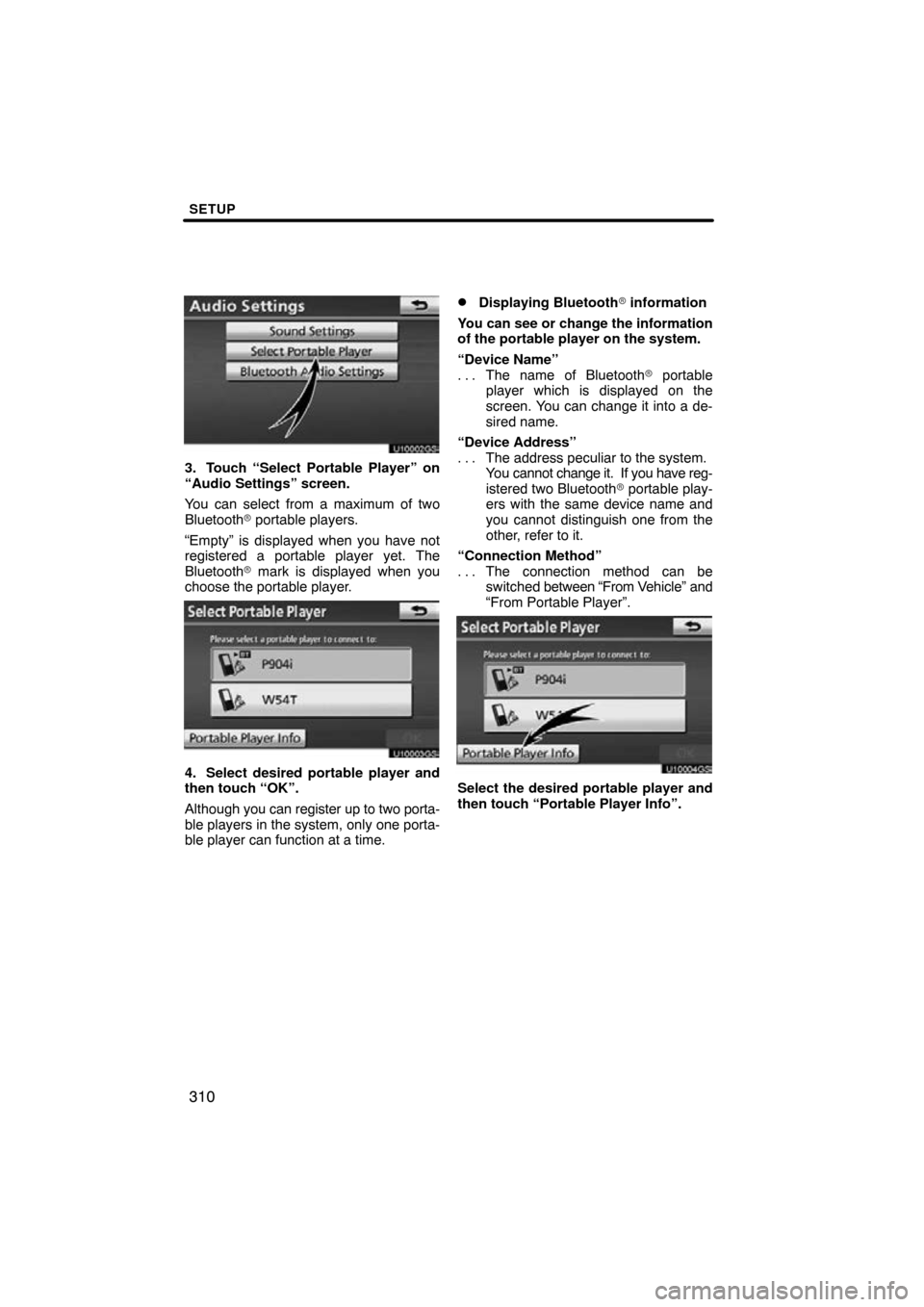

3. Touch “Select Portable Player” on
“Audio Settings” screen.
You can select from a maximum of two
Bluetooth portable players.
“Empty” is displayed when you have not
registered a portable player yet. The
Bluetooth  mark is displayed when you
choose the portable player.
U10003GS
4. Select desired portable player and
then touch “OK”.
Although you can register up to two porta-
ble players in the system, only one porta-
ble player can function at a time.
Displaying Bluetooth information
You can see or change the information
of the portable player on the system.
“Device Name” The name of Bluetooth  portable
. . .
player which is displayed on the
screen. You can change it into a de-
sired name.
“Device Address” The address peculiar to the system.
. . .
You cannot change it. If you have reg-
istered two Bluetooth  portable play-
ers with the same device name and
you cannot distinguish one from the
other, refer to it.
“Connection Method” The connection method can be
. . .
switched between “From V ehicle” and
“From Portable Player”.
U10004GS
Select the desired portable player and
then touch “Portable Player Info”.

SETUP
311

Changing a device name
You can change a device name. Even if
you change a device name, the name
registered in your portable player is not
changed.
U10004GS
1. Touch “Portable Player Info” on
“Select Portable Player” screen.
U10005GS
2. Touch “Edit” for “Device Name” on
“Portable Player Information” screen.
U10006GS
3. Use the software keyboard to input
the device name.
Selecting Connection method
The connection method can be se-
lected.
From Vehicle: Connect the audio sys-
tem to the portable player.
From Portable Player: Connect the por-
table player to the audio system.
U10007GS
Select desired connection method
“From Vehicle” or “From Portable
Player” and then touch “Save”.
INFORMATION
If the connection method is set to
“From Portable Player”, “Auto
Bluetooth
∗ Connect” cannot be
selected.
∗: Bluetooth is a registered trademark of Bluetooth SIG.Inc.

SETUP
312
The Bluetooth audio settings can be
set.
Registering your portable player
U10008GS
1. Touch “Bluetooth∗ Audio Settings”
on “Audio Settings” screen.
U9005TI
2. Touch “Register” of “Bluetooth∗
Audio” on “BT Audio Settings” screen.∗: Bluetooth is a registered trademark of
Bluetooth SIG.Inc.
U10010GS
3. When this screen is displayed, enter
the passcode displayed on the screen
into the portable player.
For the operation of the portable player,
see the manual that comes with it.
If you want to cancel the entry , touch “Can-
cel”.
U10011GS
4. When the connection is complete,
this screen is displayed.
You do not need to enter the portable play-
er in case of using the same one.
U10012GS
When this screen is displayed, follow the
guidance on the screen to try connection
again.
— Setting Bluetooth  audio
