fog light TOYOTA PRIUS 2011 3.G Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls
Voice command button1,2
“TRIP” button
Multi-information display button
Steering wheel climate controls
Cruise control
1
“LKA” switch1
Distance switch1
Telephone controls1,2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls
Mph or km/h button
Advanced Parking Guide System/Intelligent Parking Assist pre-support
switch
1,2
Power button
Multi-information display
Audio system or navigation system-integrated audio system
1,2
Text_123161M2.qxd 11/2/10 5:46 PM Page 2

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Air Conditioning system
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
“EV” switch1
“ECO MODE” switch
“PWR MODE” switch
Emergency flasher button
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Fuel filler door opener
Power rearview mirror control
Headlight cleaner switch
1
Solar ventilation switch1
Instrument panel light control
1If equipped2For vehicles with a navigation system, refer to the “ Navigation System
Owner’s Manual .”
Text_123161M2.qxd 11/2/10 5:46 PM Page 3

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Master warning1
Electric power steering system warning1
READY indicator
Front fog light indicator
Eco Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
Lane Keep Assist indicator
Pre-Collision System warning light1
High coolant temperature warning light1
Power Mode indicator
Text_123161M2.qxd 11/2/10 5:46 PM Page 5

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

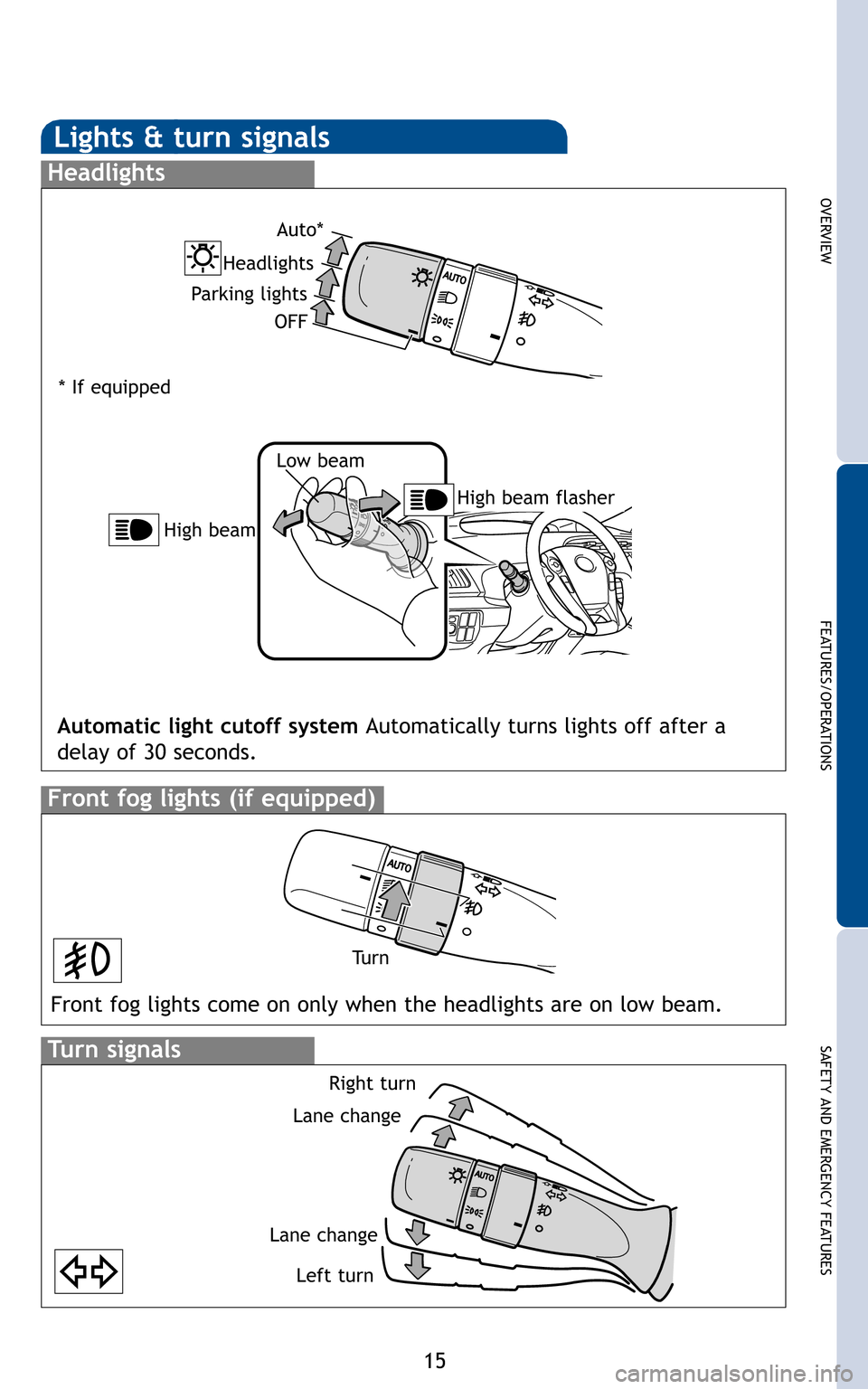

Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Automatic light cutoff system
Automatically turns lights off after a
delay of 30 seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
High beam
Auto*
Headlights
Parking lights
Turn
* If equipped OFF
Text_123161M2.qxd 11/2/10 5:46 PM Page 15
