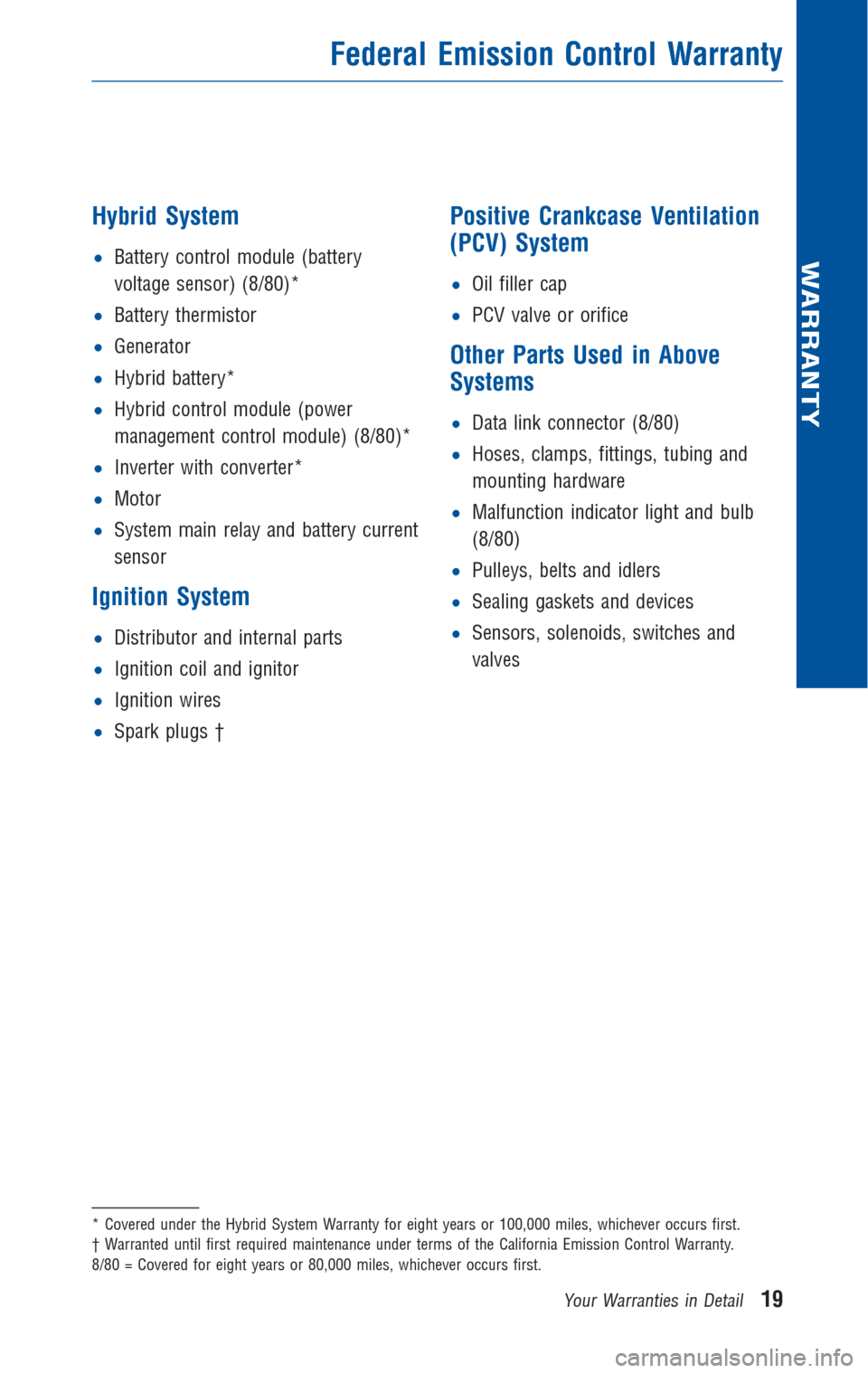

relay TOYOTA PRIUS 2011 3.G Warranty And Maintenance Guide

Hybrid System
•Battery control module (battery
voltage sensor) (8/80)*
•Battery thermistor
•Generator
•Hybrid battery*
•Hybrid control module (power
management control module) (8/80)*
•Inverter with converter*
•Motor
•System main relay and battery current
sensor
Ignition System
•Distributor and internal parts
•Ignition coil and ignitor
•Ignition wires
•Spark plugs †
Positive Crankcase Ventilation
(PCV) System
•Oil filler cap
•PCV valve or orifice
Other Parts Used in Above
Systems
•Data link connector (8/80)
•Hoses, clamps, fittings, tubing and
mounting hardware
•Malfunction indicator light and bulb
(8/80)
•Pulleys, belts and idlers
•Sealing gaskets and devices
•Sensors, solenoids, switches and
valves
* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
† Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail19
