TOYOTA PRIUS 2015 4.G Owners Manual

381
3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
3
Interior features

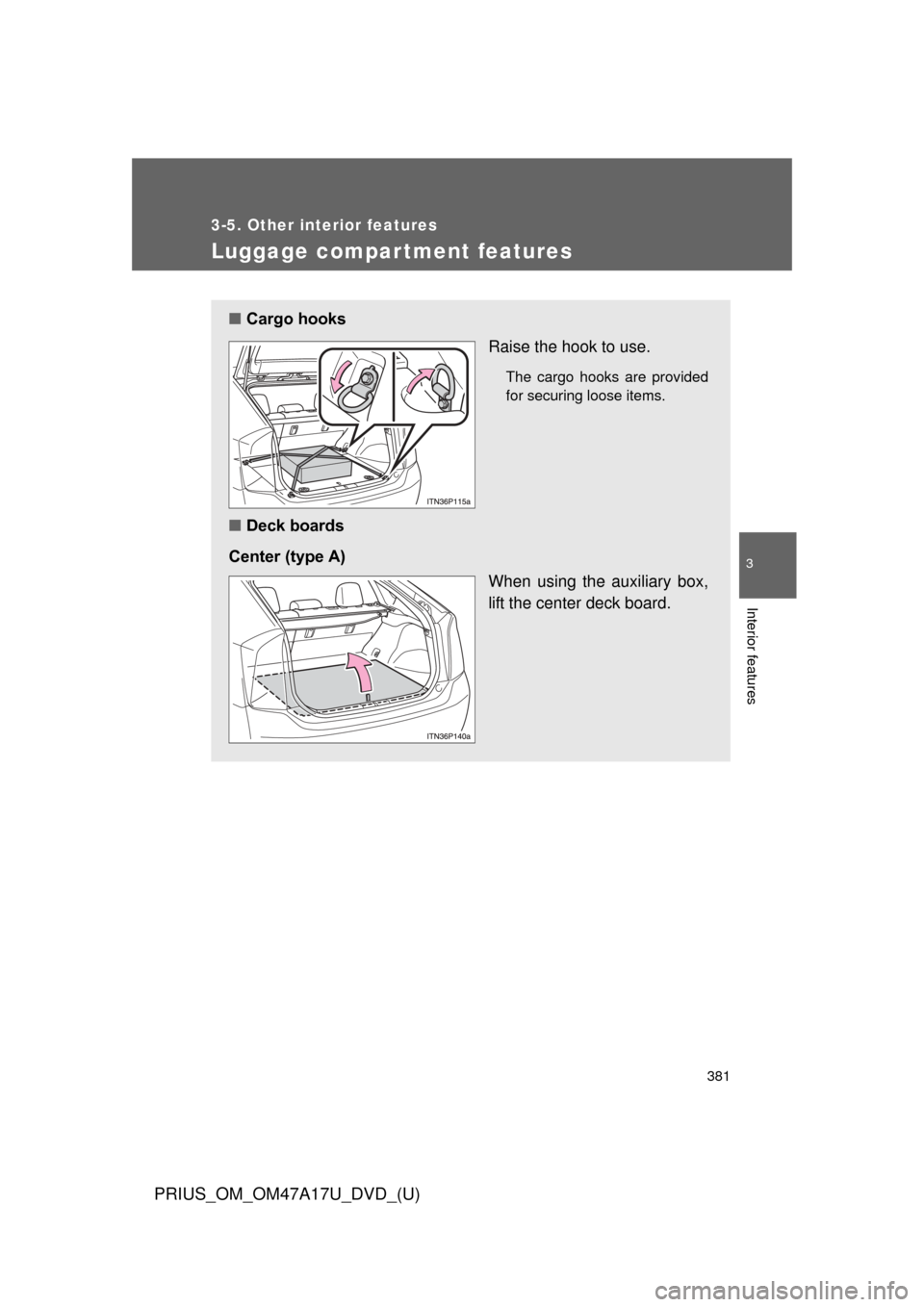

Luggage compar tment features
■Cargo hooks
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
■Deck boards
Center (type A) When using the auxiliary box,
lift the center deck board.

382 3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)

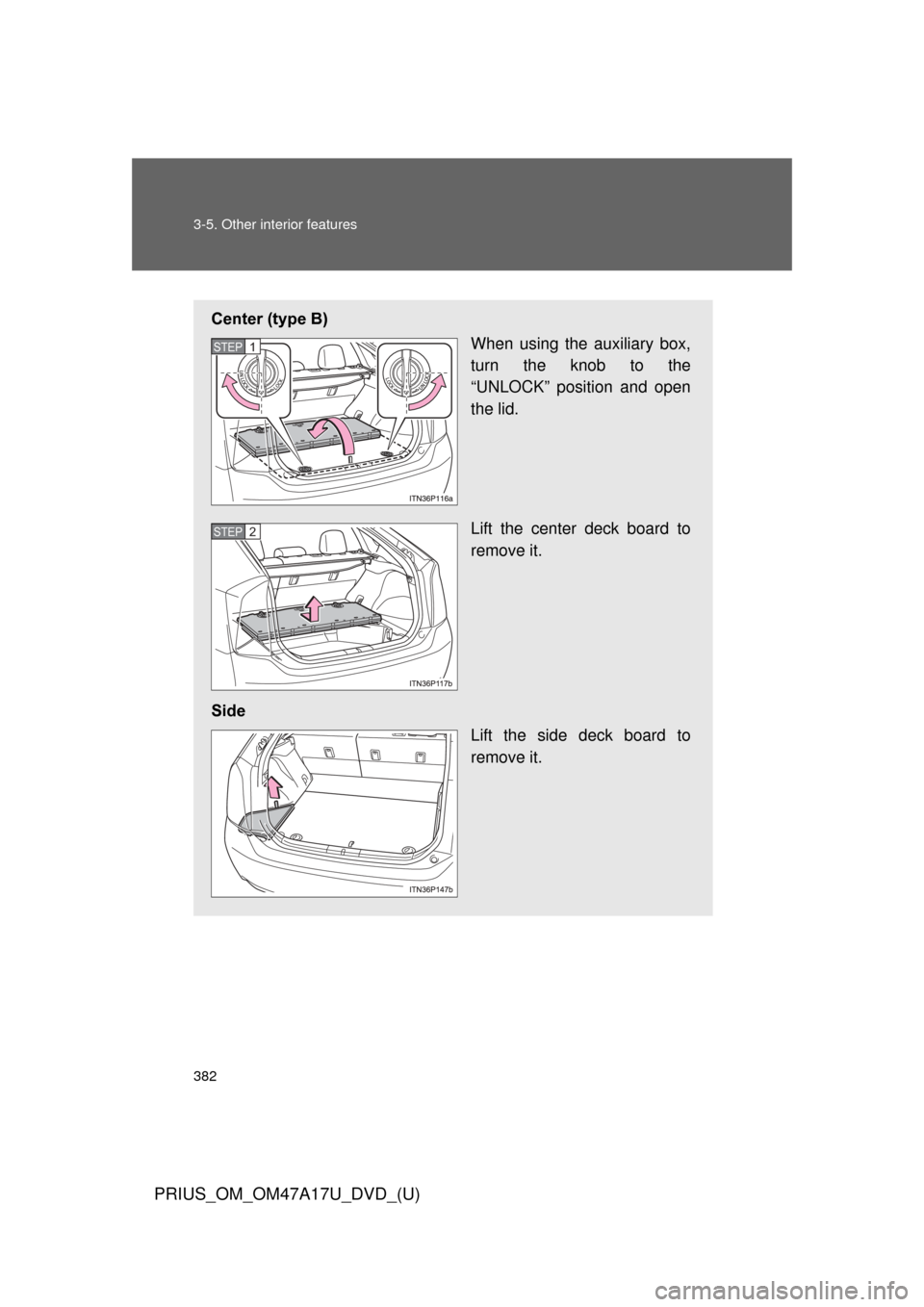

Center (type B)When using the auxiliary box,
turn the knob to the
“UNLOCK” position and open
the lid.
Lift the center deck board to
remove it.
Side Lift the side deck board to
remove it.
STEP 1
STEP 2

383
3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
3
Interior features
■

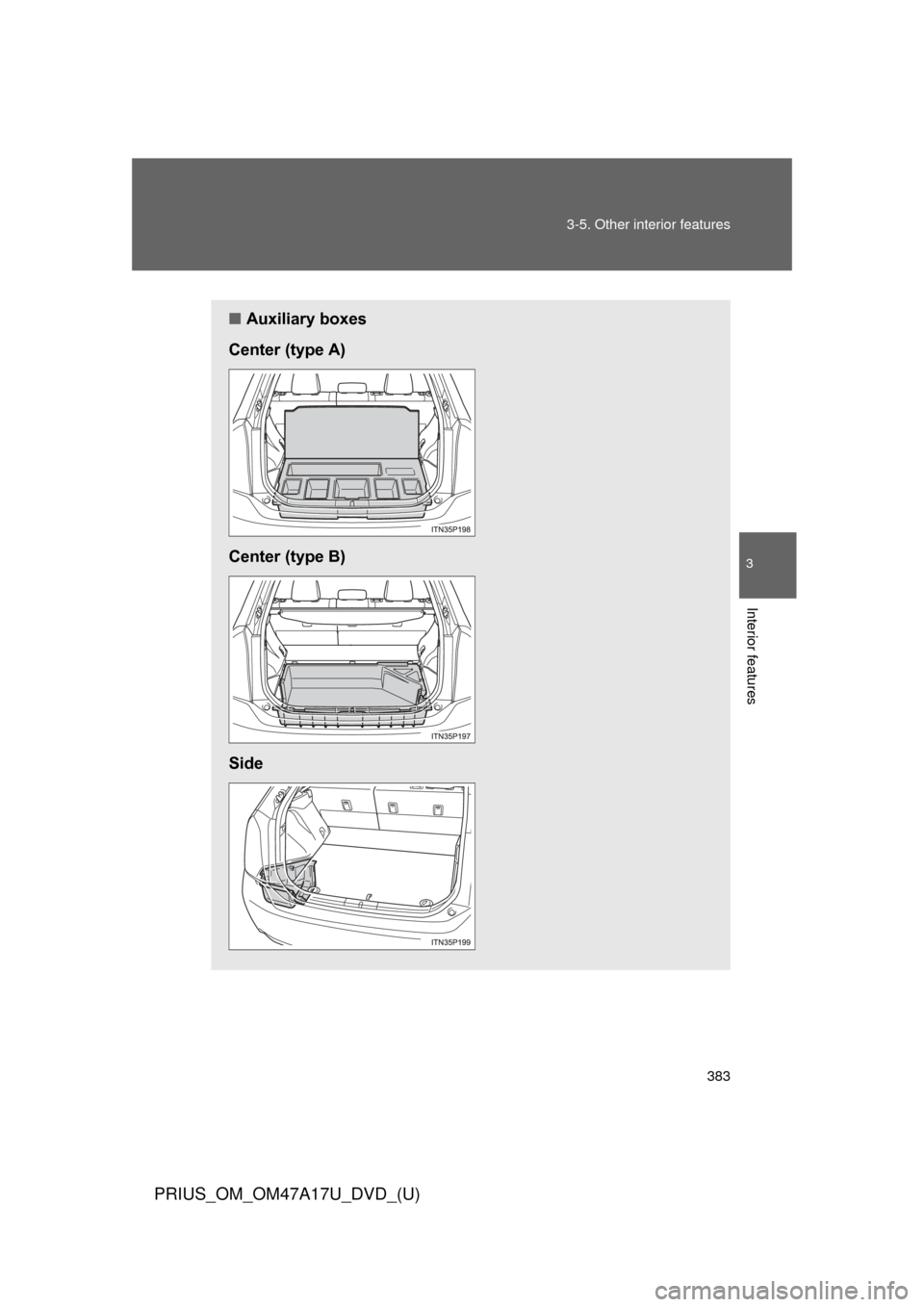

Auxiliary boxes
Center (type A)
Center (type B)
Side

384 3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
Removing the luggage coverLift it up.
■Luggage cover (if equipped)
Pull out the luggage cover and
secure it to the hook brackets.

385
3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
3
Interior features
Stowing the luggage cover (vehic
les with center auxiliary box
type B only)
Remove the side deck board and
open the center deck board.
Adjust the cover so that “TOP” is
facing up.
Replace the side deck board and the center deck board.
STEP 1
STEP 2
STEP 3

386 3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■ Caution while driving
Keep the lid of each storage spaces closed while driving. In the event of sud-
den braking or sudden swerving, an accident may occur due to an occupant
being struck by an open auxiliary box or the items stored inside.
■ Caution for the luggage cover
●Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
● Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, the view from the rear window may be
obstructed, which could cause an accident.
● Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.

387
3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
3
Interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator light
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems, secu-
rity systems, and other devices.

388 3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
■Programming HomeLink®
Point the remote control trans-
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink
®
buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the
transmitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both but-
tons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the
“Reprogramming a HomeLink
®
button” instructions. ( P. 392)
STEP 1
STEP 2

389
3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
3
Interior features
Test the HomeLink® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the
programmed HomeLink
® button.
The remote control transmitter is
of the rolling code type if the
HomeLink
® indicator light flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is
the rolling code type, proceed to
the heading “Programming a roll-
ing code system”.
Repeat the steps above to program another device for any of
the remaining HomeLink® buttons.
STEP 3
STEP 4

390 3-5. Other interior features
PRIUS_OM_OM47A17U_DVD_(U)
■Programming a rolling code s ystem (for U.S.A. owners)
If your device is rolling code e quipped, follow the steps under the
heading “Programming HomeLink
®” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle’s programmed HomeLink® button
for 2 seconds and release it. Repeat this step once again. The
garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and hold the button a third time, and
release after 2 seconds. This third press and release will complete
the programming process by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
® signal and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink® buttons.
STEP 1
STEP 2
STEP 3
STEP 4
