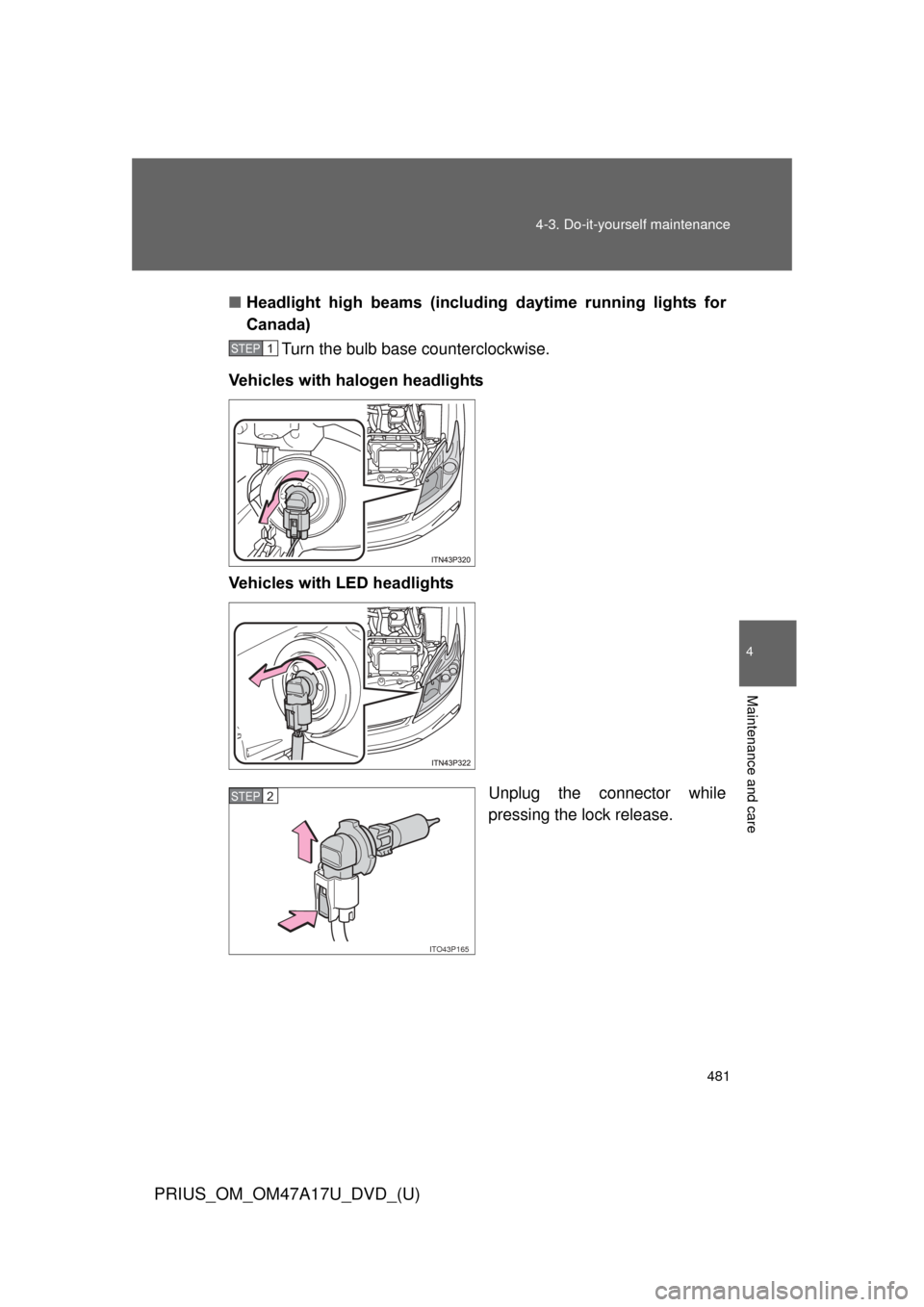

Headlight high beams (includi ng daytime running lights for
Canada)
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Unplug the connector while
pressing the lock release.
STEP 1
ITO43P165
STEP 2

482 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)

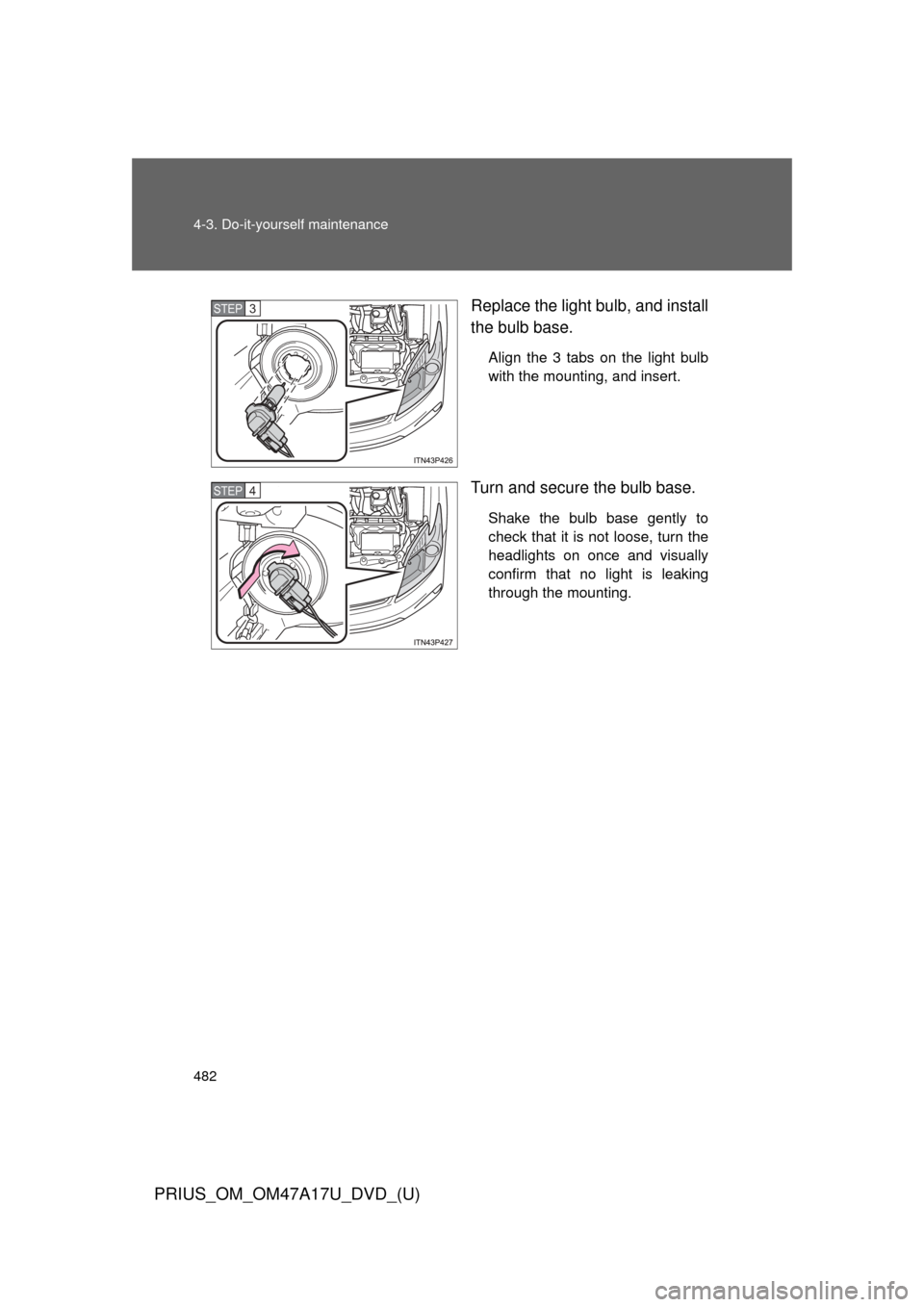

Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP 3
STEP 4

483
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
4
Maintenance and care
■

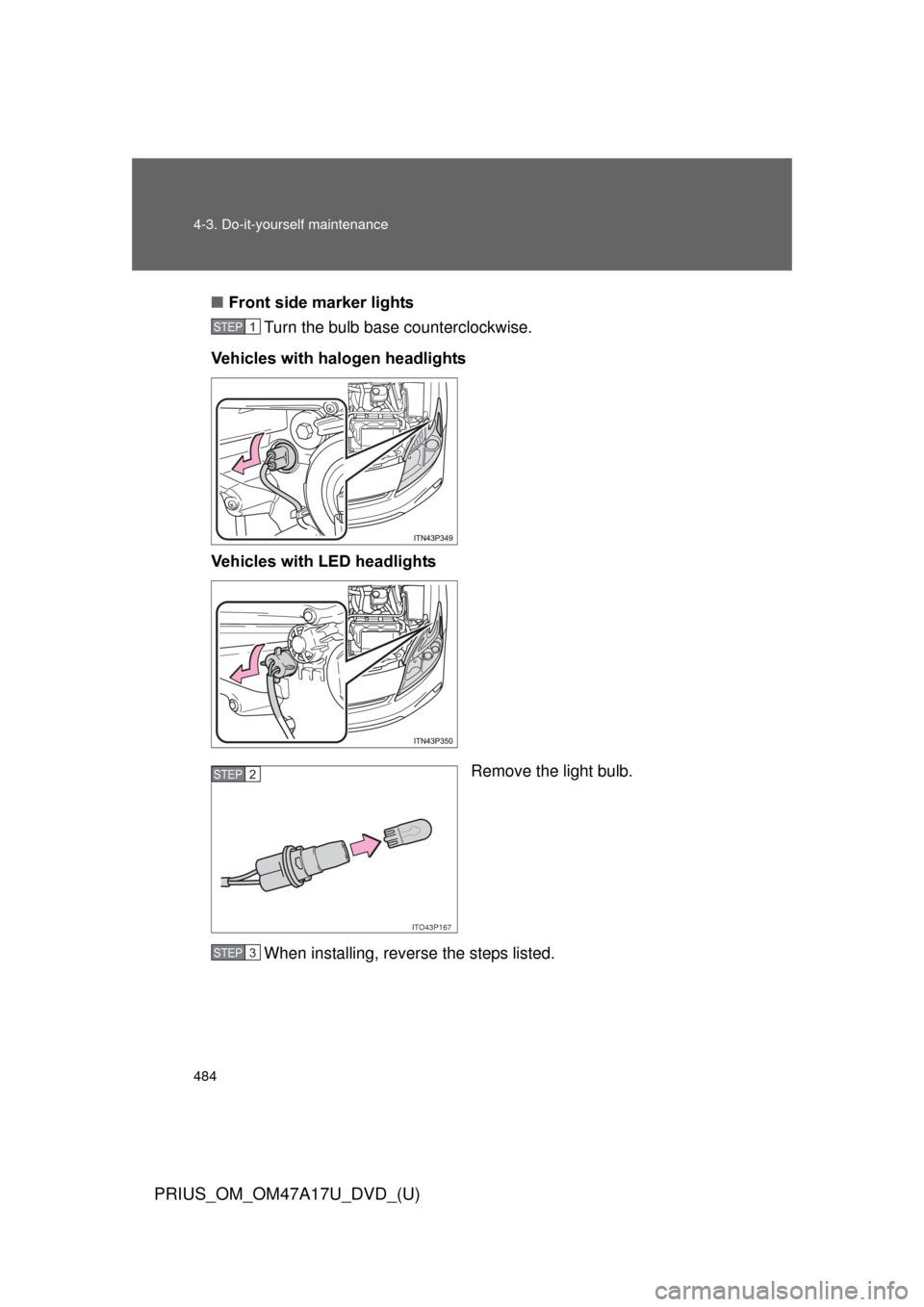

Parking lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3

484 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)

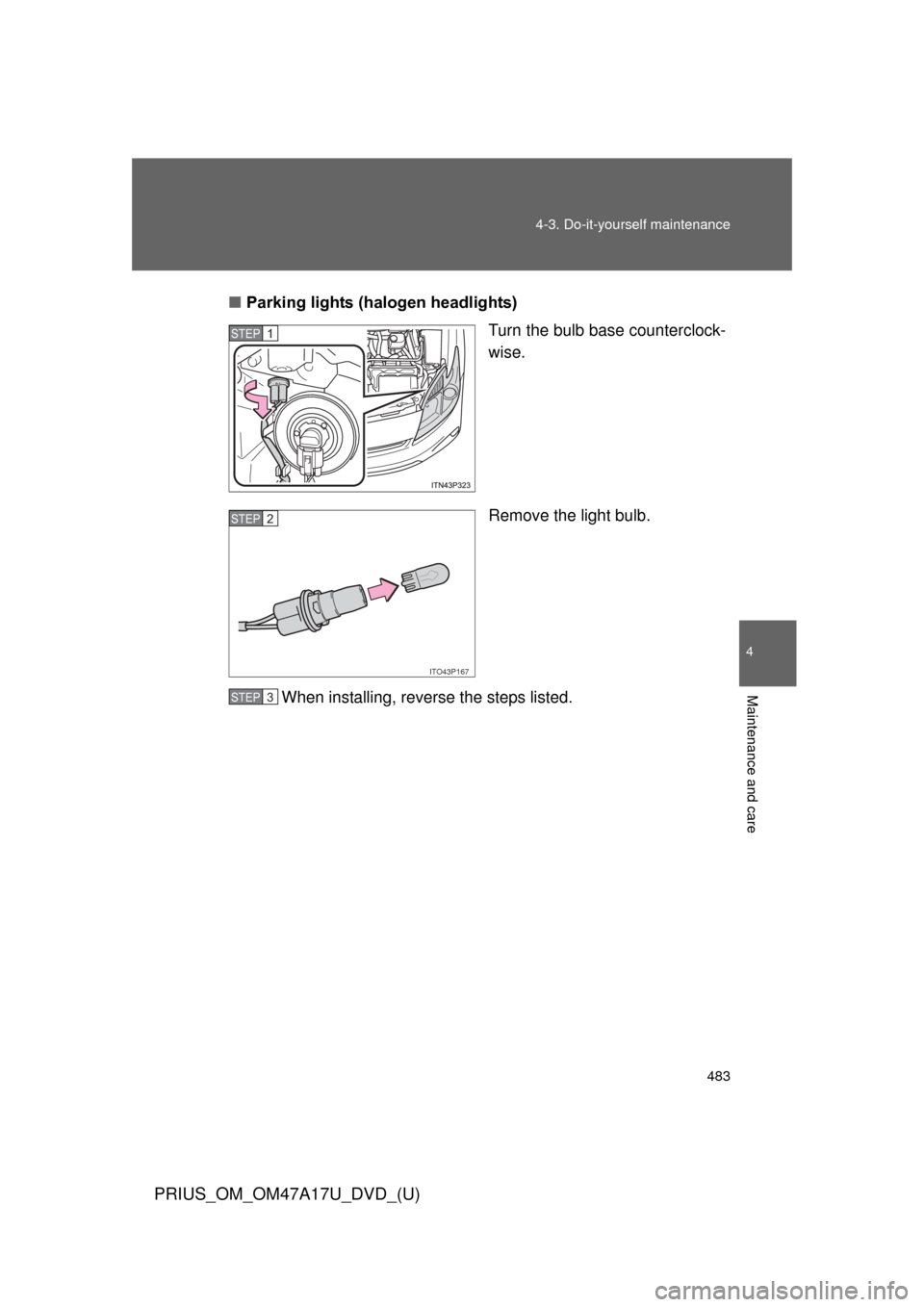

■Front side marker lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with LED headlights
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P167
STEP 2
STEP 3

485
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
4
Maintenance and care
■

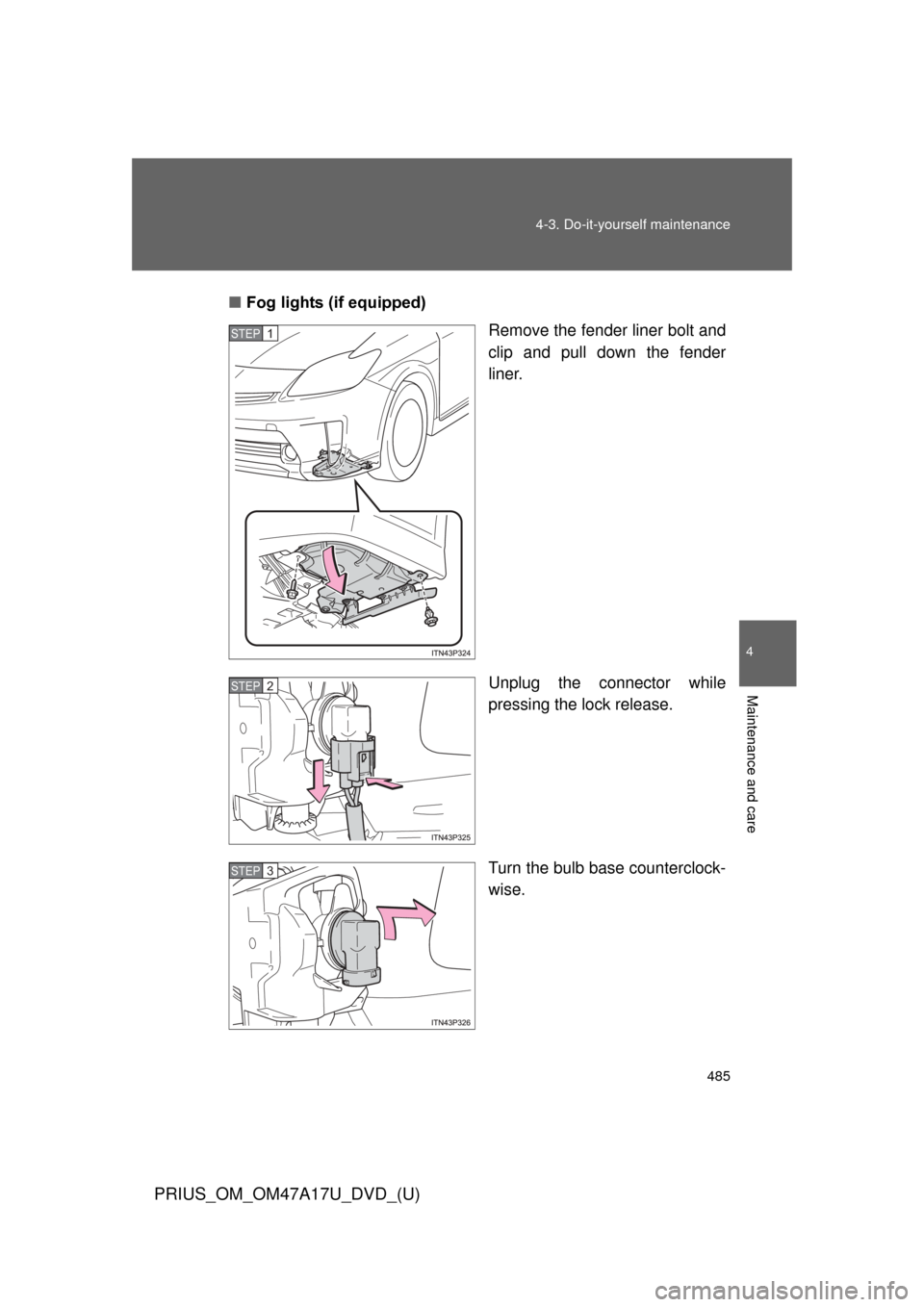

Fog lights (if equipped)
Remove the fender liner bolt and
clip and pull down the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 3

486 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
When installing, reverse the steps listed.
After installing the bulb base, shake the bulb base gently to check
that it is not loose.

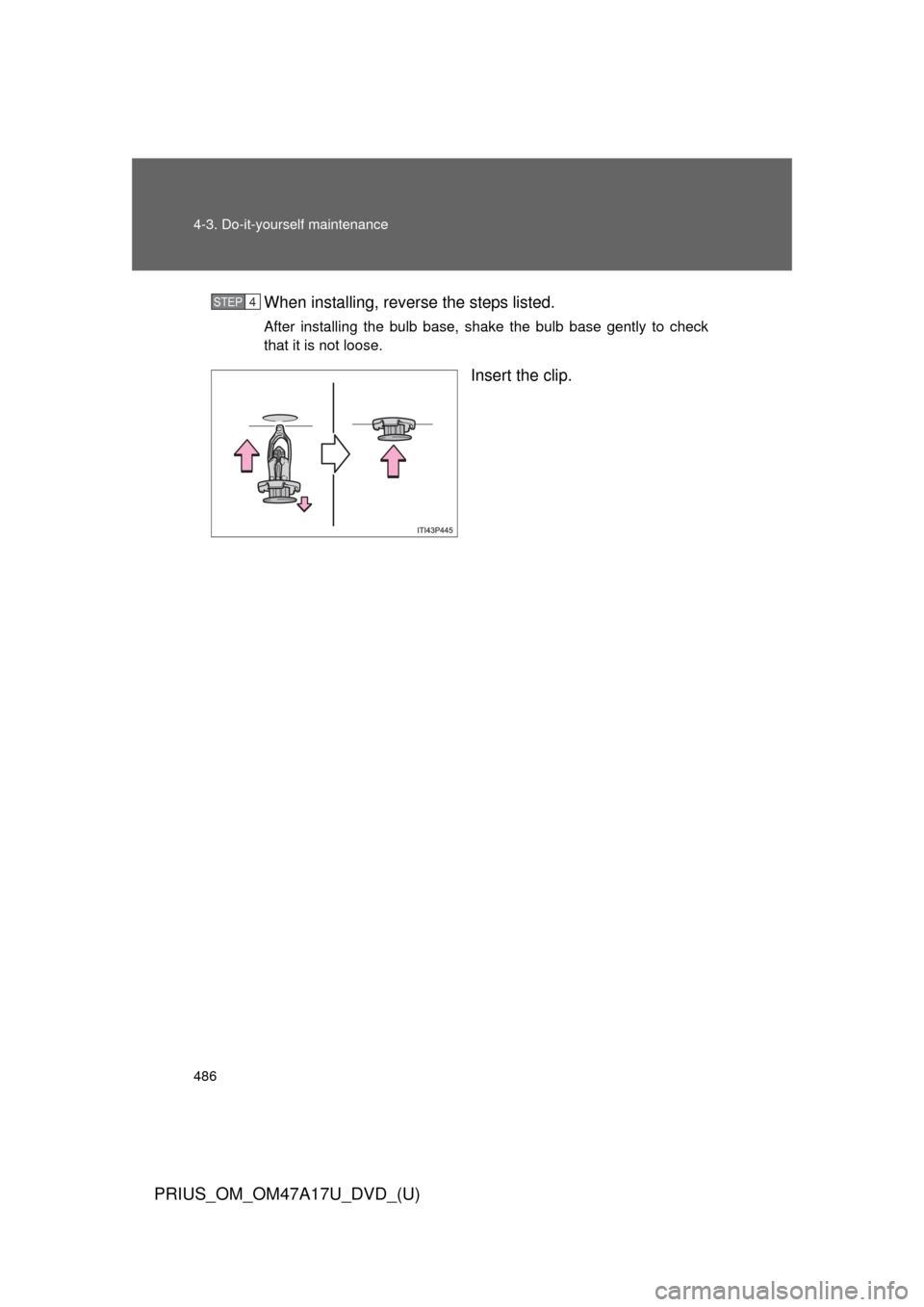

Insert the clip.
STEP 4

487
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
4
Maintenance and care
■

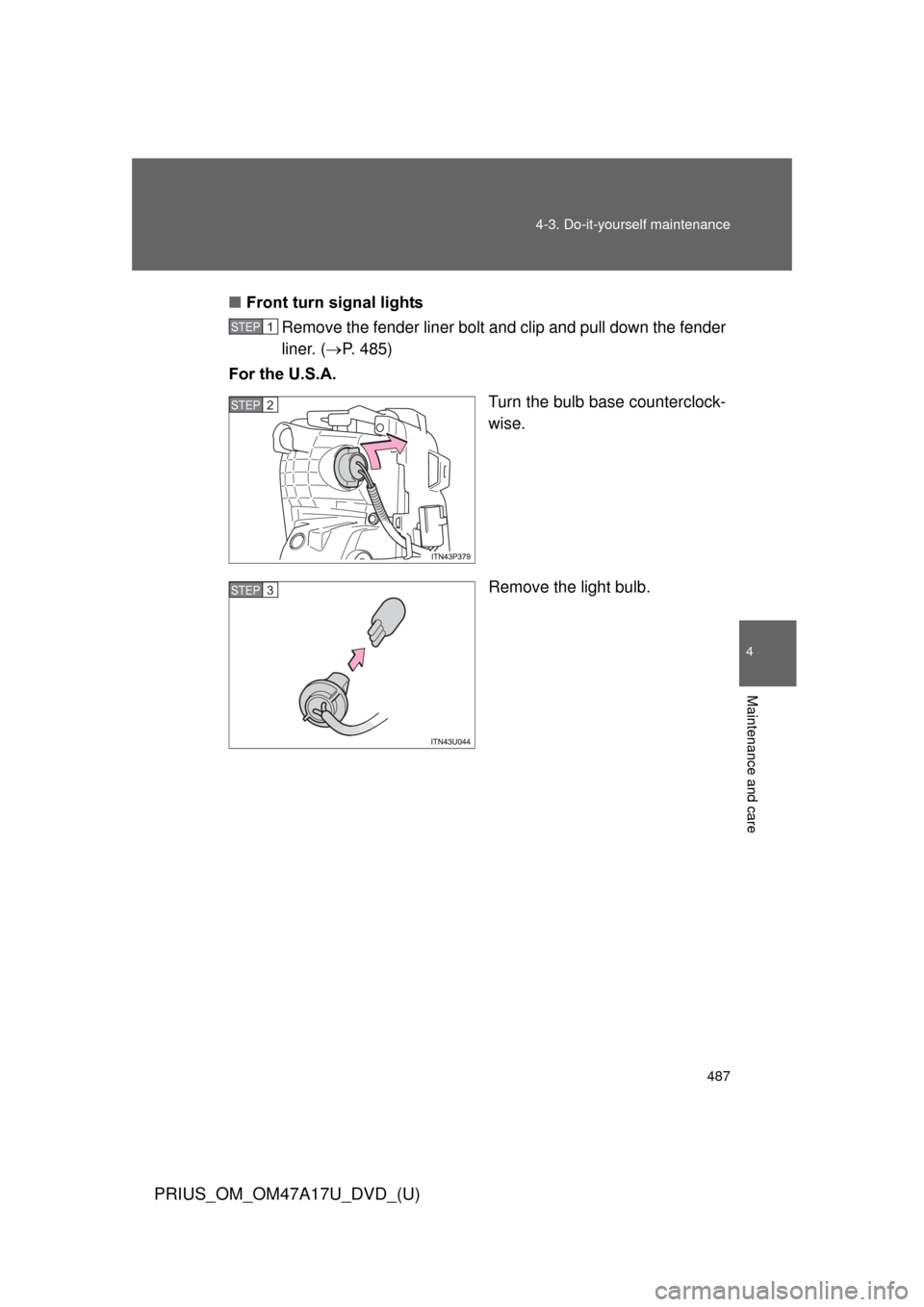

Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. ( P. 485)
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

488 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
For CanadaTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed. Insert the clip.
STEP 2
ITO43P144
STEP 3
STEP 4

489
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
4
Maintenance and care
■

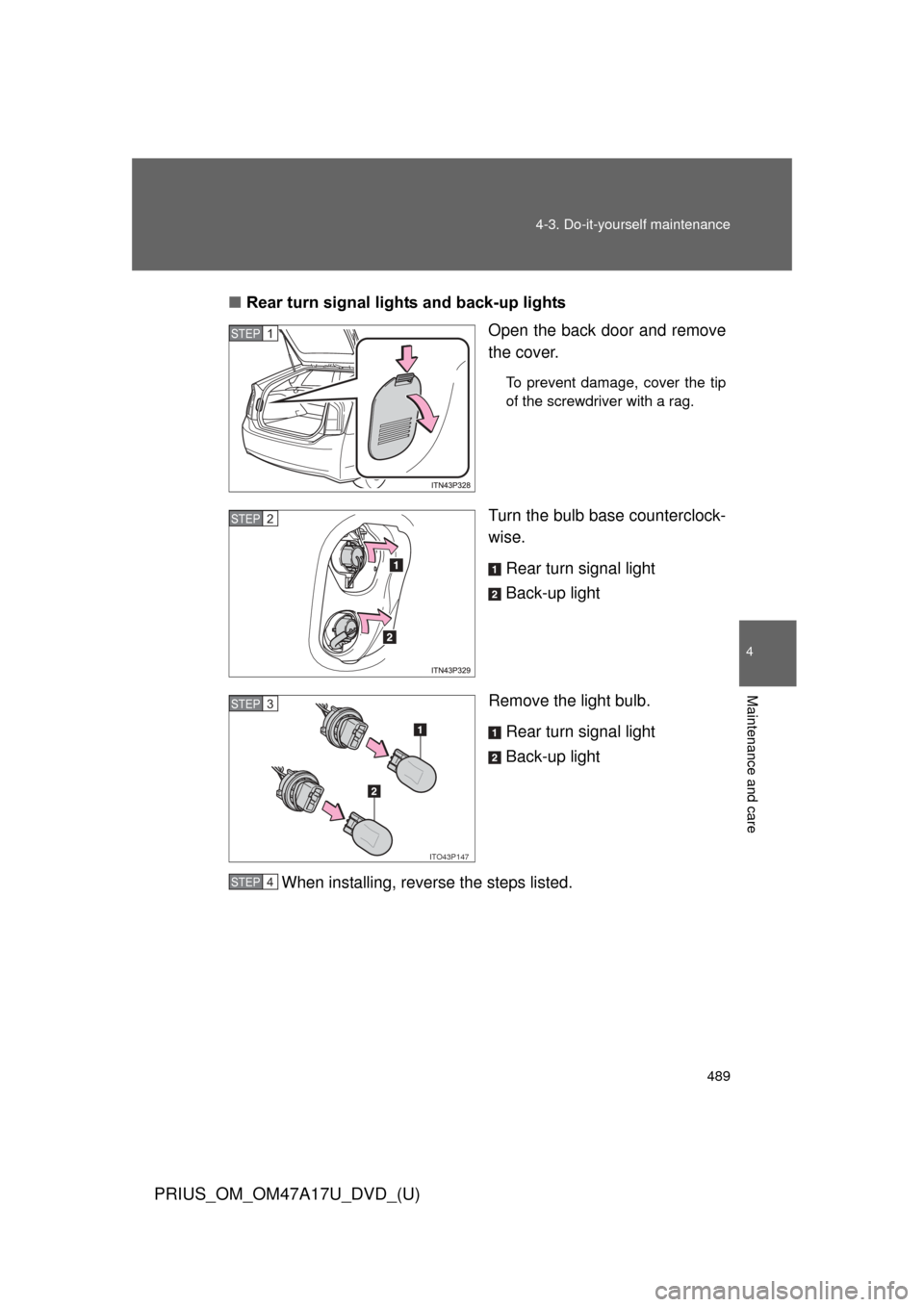

Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb. Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4

490 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)

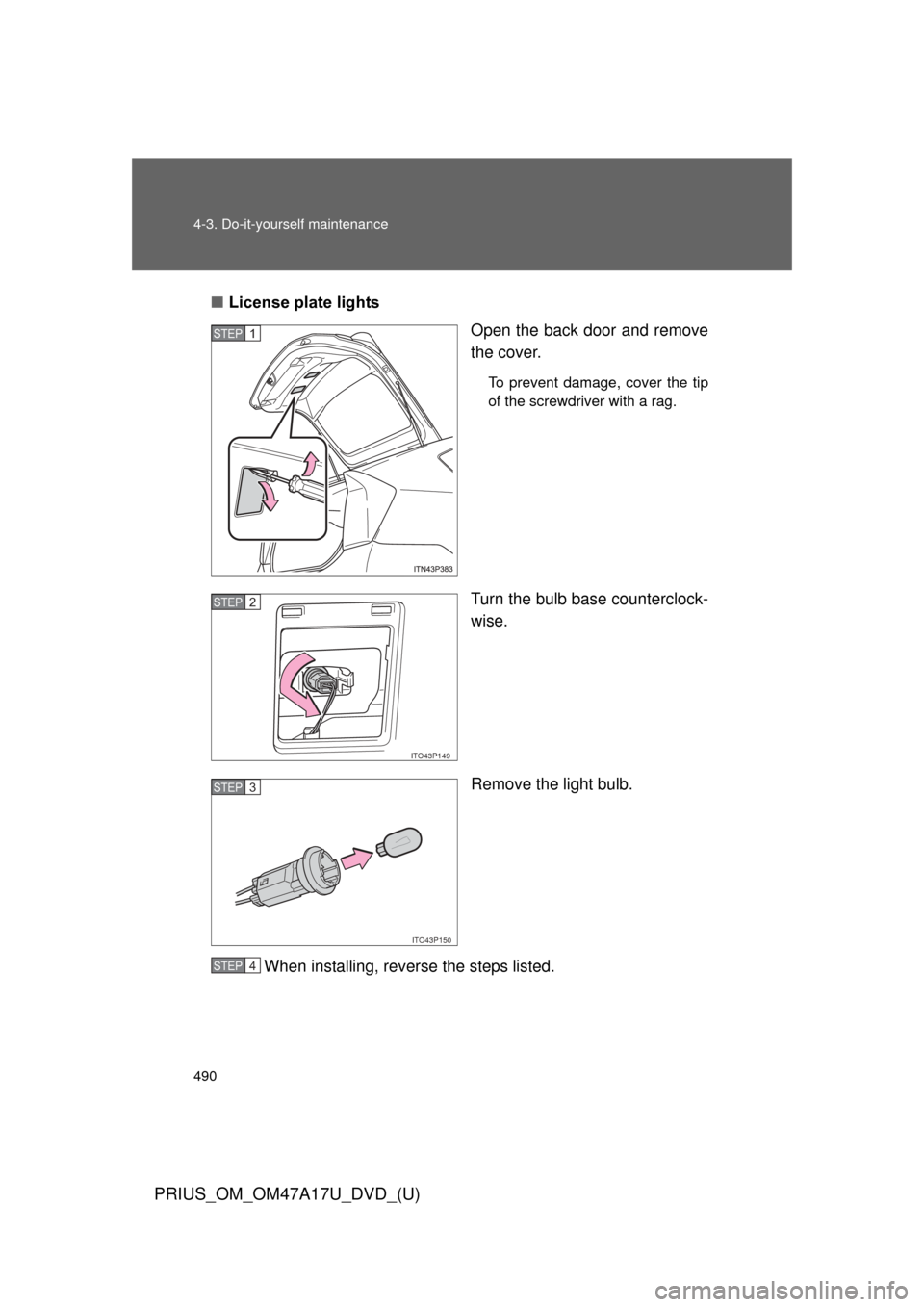

■License plate lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P149
STEP 2
ITO43P150
STEP 3
STEP 4
