81
1-3. Opening, closing and locking the doors
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
Antenna location a
nd effective range
■ Antenna location
Antennas inside cabin
■ Effective range (areas within which the electronic key is
detected)
When starting the hybrid system
or changing “POWER” switch
modes
The system can be operated
when the electronic key is inside
the vehicle.

82 1-3. Opening, closing and locking the doors
PRIUS_OM_OM47A17U_DVD_(U)
■Conditions affecting operation
P. 7 3
■ Electronic key battery depletion
P. 7 7
■ To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The door lock prevention may not operate.)
■ Note for the smart key system
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly.
For example, the electronic key is on the instrument panel, luggage
cover, floor or in the door pockets or glove box when the hybrid system is
started or “POWER” switch modes are changed.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.

83
1-3. Opening, closing and locking the doors
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
■
Alarms and warning indicators
A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents resulting from erroneous operation.
Take appropriate measures in response to any warning message shown on
the multi-information display. (P. 531)
The following table describes circumstances and correction procedures
when only alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
5 seconds An attempt was made to
lock the vehicle while a
door is open Close all of the doors
and lock the doors
again
Interior alarm
pings continu-
ously
*1
The “POWER” switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the “POWER” switch
was in ACCESSORY
mode) Turn the “POWER”
switch off and close
the driver’s door
Interior alarm
sounds continu-
ously
*1
When the “POWER”
switch is in ON mode or
ACCESSORY mode, an
attempt was made to open
the door and exit the vehi-
cle, and the shift position
was not in P Shift the shift position
to P and turn the
“POWER” switch off
Interior and exte-
rior alarms sound
continuously
*1
When the “POWER”
switch is in ON mode or
ACCESSORY mode, the
driver’s door was closed
after the key was carried
outside the vehicle, and
the shift position not in P Shift the shift position
to P, turn the
“POWER” switch off
and close the driver’s
door again

84 1-3. Opening, closing and locking the doors
PRIUS_OM_OM47A17U_DVD_(U)
*1: A message will be shown on the multi-information display in the instru-ment cluster.
*2: If the hybrid system does not start when the electronic key is inside thevehicle, the electronic key battery may be depleted or there may be dif-
ficulties receiving signal from the key. ( P. 553)
■ If the electronic key do es not operate properly
P. 553
■ When the electronic key battery is fully depleted
P. 464
■ Customization
Settings (e.g. smart key system) can be changed.
(Customizable features P. 602)
AlarmSituationCorrection procedure
Interior alarm
pings once
*1
The electronic key has a
low battery Replace the electronic
key battery
An attempt was made to
start the hybrid system
without the electronic key
being present, or the elec-
tronic key was not func-
tioning normally Start the hybrid sys-
tem with the elec-
tronic key present
*2
Interior alarm
pings once and
exterior alarm
sounds 3 times
*1
The driver’s door was
closed after the key was
carried outside the vehicle,
and the “POWER” switch
was not turned OFF
Turn the “POWER”
switch off and close
the driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the
door while the “POWER”
switch was not OFF Bring the electronic
key back into the vehi-
cle

85
1-3. Opening, closing and locking the doors
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
■
Certification for the smart key system
P. 7 8
CAUTION
■Caution regarding interference with electronic devices
P. 7 9

86
1-3. Opening, closing and locking the doors
PRIUS_OM_OM47A17U_DVD_(U)

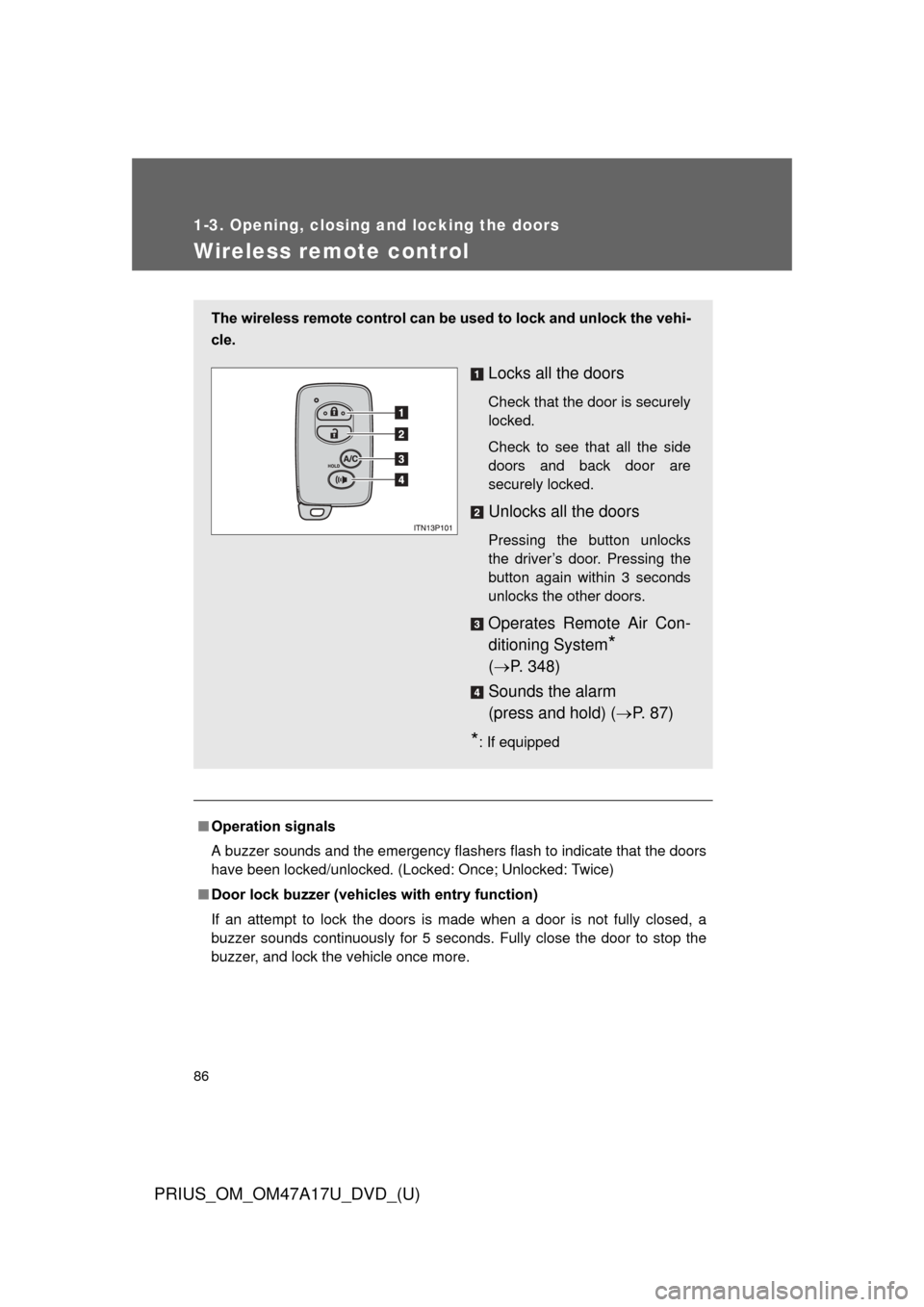

Wireless remote control
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer (vehicl es with entry function)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
The wireless remote control can be used to lock and unlock the vehi-
cle.
Locks all the doors
Check that the door is securely
locked.
Check to see that all the side
doors and back door are
securely locked.
Unlocks all the doors
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Operates Remote Air Con-
ditioning System
*
(  P. 348)
Sounds the alarm
(press and hold) ( P. 8 7 )
*: If equipped

87
1-3. Opening, closing and locking the doors
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
■
Panic mode
■ Security feature
P. 7 1
■ Conditions aff ecting operation
P. 7 3
■ If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. ( P. 553)
■ Electronic key battery depletion
P. 7 7
■ When the electronic key battery is fully depleted
P. 464
■ Customization
Settings (e.g. door unlocking function) can be changed.
(Customizable features P. 602)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the electronic key.

88
1-3. Opening, closing and locking the doors
PRIUS_OM_OM47A17U_DVD_(U)

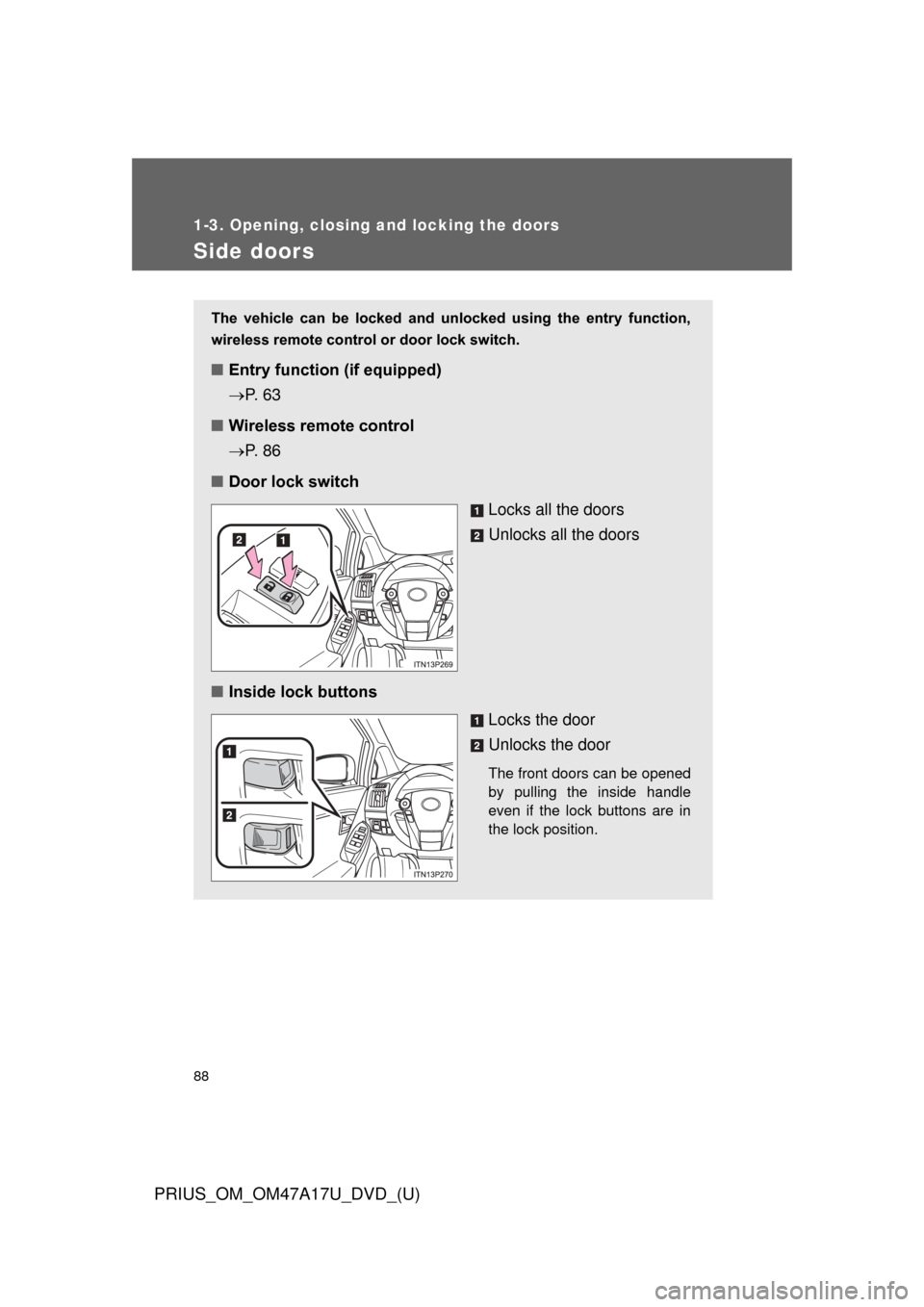

Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
■Entry function (if equipped)
P. 6 3
■ Wireless remote control
P. 8 6
■ Door lock switch
Locks all the doors
Unlocks all the doors
■ Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.

89
1-3. Opening, closing and locking the doors
1
Before driving
PRIUS_OM_OM47A17U_DVD_(U)
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “P OWER” switch is in ACCESSORY
or ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP 1
STEP 2

90 1-3. Opening, closing and locking the doors
PRIUS_OM_OM47A17U_DVD_(U)
Automatic door locking and unlocking systemsThe following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Close all the doors and switch the “POWER” switch to ON
mode. (Perform within 20 seconds.)
FunctionOperation
Shift position linked
door locking function Shifting the shift position out of P locks all
doors.
Shift position linked
door unlocking function Shifting the shift position to P unlocks all
doors.
Speed linked door lock-
ing function All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“POWER” switch off.
STEP 1
STEP 2
